Procurement Report: Air Suspension Systems

1. Technical Specifications and Performance Metrics

Air suspension systems function by utilizing air springs (airbags) to replace traditional steel coil or leaf springs, allowing for dynamic load management and adjustable ride heights. When procuring these systems, the following technical parameters and performance metrics are critical for defining requirements:

• Ride Height Adjustability: Systems typically offer a travel range of 100mm to 300mm (approx. 4 to 12 inches) depending on the application (e.g., slammed stance vs. heavy haul).
  • Constraint: Procurement must account for the fact that ride height cannot be set arbitrarily; it is limited by the physical clearance of the tire/wheel combination through the full motion of the suspension.
• Load Capacity & Pressure: Airbags operate within a pressure range of 20 PSI to 120 PSI depending on the load. Advanced management systems (e.g., RideTech E5 class) utilize sensors to automatically adjust bag pressure to maintain a level ride height regardless of passenger or cargo weight (0 to 2,000+ lbs additional load).
• System Components: A complete B2B procurement package should include:
  • Compressors: Typically 12V DC systems with duty cycles ranging from 50% to 100%.
  • Valves & Manifolds: Multi-port solenoid valves for independent corner control.
  • Tanks: Air reservoirs typically ranging from 2 to 5 gallons to ensure rapid cycle times.

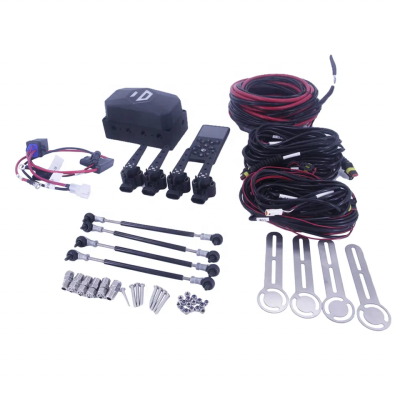

  • Sensors: Capacitive or potentiometric ride height sensors with an accuracy of ±2mm.
• Chassis Integration: For Independent Front Suspension (IFS) applications, specific control arms and narrowed track widths (typically 10mm to 25mm reduction per side) are required to accommodate larger wheel/tire combinations and prevent interference.

Procurement Recommendation: When defining technical specs, explicitly request "clearance verification" data for the specific tire/wheel combination intended for the vehicle. Do not assume standard spring rates apply; specify the required airbag volume and pressure curve to ensure the system can handle the maximum anticipated payload without bottoming out.

2. Industry Compliance and Quality Assurance

While specific certification names (e.g., ISO 9001) are not explicitly detailed in the provided context, the industry standard for air suspension relies heavily on component compatibility and system integrity.

• Component Compatibility: Quality assurance hinges on the match between the airbag, external shocks, and control arms. Systems like "SuperSlam IFS kits" are designed specifically for airbags and external shocks, ensuring the best fit for the application.
• Material Durability: Airbags must withstand repeated compression cycles and environmental exposure. Procurement should prioritize systems with reinforced rubber compounds and steel or composite end fittings.
• System Integration: The air management system (valves, compressors, tanks) must be compatible with the vehicle's electrical architecture (typically 12V). High-end systems require integration with smartphone control interfaces, necessitating robust Bluetooth or Wi-Fi connectivity standards.
• Safety Margins: Systems must be designed to prevent "over-slamming" or bottoming out, which can damage the chassis or suspension components.

Procurement Recommendation: Verify that the airbag and shock combination is a matched set (e.g., specific control arms designed for the specific airbag model). Do not mix and match components from different manufacturers unless explicitly validated by the supplier. Ensure the air management system includes redundancy or fail-safe mechanisms to prevent total system failure if a sensor or valve malfunctions.

3. Cost Efficiency and Integration Capabilities

Air suspension offers significant operational flexibility, though the initial capital expenditure is higher than traditional suspension.

• Cost Structure:
  • Initial Investment: Typically 20% to 40% higher than high-end coil spring kits due to the complexity of compressors, tanks, and electronic controls.
  • Operational Savings: Reduced wear on chassis components due to load leveling and the ability to optimize tire wear by adjusting stance.
• Integration Capabilities:
  • Control: Modern systems allow for smartphone-based control, enabling users to adjust pressure and height remotely.
  • Automatic Load Compensation: High-end kits automatically adjust bag pressures to maintain level ride height, eliminating the need for manual re-adjustment when loading/unloading cargo.
• Installation Complexity: Requires specialized fabrication skills, particularly for IFS kits where track width narrowing and control arm modification are necessary.

Procurement Recommendation: Calculate the Total Cost of Ownership (TCO) by factoring in the labor costs for installation, which may be higher due to the need for custom fitting (e.g., narrowing track width). Prioritize "plug-and-play" kits that include pre-fitted control arms and shocks to reduce installation time and error risk. Ensure the chosen system supports the desired level of automation (manual vs. automatic load leveling) to justify the cost premium.

4. Typical Use Cases

Based on industry applications, air suspension is primarily utilized in the following scenarios:

• Custom Automotive Stance: Enabling a "slammed" (extremely low) stance when parked, a popular requirement in the custom car and truck culture.
• Heavy Load Transport: Vehicles requiring variable ride heights to accommodate fluctuating cargo loads (e.g., towing, hauling) while maintaining a level chassis.
• Off-Road and Adventure Vehicles: Providing increased ground clearance for obstacles and lowering for stability on-road.
• Commercial Fleet Management: Trucks and vans requiring automatic leveling to ensure proper headlight aim and cargo bed stability.
• Restoration and Custom Builds: Specifically for vehicles where standard suspension geometry cannot accommodate larger wheel/tire combinations without modification.

Procurement Recommendation: For commercial or heavy-load applications, prioritize systems with automatic load leveling and high-duty-cycle compressors. For enthusiast or custom builds, focus on the aesthetic capabilities (slammed stance) and the compatibility with specific wheel/tire sizes, ensuring the kit includes the necessary track width adjustments.

5. Long-Term Planning Considerations

• Market Trends: There is a growing demand for "smart" suspension systems that integrate with mobile devices. The shift towards automated load compensation is increasing as users seek convenience over manual adjustment.
• Technology Evolution: The integration of ride height sensors and advanced valve systems is becoming standard. Procurement strategies should favor systems with upgradable firmware or modular components to adapt to future smartphone connectivity standards.
• Maintenance Cycles: Air systems require periodic maintenance of seals, valves, and compressors. Long-term planning must include a budget for replacement parts (airbags, seals) which typically have a service life of 5 to 10 years depending on usage intensity.
• Supply Chain Stability: Since air suspension often requires custom-fitted components (e.g., specific control arms for IFS), lead times can be longer than off-the-shelf coil springs.

Procurement Recommendation: Build a maintenance buffer into the long-term budget for airbag replacements and compressor servicing. When selecting suppliers, prioritize those with a track record of supporting older models with custom-fitted parts, as the "SuperSlam" style kits often require specific chassis modifications that may not be universally available.

6. Special Product Recommendations

The following table compares key product types available in the market based on typical B2B ranges and application needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Complete IFS Air Kits | Custom Car Builders / Restorers | Includes narrowed track width, specific control arms, airbags, external shocks. | High risk of fitment issues if tire/wheel clearance not verified. | Verify tire/wheel clearance for full suspension motion before ordering. | | Smart Air Management Systems | Fleet Managers / Enthusiasts | Ride height sensors, smartphone control, auto-leveling, 12V compressors. | Complexity of electrical integration; potential software bugs. | Choose systems with established smartphone app support and local service networks. | | Aftermarket Airbags (e.g., Firestone/Fatman Fab style) | Upgraders / Retrofit Projects | Specific pressure ratings, compatible with existing shocks. | Mismatched airbag/shock combinations can lead to premature failure. | Ensure airbags are paired with compatible external shocks and control arms. | | Heavy-Duty Compressor Kits | Commercial Haulers | High duty cycle (100%), large tank capacity (5+ gal), dual compressors. | Noise levels and heat generation in confined engine bays. | Check noise ratings and thermal management requirements for the installation location. |

Procurement Recommendation: For custom builds, do not purchase components separately unless you have engineering expertise to validate fitment. Opt for "kit" solutions (like SuperSlam IFS kits) where the manufacturer has already engineered the track width and control arm geometry to work with the specific airbag.

7. Frequently Asked Questions (FAQ)

Q1: Can I set the ride height to any arbitrary position I want? A: No. While air suspension allows for height adjustment, you cannot set the ride height wherever you choose. The system is limited by the physical clearance of the tire and wheel combination through the full motion of the suspension. You must verify clearance before installation.

Q2: How does the system handle changes in vehicle load? A: High-end systems with automatic adjustments (using ride height sensors and valves) will automatically adjust bag pressures to maintain a level ride height regardless of how many people or how much cargo is in the vehicle.

Q3: Do I need to modify my vehicle's track width for air suspension? A: Often, yes. For Independent Front Suspension (IFS) applications designed for airbags, the track width is typically narrowed to allow for larger wheel/tire combinations and to ensure proper fitment with the specific control arms and shocks.

Q4: What is the difference between a basic air kit and a "smart" management system? A: A basic kit may require manual adjustment of pressure. A "smart" management system (e.g., RideTech E5 class) includes sensors, advanced valves, and compressors that can be controlled via a smartphone to automatically level the vehicle and adjust pressure based on real-time load.

Q5: Are air suspension systems compatible with all vehicle types? A: Not all vehicles are suitable. Specific chassis designs, particularly for IFS, require specific control arms and bracing designed for airbags. Compatibility must be verified for the specific application.

Q6: What is the typical lead time for custom air suspension kits? A: Lead times vary based on customization. Standard kits may be available immediately, while custom-fitted kits (e.g., those requiring specific track width narrowing) may have lead times ranging from 4 to 12 weeks depending on the manufacturer's production schedule.

Q7: How do I ensure the airbags and shocks are compatible? A: Procure matched sets from the same manufacturer or system designer. For example, "SuperSlam IFS kits" are designed specifically for airbags and external shocks to provide the best fit. Mixing components from different manufacturers without validation can lead to fitment and performance issues.

Q8: Can air suspension provide a "slammed" stance? A: Yes. One of the primary benefits of air suspension is the ability to lower the vehicle to a "slammed" stance when parked, which is a popular aesthetic choice in the automotive community.
