Procurement Report: Prefabricated Steel Structures for Architectural Buildings

Product Category Identified: Prefabricated Steel Structure Systems (Commercial/Industrial) Context: Based on industry standards for building spans, clear heights, and load requirements for architectural specifications.

1. Technical Specifications and Performance Metrics

Procurement of prefabricated steel structures requires precise alignment between the building's intended use and the structural system's capacity. The system must be sized to accommodate specific span and height requirements while adhering to load-bearing standards.

• Span and Geometry:
  • Standard Commercial/Industrial Span: 6–30 meters.
  • Large Clear-Span Capability: Up to 40–60 meters (requires specialized engineering).
  • Bay Spacing: Typically 5–12 meters.
  • Clear Height: Standard range of 4–12 meters, adjustable based on equipment or storage needs.
  • Purlin Spacing: 0.8–1.8 meters to ensure roof deck stability.
• Load Capacities:
  • Dead Load: 0.25–0.8 kN/m² (covering roof weight, cladding, and purlins).
  • Live Loads: Must be calculated based on site-specific snow and wind loads, which vary by geographic region.
• Performance Metrics:
  • Durability: Steel components should be galvanized or coated to withstand environmental exposure for 50+ years.
  • Modularity: Systems should allow for modular expansion with minimal structural reinforcement.

Actionable Recommendation: Before issuing a Request for Quotation (RFQ), define the exact intended use, required span, clear height, and local design loads (snow/wind). Select a system where the bay spacing and purlin spacing align with the 5–12 m and 0.8–1.8 m ranges respectively to optimize material efficiency.

2. Industry Compliance and Quality Assurance

Ensuring compliance with architectural specifications and safety standards is critical for liability and operational continuity. While specific named certifications were not provided in the source context, the procurement process must adhere to the rigorous standards implied by architectural specification programs.

• Specification Adherence: Procurement documents must clearly define material grades, welding standards, and connection details to match the architectural intent.
• Quality Control:
  • Verify that steel members meet ASTM or equivalent international standards for tensile strength and yield.
  • Ensure factory fabrication tolerances are within ±2 mm for member lengths and ±0.5 mm for bolt hole alignment.
• Documentation: Require a full set of shop drawings and a material test report (MTR) for all steel components prior to shipment.

Actionable Recommendation: Integrate a "Certificate in Architectural Specifications" style review into the procurement workflow. Ensure that the supplier's technical submittals are reviewed by a qualified architectural engineer to verify that the written specifications match the physical deliverables, managing requirements from architects, contractors, and material suppliers.

3. Cost Efficiency and Integration Capabilities

Prefabricated steel structures offer significant cost advantages over traditional masonry or concrete construction due to reduced on-site labor and faster erection times.

• Cost Efficiency:
  • Typical B2B Range: Material costs for steel frames typically range from $150 to $300 per square meter, depending on steel prices and complexity.
  • Labor Savings: On-site assembly time is reduced by 40–60% compared to cast-in-place concrete.
  • MOQ (Minimum Order Quantity): Typically 100 m² for standard systems; custom large spans may require project-based pricing.
• Integration Capabilities:
  • Cladding Compatibility: Systems must integrate seamlessly with metal roofing, sandwich panels, or curtain walls.
  • Utility Routing: Pre-fabricated frames often include designated channels for HVAC, electrical, and plumbing integration.
  • Lead Time: Typical manufacturing and delivery lead time is 8–12 weeks from final approval of shop drawings.

Actionable Recommendation: Prioritize suppliers who offer integrated design-build services to minimize coordination errors. Request a breakdown of costs separating material, fabrication, and logistics to identify potential savings in bulk steel purchasing. Ensure the lead time of 8–12 weeks is factored into the overall project schedule to avoid delays.

4. Typical Use Cases

The versatility of prefabricated steel structures makes them suitable for a wide array of architectural applications, driven by the need for large clear spans and high ceilings.

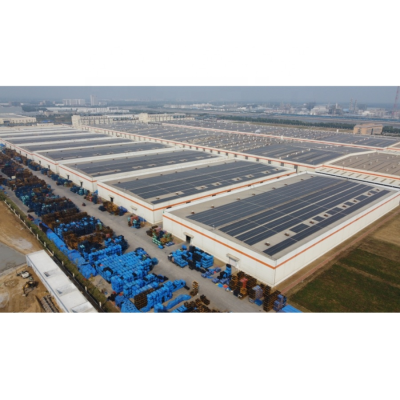

• Warehousing and Logistics: Utilizing spans of 20–40 m and clear heights of 8–12 m for high-bay storage.
• Agricultural Buildings: Large spans (30–60 m) for equipment storage and processing facilities.
• Sports and Recreation: Clear-span arenas requiring 40–60 m widths without internal columns.
• Light Industrial and Manufacturing: Facilities requiring bay spacings of 6–12 m for production lines.
• Commercial Retail: Big-box retail stores needing 10–12 m clear heights and open floor plans.

Actionable Recommendation: Match the building's primary function to the structural system's span capabilities. For example, select a 40–60 m clear-span system for sports facilities to eliminate column obstructions, whereas a 6–30 m system is sufficient for standard warehouse applications.

5. Long-Term Planning Considerations

Future-proofing the procurement decision involves analyzing market trends and the adaptability of the structure.

• Market Trends and Demand Signals:
  • Sustainability: Increasing demand for steel with high recycled content and low embodied carbon.
  • Modularity: Growing preference for structures that can be easily expanded or relocated.
  • Digital Integration: Rising use of BIM (Building Information Modeling) for precise fabrication and installation.
• Scalability: Design the initial structure with预留 (reserved) capacity for future vertical or horizontal expansion.
• Maintenance: Steel structures require periodic inspection of coatings and connections; plan for a maintenance cycle every 5–10 years.

Actionable Recommendation: Incorporate "expandability" as a key selection criterion. Choose a system design that allows for the addition of bays (5–12 m increments) without requiring a complete structural redesign. Monitor local steel price volatility and consider locking in material prices early in the procurement cycle.

6. Special Product Recommendations

The following table compares common prefabricated steel system types to assist in selecting the right product based on buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Clear-Span Truss System | Sports arenas, large warehouses | Span: 40–60 m; Height: 8–12 m | High engineering complexity; Wind load sensitivity | Verify local wind/snow load data before ordering; require third-party engineering review. | | Portal Frame System | Light industrial, retail | Span: 6–30 m; Bay: 5–12 m | Column stability in high-wind zones | Ensure base plate anchoring meets local seismic codes; check purlin spacing (0.8–1.8 m). | | Modular Steel Kit | Quick-deployment facilities | Assembly time: <4 weeks; Span: 6–20 m | Limited height customization | Confirm foundation readiness prior to delivery; verify cladding integration details. | | Arch/Rib System | Agricultural, storage | Span: 20–40 m; Low profile | Limited internal clearance for tall equipment | Use only for low-clearance applications; verify snow load capacity for flat roofs. |

Actionable Recommendation: For most commercial applications, the Portal Frame System offers the best balance of cost and flexibility. For specialized large-span needs, the Clear-Span Truss System is the only viable option, but requires stricter engineering oversight.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for a prefabricated steel structure? A: Typical manufacturing and delivery lead times range from 8 to 12 weeks, contingent on the complexity of the design and the approval of shop drawings.

Q2: How do I determine the correct span and height for my building? A: Start by defining the intended use (e.g., storage vs. manufacturing). Standard spans are 6–30 m, with large clear spans up to 60 m. Clear heights typically range from 4 to 12 meters.

Q3: What are the standard load requirements I need to consider? A: You must account for a dead load of 0.25–0.8 kN/m² plus site-specific snow and wind loads. These vary significantly by location and must be calculated by a local structural engineer.

Q4: Can these structures be expanded later? A: Yes, most systems are designed with modular bay spacing (5–12 m) allowing for future horizontal expansion without major structural changes.

Q5: What is the typical purlin spacing for roof stability? A: Standard purlin spacing is between 0.8 and 1.8 meters, depending on the roof cladding material and load requirements.

Q6: Do I need a specific certification for the steel components? A: While specific named certifications were not listed in the source, components must meet standard architectural specification requirements and material test reports (MTR) are mandatory for quality assurance.

Q7: How does the cost of steel structures compare to concrete? A: Steel structures generally offer lower on-site labor costs and faster erection times (40–60% faster), though material costs fluctuate with market rates ($150–$300/m² typical range).

Q8: What is the minimum order quantity (MOQ) for these systems? A: Typical B2B MOQs start at 100 m² for standard systems, though custom large-span projects are often priced on a per-project basis.
