Procurement Report: Backlit LED Illuminated Signage & Light Guide Systems

Product Category: Backlit LED Illuminated Signage with Light Guide Plates (LGP)

1. Technical Specifications and Performance Metrics

When procuring backlit signage, the core performance hinges on the Light Guide Plate (LGP) and the LED array configuration. The following metrics define a high-performing unit suitable for commercial deployment:

• LGP Thickness: The standard operational range for opal diffuser faces is 3 mm to 6 mm. Thinner plates (3–4 mm) are preferred for space-constrained applications like retail shelving, while thicker plates (5–6 mm) offer better light uniformity for large-format digital signage.
• Power Density: To ensure energy efficiency without compromising brightness, the LED power density should fall between 5 W/m² and 20 W/m². Lower densities (5–10 W/m²) are suitable for ambient indoor lighting, while higher densities (15–20 W/m²) are required for high-contrast outdoor or high-traffic retail environments.
• Light Transmittance & Uniformity: A high-quality LGP must achieve a light transmittance rate of >90% and a uniformity rate of >85% across the entire surface to eliminate hot spots and dark corners.
• Diffuser Material: The faceplate should utilize an opal diffuser to scatter light evenly. The material must possess high optical clarity and resistance to yellowing over time.
• Luminance: Typical output for these systems ranges from 3,000 to 5,000 nits for indoor applications and up to 7,000+ nits for outdoor visibility, depending on the specific LGP design.

Procurement Recommendation: Request a sample LGP with a uniformity test report from the supplier. Verify that the specified power density aligns with your facility's electrical load capacity. For large installations, prioritize LGPs with a thickness of 5–6 mm to ensure light distribution consistency over long distances.

2. Industry Compliance and Quality Assurance

Ensuring that backlit signage meets safety and environmental standards is critical for B2B procurement, particularly for public-facing installations.

• Electrical Safety: All LED drivers and power supplies must comply with regional safety standards (e.g., UL 8750 for LED equipment in the US, CE marking for Europe, or RoHS compliance for hazardous substance restriction).
• Fire Safety: The acrylic or polycarbonate materials used for the LGP and diffuser face must meet UL 94 V-0 or V-2 flammability ratings to prevent rapid flame spread.
• Environmental Standards: Materials should be free of halogens and heavy metals, adhering to RoHS and REACH directives.
• Durability Metrics: The system should be rated for a minimum lifespan of 50,000 hours (L70) for the LED source. The LGP material must resist scratching and maintain optical clarity for at least 3–5 years under normal indoor conditions.
• IP Rating: For outdoor applications, the enclosure and LED assembly must have an IP65 or higher rating to withstand dust and water jets.

Procurement Recommendation: Mandate that suppliers provide third-party test certificates for fire safety and electrical compliance before signing a contract. For outdoor projects, explicitly require an IP65 rating and UV-stabilized materials to prevent degradation from sunlight exposure.

3. Cost Efficiency and Integration Capabilities

Backlit signage offers a balance between initial capital expenditure (CapEx) and long-term operational expenditure (OpEx).

• Cost Structure: Typical B2B unit costs for standard backlit light boxes range from $150 to $450 per square meter, depending on the thickness of the LGP, the quality of the diffuser, and the complexity of the mounting system.
• Energy Savings: Compared to traditional fluorescent backlighting, LED-based systems with optimized LGPs reduce energy consumption by 40% to 60%.
• Integration: The system should support standard 24V DC or 110V/220V AC inputs. Look for drivers that support 0-10V dimming or DALI protocols for smart building integration.
• Mounting Flexibility: Systems should offer versatile mounting options including surface mount, recessed, or hanging configurations.
• MOQ & Lead Time: Typical Minimum Order Quantities (MOQ) for custom LGP sizes are 10–50 units. Standard lead times range from 2 to 4 weeks for stock items and 4 to 8 weeks for custom-sized light guide plates.

Procurement Recommendation: Calculate the Total Cost of Ownership (TCO) over a 5-year period, factoring in the 40–60% energy savings. Prioritize suppliers who offer modular mounting systems to reduce installation labor costs. Negotiate volume discounts if the project requires more than 50 units.

4. Typical Use Cases

The versatility of backlit LED signage with LGPs allows for deployment across various sectors:

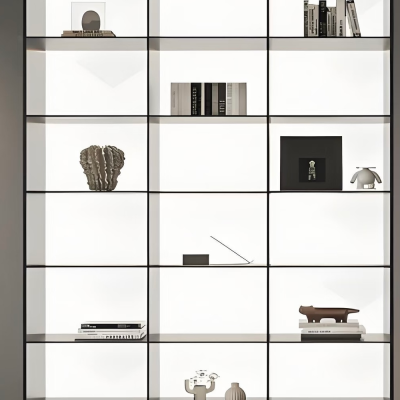

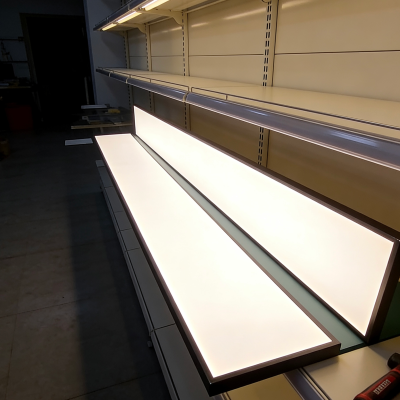

• Retail & Point of Sale (POS): Ideal for shelf backlighting, product display cases, and promotional signage where high contrast and uniform brightness are needed to highlight merchandise.
• Digital Signage: Used in airports, shopping malls, and corporate lobbies for wayfinding and advertising. The high uniformity of LGPs ensures legibility from multiple viewing angles.
• Architectural Lighting: Integrated into wall panels, ceilings, and floor indicators to create ambient lighting effects without visible light sources.
• Hospitality: Used in hotel lobbies and restaurant menus to create a premium, inviting atmosphere with soft, even illumination.
• Industrial & Safety: For illuminated exit signs and safety instruction panels where visibility is critical in low-light conditions.

Procurement Recommendation: Match the LGP thickness to the application depth. For thin retail shelves, select 3–4 mm LGPs. For large-format wall signage in airports, specify 5–6 mm LGPs to ensure edge-to-edge brightness.

5. Long-Term Planning Considerations

Strategic procurement requires anticipating market trends and future scalability.

• Market Trends: There is a growing demand for smart signage integrated with IoT sensors and dynamic content management systems. Procurement strategies should favor systems with open communication protocols (e.g., Ethernet, Wi-Fi) to facilitate future upgrades.
• Sustainability: The industry is shifting towards recyclable acrylics and halogen-free materials. Procurement policies should increasingly prioritize suppliers with verified sustainability certifications.
• Scalability: As retail environments evolve, the ability to quickly reconfigure signage is vital. Modular backlit systems allow for easy resizing and content changes without replacing the entire light engine.
• Maintenance: Systems with accessible LED drivers and replaceable diffusers reduce long-term maintenance costs. Plan for a maintenance cycle of 3–5 years for driver replacement.
• Demand Signals: The demand for high-brightness, energy-efficient digital signage is projected to grow, driven by the need for dynamic content in public spaces.

Procurement Recommendation: Future-proof your inventory by selecting suppliers who offer firmware updates for smart drivers. Incorporate a 10–15% buffer in your budget for potential smart integration upgrades in the next 3 years.

6. Special Product Recommendations

The following table compares common backlit product configurations to assist in selecting the right solution for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Opal LGP Box | Retail Chains, Corporate Lobbies | 3–6 mm thick, 5–15 W/m², IP20 (Indoor) | Verify uniformity >85% | Request sample for color rendering index (CRI) check. | | High-Brightness Outdoor Unit | Wayfinding, Transportation Hubs | 5–6 mm thick, 15–20 W/m², IP65+ | Check UV resistance rating | Ensure driver is sealed against moisture; verify IP65 test certs. | | Ultra-Thin Slim Light Box | POS Displays, Boutique Retail | 3 mm thick, 5–10 W/m², Low Profile | Risk of hot spots if LGP is too thin | Specify high-quality injection-molded LGP to prevent streaking. | | Smart Integrated Signage | Smart Cities, Modern Offices | 4–5 mm thick, DALI/0-10V Dimming | Compatibility with existing BMS | Confirm protocol support (DALI vs. 0-10V) before ordering. |

Procurement Recommendation: For large-scale rollouts, standardize on one LGP thickness (e.g., 5 mm) to simplify inventory management. For high-traffic outdoor areas, do not compromise on the IP rating; insist on IP65 or higher.

7. Frequently Asked Questions (FAQ)

Q1: What is the ideal thickness for a Light Guide Plate (LGP) in a standard indoor sign? A: For most indoor applications, a thickness between 3 mm and 6 mm is optimal. Use 3–4 mm for slim profiles and 5–6 mm for larger signs requiring superior light uniformity.

Q2: How much power does a typical backlit LED sign consume? A: Power density typically ranges from 5 W/m² to 20 W/m². A 1 square meter sign would consume between 5 and 20 watts, depending on the desired brightness level.

Q3: Are these signs suitable for outdoor use? A: Yes, provided the enclosure and LED drivers are rated IP65 or higher and the LGP material is UV-stabilized to prevent yellowing.

Q4: What is the expected lifespan of the LED source? A: High-quality LED backlit systems are rated for 50,000 hours of operation (L70), which translates to approximately 5–7 years of continuous use.

Q5: Can the brightness be adjusted after installation? A: Yes, if the system is equipped with a dimmable driver. Most B2B units support 0-10V or DALI dimming protocols for brightness control.

Q6: What is the typical lead time for custom-sized light boxes? A: Standard lead times are 2–4 weeks for stock sizes and 4–8 weeks for custom dimensions, depending on the manufacturer's production schedule.

Q7: How do I ensure the light distribution is uniform? A: Request a uniformity test report from the supplier. Look for a uniformity rate of >85% and ensure the LGP has been precision-molded or printed with appropriate light-scattering dots.

Q8: What are the environmental compliance requirements? A: Products should be RoHS and REACH compliant, free of halogens, and the materials should meet UL 94 flammability standards.
