Procurement Report: Baldor 3 HP Single Phase Farm Duty Motor

Product Category: Industrial Electric Motors (Single Phase, Farm Duty) Primary Model Reference: Baldor FDL3619TM (Series 36Q165W835G1 / 36G236W835)

1. Technical Specifications and Performance Metrics

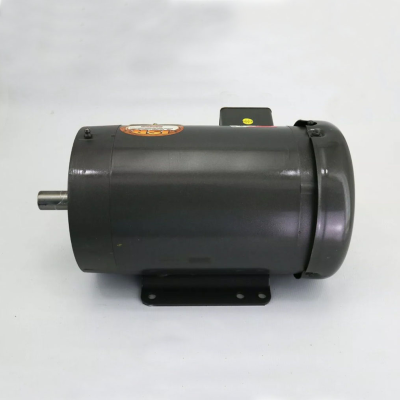

The Baldor 3 HP Single Phase Farm Duty Motor (Model FDL3619TM) is engineered for high-load agricultural applications requiring robust starting torque. The following metrics define its operational envelope:

• Power Output: 3 HP (2.2 kW)
• Speed: 1725 RPM (4-pole configuration)
• Voltage/Frequency: 230V / 60Hz (Single Phase)
• Frame Size: NEMA 184T
• Mounting: Base Mount (Foot Mounted)
• Enclosure: TEFC (Totally Enclosed Fan Cooled) / IP54 (IEC Standard)
• Torque Profile: Extra High Torque (EHT) designed for high-inertia loads.

Procurement Actionable Recommendations:

• Voltage Verification: Ensure the facility has a stable 230V single-phase supply. Single-phase motors of this size (3 HP) are sensitive to voltage imbalance; verify that the line voltage does not fluctuate outside the ±10% range to prevent overheating.
• Space Planning: The 184T frame requires specific mounting foot dimensions. Confirm that the existing foundation or mounting plate can accommodate the base mount footprint before ordering.
• Cooling Requirements: The TEFC/IP54 rating indicates the motor is dust and water-resistant but not submersible. Ensure the installation area has adequate airflow to prevent the fan-cooled enclosure from overheating in high ambient temperature zones (>40°C).

2. Industry Compliance and Quality Assurance

This product adheres to strict NEMA and IEC standards, ensuring reliability in harsh environments.

• NEMA Standards: Compliant with NEMA MG 1 for general-purpose and farm-duty motors. The 184T frame and TEFC enclosure meet NEMA dimensional and thermal standards.
• IEC Enclosure Rating: IP54 rating confirms protection against limited dust ingress and water splashes from any direction, suitable for outdoor or semi-outdoor farm environments.
• Quality Assurance: Baldor motors are manufactured with high-grade copper windings and rugged cast iron frames, designed to withstand the vibration and shock typical of agricultural machinery.
• Documentation: The product is supported by an "InfoPacket" containing wiring diagrams, dimensional drawings, and maintenance guidelines.

Procurement Actionable Recommendations:

• Certification Audit: While specific third-party certification labels (e.g., UL, CSA) are not explicitly detailed in the source text, the NEMA compliance implies adherence to North American safety standards. Request the specific UL/CSA certification documents from the supplier for insurance and regulatory compliance verification.
• Maintenance Protocol: Utilize the provided InfoPacket to establish a preventive maintenance schedule. The TEFC design reduces the need for frequent internal cleaning but requires external fan cleaning to maintain the IP54 thermal efficiency.

3. Cost Efficiency and Integration Capabilities

• Pricing: The listed regular price is approximately $1,503.68 USD.
  • Note: This is a B2B list price. Actual procurement costs may vary based on volume discounts, shipping terms, and regional distributor markups.
• Shipping: "Free No Rush Shipping" is available, suggesting standard lead times are competitive, though expedited shipping may incur additional costs.
• Integration: The Base Mount and 184T frame allow for direct coupling with standard agricultural pumps, augers, and conveyors without the need for custom adapters.
• Efficiency: As a Single Phase motor, it eliminates the need for a phase converter, reducing initial system complexity and cost compared to 3-phase alternatives for facilities lacking 3-phase power.

Procurement Actionable Recommendations:

• Total Cost of Ownership (TCO): While the upfront cost is ~$1,500, the "Extra High Torque" design reduces the risk of motor burnout during startup of heavy loads, lowering long-term replacement costs.
• Logistics Planning: Leverage the "Free No Rush Shipping" option to align delivery with project timelines. If the motor is critical path, verify if expedited shipping is available and cost-effective against project delay penalties.
• Power Infrastructure: Calculate the inrush current for a 3 HP single-phase motor. Ensure the facility's breaker panel and wiring gauge can handle the high starting current (typically 6-8 times full load current) to avoid tripping.

4. Typical Use Cases

This motor is specifically categorized as "Farm Duty" with "Extra High Torque," indicating its primary application in agriculture and heavy-duty industrial settings.

• Agricultural Pumps: Driving high-head water pumps for irrigation where high starting torque is required to overcome static head.
• Grain Handling: Operating augers, conveyors, and grain elevators that frequently encounter variable loads and material jams.
• Feed Mixers: Powering heavy-duty mixers that require high torque to start with a full load of feed.
• Small-Scale Industrial: Suitable for small workshops or rural processing facilities requiring single-phase power for machinery like saws or crushers.

Procurement Actionable Recommendations:

• Load Matching: Do not use this motor for continuous duty applications requiring variable speeds unless paired with a Variable Frequency Drive (VFD) rated for single-phase input (which is rare for this size). It is best suited for constant speed applications.
• Environmental Suitability: Ideal for barns, silos, and outdoor pump houses. If the environment is highly corrosive (e.g., salt spray or chemical exposure), consider additional protective coatings or a stainless steel variant if available.

5. Long-Term Planning Considerations

• Market Trends: There is a growing global shift toward 3-phase power infrastructure and high-efficiency (IE3/IE4) motors. Single-phase motors above 1-2 HP are becoming less common in new industrial builds due to efficiency penalties and grid strain.
• Demand Signals: Demand remains stable in the agricultural sector, particularly in regions where upgrading to 3-phase power is cost-prohibitive.
• Lifecycle Management: The 184T frame is a legacy standard. While widely supported, future replacements may require more effort to source if the market shifts entirely to metric frames (IEC).
• Energy Efficiency: Single-phase motors generally have lower power factors and efficiencies compared to 3-phase equivalents. Long-term planning should consider the potential for retrofitting to 3-phase power to reduce operational energy costs.

Procurement Actionable Recommendations:

• Strategic Sourcing: Secure a stock of spare motors or critical parts (bearings, seals) now, as single-phase high-horsepower motors may face supply chain constraints as manufacturers phase out single-phase options in favor of 3-phase.
• Infrastructure Upgrade: If this is a new installation, evaluate the cost-benefit of upgrading the facility's power supply to 3-phase. This would allow for the use of more efficient, smaller, and cheaper 3-phase motors in the future.

6. Special Product Recommendations

The following table compares the Baldor FDL3619TM against common alternatives to assist in final selection.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Baldor FDL3619TM (Current) | Farmers/Rural Facilities | 3HP, 230V 1Ph, 1725RPM, TEFC, 184T | High inrush current; limited speed control | Ideal for existing 230V 1Ph sites; verify voltage stability. | | 3-Phase Equivalent (e.g., 3HP 230V 3Ph) | Industrial Plants | 3HP, 230/460V 3Ph, 1750RPM, TEFC | Requires 3-phase power infrastructure | Recommended if 3-phase power is available; higher efficiency, lower heat. | | Variable Speed Single Phase | Process Control | 3HP, 1Ph, VFD Compatible | Rare for 3HP; complex wiring | Avoid unless specific speed control is mandatory; usually requires 3-phase. | | Direct Drive Gear Motor | Space-Constrained Sites | Integrated Gearbox, Lower RPM | Higher initial cost; maintenance complexity | Consider only if speed reduction is needed without external gearbox. |

Procurement Actionable Recommendations:

• Alternative Evaluation: If the facility has access to 3-phase power, strongly consider the 3-phase equivalent. The efficiency gain and reduced physical size (often 145T or 182T frame) can offset the cost of electrical upgrades.
• Spare Parts Strategy: For the Baldor FDL3619TM, order a spare bearing kit and a capacitor (if applicable for the specific sub-model) during the initial purchase to minimize downtime.

7. Frequently Asked Questions (FAQ)

Q1: Can this 3 HP single-phase motor be used with a Variable Frequency Drive (VFD)? A: Generally, no. Standard single-phase motors of this size are not designed for VFD operation. Using a VFD can cause overheating and insulation failure. If variable speed is required, a 3-phase motor with a VFD is the industry standard.

Q2: What is the expected lifespan of this motor under normal farm duty conditions? A: With proper maintenance (lubrication, cleaning, and voltage monitoring), a Baldor Farm Duty motor typically lasts 10–15 years. The TEFC enclosure protects against dust, extending life in dirty environments.

Q3: Is the 184T frame compatible with standard NEMA mounting plates? A: Yes, the 184T frame is a standard NEMA dimension. It uses a base mount configuration, meaning it bolts directly to a flat surface or foundation using the provided mounting feet.

Q4: What is the lead time for this specific Baldor model? A: Based on the "Free No Rush Shipping" availability, standard lead times are typically 1–3 weeks for in-stock items. Custom orders or backorders may extend this to 4–8 weeks.

Q5: How does the "Extra High Torque" rating benefit my application? A: It allows the motor to start heavy loads (like a full auger or a stuck pump) without stalling or drawing excessive current that could trip breakers. It provides a safety margin for high-inertia applications.

Q6: Can this motor operate in wet or outdoor conditions? A: Yes, the IP54 rating provides protection against water splashes and dust. However, it is not submersible. For direct exposure to rain, a weatherproof hood or enclosure is recommended to protect the electrical connections.

Q7: What is the difference between the FDL3619TM and other Baldor single-phase motors? A: The "FDL" series specifically denotes "Farm Duty" with "Extra High Torque." Standard commercial single-phase motors may have lower starting torque and are not designed for the vibration and shock of farm equipment.

Q8: Does the price include shipping? A: The listing indicates "Free No Rush Shipping." Expedited shipping options usually incur additional charges, so verify the shipping method at checkout to avoid unexpected fees.
