Procurement Report: Laboratory Beakers

Product Category: Laboratory Glassware & Plasticware (Beakers)

1. Technical Specifications and Performance Metrics

When procuring beakers, the primary technical differentiator is the material composition, which dictates thermal shock resistance, chemical compatibility, and mechanical durability.

• Material Composition & Thermal Limits:
  • Borosilicate Glass (Type 3.3): The industry standard for general laboratory heating. It offers high resistance to thermal shock and chemical attack. Typical operating temperature range is up to 400°C (short-term) with a continuous service limit often cited around 250–300°C.
  • Polypropylene (PP): Ideal for light-impact applications and autoclaving. Maximum operating temperature is typically 60°C (140°F). It is translucent and flexible.
  • PTFE-Lined: Recommended for aggressive acid services where glass etching is a concern.
• Dimensions & Capacity:
  • Capacity Range: Standard procurement covers 10 mL to 5 L.
  • Wall Thickness: Typically ranges from 1.2 mm to 4.0 mm. Thicker walls (closer to 4.0 mm) are preferred for high-thermal-shock applications, while thinner walls (1.2–2.0 mm) are common for disposable or low-cost PP variants.
• Graduation Accuracy (Class Standards):
  • Class A: High-precision measurement with a tolerance of ±1%. Essential for quantitative analysis.
  • Class B: General use with a tolerance of ±2% to ±3%. Suitable for mixing, heating, and qualitative work.
• Design Features:

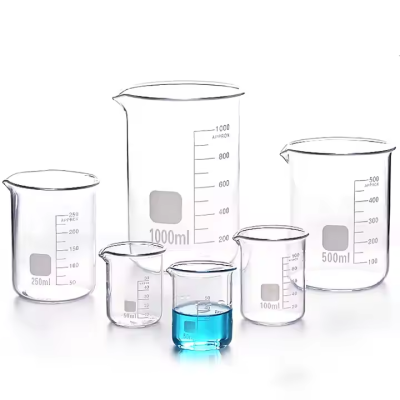

  • Style: Griffin (Low Form) is the most common geometry, offering a wide mouth for easy stirring and pouring.
  • Spouts: Standard models include a pouring spout; high-form variants may lack them.
  • Marking: Matte finish markings are preferred for durability over printed ink.

Procurement Recommendation: Select Borosilicate Glass (Type 3.3) for any application involving heating, boiling, or strong chemical exposure. Choose Polypropylene only for room-temperature mixing, biological sampling, or when autoclavability is the primary requirement. Always specify Class A graduations if the beaker will be used for volumetric transfers; otherwise, Class B is sufficient for mixing.

2. Industry Compliance and Quality Assurance

Procurement must ensure that beakers meet rigorous international standards to guarantee safety and data integrity.

• Key Certifications:
  • ASTM E960: Standard specification for borosilicate glass. Ensures chemical durability and thermal shock resistance.
  • ASTM E438: Standard for borosilicate glassware dimensions and markings.
  • USP Type I: United States Pharmacopeia standard for glass, indicating the highest level of chemical resistance and hydrolytic durability.
  • DIN Standards: European standards often referenced for polypropylene and glassware dimensions.
• Quality Assurance Metrics:
  • Thermal Shock Resistance: Borosilicate glass must withstand rapid temperature changes (e.g., from 100°C to ambient) without cracking.
  • Chemical Resistance: Must resist attack from common acids, bases, and solvents.
  • Marking Durability: Matte finish markings should not wash off during repeated autoclaving or chemical cleaning cycles.

Procurement Recommendation: Require suppliers to provide a Certificate of Analysis (CoA) verifying ASTM E960 and USP Type I compliance for all borosilicate glass orders. For polypropylene items, verify DIN compliance and autoclavability certification. Avoid unbranded or uncertified glassware for critical pharmaceutical or analytical applications.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in beaker procurement involves balancing unit price against lifecycle durability and integration with existing lab workflows.

• Cost Drivers:
  • Material: Borosilicate glass carries a higher unit cost than PP but offers a significantly longer lifespan (years vs. single-use).
  • Precision: Class A beakers typically command a 10–20% premium over Class B equivalents.
  • Volume: Bulk purchasing (MOQs of 50–100 units per SKU) typically yields 15–25% cost reductions.
• Integration:
  • Stackability: Griffin-style beakers are designed to nest for storage, optimizing shelf space.
  • Compatibility: Standard sizes integrate seamlessly with common stirrers, hot plates, and fume hoods.
  • Disposable vs. Reusable: While PP beakers are cheaper per unit, the recurring cost of replacement for high-volume labs may exceed the one-time cost of durable glass.

Procurement Recommendation: Adopt a hybrid strategy: Procure high-durability Borosilicate Glass (Class A/B) for core analytical and heating tasks to minimize long-term replacement costs. Reserve Polypropylene beakers for high-volume, low-risk tasks (e.g., waste collection, rough mixing) where breakage risk is high. Negotiate tiered pricing based on annual volume commitments.

4. Typical Use Cases

Beakers are versatile tools used across various scientific disciplines.

• General Chemistry & Heating: Borosilicate beakers are used for heating liquids, boiling, and dissolving solids due to their thermal shock resistance.
• Analytical Chemistry: Class A graduated beakers are used for approximate volume measurements where high precision is not critical but accuracy is required.
• Biology & Microbiology: Translucent Polypropylene beakers are used for cell culture media preparation, sample collection, and autoclaving.
• Aggressive Chemical Handling: PTFE-lined or specialized glass beakers are used for handling hydrofluoric acid or other etching agents.
• Field Work: PP beakers are preferred for field sampling due to their shatter resistance and light weight.

Procurement Recommendation: Map inventory to specific lab functions. Ensure the Heating Lab is stocked exclusively with Borosilicate Glass (Class B for general heating, Class A for measurement). Ensure the Biology Lab has a dedicated stock of Autoclavable PP beakers. Do not mix materials in the same workflow to prevent accidental thermal shock to plastic items.

5. Long-Term Planning Considerations

Strategic planning must account for market trends, supply chain stability, and evolving safety standards.

• Market Trends & Demand Signals:
  • Sustainability: There is a growing demand for "green" glassware with thinner walls that use less raw material while maintaining strength.
  • Disposable Shift: High-volume clinical labs are increasingly shifting toward single-use PP beakers to reduce cross-contamination risks and sterilization overhead, despite the higher recurring cost.
  • Supply Chain Resilience: Borosilicate glass production is concentrated in specific regions; diversifying suppliers is critical to avoid shortages.
• Durability & Lifecycle:
  • Glass: Expected lifecycle of 5–10 years with proper care.
  • PP: Expected lifecycle of 1–3 years (or single-use) depending on autoclave cycles.
• Regulatory Changes: Anticipate stricter regulations on chemical waste and single-use plastics which may impact the long-term viability of disposable PP beakers in certain jurisdictions.

Procurement Recommendation: Develop a dual-sourcing strategy for Borosilicate glass to mitigate supply chain risks. For PP beakers, evaluate the total cost of ownership (TCO) including disposal fees before committing to a full switch to disposable models. Monitor regulatory shifts regarding single-use plastics in your region.

6. Special Product Recommendations

The following comparison table helps buyers select the right product based on their specific operational needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Borosilicate Glass (Griffin) | General Chemistry, Analytical Labs | Material: KG-33 Glass; Temp: Up to 400°C; Grad: Class A/B; Wall: 1.2–4.0 mm | High breakage risk if dropped; Thermal shock if heated unevenly | Prioritize USP Type I and ASTM E960 compliance. Buy Class A for measurement, Class B for heating. | | Polypropylene (PP) Beaker | Biology, Field Work, High-Volume Mixing | Material: PP; Temp Max: 60°C; Autoclavable: Yes; Color: Translucent | Deforms above 60°C; Lower chemical resistance to strong organics | Verify DIN and ASTM Class A/B compliance. Ensure "Autoclavable" is explicitly stated. | | PTFE-Lined Beaker | Aggressive Acid Handling | Material: Glass with PTFE liner; Chemical Resistance: High (HF, etc.) | Higher cost; Limited availability | Only procure if specific acid resistance is required. Verify liner integrity specs. | | Low Form Griffin (Glass) | Standard Lab Heating | Style: Low Form; Spout: Yes; Graduation: Dual Scale | Standard breakage risk | Ideal for general heating. Ensure Matte Finish Marking for longevity. |

Procurement Recommendation: For most standard laboratories, a Borosilicate Glass Griffin Beaker is the default choice. Only deviate to PP if the specific need for autoclaving or shatter resistance outweighs the need for high-temperature heating. Always verify the "Low Form" designation to ensure stability during heating.

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum temperature I can safely heat a beaker to? A: For Borosilicate Glass (Type 3.3), you can safely heat up to 250–300°C continuously, with short-term spikes up to 400°C. For Polypropylene (PP) beakers, the maximum operating temperature is 60°C (140°F). Exceeding these limits risks deformation or breakage.

Q2: What is the difference between Class A and Class B beakers? A: Class A beakers have a higher precision tolerance of ±1% and are used for quantitative measurements. Class B beakers have a tolerance of ±2–3% and are intended for general mixing, heating, and qualitative work where exact volume is not critical.

Q3: Can I autoclave a glass beaker? A: Yes, Borosilicate glass beakers are generally autoclavable. However, ensure they are made of Type 3.3 borosilicate glass (ASTM E960) to withstand the thermal shock of the autoclave cycle. PP beakers are also autoclavable but are limited to lower temperatures.

Q4: How do I choose the right size (capacity) for my needs? A: Select a beaker with a capacity at least 1.5 to 2 times the volume of liquid you intend to handle to prevent boil-overs. Standard sizes range from 10 mL to 5 L. For heating, larger beakers provide better thermal stability.

Q5: Are polypropylene beakers reusable? A: Yes, they are reusable and autoclavable. However, they have a limited lifespan due to degradation from repeated heating and chemical exposure. They are often used as "disposable" in high-throughput environments to save on sterilization labor.

Q6: What certifications should I look for in a supplier? A: Look for ASTM E960 (Chemical Durability), ASTM E438 (Dimensions), and USP Type I (Pharmaceutical Grade) for glass. For plastic, look for DIN compliance and explicit Autoclavable certification.

Q7: Why are the graduations sometimes blue and sometimes black? A: The color is a matter of visibility and standard. Blue graduations are common on PP beakers for high contrast against the translucent material. Black or matte finish markings are standard on glass beakers for durability and resistance to chemical washing.

Q8: What is the typical lead time for ordering specialized beakers? A: Standard Borosilicate and PP beakers typically have a lead time of 2–4 weeks for bulk orders. Specialized items (e.g., PTFE-lined or custom capacities) may require 6–8 weeks.
