Procurement Report: Industrial Bellows Systems

Product Category: Industrial Bellows and Expansion Joints (Metal and Elastomeric)

1. Technical Specifications and Performance Metrics

Procurement of bellows requires precise alignment between material properties and operational environmental constraints. The performance of these components is dictated by the choice of material and geometric configuration.

• Material Selection & Environmental Resistance:
  • EPDM (Ethylene Propylene Diene Monomer): Recommended for applications involving weather exposure, ozone, and temperature ranges typically between -40°C and +120°C.
  • Silicone: Ideal for extreme temperature fluctuations (up to +200°C) and high UV exposure, offering superior flexibility.
  • NBR (Nitrile Butadiene Rubber): The standard choice for fluid handling systems involving oil, fuel, or hydraulic fluids, providing excellent resistance to swelling and degradation.
• Geometric Parameters:
  • Diameter Range: Standard off-the-shelf and custom options typically span from 5 mm to 300 mm in nominal diameter.
  • Hardness (Durometer): Hardness is critical for balancing stiffness against deflection needs. The typical range is 20 to 90 Shore A. Lower values (20–40) allow for greater axial compression/extension, while higher values (60–90) provide structural rigidity for pressure containment.
• Pressure Ratings:

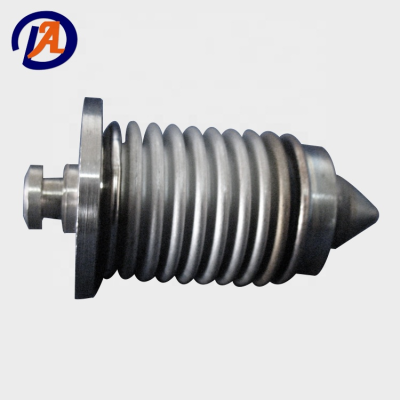

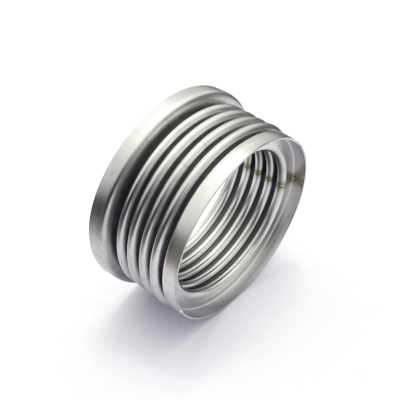

  • Standard elastomeric bellows often operate within ranges up to 300 PSI (approx. 20 bar) for general industrial applications, though metal bellows can handle significantly higher pressures depending on the design.
• Actionable Recommendation:
  • Prioritize the operating medium (oil vs. water vs. air) and temperature extremes before selecting geometry. Do not select a 90 Shore A bellows for an application requiring high axial deflection; conversely, avoid 20 Shore A for high-pressure static sealing without reinforcement.

2. Industry Compliance and Quality Assurance

For industries such as aerospace, defense, and marine, compliance is not optional. Procurement must verify that suppliers hold specific certifications to ensure supply chain integrity and product reliability.

• Key Certifications:
  • ISO 9001:2015: Confirms a robust Quality Management System (QMS) for consistent manufacturing processes.
  • AS9100: The aerospace-specific quality standard, essential for any procurement involving aviation or space applications.
  • NADCAP (National Aerospace and Defense Contractors Accreditation Program): Critical for specialized processes like heat treating or non-destructive testing within the aerospace supply chain.
  • ITAR Registered & DFARS Compliant: Mandatory for US government contracts involving defense articles and services; ensures export control compliance.
  • American Welding Society (AWS) & American Bureau of Shipping (ABS): Essential for metal bellows used in marine and structural welding applications.
  • MBE (Minority Business Enterprise) & HUB: Indicates supplier diversity status, which may be a requirement for public sector or corporate diversity goals.
• Traceability:
  • Look for suppliers with a valid Cage Code (e.g., 22727) and D-U-N-S Number (e.g., 008817561) to ensure proper government and commercial tracking.
• Actionable Recommendation:
  • Verify the validity of the AS9100 and NADCAP certificates directly with the accrediting bodies before finalizing a contract for aerospace or defense projects. Ensure the supplier's Cage Code matches the procurement requirements for government contracts.

3. Cost Efficiency and Integration Capabilities

While specific unit costs vary by volume and material, understanding the cost drivers helps in budgeting and Total Cost of Ownership (TCO) analysis.

• Cost Drivers:
  • Material Cost: Silicone and high-grade stainless steel (for metal bellows) command higher premiums than standard NBR or carbon steel.
  • Customization: Custom geometries (non-standard diameters or hardness) typically incur higher tooling and setup costs compared to standard sizes (5–300 mm).
  • Volume: B2B ranges suggest significant cost reductions at volumes exceeding 500 units, with lead times potentially shortening from 6–8 weeks to 2–3 weeks for established stock items.
• Integration:
  • Bellows systems are designed to absorb axial, lateral, and angular movements. They integrate directly into piping, hydraulic lines, and ventilation systems to reduce stress on connected equipment.
  • Lead Time: Typical lead times for custom orders range from 4 to 8 weeks, while standard items may be available for immediate or 2-week shipment.
• Actionable Recommendation:
  • Optimize inventory by standardizing on the 5–300 mm diameter range where possible to leverage economies of scale. For critical applications, factor in a 20% buffer for lead time to account for custom tooling or certification audits.

4. Typical Use Cases

Bellows are ubiquitous in industries requiring the absorption of movement, vibration, or thermal expansion.

• Aerospace & Defense: Used in fuel lines, hydraulic actuators, and exhaust systems where vibration damping and thermal expansion are critical (leveraging AS9100/NADCAP certified suppliers).
• Marine & Offshore: Expansion joints in piping systems subject to hull flexing and saltwater corrosion (leveraging ABS certification).
• Industrial Manufacturing: Hydraulic and pneumatic systems requiring oil resistance (NBR) or high-temperature sealing (Silicone).
• HVAC & Ventilation: Duct expansion joints to accommodate thermal expansion and vibration isolation in large-scale air handling units.
• Actionable Recommendation:
  • Match the application environment strictly to the material: Use NBR for oil-heavy industrial machinery and EPDM/Silicone for outdoor or HVAC applications. Do not cross-contaminate material selections.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and supply chain resilience.

• Market Trends:
  • Demand Signals: There is a rising demand for high-performance elastomers in the aerospace sector due to increased defense spending and commercial aviation recovery.
  • Supply Chain Localization: "Made in USA" status is becoming a differentiator for government contracts, reducing reliance on overseas supply chains and mitigating geopolitical risks.
  • Sustainability: Increased focus on longer-lasting materials (e.g., high-grade silicone) to reduce replacement frequency and waste.
• Durability & Lifecycle:
  • Properly selected bellows (e.g., 90 Shore A for high pressure) can last significantly longer than under-speced components, reducing downtime.
  • Regular inspection cycles are recommended for dynamic applications to detect fatigue cracks before failure.
• Actionable Recommendation:
  • Prioritize suppliers with "Made in USA" and ITAR/DFARS compliance for long-term government contracts to ensure supply continuity. Plan for a 3-year inventory buffer of critical elastomer types (EPDM/NBR) to mitigate global rubber supply volatility.

6. Special Product Recommendations

The following table compares common bellows configurations to assist in rapid selection based on buyer profile and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Elastomeric (EPDM) | HVAC, Water Treatment | 5–300 mm, 20–60 Shore A, -40°C to +120°C | UV degradation if not stabilized | Verify UV stabilizers for outdoor use; check for ozone resistance. | | Elastomeric (NBR) | Oil & Gas, Hydraulics | 5–300 mm, 40–90 Shore A, Oil Resistant | Swelling in non-compatible fluids | Confirm fluid compatibility chart; avoid for high-temp steam. | | Metal Bellows | Aerospace, High Pressure | Custom diameters, High PSI, AS9100 | Fatigue failure under cyclic load | Require NADCAP process certs; inspect for weld quality. | | Silicone Bellows | Medical, Extreme Temp | 5–300 mm, 20–50 Shore A, -60°C to +200°C | Lower tear strength than NBR | Use for high-temp/low-pressure; avoid for high mechanical stress. | | Custom Expansion Joint | Complex Piping Systems | Tailored geometry, 300 PSI+ | High tooling cost, long lead time | Request 3D CAD validation before tooling; define deflection limits clearly. |

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum diameter available for standard bellows? A: Standard bellows typically range from 5 mm to 300 mm in diameter. Larger custom diameters may be available upon request but will require specific tooling and longer lead times.

Q2: How do I choose between EPDM and Silicone for an outdoor application? A: Both are suitable for weather exposure. Choose EPDM for general weather and ozone resistance at moderate temperatures (-40°C to +120°C). Choose Silicone if the application involves temperatures exceeding 120°C or requires extreme flexibility in cold environments.

Q3: Are these products compliant with US government defense contracts? A: Yes, suppliers such as Bellows Systems hold ITAR Registration, DFARS Compliance, and AS9100 certification, making them eligible for defense and aerospace procurement.

Q4: What is the typical hardness range for bellows, and how does it affect performance? A: The typical hardness range is 20 to 90 Shore A. Lower hardness (20–40) allows for greater deflection and flexibility, while higher hardness (60–90) provides greater stiffness and pressure resistance.

Q5: Do you offer metal bellows for high-pressure applications? A: Yes, metal bellows are available for high-pressure scenarios, with data sheets indicating ratings up to 300 PSI for specific configurations, though metal variants can often exceed this significantly.

Q6: What certifications should I look for in a supplier for aerospace applications? A: You should require AS9100, NADCAP, and ISO 9001:2015 certifications. Additionally, verify the supplier's Cage Code and D-U-N-S Number for government tracking.

Q7: What is the lead time for custom bellows orders? A: While standard items may ship quickly, custom expansion joints typically require 4 to 8 weeks for manufacturing, depending on the complexity of the geometry and material availability.

Q8: Can these bellows be used in oil and fuel systems? A: Yes, specifically NBR (Nitrile) bellows are designed for oil and fuel exposure. Ensure the specific grade is rated for the type of fluid (e.g., jet fuel vs. hydraulic oil) to prevent degradation.
