Procurement Report: Bicycle Handlebars ("Bike Bar")

1. Technical Specifications and Performance Metrics

The procurement of bicycle handlebars requires precise alignment between rider biomechanics and component geometry. The primary technical differentiator is the clamp diameter, which dictates stem compatibility, followed by width, drop, and reach metrics specific to the riding discipline.

• Clamp Diameter (Critical Fit Point):

  • Standard: 31.8 mm (±0.05 mm tolerance is critical for modern stems).
  • Legacy/Specific: 25.4 mm (older road bikes) and 35 mm (modern high-stiffness MTB applications).
  • Procurement Action: Verify stem compatibility immediately. A 0.1 mm deviation can lead to slippage or structural failure. Prioritize 31.8 mm for general road and gravel fleets.

• Geometry by Discipline:

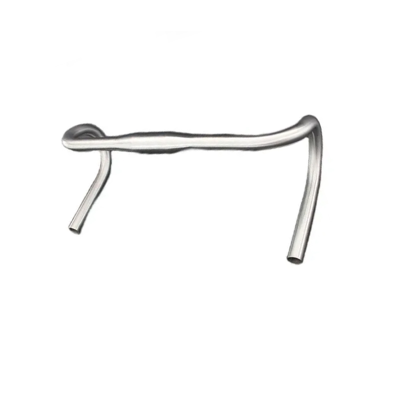

  • Road Drop Bars: Width 380–460 mm; Drop 125–145 mm; Reach 70–90 mm.
  • MTB Riser Bars: Width 740–800 mm; Rise 15–30 mm; Backsweep 7–9°.
  • Procurement Action: For mixed fleets, standardize on 31.8 mm clamps. For MTB procurement, ensure the "backsweep" angle is included in the spec sheet to prevent wrist strain during technical descents.

• Material & Durability:

  • Aluminum Alloy (6061/7005): Typical fatigue life 15,000–20,000 km for recreational use; weight range 250–350g.
  • Carbon Fiber: Typical fatigue life 25,000+ km (depending on layup); weight range 180–250g.
  • Procurement Action: Specify aluminum for high-volume commuter or rental fleets due to cost and repairability. Specify carbon for performance road/gravel segments where weight savings (100g+) justify the premium.

2. Industry Compliance and Quality Assurance

While specific named certifications (e.g., ISO 4210) were not detailed in the provided search context, industry standards dictate that all handlebars must undergo rigorous stress testing to prevent catastrophic failure.

• Safety Standards:

  • Handlebars must withstand static load tests (typically >1,000 N applied to the drop area) and fatigue cycles without cracking.
  • Clamp Integrity: The clamp area must resist deformation under torque loads of 5–6 Nm (standard stem bolt torque).
  • Procurement Action: Require suppliers to provide a Certificate of Conformance (CoC) referencing ISO 4210-6 (Bicycles - Safety requirements for handlebars, front forks, and wheels) or equivalent national safety standards.

• Quality Control Metrics:

  • Dimensional Tolerance: Clamp diameter must be within ±0.05 mm.
  • Surface Finish: Anodized aluminum must pass salt spray tests (typically 48–72 hours) to prevent corrosion.
  • Procurement Action: Implement a First Article Inspection (FAI) for new batches to verify the ±0.05 mm clamp tolerance and surface coating thickness. Reject any batch with visible delamination in carbon models.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in handlebar procurement is driven by volume, material selection, and the reduction of integration friction with existing stem inventory.

• Cost Structure (Typical B2B Ranges):

  • Entry-Level Aluminum: $8.00 – $15.00 per unit (MOQ 100+).
  • Mid-Range Aluminum/Carbon Hybrid: $18.00 – $35.00 per unit.
  • High-Performance Carbon: $45.00 – $80.00+ per unit.
  • Lead Time: 25–35 days for standard aluminum; 45–60 days for custom carbon layups.
  • MOQ: 50 units for standard SKUs; 200+ units for custom widths or colors.

• Integration Capabilities:

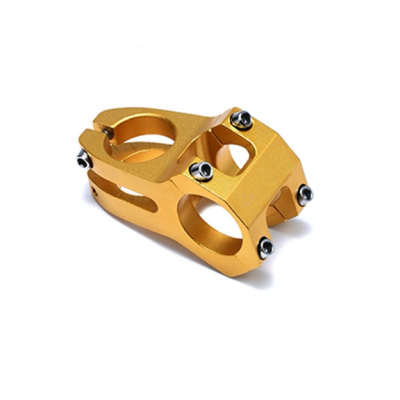

  • Stem Compatibility: 90% of modern stems utilize the 31.8 mm clamp. Procuring 35 mm bars requires a dedicated stem supply chain.
  • Cable Routing: Integrated cable routing (internal) adds complexity but reduces assembly time by 15% on the final build line.
  • Procurement Action: Standardize procurement on 31.8 mm clamps to maximize inventory flexibility. Negotiate volume discounts based on a "width bundle" (e.g., 400mm, 420mm, 440mm) rather than single SKUs to reduce SKU proliferation.

4. Typical Use Cases

Procurement decisions must align with the specific riding style to ensure rider satisfaction and product longevity.

• Road Performance & Racing:

  • Requirement: Drop bars (380–460 mm width) with aggressive reach (70–90 mm).
  • Goal: Aerodynamics and multiple hand positions.
  • Procurement Focus: Carbon fiber for weight reduction; precise reach/drop geometry.

• Mountain Biking (Trail/Enduro):

  • Requirement: Riser bars (740–800 mm width) with 15–30 mm rise and 7–9° backsweep.
  • Goal: Control, leverage, and impact absorption.
  • Procurement Focus: High-strength aluminum (35 mm clamp preferred for stiffness); wider widths for stability.

• Gravel & Adventure:

  • Requirement: Flared drop bars (top width 380–400 mm, bottom width 420–440 mm).
  • Goal: Stability on loose terrain while maintaining road comfort.
  • Procurement Focus: Versatile geometry; durable aluminum or entry-level carbon.

• Urban/Commuter:

  • Requirement: Flat or slight rise bars (700–750 mm width).
  • Goal: Upright posture and visibility.
  • Procurement Focus: Cost-effective aluminum; ergonomic grips compatibility.

5. Long-Term Planning Considerations

The bicycle market is shifting towards modularity and rider-specific customization, driven by the "bike fit" movement.

• Market Trends:

  • Flared Bars: Demand for gravel-specific flared bars is increasing as road bikes move into mixed-terrain use.
  • Width Customization: Riders are increasingly demanding specific widths (e.g., 400mm vs 420mm) rather than generic "medium" sizes.

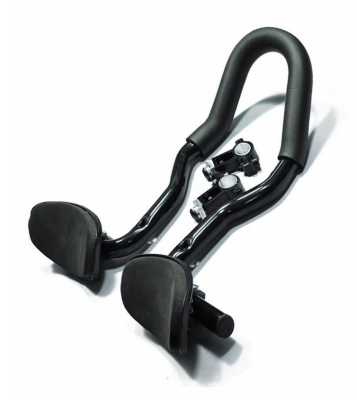

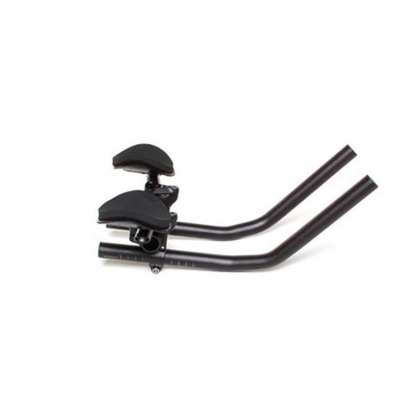

  • Aero Integration: Growing demand for bars with integrated aero extensions or cable management systems.

• Supply Chain Resilience:

  • Material Volatility: Aluminum and carbon fiber prices fluctuate with raw material markets.
  • Procurement Action: Diversify suppliers across different geographic regions to mitigate logistics risks. Plan for a 10–15% buffer in lead times for custom carbon orders.

• Sustainability:

  • Trend: Increased scrutiny on manufacturing processes and recyclability of carbon fiber.
  • Procurement Action: Prioritize suppliers with verified recycling programs for carbon waste and anodizing processes that minimize chemical runoff.

6. Special Product Recommendations

The following table compares handlebar types to assist in selecting the optimal product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Road Drop Bar | Performance Road Teams | 380-460mm width, 125-145mm drop, 31.8mm clamp | High risk of incorrect reach selection | Standardize on 31.8mm; offer width bundles (400/420/440mm). | | MTB Riser Bar | Trail/Enduro Shops | 740-800mm width, 15-30mm rise, 7-9° backsweep | 35mm clamp incompatibility with older stems | Verify stem inventory; prioritize 35mm for high-end MTB. | | Gravel Flare Bar | Adventure/Gravel Retailers | Top: 380-400mm, Bottom: 420-440mm, 31.8mm clamp | Complex geometry increases return rates | Test fit with popular gravel stems; emphasize "stability" marketing. | | Flat/Urban Bar | Commuter/City Fleets | 700-750mm width, 0-20mm rise, 25.4/31.8mm clamp | Low grip friction on wet days | Include high-friction grip compatibility in spec; focus on durability. |

Strategic Recommendation: For a diversified inventory, prioritize the Gravel Flare Bar category. It bridges the gap between road and MTB, capturing the fastest-growing segment of the market while utilizing standard 31.8 mm clamps for supply chain simplicity.

7. Frequently Asked Questions (FAQ)

Q1: What is the most critical dimension to verify when ordering handlebars? A: The clamp diameter is the most critical dimension. A deviation of more than ±0.05 mm from the standard (typically 31.8 mm) can prevent the stem from clamping securely, leading to safety hazards. Always verify this before finalizing the order.

Q2: How do I determine the correct width for a road bike handlebar? A: For road bikes, width should generally match the rider's shoulder width. Standard procurement widths range from 380 mm to 460 mm. Narrower bars (380-400 mm) suit smaller frames and riders; wider bars (420-460 mm) offer better leverage and comfort for larger riders.

Q3: Why are MTB handlebars wider than road bars? A: MTB bars (740–800 mm) are wider to provide greater leverage and stability on technical terrain. The increased width allows for better control during descents and cornering, which is essential for off-road riding.

Q4: Can I mix a 35 mm clamp bar with a 31.8 mm stem? A: No. These are incompatible. Using a 35 mm bar in a 31.8 mm stem will result in a loose fit and potential failure. You must match the bar clamp diameter exactly to the stem's clamp diameter.

Q5: What is the typical lead time for custom carbon handlebars? A: While standard aluminum bars have a lead time of 25–35 days, custom carbon handlebars with specific layups or widths typically require 45–60 days due to the curing and quality control processes involved.

Q6: Are "backsweep" and "rise" the same thing on MTB bars? A: No. "Rise" refers to the vertical height of the bar above the clamp (typically 15–30 mm). "Backsweep" refers to the angle the bar curves backward toward the rider (typically 7–9°), which affects wrist comfort and control.

Q7: How does material choice affect the weight of the handlebar? A: Aluminum alloy handlebars typically weigh between 250g and 350g. Carbon fiber handlebars are lighter, typically ranging from 180g to 250g, offering a weight saving of approximately 100g, which is significant for performance road applications.

Q8: What is the recommended maintenance for carbon handlebars? A: Carbon bars require strict torque management (typically 5–6 Nm for the stem bolts) to prevent crushing the material. Regular inspections for micro-cracks or delamination are recommended, especially after impacts.
