Procurement Report: Bike Rack Carriers

1. Technical Specifications and Performance Metrics

The procurement of bike rack carriers requires a precise understanding of load dynamics, hitch compatibility, and material durability. Based on current industry testing and specifications, the following parameters define the performance baseline for standard commercial and fleet-grade units.

• Mounting Interface & Compatibility:
  • Receiver Sizes: Standardized for 1.25-inch and 2.0-inch Class III/IV hitches.
  • Constraint: 2.0-inch receivers typically support higher per-bike loads (up to 100 lbs / 45.4 kg) compared to 1.25-inch versions (typically 60 lbs / 27.2 kg per bike).
  • Style Variants:

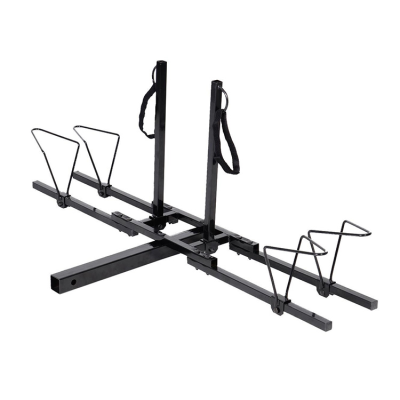

    • Tray/Platform Style: Secures bikes by the wheel; typically weighs 28.4 kg – 29.5 kg (62–65 lbs).

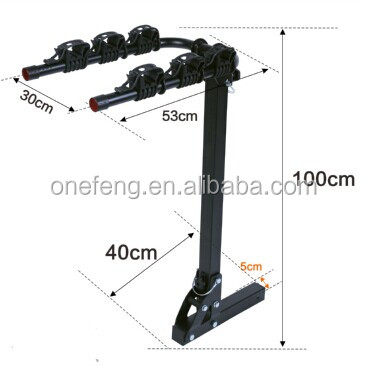

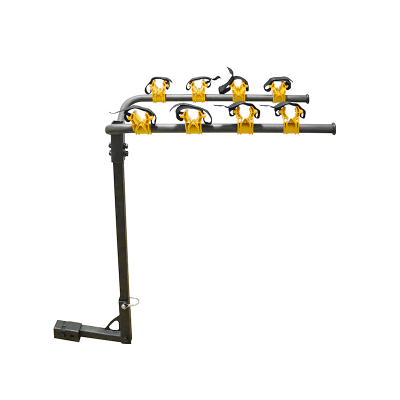

    • Hanging Style: Secures bikes by the frame; typically supports up to 6 bikes but has a lower per-bike limit (60 lbs / 27.2 kg) and weighs approximately 30.8 kg (68 lbs).
• Load Capacity:
  • Per-Bike Limit: Ranges from 27.2 kg (60 lbs) for hanging models to 45.4 kg (100 lbs) for heavy-duty tray models.
  • Total System Capacity: Standard 2-bike racks support up to 60–90 kg total. Add-on modules can extend capacity to 4 bikes, requiring a total system weight capacity of 120+ kg.
  • RV Specifics: Dedicated 2" receiver versions for RVs often have a reduced per-bike limit of 42 lbs (19 kg) due to sway dynamics.
• Security Features:
  • Locking Mechanisms: High-security units include a locking hitch pin, security key, and integrated 12mm security cables.
  • Weight Distribution: Tray-style racks generally offer better stability and lower vehicle sway than hanging racks.
• Actionable Recommendation:
  • Procure 2.0-inch receiver models for fleets carrying heavy e-bikes (which often exceed 25 kg) to ensure safety margins.
  • Prioritize tray-style racks for high-value or heavy cargo to minimize frame contact and improve stability during transport.

2. Industry Compliance and Quality Assurance

While specific national certifications vary, procurement must adhere to general safety standards regarding load limits and visibility.

• Weight Limits & Vehicle Compatibility:
  • Critical Constraint: The permissible total weight of the towbar (towing capacity) must not be exceeded. Procurement teams must calculate: Vehicle Curb Weight + Bike Rack Weight + Total Bike Weight.
  • Dynamic Load: The rear carrier weight acts as a dynamic load on the vehicle's suspension; exceeding the towbar's vertical load limit can void vehicle warranties.
• Lighting and Visibility:
  • Requirement: In many jurisdictions, rear bike carriers must be equipped with or accommodate suitable lighting (rear lights, indicators) and license plate holders to ensure visibility and legal compliance.
  • Action: Verify if the selected rack includes integrated lighting mounts or requires aftermarket add-ons.
• Labeling and Warning Signs:
  • Regional Variance: In Europe, warning signs are mandatory only in Italy and Spain. Other European countries currently have no obligation to attach warning signs to the rack itself.
  • Best Practice: Even where not legally required, applying high-visibility warning decals is recommended for fleet safety and liability reduction.
• Actionable Recommendation:
  • Mandate that all purchased racks include a locking hitch pin and security cable as standard to mitigate theft risks in public parking areas.
  • Conduct a pre-purchase audit of the fleet vehicle's towbar rating to ensure the selected rack (approx. 28–31 kg) does not exceed the vehicle's vertical load limit.

3. Cost Efficiency and Integration Capabilities

• Cost Drivers:
  • Material & Weight: Heavier racks (approx. 29.5 kg) utilizing steel or reinforced aluminum generally command a higher price point but offer superior durability.
  • Security Integration: Models with integrated locking systems and 12mm cables typically cost 15–20% more than basic hanging racks but reduce insurance premiums and theft losses.
  • Capacity Expansion: Buying a base 2-bike rack with an add-on module is often more cost-effective than purchasing a single 4-bike unit, allowing for modular scaling.
• Integration Capabilities:
  • Vehicle Fit: Ensure the rack's shank length and width do not interfere with rear doors, license plates, or backup cameras.
  • Lighting Integration: Select racks with pre-drilled holes for standard 7-pin or 4-pin lighting connectors to avoid complex wiring modifications.
• Actionable Recommendation:
  • Opt for modular systems (Base 2-bike + Add-on) to align procurement costs with fluctuating demand (e.g., seasonal events).
  • Factor in the cost of lighting accessories and license plate holders in the total cost of ownership (TCO) budget, as these are often excluded from the base rack price.

4. Typical Use Cases

• Fleet & Corporate Transport:
  • Scenario: Transporting employee bikes to remote work sites or corporate retreats.
  • Requirement: High security (locking pins), high weight capacity (for e-bikes), and durability.
  • Preferred Spec: 2.0-inch tray-style rack, 45.4 kg (100 lbs) per bike capacity.
• Recreational & RV Travel:
  • Scenario: Family vacations or RV trips.
  • Requirement: Ease of loading, stability on rough roads, and compact storage.
  • Preferred Spec: 2.0-inch tray-style with RV-specific weight limits (approx. 19 kg / 42 lbs per bike) to prevent sway.
• Event Logistics:
  • Scenario: Cycling events, marathons, or group rides.
  • Requirement: High capacity (up to 6 bikes), rapid deployment.
  • Preferred Spec: Hanging-style rack (up to 6 bikes) for maximum volume, provided the bikes are lightweight.
• Actionable Recommendation:
  • Match the rack style to the primary use case: Tray for heavy/e-bikes and Hanging for high-volume, lightweight group transport.

5. Long-Term Planning Considerations

• Market Trends & Demand Signals:
  • E-Bike Surge: The rise of electric bicycles (often weighing 20–25 kg alone) is driving demand for racks with higher per-bike limits (45.4 kg / 100 lbs) and reinforced tray designs.
  • Safety Regulations: Increasing scrutiny on rear-load visibility suggests a trend toward racks with integrated lighting solutions becoming standard in B2B contracts.
  • Modularity: There is a growing preference for modular systems that allow users to upgrade from 2 to 4 bikes without replacing the entire unit.
• Durability & Maintenance:
  • Corrosion Resistance: Given the exposure to road salt and weather, procurement should prioritize racks with powder-coated or galvanized finishes.
  • Wear Points: Hinges and locking mechanisms are high-wear areas; plan for replacement parts availability over a 5–7 year lifecycle.
• Actionable Recommendation:
  • Future-proof procurement by selecting racks compatible with 2.0-inch receivers to accommodate heavier e-bikes expected to dominate the market in the coming years.
  • Establish a maintenance schedule for lubricating hinges and checking locking pins every 6 months to ensure long-term reliability.

6. Special Product Recommendations

The following table compares the primary rack types available in the market to assist in selecting the right product for specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Tray/Platform (2-Bike) | Corporate Fleets, E-Bike Owners | Cap: 2 bikes (up to 4 w/ add-on); Weight: 28.4–29.5 kg; Per-bike: 30.4–45.4 kg | High if used on 1.25" hitch with heavy bikes | Mandatory: Verify 2.0" receiver availability for heavy loads. | | Tray/Platform (RV Specific) | RV Owners, Leisure Travelers | Cap: 2 bikes; Per-bike: 19 kg (42 lbs); Weight: ~28.4 kg | Sway instability if overloaded | Critical: Adhere strictly to RV-specific weight limits to prevent trailer sway. | | Hanging Style (6-Bike) | Event Organizers, Group Tours | Cap: 6 bikes; Weight: 30.8 kg; Per-bike: 27.2 kg (60 lbs) | Frame damage; No integrated locks | Caution: Only use for lightweight bikes; add aftermarket locks if security is required. | | Modular System | Scalable Fleets | Base: 2 bikes; Expandable to 4; Weight: ~29.5 kg | Complexity in assembly | Strategic: Buy base + add-on separately to allow for phased budgeting. |

7. Frequently Asked Questions (FAQ)

Q1: What is the maximum weight a standard bike rack can hold per bike? A: Standard 2.0-inch receiver racks typically support up to 45.4 kg (100 lbs) per bike. However, 1.25-inch receiver versions are often limited to 27.2 kg (60 lbs). Always check the specific receiver size rating before purchasing.

Q2: Do I need to install lights on my bike rack? A: In many regions, yes. If the rack obscures the vehicle's rear lights or license plate, you must equip it with suitable lighting (rear lights, indicators) and a license plate holder to ensure visibility and legal compliance.

Q3: Are warning signs required on bike racks in Europe? A: Currently, warning signs are mandatory only in Italy and Spain. Other European countries do not legally require them, but it is recommended for safety and liability reasons.

Q4: Can I transport electric bikes (e-bikes) on a standard rack? A: Only if the rack is rated for the total weight. E-bikes often weigh 20–25 kg alone. You must ensure the rack's per-bike limit (e.g., 45.4 kg) and the vehicle's towbar vertical load limit are not exceeded.

Q5: What is the typical weight of a 2-bike hitch rack? A: Most 2-bike tray-style racks weigh between 28.4 kg and 29.5 kg (62–65 lbs). Hanging style racks for 6 bikes are heavier, typically around 30.8 kg (68 lbs).

Q6: How do I calculate the maximum weight of the carrier I can buy? A: You must calculate the permissible total weight of the vehicle's towbar. Subtract the weight of the empty rack from the towbar's maximum vertical load capacity to determine the maximum weight of the bikes you can carry.

Q7: Do bike racks come with locks? A: High-security models include a locking hitch pin, security key, and a 12mm security cable. Basic hanging models may not include any locking mechanism.

Q8: Can I expand a 2-bike rack to hold 4 bikes? A: Yes, many tray-style racks are designed with add-on modules that allow expansion from 2 to 4 bikes, provided the vehicle's towbar and the rack's structural integrity support the increased load.
