Procurement Report: Binoculars

1. Technical Specifications and Performance Metrics

The procurement of binoculars requires a precise alignment of optical geometry with the intended operational environment. The core technical specifications are defined by the magnification-to-objective lens ratio (e.g., 8x42), prism material, and lens coating technology.

• Magnification and Objective Diameter:
  • Compact/Travel Class: Magnification ranges from 6x to 10x with objective lenses between 20 mm and 30 mm. These units typically weigh 250–500 g, prioritizing portability over light-gathering capability.
  • Full-Size/Performance Class: Magnification ranges from 8x to 12x with objective lenses between 40 mm and 50 mm. These units generally weigh 700–2000 g, offering superior brightness and stability for low-light conditions.
• Prism and Coating Technology:
  • Prism Material: Procurement for high-performance units must specify BAK4 (Barium Crown Glass) prisms. BAK4 prisms provide a square exit pupil and eliminate edge distortion, unlike lower-cost BK7 prisms which can cause vignetting.
  • Lens Coatings:
    • Multi-Coated (MC): At least one layer of coating on air-to-glass surfaces.
    • Fully Multi-Coated (FMC): Multiple layers on all air-to-glass surfaces. FMC is the industry standard for maximizing light transmission (often >90%) and reducing glare.
• Field of View (FOV): Typically measured in feet at 1,000 yards. For birdwatching, a wide FOV of 350–400 ft is preferred; for general observation, 300–350 ft is standard.

Procurement Recommendation: For general B2B procurement where versatility is key, prioritize 8x42 models with BAK4 prisms and FMC coatings. For logistics-heavy teams or travel-focused deployments, select 8x25 or 10x25 compact models. Avoid units with uncoated lenses or BK7 prisms for any application requiring low-light performance.

2. Industry Compliance and Quality Assurance

While binoculars are not typically subject to strict medical or aerospace regulatory frameworks, quality assurance relies on optical manufacturing standards and durability testing.

• Optical Standards: Units should adhere to ISO standards for optical clarity and transmission. The primary metric is the MTF (Modulation Transfer Function), ensuring high contrast and resolution across the field of view.
• Durability and Environmental Sealing:
  • Waterproofing: Industry standard for outdoor models is IPX7 or equivalent, achieved through O-ring sealing and nitrogen/argon gas purging to prevent internal fogging.
  • Impact Resistance: Frames should be constructed from rubber-armored polycarbonate or magnesium alloy, capable of withstanding drops from 1.5 meters onto hard surfaces.
• Quality Control Metrics:
  • Exit Pupil: Calculated as Objective Diameter / Magnification. For 8x42, the exit pupil is 5.25 mm, which is optimal for human eye dilation in twilight.
  • Eye Relief: Critical for eyeglass wearers; minimum 15–20 mm is required for comfortable viewing.

Procurement Recommendation: Require suppliers to provide test reports confirming nitrogen purging and O-ring integrity for all outdoor-rated units. Verify that the rubber armor provides a non-slip grip and that the eyecups are adjustable or twist-down to accommodate eyeglass wearers. Do not accept units lacking fogging guarantees for field operations.

3. Cost Efficiency and Integration Capabilities

Binoculars represent a high-value, low-volume procurement category where total cost of ownership (TCO) is driven by durability and optical longevity rather than integration complexity.

• Cost Structure:
  • Entry-Level (BK7, MC): $50 – $150 per unit.
  • Mid-Range (BAK4, MC/FMC): $150 – $400 per unit.
  • Premium (BAK4, FMC, Roof Prism, High-End Coatings): $400 – $1,200+ per unit.
• MOQ and Lead Time:
  • Typical B2B MOQ: 10–50 units for custom branding; 1–5 units for standard off-the-shelf models.
  • Lead Time: 2–4 weeks for standard stock; 6–12 weeks for custom branding or specialized optical configurations.
• Integration Capabilities:
  • Binoculars are standalone optical instruments. Integration is limited to accessory compatibility (e.g., tripod adapters, carrying cases, and strap systems).
  • Tripod Compatibility: Most full-size models feature a 1/4"-20 threaded socket for direct tripod mounting, essential for reducing hand shake at high magnifications (10x and above).

Procurement Recommendation: For large-scale deployments, negotiate bulk pricing on standard 8x42 FMC models to achieve a unit cost under $200. Ensure the procurement contract includes a warranty clause covering lens delamination and seal failure for a minimum of 2 years. Avoid "budget" models that lack tripod threads if the use case involves prolonged stationary observation.

4. Typical Use Cases

The selection of binoculars is heavily dictated by the specific application scenario.

• Birdwatching and Wildlife Observation: Requires high light transmission and wide fields of view. 8x42 or 10x42 with FMC coatings are the gold standard.
• Travel and Hiking: Prioritizes weight and compactness. 8x25 or 10x25 models weighing <300 g are ideal.
• Marine and Boating: Requires stabilization and high contrast against water glare. 7x50 or 10x50 models with phase-coated prisms and rubber armor are essential.
• Sports and Concerts: Requires fast focus and compact size. 10x25 or 12x25 models with quick-focus mechanisms are preferred.
• Security and Surveillance: Requires long-range clarity. 15x70 or 20x80 large-aperture models (often requiring tripods) are used for perimeter monitoring.

Procurement Recommendation: Segment your inventory based on the primary user group. For a mixed fleet, a 8x42 FMC model serves as the "workhorse" for 70% of scenarios, while 8x25 models should be procured specifically for field staff requiring high mobility.

5. Long-Term Planning Considerations

The binocular market is shifting towards higher optical standards and sustainable manufacturing practices.

• Market Trends:
  • Shift to Roof Prisms: While Porro prisms offer better depth perception, Roof Prisms are becoming the dominant choice for B2B due to their compact, rugged, and straight-line design.
  • Eco-Friendly Materials: Increasing demand for recycled aluminum barrels and bio-based rubber armoring.

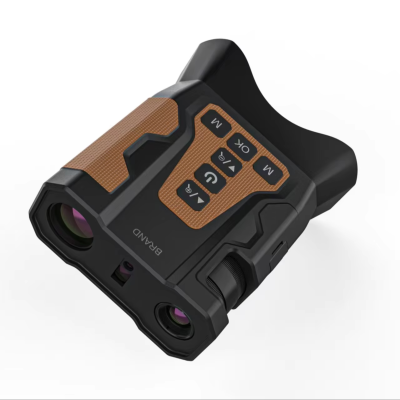

  • Digital Integration: Emerging trend of binoculars with built-in rangefinders or GPS modules, though these remain niche.
• Demand Signals:
  • Post-pandemic surge in outdoor recreation has sustained demand for mid-range (8x42) units.
  • Professional sectors (wildlife research, security) are moving away from disposable optics toward repairable, modular systems.
• Obsolescence Risk: Low. Optical physics remains stable, but coating technologies evolve. Procure models with FMC as the baseline to avoid rapid obsolescence.

Procurement Recommendation: Plan for a 3-5 year replacement cycle for standard units. Invest in modular repair programs with suppliers to extend the life of high-value optics. Monitor the adoption of digital optical aids for future procurement if the organization requires data logging capabilities.

6. Special Product Recommendations

The following table compares the primary product categories to assist in selecting the right tool for specific procurement needs.

7. Frequently Asked Questions (FAQ)

1. What do the numbers on binoculars (e.g., 8x42) actually mean? The first number (8) represents the magnification power, meaning the object appears 8 times closer. The second number (42) is the objective lens diameter in millimeters, which determines how much light enters the binoculars. A larger number generally means a brighter image in low light.

2. Why is BAK4 prism material recommended over BK7? BAK4 prisms are made of high-quality Barium Crown Glass that allows for a square exit pupil, ensuring the entire field of view is bright and sharp. BK7 prisms are lower cost but often result in a circular exit pupil, causing dark corners (vignetting) and reduced image quality.

3. What is the difference between "Multi-Coated" and "Fully Multi-Coated" (FMC)? "Multi-Coated" means at least one lens surface has an anti-reflective coating. "Fully Multi-Coated" (FMC) means all air-to-glass surfaces have multiple layers of anti-reflective coating. FMC provides significantly higher light transmission (up to 95%) and better contrast, making it essential for low-light viewing.

4. Do I need a tripod for 10x or higher magnification? Yes. At 10x magnification, even slight hand tremors are amplified, causing image shake. For sustained viewing at 10x or higher (e.g., 12x, 15x), a tripod is highly recommended. Ensure the binoculars have a 1/4"-20 threaded socket for tripod attachment.

5. How do I prevent binoculars from fogging up? High-quality binoculars are nitrogen or argon purged and sealed with O-rings to create a dry, inert internal environment. This prevents internal fogging caused by temperature changes or humidity. Ensure your procurement spec requires "fog-proof" or "gas-purged" certification.

6. What is "Eye Relief" and why does it matter? Eye relief is the distance from the eyepiece lens to your eye where the full field of view is visible. For eyeglass wearers, an eye relief of 15mm to 20mm is critical. Short eye relief (<12mm) makes it difficult to see the full image while wearing glasses.

7. How long should a pair of binoculars last? With proper care (cleaning, storage in a dry case, and avoiding drops), a quality pair of binoculars with FMC coatings and BAK4 prisms can last 10–15 years. The primary failure points are usually seal degradation (leading to fogging) or coating delamination.

8. Can I use binoculars for viewing the moon or stars? Yes, but standard 8x42 binoculars are excellent for wide-field stargazing (e.g., the Milky Way, star clusters). For detailed lunar viewing or deep-sky objects, larger aperture models (70mm+) or telescope-mounted binoculars are preferred due to higher light-gathering needs.
