Bitumen Procurement Report

1. Technical Specifications and Performance Metrics

Bitumen is a complex mixture of hydrocarbons, and its performance is primarily dictated by its penetration grade, which measures hardness under standard conditions. Procurement decisions must begin with the penetration number, as this directly correlates to the material's suitability for specific climate conditions and traffic loads.

• Penetration Grade Ranges:
  • 30/40 & 40/50: Harder grades ideal for hot climates and heavy-duty paving.
  • 60/70: The industry standard for general-purpose paving in moderate climates.
  • 80/100: Softer grades suitable for cooler climates or lower-load applications.
  • 100/120 to 160/220: Very soft grades used primarily for cold regions or specific emulsions.
• Softening Point: Typically ranges from 45°C to 55°C for standard paving grades (60/70). Higher softening points indicate better resistance to rutting in high temperatures.
• Viscosity: Critical for mixing temperatures. Procurement specifications should verify viscosity at 135°C (for mixing) and 60°C (for storage/transport). Typical values for 60/70 grade range between 150 and 250 cSt at 135°C.
• Solubility: Must exceed 99.5% in trichloroethylene to ensure purity and proper bonding with aggregates.
• Ductility: Should typically be >100 cm at 25°C to ensure the material can stretch without cracking under thermal stress.

Actionable Recommendation: Do not select bitumen based on price alone. First, determine the local climate and traffic load to select the correct penetration grade (e.g., 30/40 for hot/heavy, 80/100 for cold/light). Second, mandate a Certificate of Analysis (CoA) for every shipment to verify softening point, viscosity, and solubility against the ordered specifications before release.

2. Industry Compliance and Quality Assurance

Reliable procurement requires adherence to rigorous health, safety, environmental, and quality assurance standards. The industry relies on standardized testing protocols to ensure consistency across batches.

• Quality Standards: Procurement contracts should reference standards set by bodies such as the Southern African Bitumen Association (SABITA) or equivalent national standards (e.g., ASTM, EN). These guidelines cover Health, Safety, Environmental (HSE), and Quality Assurance protocols.
• Documentation Requirements: Every batch must be accompanied by a Certificate of Analysis (CoA). This document must explicitly state the penetration grade, softening point, ductility, and solubility results.
• Safety Compliance: Bitumen handling requires adherence to HSE regulations regarding high-temperature handling (typically 150°C–180°C) and fume management. Suppliers must demonstrate compliance with local environmental regulations regarding emissions and spill prevention.
• Verification Protocol: Implement a "Verify before Order" protocol. Cross-reference the CoA data with the requested grade specifications. For example, if ordering 60/70 grade, the penetration must fall strictly between 60 and 70 (0.1mm).

Actionable Recommendation: Include a clause in purchase orders requiring the immediate submission of the CoA prior to shipment. Reject any shipment where the penetration grade or softening point deviates by more than 2 units from the specified range, as this can lead to premature pavement failure.

3. Cost Efficiency and Integration Capabilities

The cost of bitumen is volatile and influenced by crude oil prices, refining capacity, and logistics. Understanding the quoting mechanism is essential for budgeting.

• Pricing Factors: Prices are typically quoted FOB (Free on Board) or CIF (Cost, Insurance, and Freight). Key drivers include global crude oil benchmarks, refining margins, and freight costs (drum vs. bulk tanker).
• MOQ (Minimum Order Quantity):
  • Bulk Tankers: Typical range 20–25 metric tons (approx. 1 tanker).

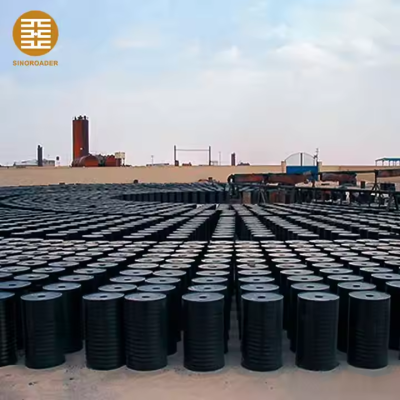

  • Drum Packaging: Typical range 10–20 metric tons (approx. 200–400 drums).
• Lead Time:
  • Bulk: 7–14 days for regional delivery; 20–30 days for international shipments.
  • Drums: 10–20 days depending on packaging availability and port congestion.
• Integration: Bitumen integrates seamlessly with existing asphalt mixing plants. However, viscosity adjustments may be required if the supplier's grade differs slightly from the plant's standard mix design.

Actionable Recommendation: Lock in pricing through forward contracts during periods of market stability to hedge against crude oil volatility. When comparing suppliers, calculate the Landed Cost (Price + Freight + Duty + Handling) rather than just the unit price, as bulk transport is significantly more cost-efficient than drummed bitumen for large-scale projects.

4. Typical Use Cases

Bitumen grades are selected based on the specific environmental and structural requirements of the application.

• Road Construction (Heavy Traffic):
  • Grade: 30/40 or 60/70.
  • Application: Highways, airport runways, and major arterial roads in hot climates.
  • Reasoning: Higher hardness prevents rutting under heavy loads and high temperatures.
• Road Construction (Moderate/Cool Climates):
  • Grade: 60/70 or 80/100.
  • Application: Urban roads, residential streets, and secondary highways.
  • Reasoning: Balanced flexibility prevents cracking in cooler weather while maintaining stability.
• Waterproofing and Roofing:
  • Grade: 80/100 or higher.

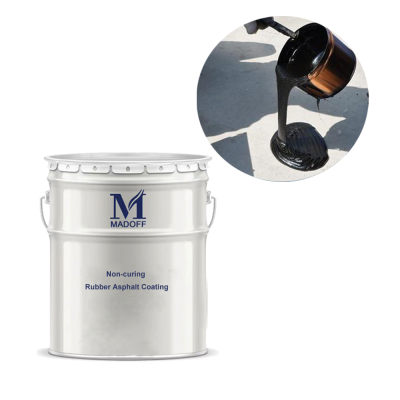

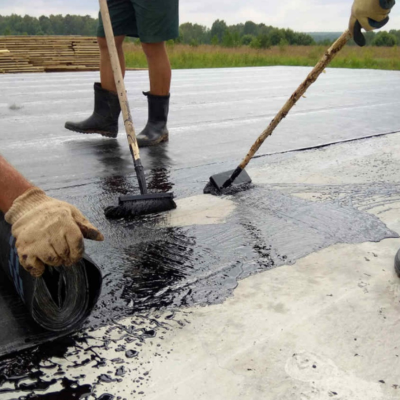

  • Application: Flat roof membranes, dam waterproofing, and pipe coatings.
  • Reasoning: Higher penetration allows for better adhesion and flexibility over structural movements.
• Emulsions and Cutbacks:
  • Grade: 80/100 or 120/150.

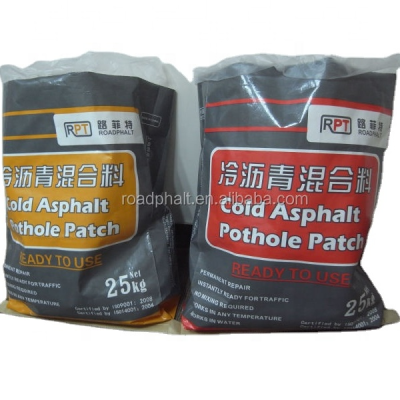

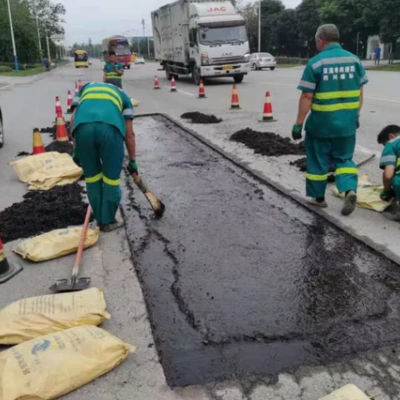

  • Application: Cold mix asphalt, tack coats, and surface treatments.
  • Reasoning: Softer grades break down more easily in emulsions for cold weather application.

Actionable Recommendation: Match the bitumen grade strictly to the project's climate zone. Using a 30/40 grade in a cold region will cause brittle cracking, while using an 80/100 grade in a hot, heavy-traffic zone will lead to rapid rutting.

5. Long-Term Planning Considerations

Procurement strategies must account for market trends and the lifecycle of the product to ensure project longevity.

• Market Trends: There is a growing global shift toward PMB (Polymer Modified Bitumen) and Reclaimed Asphalt Pavement (RAP) integration. While standard penetration grades remain the baseline, demand for modified binders is rising to extend pavement life.
• Climate Adaptation: As global temperatures rise, the demand for harder grades (30/40) in regions previously using softer grades (60/70) is increasing. Procurement plans should anticipate a need for higher softening points in the future.
• Supply Chain Resilience: Relying on a single source for drum bitumen carries risk. Diversify suppliers between bulk and drum options to mitigate logistics bottlenecks.
• Durability Expectations: Standard bitumen pavements typically last 10–15 years. Procuring higher-grade or modified bitumen can extend this to 20+ years, reducing long-term maintenance costs.

Actionable Recommendation: Develop a 3-year procurement forecast that includes a transition plan for Polymer Modified Bitumen (PMB) for high-traffic corridors. Monitor global crude oil trends quarterly to adjust inventory levels, aiming to maintain a 2-week buffer stock for critical projects.

6. Special Product Recommendations

The following table compares common bitumen products to assist in selecting the right material for specific buyer profiles.

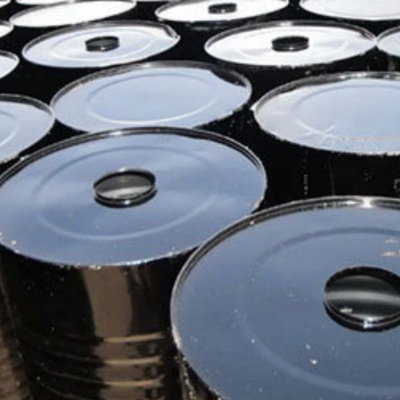

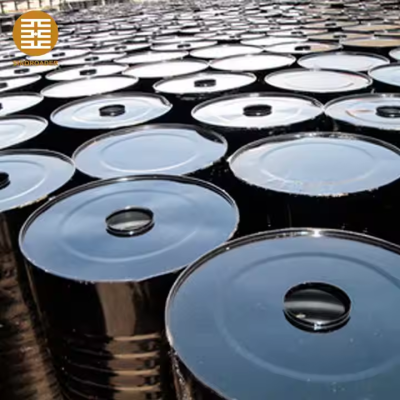

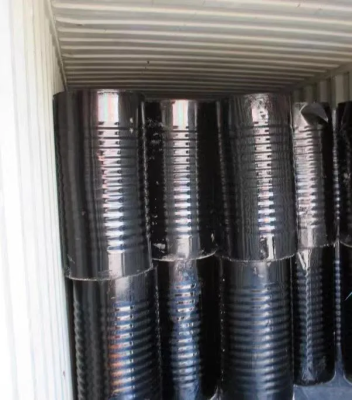

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | 60/70 Penetration | General Contractors, Municipalities | Pen: 60-70; Softening Point: 47-53°C | Verify viscosity at 135°C | Ideal for most projects; standardize on this grade to simplify inventory. | | 30/40 Penetration | Highway Authorities, Hot Climate Builders | Pen: 30-40; Softening Point: 50-56°C | Check for brittleness in cold snaps | Only use in regions with avg. temp >25°C; high risk of cracking if misapplied. | | 80/100 Penetration | Roofing Contractors, Cold Climate Builders | Pen: 80-100; Softening Point: 43-49°C | Ensure solubility >99.5% | Best for waterproofing; avoid for heavy traffic roads in summer. | | PMB (Modified) | High-Traffic Infrastructure Projects | Pen: 40-60 (Modified); Elongation >100cm | Verify polymer content % | Higher upfront cost but reduces long-term maintenance; requires specialized mixing. | | Drum Bitumen | Small Projects, Remote Sites | 200kg/Drum; Temp: 140-160°C | Check for drum integrity/leaks | Higher cost per ton; useful for small batches or where tankers cannot access. |

Actionable Recommendation: For large-scale infrastructure, prioritize bulk tanker delivery of 60/70 or 30/40 grade to minimize handling costs. For remote or small-scale projects, use drummed bitumen but verify the supplier's ability to maintain temperature during transit to prevent solidification.

7. Frequently Asked Questions (FAQ)

Q1: How do I choose between 60/70 and 80/100 bitumen? A: Select 60/70 for moderate climates and standard road traffic. Choose 80/100 for cooler climates or applications requiring higher flexibility, such as roofing or low-load roads.

Q2: What is the minimum order quantity (MOQ) for bitumen? A: For bulk tankers, the typical MOQ is 20–25 metric tons. For drummed bitumen, suppliers often require a minimum of 10–20 metric tons (approx. 200–400 drums), though some may accept smaller quantities at a premium.

Q3: How does the penetration grade affect pavement durability? A: Lower penetration grades (e.g., 30/40) are harder and resist rutting in hot weather but may crack in cold weather. Higher penetration grades (e.g., 80/100) are softer and resist cracking in cold weather but may rut under heavy loads in heat.

Q4: What documents must I request before accepting a shipment? A: You must request a Certificate of Analysis (CoA) for every batch. This document must verify the penetration grade, softening point, ductility, and solubility against your purchase order specifications.

Q5: How long is the lead time for bitumen delivery? A: Lead times typically range from 7 to 14 days for regional bulk deliveries and 20 to 30 days for international shipments. Drummed bitumen may take 10–20 days depending on packaging availability.

Q6: Can I use 80/100 bitumen for a highway in a hot climate? A: No. Using 80/100 in a hot climate is high-risk and will likely result in severe rutting and deformation under heavy traffic. Use 30/40 or 60/70 for such conditions.

Q7: What safety precautions are required when handling bitumen? A: Bitumen must be handled at temperatures between 140°C and 180°C. Strict adherence to HSE guidelines is required to prevent burns and exposure to fumes. Ensure all handling equipment is rated for high-temperature materials.

Q8: How does crude oil price affect bitumen procurement? A: Bitumen prices are directly correlated with crude oil benchmarks. Procurement costs can fluctuate significantly month-to-month. It is advisable to monitor market trends and consider forward contracts to lock in prices during periods of volatility.
