Procurement Report: Industrial Borescope Systems

Product Category: Industrial Remote Visual Inspection (RVI) / Video Borescope Date: October 2023 Scope: B2B Procurement Analysis for Articulating and Rigid Borescopes

1. Technical Specifications and Performance Metrics

When procuring industrial borescopes, the core selection criteria revolve around sensor technology, probe geometry, and optical performance. Based on industry standards for 2026 applications, the following specifications are critical for ensuring high-fidelity inspection results.

• Image Sensor & Resolution:

  • Sensor Type: CMOS (Complementary Metal-Oxide-Semiconductor) is the industry standard for low-light performance and high frame rates.
  • Resolution Range: Procurement should target units offering 1280×720 (HD) as a minimum for general maintenance, with 1920×1080 (Full HD) recommended for detailed defect analysis in aerospace or turbine sectors.
  • Frame Rate: Typical B2B range of 30–60 fps to ensure smooth video playback during real-time inspection.

• Probe Geometry & Flexibility:

  • Insertion Tube Diameter:
    • Automotive/General Industrial: 3.9 mm – 6.0 mm.
    • Tight Access/Aerospace: 2.8 mm – 3.5 mm.
  • Tube Length: Standard B2B ranges are 0.5 m to 5.0 m. Longer tubes (>5m) require specialized cabling and may suffer from signal attenuation.

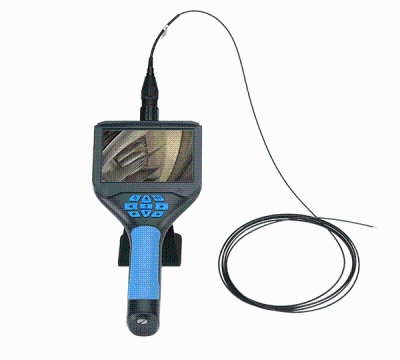

  • Articulation: For complex geometries, articulating probes with a 90° to 270° range of motion are required. The minimum bend radius should be >30 mm to prevent cable kinking.

• Optical Performance:

  • Focus Range: Typically 10 mm to 100 mm (near focus) to infinity.
  • Illumination: High-intensity LED arrays (typically 100–300 lumens equivalent) with adjustable intensity to prevent glare on reflective surfaces.

Procurement Recommendation: Prioritize units with a 1920×1080 CMOS sensor and 2.8–4.0 mm diameter probes for high-value asset inspection. Ensure the articulation mechanism allows for a minimum of 270° control to access blind spots in engine cylinders and turbine blades.

2. Industry Compliance and Quality Assurance

Industrial borescopes operate in harsh environments, necessitating robust compliance with safety and durability standards. While specific named certifications (e.g., specific ISO numbers for the device itself) vary by manufacturer, the following compliance frameworks are standard in the sector.

• Ingress Protection (IP Rating):
  • Standard Requirement: IP65 (dust-tight and water jet resistant) is the baseline for general industrial use.
  • Harsh Environment: IP67 or IP68 is required for units intended for use in wet environments, chemical plants, or underwater inspections.
• Durability & Build:
  • Tube Material: Stainless steel or reinforced polymer sheathing.
  • Drop Resistance: Typical B2B range of 1.5 m to 2.0 m drop resistance onto concrete.
  • Temperature Range: Operating temperature typically -20°C to +50°C; storage range -40°C to +70°C.
• Data Integrity:
  • Units must support local storage (SD card/SSD) with capacities ranging from 32 GB to 128 GB to ensure data is not lost if connectivity is interrupted.

Procurement Recommendation: Verify the IP rating matches the specific inspection environment. For automotive or general manufacturing, IP65 is sufficient; for wind turbine or marine applications, mandate IP67. Request a test report for the probe's bend radius durability to ensure it meets the >30 mm minimum requirement without signal loss.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price, encompassing software integration, training, and maintenance.

• Cost Structure (Typical B2B Ranges):

  • Entry-Level (Rigid/Basic Video): $1,500 – $3,000.
  • Mid-Range (Articulating HD): $4,500 – $8,000.
  • High-End (4K/Advanced Analytics): $10,000 – $25,000+.

• Integration Capabilities:

  • Connectivity: USB 3.0, HDMI, or Wi-Fi (802.11ac) for wireless transmission.
  • Software Compatibility: Must support Windows 10/11 and macOS. Advanced units should offer API access for integration with Enterprise Asset Management (EAM) systems.
  • Data Export: Standard formats include JPEG, MP4, and proprietary raw formats compatible with NDT (Non-Destructive Testing) software.

• MOQ & Lead Time:

  • Minimum Order Quantity (MOQ): Typically 1 unit for standard models; 5–10 units for custom configurations.
  • Lead Time: 2–4 weeks for standard stock; 6–12 weeks for custom articulation or specialized probes.

Procurement Recommendation: Opt for mid-range articulating borescopes ($5k–$8k) to balance cost and capability. Ensure the selected unit includes native software for annotation and measurement to reduce post-inspection processing time. Avoid "cheap" rigid probes for complex inspections as the labor cost of repositioning often outweighs the equipment savings.

4. Typical Use Cases

Borescopes are versatile tools applied across multiple high-value industries. The selection of the device must align with the specific access path and defect type.

• Automotive & Heavy Machinery:
  • Application: Engine cylinder inspection, piston ring analysis, and valve seat examination.
  • Requirement: 3.9 mm – 6.0 mm probes with high-resolution (1080p) to detect micro-cracks.
• Aerospace & Aviation:
  • Application: Turbine blade inspection, combustion chamber analysis, and fuel system checks.
  • Requirement: High-brightness LEDs, 1920×1080 resolution, and articulating probes with >270° range.
• Wind Energy:
  • Application: Gearbox and generator internal inspection.
  • Requirement: Long tube lengths (up to 5m), IP67 rating, and ruggedized construction.
• Manufacturing & Foundry:
  • Application: Mold cavity inspection, casting defect detection, and weld seam verification.
  • Requirement: Rigid or semi-rigid probes with high depth of field.

Procurement Recommendation: For a multi-department facility, procure a hybrid fleet: 2–3 high-end articulating units for aerospace/aviology and 5–10 mid-range rigid/semi-rigid units for general automotive/machinery maintenance.

5. Long-Term Planning Considerations

The borescope market is evolving towards smarter, connected, and more durable devices. Procurement strategies must account for these trends.

• Market Trends & Demand Signals:
  • Miniaturization: Demand is shifting toward 2.8 mm probes for increasingly tight access paths in modern engine designs.
  • AI Integration: Emerging systems are integrating AI-driven defect detection (e.g., automatic crack identification) to reduce human error.
  • Wireless Evolution: Shift from tethered USB to 5G/Wi-Fi 6 enabled probes for real-time remote collaboration.
• Lifecycle Management:
  • Sensor Degradation: CMOS sensors have a finite lifespan under high heat; plan for replacement every 3–5 years in high-usage environments.
  • Cable Wear: Articulating cables are the most frequent point of failure. Plan for annual cable inspection and replacement cycles.
• Regulatory Shifts:
  • Increasing regulatory pressure for digital record-keeping in aviation and energy sectors requires units with tamper-proof data logging capabilities.

Procurement Recommendation: Future-proof purchases by selecting units with firmware upgradability and open API capabilities. Avoid proprietary, closed-system borescopes that cannot integrate with future AI analytics platforms.

6. Special Product Recommendations

The following comparison table outlines the optimal product types based on buyer profile and specific technical needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Articulating HD Borescope | Aerospace, Automotive, Heavy Industry | 1920×1080, 2.8–4.0mm, 270° articulation, IP65 | Cable kinking at <30mm radius | Verify articulation control precision; prioritize units with dual-LED arrays for shadow reduction. | | Rigid Video Borescope | General Manufacturing, Foundry, HVAC | 1280×720, 4.0–6.0mm, Fixed angle, IP54 | Limited access to blind spots | Ideal for straight-through inspections; ensure high contrast ratio for dark cavities. | | Miniature Inspection Camera | Electronics, Micro-Machinery | 2.8mm diameter, 1080p, Flexible PCB | Lower light output, fragile | Use only for non-abrasive environments; check for magnetic mounting options. | | Industrial 4K Borescope | High-Precision NDT, Research | 3840×2160, 5.0mm, 60fps, Wi-Fi | High cost, large file sizes | Justify only for critical failure analysis; ensure storage infrastructure supports 4K video. |

Procurement Recommendation: For most B2B scenarios, the Articulating HD Borescope offers the best ROI. If budget is constrained, a Rigid Video Borescope is acceptable for simple, straight-line inspections, but it limits the scope of future work.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum resolution required for detecting hairline cracks in turbine blades? A: A resolution of 1920×1080 (Full HD) is the industry standard for detecting hairline cracks. Lower resolutions (720p) may miss defects smaller than 0.1mm in diameter.

Q2: Can I use a borescope in a wet or underwater environment? A: Only if the unit has an IP67 or IP68 rating. Standard IP65 units are water-resistant but not submersible. Always verify the specific IP rating before entering wet zones.

Q3: How long is the typical lead time for a custom articulating probe? A: Standard stock units are available within 2–4 weeks. Custom articulation angles or specialized diameters (e.g., <3mm) typically require 6–12 weeks for manufacturing.

Q4: What is the typical lifespan of the insertion tube? A: With proper handling, the insertion tube typically lasts 3–5 years. The most common failure point is the articulation joint or the cable sheathing due to repeated bending.

Q5: Do these devices require calibration for accurate measurements? A: Yes. Most industrial borescopes require a scale calibration (using a known reference object) before taking precise measurements. Ensure the software supports this feature.

Q6: Is Wi-Fi connectivity standard on all industrial borescopes? A: No. While Wi-Fi is becoming common for wireless transmission, many high-end industrial units still rely on USB 3.0 or HDMI for stable, high-bandwidth data transfer to reduce latency.

Q7: What is the typical Minimum Order Quantity (MOQ) for these devices? A: For standard models, the MOQ is typically 1 unit. For bulk procurement with custom branding or specific cable lengths, MOQs often start at 5–10 units.

Q8: How do I choose between a rigid and an articulating probe? A: Choose a rigid probe for straight, unobstructed paths (e.g., engine blocks). Choose an articulating probe if you need to navigate around corners or inspect blind spots (e.g., combustion chambers, complex piping).
