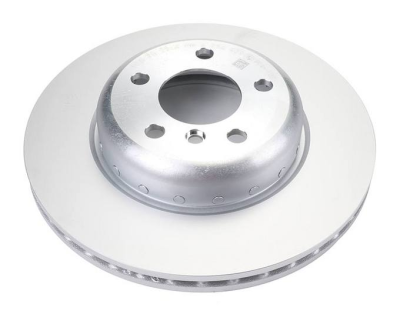

Procurement Report: Heavy-Duty Air Disc Brake Rotors

1. Technical Specifications and Performance Metrics

For heavy-duty commercial applications, the brake disc (rotor) is the critical friction interface. Procurement must prioritize dimensional precision and material chemistry to ensure safety and longevity.

• Dimensions & Fitment:
  • Diameter: Standard heavy-duty rotors typically range from 415mm to 430mm (approx. 16.3" to 17").
  • Thickness: Nominal thickness is often 43mm, but procurement must verify the OEM Minimum Thickness (wear limit) before ordering.
  • Bolt Pattern & Hub: Common configurations include 14/24 bolt patterns for non-integrated axles.
  • Wheel Clearance: Must align with wheel sizes ranging from 17" to 21.7" to ensure proper clearance.
• Material Chemistry (Grey Cast Iron):
  • Composition: Prioritize GJL (Grey Cast Iron) chemistry with Carbon (C) content between 3.0% – 3.8% and Silicon (Si) between 1.8% – 3.0%. This ratio ensures optimal thermal conductivity and wear resistance.
  • Coating: For corrosion resistance, specify an e-coat (Electrodeposition) coating with a thickness of 10–20 µm. This is critical for rotors exposed to road salts and moisture.
• Performance Limits:
  • Runout (TTV - Total Thickness Variation): Strict adherence to OEM runout limits is required to prevent pedal pulsation. Typical B2B tolerance is < 0.05mm at the friction surface.
  • Thermal Capacity: Must withstand repeated thermal cycling without warping, essential for air disc brake systems.

Actionable Recommendation: Before sourcing, verify the exact axle position (front/rear) and the specific vehicle's OEM minimum thickness specification. Do not rely on nominal thickness alone; calculate the remaining life based on current wear to determine the optimal reorder point.

2. Industry Compliance and Quality Assurance

Procurement of brake discs is heavily regulated due to safety implications. Compliance is not optional but a prerequisite for liability protection and fleet acceptance.

• Regulatory Standards:
  • FMVSS-121 / CMVSS-121: In North America, all air disc brake systems must comply with Federal Motor Vehicle Safety Standard 121 (Service Brakes) and Canadian Motor Vehicle Safety Standards.
  • DOT Compliance: Equipment must adhere to 49 CFR 571.121, specifically regarding service brakes (Par. S5.4) and parking brakes (Par. 5.6.1).
• Certification Documentation:
  • Vendors must provide a Certificate of Compliance (e.g., Hendrickson L809 Rev AA format) confirming the axle and rotor assembly meets current revision standards.
  • Verification of Air Disc Brake Certification is required for systems utilizing 17.5" or 22.5" configurations.
• Quality Assurance Protocols:
  • Ensure the supplier provides traceability for the GJL casting batch.
  • Request documentation for anti-corrosion coating adhesion tests.

Actionable Recommendation: Require a specific "Certificate of Compliance" for the exact axle model and rotor part number before finalizing the purchase order. Do not accept generic "compliant" statements; the documentation must explicitly reference the relevant DOT/CMVSS paragraph numbers and the specific axle type (e.g., TRLAXLE® non-integrated).

3. Cost Efficiency and Integration Capabilities

While unit price is a factor, total cost of ownership (TCO) in the heavy-duty sector is driven by durability, integration, and downtime reduction.

• Cost Drivers:
  • Integration: Integrated suspension systems (e.g., INTRAAX®, VANTRAAX®, ULTRAA-K®) often command a premium but reduce assembly time and potential misalignment errors compared to non-integrated axles (TRLAXLE®).
  • Material Cost: High-grade GJL with precise chemistry and e-coat processing increases unit cost but extends service life by 20–30% compared to uncoated or lower-grade iron.
• Integration Capabilities:
  • Axle Compatibility: Ensure the rotor is compatible with the specific axle type (Integrated vs. Non-integrated). Mismatched components can lead to catastrophic failure.
  • Pad Compatibility: The rotor must be paired with the correct pad material (organic, semi-metallic, or ceramic) to prevent glazing or uneven wear.

Actionable Recommendation: Evaluate the trade-off between integrated and non-integrated axle systems. For fleets with high mileage or harsh operating conditions, the higher upfront cost of integrated systems with coated rotors often yields a lower TCO due to reduced maintenance frequency and fewer alignment-related failures.

4. Typical Use Cases

Brake discs are specialized components primarily used in heavy commercial transport.

• Heavy-Duty Trucks & Trailers:
  • Application: Class 8 semi-trucks, dump trucks, and heavy haulers.
  • Specifics: 415mm × 43mm rotors are standard for 17.5" to 21.7" wheel setups.
• Air Disc Brake Systems:
  • Application: Modern fleets transitioning from drum brakes to air disc brakes for improved stopping power and reduced maintenance.
  • Context: Used in systems requiring compliance with FMVSS-121 for service and parking brakes.
• Long-Haul & Regional Distribution:
  • Scenario: Vehicles requiring frequent braking in mountainous terrain or stop-and-go urban environments.
  • Requirement: High thermal stability and anti-corrosion coatings are essential for these high-cycle applications.

Actionable Recommendation: Match the rotor specification strictly to the vehicle's duty cycle. For long-haul operations, prioritize rotors with superior thermal mass and e-coat protection. For regional delivery, focus on cost-effective, high-durability standard GJL rotors.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and regulatory shifts to avoid obsolescence.

• Market Trends:
  • Shift to Air Disc Brakes: There is a sustained industry shift from mechanical drum brakes to air disc brakes due to regulatory pressure and safety benefits.
  • Corrosion Management: Increasing awareness of road salt damage is driving demand for rotors with 10–20 µm e-coat or zinc-rich primers.
• Demand Signals:
  • Regulatory Tightening: Anticipated updates to FMVSS-121 may require stricter runout tolerances, making high-precision rotors more valuable.
  • Fleet Modernization: As fleets replace older trucks, demand for specific OEM-compatible rotors (e.g., Hendrickson MAXX22T compatible) will rise.
• Supply Chain Resilience:
  • Maintain relationships with suppliers who can provide application-specific approvals for non-standard axle configurations, as generic parts may not be certified for all vehicles.

Actionable Recommendation: Develop a 3-year inventory plan that aligns with the expected retirement of drum-brake vehicles. Prioritize stocking rotors for integrated axle systems and ensure suppliers have the capacity to provide updated compliance certificates for future regulatory revisions.

6. Special Product Recommendations

The following comparison table outlines specific product configurations based on buyer needs and risk profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Hendrickson MAXX22T | Heavy Haul / Long-Haul | 415mm × 43mm, 17.5"–21.7" wheels, 14/24 bolt pattern | Verify WABCO 238 compatibility | Ensure load capacity matches 12,200–13,500 lbs range; confirm FMVSS-121 cert. | | Integrated Axle Rotor (e.g., INTRAAX/VANTRAAX) | Modern Fleets / High-Mileage | Full axle integration, precise runout control | Check suspension system compatibility | Higher upfront cost, but lower long-term maintenance; verify specific axle model. | | Non-Integrated TRLAXLE® | Budget-Conscious / Retrofit | Standard 415mm, non-integrated design | Verify runout limits manually | Ensure e-coat (10–20 µm) is applied; check GJL chemistry (C 3.0–3.8%). | | Corrosion-Resistant Rotor | Coastal / Winter Regions | GJL with 10–20 µm e-coat | Verify coating adhesion specs | Essential for salt-heavy routes; check for warranty on coating failure. |

Actionable Recommendation: For fleets operating in harsh environments (salt, moisture), strictly select rotors with verified e-coat thickness. For new fleet purchases, prioritize integrated axle solutions to minimize assembly errors and ensure regulatory compliance.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct minimum thickness for a replacement brake disc? A: Do not rely on the nominal thickness (e.g., 43mm). You must consult the specific vehicle's OEM manual or the axle manufacturer's data sheet to find the "Minimum Wear Limit." Using a disc below this thickness can lead to brake failure and non-compliance with FMVSS-121.

Q2: What is the significance of the C 3.0–3.8% and Si 1.8–3.0% chemistry in grey cast iron? A: This specific chemical balance in GJL (Grey Cast Iron) optimizes the graphite flake structure, providing the necessary thermal conductivity to dissipate heat and the mechanical strength to resist cracking under high braking loads.

Q3: Is an e-coat necessary for brake discs? A: Yes, particularly for commercial vehicles. An e-coat of 10–20 µm provides a critical barrier against road salt and moisture, preventing rust that can compromise the friction surface and cause uneven pad wear.

Q4: What certifications are required for air disc brake rotors in North America? A: The rotor and axle assembly must comply with FMVSS-121 (US) and CMVSS-121 (Canada). Specifically, they must meet Service Brakes (Par. S5.4) and Parking Brakes (Par. 5.6.1) requirements. A Certificate of Compliance is mandatory.

Q5: Can I mix integrated and non-integrated axle rotors? A: No. Integrated systems (like INTRAAX) and non-integrated systems (like TRLAXLE) have different mounting geometries and calibration requirements. Mixing them can lead to improper brake application and safety violations.

Q6: What is the typical runout tolerance for a heavy-duty air disc brake rotor? A: While specific OEM limits vary, a typical B2B standard for heavy-duty air disc brakes is a Total Thickness Variation (TTV) of less than 0.05mm. Exceeding this limit often results in brake pedal pulsation and premature pad wear.

Q7: How does the wheel size affect rotor selection? A: The rotor diameter and hub design must be compatible with the wheel size (e.g., 17" to 21.7"). An incorrect match can cause the rotor to interfere with the wheel or fail to provide adequate braking leverage.

Q8: What should I do if my vehicle requires a certification not listed in the standard table? A: Contact the manufacturer's brake engineering department (e.g., Hendrickson Brake Engineering) for an application-specific approval. Do not assume a standard certification covers all vehicle configurations.
