Procurement Report: Industrial Bushes and Tension Bushings

1. Technical Specifications and Performance Metrics

To ensure optimal performance and longevity, procurement specifications must move beyond generic descriptions to precise dimensional and material parameters. The selection process should begin by defining the exact bushing type (sleeve, flanged, or thrust) based on the load vector.

• Dimensional Tolerances & Fit Classes:
  • Internal Diameter (ID): For metric tension bushings (DIN 1498 standard), the internal diameter tolerance after installation typically ranges from +0.040 mm to +0.180 mm depending on the nominal size.
    • Nominal ID 6–10 mm: Tolerance approx. +0.040 to +0.098 mm.
    • Nominal ID 50–80 mm: Tolerance approx. +0.080 to +0.180 mm.
  • Fit Class: Standard B2B practice dictates an H7/h6 or H7/g6 fit class to ensure proper interference or clearance fits for rotating shafts.
  • Outer Diameter (OD): Pre-insertion OD must be controlled to allow for press-fit installation without damaging the bore.
• Material & Surface Finish:
  • Shaft Surface Finish: Critical for reducing wear. Target Ra 0.2–0.8 µm for bronze bushings and Ra 0.4–1.6 µm for polymer or PTFE-lined bushings.
  • Hardness: Material hardness must be matched to the shaft to prevent galling. Bronze bushings typically require a hardness differential of at least 20-30 HB compared to the shaft.
• Performance Limits:
  • PV Limits: Allowable Pressure-Velocity (PV) limits vary by material. Typical B2B ranges for standard bronze are PV 10–20 MPa·m/s, while self-lubricating polymers may range from PV 5–15 MPa·m/s.
  • Load-Speed: Maximum recommended lengths vary by diameter. For IDs >30mm, lengths often extend up to 100–200 mm, whereas smaller IDs (<10mm) are typically limited to 50 mm lengths to maintain structural integrity.

Actionable Recommendation: Before issuing an RFQ, explicitly state the bushing type, ID/OD tolerances (referencing DIN 1498 or ISO equivalents), the required fit class (H7/g6), and the shaft surface finish (Ra value). Failure to specify these often results in suppliers quoting generic parts that may fail under high-speed or high-load conditions.

2. Industry Compliance and Quality Assurance

Quality assurance in the bushing sector relies heavily on adherence to international standards for dimensional accuracy and material consistency.

• Standards Compliance:
  • DIN 1498: The primary standard for metric tension bushings, governing the tolerance of internal diameters when mounted in bore holes (typically H8 for the bore).
  • ISO Tolerance: Internal diameter tolerances post-installation generally follow ISO 286 standards (e.g., D10 for specific nominal ranges).
• Quality Control Metrics:
  • Dimensional Verification: Suppliers must provide First Article Inspection (FAI) reports confirming ID tolerances within the +0.040 mm to +0.180 mm range depending on size.
  • Material Certificates: Mill certificates for bronze, brass, or polymer composites are mandatory to verify hardness and chemical composition.
  • Surface Integrity: Inspection for burrs, especially at the chamfer (F1), which is critical for assembly. Standard chamfer dimensions are typically 0.5 mm to 1.5 mm depending on wall thickness.

Actionable Recommendation: Require suppliers to submit a Certificate of Conformance (CoC) referencing DIN 1498 or ISO 286. Mandate that all shipments include a dimensional report for the first 5% of the batch, specifically checking the post-installation ID tolerance and chamfer dimensions to prevent assembly issues.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in bushing procurement is driven by minimizing downtime through standardization and optimizing the total cost of ownership (TCO) rather than just unit price.

• Cost Drivers:
  • Material: Bronze is generally more expensive than polymer but offers higher load capacity.
  • Customization: Non-standard lengths (e.g., >100 mm for small IDs) or tight tolerances (<±0.02 mm) can increase unit costs by 15–30%.
  • MOQ & Lead Time: Typical B2B Minimum Order Quantities (MOQ) range from 50 to 500 pieces for standard metric sizes. Lead times typically range from 2 to 6 weeks for stock items and 6 to 12 weeks for custom tooling.
• Integration Capabilities:
  • Press-Fit Design: Tension bushings are designed for easy installation into H8 bores, reducing assembly time by up to 40% compared to threaded or flanged alternatives.
  • Modularity: Standardized OD and ID profiles allow for cross-brand compatibility in maintenance scenarios, reducing inventory complexity.

Actionable Recommendation: Conduct a TCO analysis comparing standard stock bushings against custom solutions. Prioritize standard lengths (e.g., ≤50 mm for small IDs) to leverage lower MOQs and faster lead times. Negotiate volume discounts based on annual consumption forecasts to mitigate lead time risks.

4. Typical Use Cases

Bushings are ubiquitous in machinery requiring low-friction movement, load support, and alignment.

• Power Transmission: Used in tensioners for timing belts and chains, where DIN 1498 bushings absorb shock and maintain belt tension.

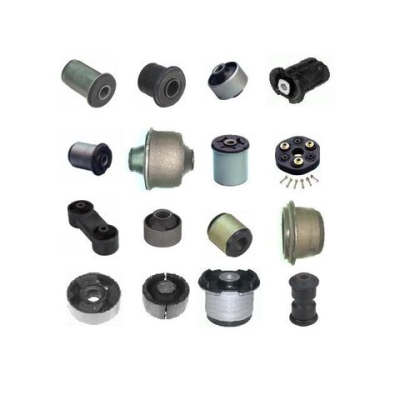

• Automotive & Heavy Machinery: Thrust and flanged bushings in suspension systems, pivot points, and hydraulic cylinders.
• Conveyor Systems: Sleeve bushings in roller bearings to handle continuous radial loads.
• Pumps and Compressors: PTFE-lined or polymer bushings in wet environments where lubrication is difficult or where chemical resistance is required.
• Agricultural Equipment: High-load bronze bushings in plow mechanisms and rotating shafts subject to high shock loads.

Actionable Recommendation: Match the bushing type to the specific application stress. Use tension bushings for belt/chain systems requiring dynamic adjustment. Select flanged bushings for applications with significant axial thrust loads to prevent shaft misalignment.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and the evolving demands of industrial automation.

• Market Trends:
  • Shift to Self-Lubricating Materials: There is a growing demand for polymer/PTFE-lined bushings to reduce maintenance frequency and eliminate lubrication points in "green" manufacturing.
  • Miniaturization: Increased demand for smaller diameter bushings (ID <10 mm) with tighter tolerances for precision robotics and medical devices.
  • Supply Chain Resilience: Diversification of suppliers is critical due to volatility in raw material (copper, bronze) prices.
• Durability & Lifecycle:
  • Wear Rates: Bronze bushings typically offer a service life of 10,000–50,000 hours under standard conditions, whereas polymer bushings may require replacement every 5,000–15,000 hours depending on PV limits.
  • Obsolescence: Standard metric sizes (DIN 1498) are unlikely to become obsolete, but proprietary non-standard sizes carry a risk of long-term unavailability.

Actionable Recommendation: Develop a "dual-sourcing" strategy for critical bushing types to mitigate supply chain disruptions. Plan for a gradual transition to self-lubricating materials for high-maintenance areas to reduce long-term operational costs. Monitor raw material price indices for copper and bronze to time bulk purchases.

6. Special Product Recommendations

The following table compares common bushing types to assist in selecting the right component for specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Metric Tension Bushing | Belt/Chain Drive Engineers | ID: 6–120mm; Tolerance: +0.040 to +0.180mm; DIN 1498 | High risk if bore tolerance is not H8; check chamfer F1 | Verify post-installation ID tolerance; ensure H8 bore compatibility. | | Flanged Sleeve Bushing | Heavy Machinery/Construction | OD/ID ratios; Axial load capacity; Bronze material | Risk of axial misalignment if flange is too thin | Specify flange thickness and bolt hole patterns; check for axial load limits. | | PTFE-Lined Polymer | Food Processing/Chemical | Ra 0.4–1.6 µm; PV Limit: 5–15 MPa·m/s | Risk of deformation under high heat (>80°C) | Confirm temperature rating; verify chemical resistance to process fluids. | | Thrust Bushing | Hydraulic/Pneumatic Cylinders | Axial load rating; Hardness >200 HB | Risk of galling if shaft finish is poor | Mandate shaft finish Ra <0.8 µm; specify hardness differential. |

Actionable Recommendation: For high-volume, low-maintenance applications, prioritize PTFE-lined polymer bushings despite the higher initial unit cost. For high-load, high-shock applications, insist on bronze flanged bushings with verified hardness ratings. Always request a sample batch for fit testing before full-scale procurement.

7. Frequently Asked Questions (FAQ)

Q1: What is the standard tolerance for the internal diameter of metric tension bushings after installation? A: According to DIN 1498, the tolerance varies by nominal size. For IDs between 6–10 mm, the range is typically +0.040 to +0.098 mm, while for IDs between 50–80 mm, it expands to +0.080 to +0.180 mm.

Q2: How does shaft surface finish affect bushing life? A: The shaft surface finish is critical. For bronze bushings, a finish of Ra 0.2–0.8 µm is required to minimize wear. For polymer or PTFE-lined bushings, a finish of Ra 0.4–1.6 µm is acceptable. Rougher surfaces can drastically reduce service life.

Q3: What fit class should I specify for a press-fit bushing? A: The industry standard for press-fit applications is typically H7/h6 or H7/g6. This ensures the correct interference or clearance fit for the specific application load.

Q4: What are the typical lead times for custom bushings? A: Standard stock items typically have lead times of 2–6 weeks. Custom tooling or non-standard dimensions (e.g., lengths >100 mm for small IDs) usually require 6–12 weeks.

Q5: Can I use a standard bushing in a bore with H7 tolerance? A: Standard tension bushings (DIN 1498) are designed for H8 bore tolerances. Using them in an H7 bore may result in excessive interference, making installation difficult or damaging the bushing.

Q6: What is the maximum recommended length for a bushing with an ID of 30 mm? A: For an ID >30 mm, the maximum recommended length typically ranges from 50 mm to 100 mm, depending on the specific load and material. Exceeding this may cause buckling or uneven wear.

Q7: Are there specific certifications required for bushings in food processing? A: While not explicitly listed in the provided context, food-grade applications typically require materials compliant with FDA or EU 10/2011 regulations for polymers, and non-toxic lubricants. Always verify material composition certificates.

Q8: How do I calculate the PV limit for my application? A: PV is the product of Bearing Pressure (P) and Sliding Velocity (V). Ensure your calculated PV does not exceed the material's limit (e.g., 10–20 MPa·m/s for bronze, 5–15 MPa·m/s for polymers) to prevent overheating and failure.
