Procurement Report: Garden Canopy Awnings

1. Technical Specifications and Performance Metrics

For the procurement of garden canopy awnings, the technical baseline must prioritize structural integrity against wind loads and weather exposure. Based on industry standards for outdoor-rated systems, the following parameters define a robust specification:

• Dimensions & Coverage:
  • Width: 1,000 mm to 7,000 mm. Procurement should select widths based on the specific façade or patio footprint, ensuring the awning covers the target area without overhang issues.
  • Projection: 800 mm to 4,000 mm. Deeper projections (up to 4m) are recommended for high-sun exposure zones to maximize shade coverage.
  • Roller Tube Diameter: 48 mm to 140 mm. The industry standard for residential and light commercial applications typically falls between 70 mm and 90 mm. Larger diameters (up to 140 mm) are required for wider spans (>5m) to prevent tube sagging.
• Drive Mechanism & Motorization:
  • Motor Power: 0.1 kW to 0.6 kW. Smaller units (0.1–0.2 kW) suffice for narrow awnings, while wider spans require 0.4–0.6 kW motors to ensure smooth operation under fabric tension.
  • Ingress Protection (IP) Rating: Minimum IP44 is required for standard outdoor use. For fully exposed installations or high-wind zones, IP55 or higher is mandatory to prevent water and dust ingress into the motor housing.
• Hardware Configuration:
  • System Type: Selection between Folding-Arm (for variable shading angles) or Spring-Box (compact, fixed projection) hardware.
  • Wind Resistance: Systems must be rated for specific wind speeds; folding-arm systems generally offer better wind clearance when retracted.

Actionable Recommendation: When drafting RFPs, explicitly mandate the 70–90 mm roller tube for standard projects to balance cost and strength. For coastal or high-wind regions, insist on IP55+ motors and specify a wind load rating (e.g., Beaufort scale) in the technical requirements to avoid premature failure.

2. Industry Compliance and Quality Assurance

Ensuring compliance with safety and environmental standards is critical for B2B procurement, particularly for government or large-scale commercial projects.

• Material Standards:
  • Coatings: Utilize Galvalume Plus or equivalent coated steel for structural components. These materials must demonstrate a solar reflectivity rating above 0.65 (EPA minimum) to qualify for energy efficiency incentives.
  • Durability: Fabrics should be treated for UV resistance and water repellency.
• Certifications & Approvals:
  • Energy Efficiency: Look for products qualified by the ENERGY STAR Program for low-slope and high-slope applications.
  • Regional Approvals: In regions with strict building codes (e.g., Florida), products must hold specific approvals such as Florida Product Approval #FL-15623-R4 (or equivalent local codes).
  • Government Standards: For public sector procurement, verify compliance with GSA Number GS-07F-0458T or similar federal supply schedules.
• Quality Assurance:
  • Verify the manufacturer's track record (e.g., delivery of 50,000+ units globally) to ensure supply chain stability.
  • Confirm NAICS codes (e.g., 444190, 332311) to ensure the supplier is classified correctly for steel structures and pre-fabricated buildings.

Actionable Recommendation: Require suppliers to provide a Certificate of Compliance referencing specific energy reflectivity ratings (≥0.65) and regional building approvals (e.g., FL-15623-R4) before finalizing the order. For government contracts, ensure the supplier holds the necessary GSA or Cage Code (e.g., 8A2W4) to facilitate seamless procurement processing.

3. Cost Efficiency and Integration Capabilities

Procurement strategies should balance initial CAPEX with long-term operational savings, particularly regarding energy efficiency and maintenance.

• Cost Drivers:
  • Motorization: Integrated motors add 15–25% to the unit cost but significantly increase property value and user convenience.
  • Material Grade: Galvalume Plus coated steel offers a premium price point but reduces long-term maintenance costs due to superior corrosion resistance compared to standard galvanized steel.
• Energy Integration:
  • Systems with high solar reflectivity (>0.65) contribute to reduced cooling loads, potentially lowering HVAC costs by 10–15% in sun-exposed areas.
  • Integration with smart home systems or building management systems (BMS) allows for automated retraction based on wind sensors or sunlight intensity.
• MOQ & Lead Time:
  • MOQ: Typically 1 unit for custom projects, but bulk orders (10+ units) often trigger volume discounts.
  • Lead Time: Standard lead times range from 4 to 8 weeks for pre-fabricated units. Custom designs (clear span arch structures) may require 12–16 weeks.

Actionable Recommendation: Prioritize suppliers offering Galvalume Plus coatings for projects in coastal or high-humidity environments to minimize lifecycle costs. When integrating with BMS, verify the motor's communication protocol (e.g., KNX, Modbus) during the technical specification phase to avoid costly retrofitting later.

4. Typical Use Cases

Canopy awnings serve diverse functions across various sectors, driven by the need for shade, weather protection, and aesthetic enhancement.

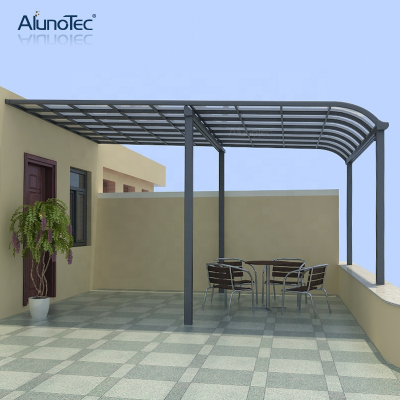

• Residential Patios & Decks:
  • Application: Extending living space by providing shade for outdoor furniture.
  • Requirement: Folding-arm systems with moderate projection (1.5m–3m) and aesthetic fabric colors.
• Commercial Facades & Retail:
  • Application: Protecting storefronts, reducing interior heat gain, and branding opportunities.
  • Requirement: High-durability fabrics, motorized operation for convenience, and IP55+ motors for full exposure.
• Industrial & Storage Facilities:

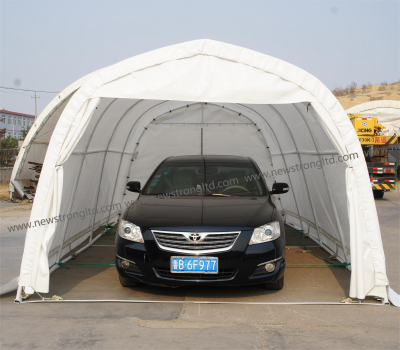

  • Application: Covering loading docks, vehicle parking, or equipment storage.
  • Requirement: Large span widths (up to 7m+), heavy-duty roller tubes (90–140 mm), and wind-resistant locking mechanisms.
• Government & Military Installations:
  • Application: Perimeter shading, vehicle shelters, and outdoor staging areas.
  • Requirement: Compliance with GSA standards, specific NAICS codes, and high wind-load ratings.

Actionable Recommendation: Match the hardware type to the use case: select Spring-Box systems for tight architectural constraints (e.g., small balconies) and Folding-Arm systems for large commercial or residential patios where variable shading angles are desired.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends, climate resilience, and technological evolution.

• Market Trends:
  • Sustainability: There is a growing demand for "cool roof" technologies and materials with high solar reflectivity to meet green building certifications (LEED, ENERGY STAR).
  • Smart Automation: Integration with IoT sensors for automatic wind detection and solar tracking is becoming a standard expectation in new builds.
• Climate Resilience:
  • As extreme weather events increase, the demand for IP55+ rated motors and reinforced roller tubes (up to 140 mm) is rising.
  • Procurement plans should include a 5–10 year lifecycle analysis focusing on corrosion resistance in coastal zones.
• Supply Chain Stability:
  • Rely on manufacturers with a proven history of global delivery (e.g., 50,000+ units) to mitigate supply chain disruptions.
  • Diversify suppliers to include those with specific Florida Product Approvals or similar regional certifications to ensure compliance in strict jurisdictions.

Actionable Recommendation: Develop a 5-year maintenance and replacement schedule that accounts for fabric degradation and motor wear. Prioritize suppliers who offer extended warranties on motors and structural steel, and ensure the selected system is compatible with future smart-home upgrades.

6. Special Product Recommendations

The following table compares common canopy awning configurations to assist in selecting the optimal product based on buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Folding-Arm System | Residential Patios, Cafes | Width: 1–5m; Projection: 1.5–3m; Motor: 0.1–0.3 kW | High wind load if not retracted; Arm mechanism wear | Specify IP55+ motors for exposed areas; check arm tension settings. | | Spring-Box System | Small Balconies, Retail Entrances | Width: 1–3m; Projection: 0.8–2m; Tube: 48–70 mm | Limited projection depth; Spring fatigue over time | Ideal for tight spaces; ensure spring tension is adjustable for fabric weight. | | Heavy-Duty Steel Canopy | Warehouses, Loading Docks | Width: 5–7m; Tube: 90–140 mm; Motor: 0.4–0.6 kW | Structural sagging; Corrosion in coastal zones | Mandate Galvalume Plus coating; verify GSA/FL approvals for public works. | | Smart-Integrated Awning | Modern Commercial Buildings | Width: 2–6m; IoT Sensors; IP55+ Motor | Cybersecurity of control systems; Sensor calibration | Require KNX/Modbus compatibility; test sensor response to wind gusts. |

Actionable Recommendation: For coastal projects, strictly select the Heavy-Duty Steel Canopy with Galvalume Plus coating and IP55+ motors. For retail branding, the Folding-Arm System offers the best balance of aesthetics and functionality. Always verify the Cage Code and DUNS Number of the supplier to ensure they are a verified entity for large-scale contracts.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum motor power required for a 5-meter wide awning? A: For a 5-meter span, a motor with a power rating of at least 0.4 kW is typically required to ensure smooth operation under fabric tension and wind resistance.

Q2: Are these awnings suitable for coastal environments? A: Yes, provided you select units with Galvalume Plus coated steel and motors with an IP55 or higher rating to withstand salt spray and high humidity.

Q3: What certifications are required for government procurement? A: Government projects often require compliance with GSA Number GS-07F-0458T, specific Cage Codes (e.g., 8A2W4), and regional approvals like Florida Product Approval #FL-15623-R4.

Q4: How does the roller tube diameter affect performance? A: A larger tube diameter (e.g., 90–140 mm) provides greater structural rigidity for wider spans (up to 7m), preventing sagging and ensuring the motor does not overwork.

Q5: What is the typical lead time for custom awning orders? A: Standard pre-fabricated units typically have a lead time of 4–8 weeks, while complex custom designs may require 12–16 weeks.

Q6: Do these products contribute to energy efficiency? A: Yes, products qualified by the ENERGY STAR Program with solar reflectivity ratings above 0.65 can significantly reduce cooling loads in summer months.

Q7: Can these awnings be integrated with smart home systems? A: Yes, provided the motor supports standard communication protocols (e.g., KNX, Modbus) and has an IP55+ rating for outdoor integration.

Q8: What is the typical lifespan of the fabric and motor? A: While specific lifespans vary by manufacturer, high-quality UV-treated fabrics typically last 10–15 years, and motors with proper IP ratings can last 15+ years with regular maintenance.
