Procurement Report: Category 5e (Cat5e) Ethernet Cabling

Product Category: Structured Cabling / Network Infrastructure Search Query: Cat5e

1. Technical Specifications and Performance Metrics

Cat5e (Category 5 Enhanced) cabling is engineered to support Gigabit Ethernet (1000BASE-T) while providing improved performance over standard Cat5 by reducing crosstalk. When sourcing this product, procurement teams must verify the following technical parameters to ensure network stability:

• Impedance: The cable must maintain a characteristic impedance of 100 ± 15 ohms. Deviations outside this range can cause signal reflection and packet loss.
• Frequency Bandwidth: Rated for frequencies up to 100 MHz. While capable of 1 Gbps, the physical layer is optimized for this specific bandwidth ceiling.
• Attenuation: Typical signal loss ranges from 15 to 22 dB per 100 meters at 100 MHz. This metric is critical for determining maximum run lengths without repeaters.
• Conductor Construction:
  • Solid Conductor: Recommended for horizontal runs (in-wall, ceiling plenums) where the cable is fixed. These offer lower resistance and better performance over long distances.
  • Stranded Conductor: Recommended for patch cords and jumpers (device-to-wall) where flexibility and frequent movement are required.
• Maximum Length: The standard maximum channel length is 100 meters (90m horizontal cable + 10m patch cords).

Procurement Recommendation: Specify 100 ± 15 ohm impedance and 100 MHz bandwidth as non-negotiable baseline specs. Differentiate orders by conductor type: order solid-core for bulk horizontal infrastructure and stranded-core for patch panels and end-user devices.

2. Industry Compliance and Quality Assurance

To ensure network reliability and safety, Cat5e cables must adhere to specific IEEE and safety standards. Procurement must verify that suppliers provide documentation confirming compliance with these benchmarks:

• IEEE Standards: The cable must conform to the IEEE 802.3ab standard for 1000BASE-T (Gigabit Ethernet). While Cat5e is often associated with 100 Mbps, the "Enhanced" designation specifically targets Gigabit performance, though certification for 1Gbps requires strict adherence to the standard.
• Frequency Certification: Ensure the cable is tested and certified for 100–250 MHz operation ranges to guarantee headroom for Gigabit speeds.
• Jacket Safety Ratings:
  • PVC (Polyvinyl Chloride): Standard for general indoor use.
  • LSZH (Low Smoke Zero Halogen): Mandatory for plenum spaces, data centers, or public buildings where fire safety codes require reduced toxic smoke emission.
• Quality Assurance: Verify that the supplier provides test reports for Near-End Crosstalk (NEXT) and Power Sum Near-End Crosstalk (PSNEXT), which are the primary differentiators between Cat5 and Cat5e.

Procurement Recommendation: Prioritize suppliers who can provide LSZH rated options for plenum installations. Do not accept generic "Cat5" specifications; explicitly require IEEE 802.3ab compliance documentation to avoid receiving non-compliant legacy stock.

3. Cost Efficiency and Integration Capabilities

Cat5e represents a cost-effective solution for upgrading legacy networks or deploying new infrastructure where 10Gbps is not immediately required.

• Cost Efficiency: Cat5e cables typically offer a 20–30% cost reduction compared to Cat6 or Cat6a cables. This makes them highly attractive for budget-conscious projects or large-scale deployments where the bandwidth demand is strictly under 1 Gbps.

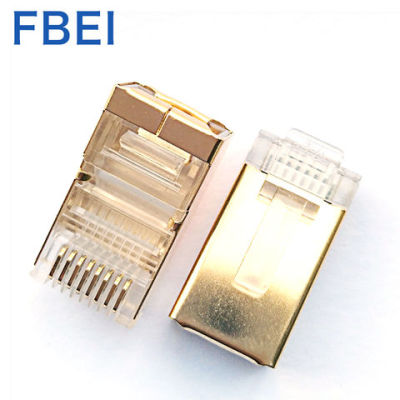

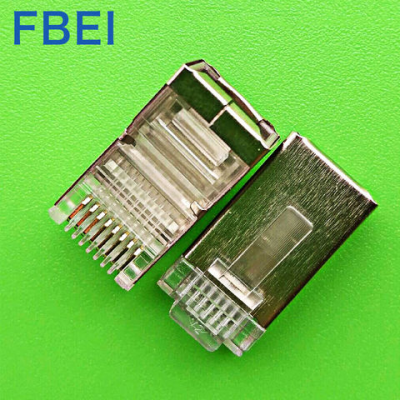

• Integration: The connectors (RJ45) and patch panels are fully backward and forward compatible with existing Cat5 and Cat6 infrastructure.
• Installation: The cable is generally thinner and more flexible than Cat6, reducing labor time and conduit fill issues.
• MOQ and Lead Time (Typical B2B Ranges):
  • Minimum Order Quantity (MOQ): Typically 100 meters (1 box) for standard SKUs, though bulk orders often start at 500–1000 meters.
  • Lead Time: Standard lead time is 2–4 weeks for domestic stock; 6–8 weeks for custom LSZH or specific jacket colors.

Procurement Recommendation: Leverage the lower unit cost for large-scale office rollouts. However, calculate the total cost of ownership (TCO); if future-proofing is a priority, the marginal cost difference between Cat5e and Cat6 may justify the upgrade to avoid future re-cabling.

4. Typical Use Cases

Cat5e is best suited for environments where Gigabit speeds are the maximum requirement.

• Office LANs: Standard desktop connections, VoIP phones, and wireless access points (WAPs) in SMB environments.
• Industrial Automation: Connecting PLCs and HMIs where 1 Gbps is sufficient for data logging and control.
• Surveillance Systems: Power over Ethernet (PoE) delivery for IP cameras (1080p/4K streaming usually requires 1 Gbps).
• Educational Facilities: Computer labs and library terminals where high bandwidth is not the primary bottleneck.
• Short-Run Patching: Ideal for connecting servers to switches in rack environments where cable management is critical.

Procurement Recommendation: For any application requiring 1 Gbps or less, Cat5e is the most economical choice. Avoid using Cat5e for high-density server farms or 10Gbps backbone links; reserve Cat6a or Cat8 for those scenarios.

5. Long-Term Planning Considerations

While Cat5e is a mature technology, market trends suggest a shift toward higher bandwidth requirements.

• Market Demand Signals: The demand for Cat5e is stabilizing in the "maintenance and replacement" sector but declining in "new construction" for high-end facilities. New builds increasingly default to Cat6 or Cat6a to support Wi-Fi 6/6E and 10Gbps backbones.
• Lifecycle: Cat5e has a long physical lifespan (20+ years) but a shorter functional lifespan in high-traffic environments.
• Future-Proofing Risk: As IoT devices and 4K/8K video conferencing become standard, the 100 MHz limit of Cat5e may become a bottleneck.
• Sustainability: LSZH cables are increasingly mandated by green building standards (e.g., LEED), influencing procurement decisions toward environmentally safer jackets.

Procurement Recommendation: For new installations, consider Cat6 as a baseline to ensure 10-year relevance. If budget constraints strictly dictate Cat5e, plan for a "patch-only" strategy where the horizontal cabling is Cat5e, but the backbone is upgraded to Cat6a to support future bandwidth needs.

6. Special Product Recommendations

The following table compares key Cat5e product variations to assist in selecting the right SKU for specific procurement scenarios.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Solid Core Horizontal | Facility Managers, Construction | 100Ω ±15Ω, 100MHz, 23AWG | Check for "Solid" vs "Stranded" labeling | Order for in-wall runs; verify LSZH if plenum required. | | Stranded Patch Cord | IT Admins, Network Engineers | 100Ω ±15Ω, 100MHz, 28AWG | Check bend radius and durability | Buy in bulk (100m/box) for office workstations. | | LSZH Jacket (Plenum) | Data Centers, Public Buildings | Fire Retardant, Low Smoke | Verify "Plenum" rating (CMP) | Mandatory for ceiling spaces; 20% cost premium expected. | | Shielded (STP/FTP) | Industrial/High Interference | Foil/Braid Shielding | Check grounding requirements | Only use if EMI is high; otherwise, UTP is sufficient and cheaper. | | Bulk Cable (1000ft) | Contractors, Resellers | 100m/roll, 100MHz | Verify conductor continuity | Best for large projects; check for "cut-to-length" flexibility. |

Procurement Recommendation: For general office deployments, Unshielded Twisted Pair (UTP) with PVC jackets is the standard. Only upgrade to Shielded (STP) or LSZH if specific environmental or interference constraints exist.

7. Frequently Asked Questions (FAQ)

Q1: Can Cat5e cable support 10 Gigabit Ethernet? A: No. Cat5e is rated for a maximum frequency of 100 MHz and supports speeds up to 1 Gbps (1000 Mbps). 10 Gigabit Ethernet requires Cat6a or higher (Cat6a supports 10Gbps up to 100m).

Q2: What is the difference between Cat5 and Cat5e? A: Cat5e is an "Enhanced" version of Cat5. The primary difference is the reduction of crosstalk (NEXT/PSNEXT), allowing Cat5e to reliably support Gigabit speeds, whereas standard Cat5 is limited to 100 Mbps.

Q3: Is Cat5e suitable for Power over Ethernet (PoE)? A: Yes, Cat5e is widely used for PoE applications (e.g., IP cameras, VoIP phones). However, ensure the cable gauge (typically 23AWG solid or 26-28AWG stranded) can handle the current load without excessive heat buildup.

Q4: How do I choose between solid and stranded Cat5e? A: Use solid conductor cable for permanent horizontal runs (inside walls) as it offers better electrical performance over distance. Use stranded conductor cable for patch cords and jumpers where flexibility and frequent movement are required.

Q5: What is the maximum length for a Cat5e cable run? A: The maximum channel length is 100 meters (328 feet). This includes 90 meters of horizontal cabling and up to 10 meters of patch cords at both ends.

Q6: Do I need to buy LSZH cable for all installations? A: No. LSZH (Low Smoke Zero Halogen) is required by code for plenum spaces (air handling spaces like drop ceilings) and public buildings. For standard office environments (non-plenum), standard PVC jackets are acceptable and more cost-effective.

Q7: Is Cat5e still a viable purchase in 2024? A: Yes, for cost-sensitive projects, small offices, or upgrades where 1 Gbps is sufficient. However, for new high-density builds, Cat6 is increasingly becoming the industry standard to future-proof the infrastructure.

Q8: What are the typical lead times for Cat5e bulk orders? A: Typical B2B lead times range from 2 to 4 weeks for standard PVC/UTP cables. Custom colors or LSZH specifications may extend this to 6–8 weeks.
