Procurement Report: Integrated Circuit (IC) Chips

1. Technical Specifications and Performance Metrics

When sourcing generic "chips" (Integrated Circuits), the procurement strategy must begin by defining the specific chip function (e.g., logic, power management, analog, or memory) before evaluating supply chain parameters. The following technical baselines represent typical B2B ranges for standard semiconductor components:

• Supply Voltage: Most modern logic and mixed-signal ICs operate within a range of 1.0 V to 5.5 V. High-voltage power management chips may extend up to 60 V or higher, while low-power IoT sensors often require 0.9 V to 3.3 V.
• Operating Temperature:
  • Commercial Grade: -40°C to +85°C (Standard for consumer electronics).
  • Industrial Grade: -40°C to +125°C (Required for harsh environments).
  • Automotive Grade: -40°C to +150°C (Critical for under-hood applications).

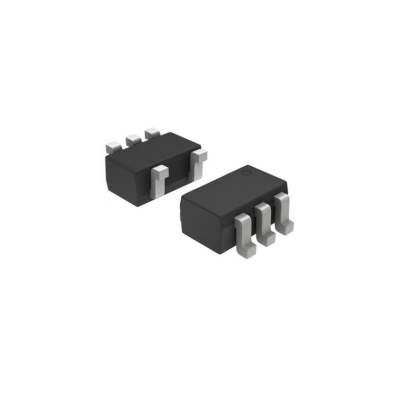

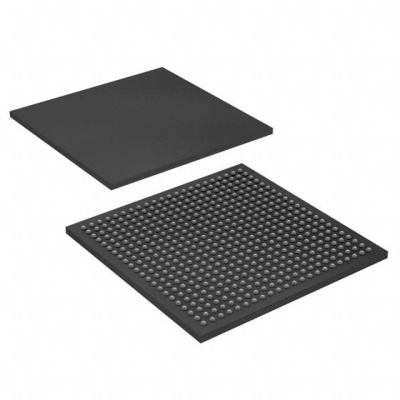

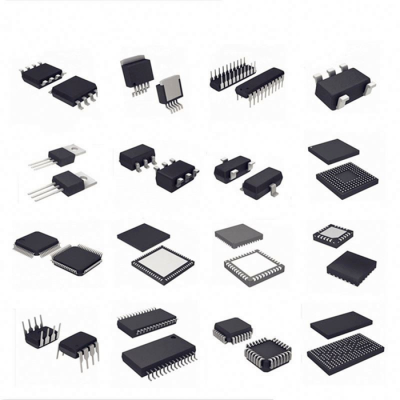

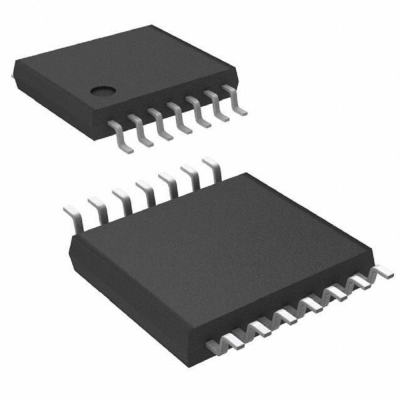

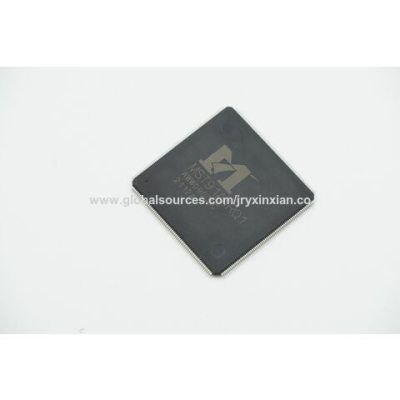

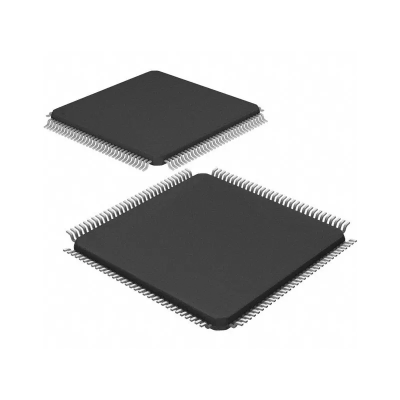

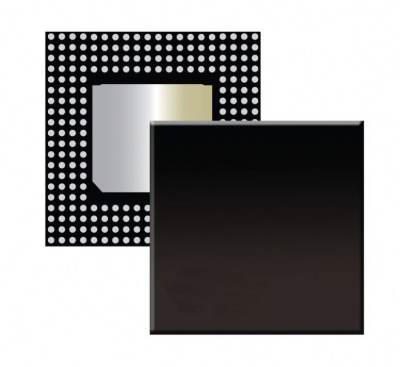

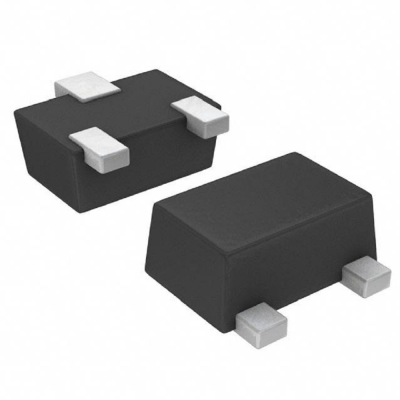

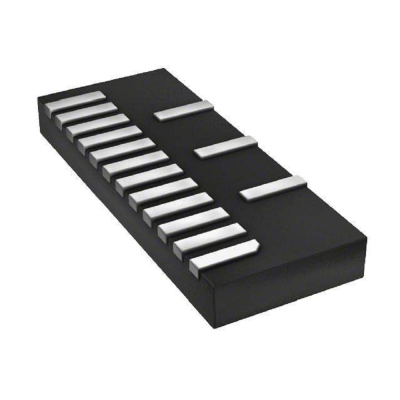

• Package Types: Selection depends on space constraints and thermal dissipation. Common form factors include QFN (Quad Flat No-leads), DFN (Dual Flat No-leads), BGA (Ball Grid Array) for high pin counts, QFP (Quad Flat Package), SOIC (Small Outline Integrated Circuit), and SOT-23 for discrete or low-pin applications.
• Reliability & Durability:
  • MTBF (Mean Time Between Failures): Typically >100,000 hours for commercial grade; >1,000,000 hours for automotive/military.
  • ESD Protection: Must meet ANSI/ESD S20.20 standards, typically withstanding 2,000 V to 8,000 V Human Body Model (HBM) discharge.
  • Thermal Resistance ($\theta_{JA}$): Ranges from 20°C/W to 150°C/W depending on package and board layout.

Actionable Recommendation: Do not select a chip based solely on price. First, map the required supply voltage and temperature range to your application's environmental constraints. Verify that the package type matches your PCB footprint and thermal management capabilities.

2. Industry Compliance and Quality Assurance

Quality assurance in the semiconductor supply chain is governed by rigorous international standards. Procurement must verify that suppliers and foundries adhere to these certifications to mitigate supply chain risk and ensure product longevity.

• Quality Management Systems:
  • ISO 9001: The baseline certification for quality management across fabs (Foundries), OSATs (Outsourced Semiconductor Assembly and Test), and distributors.
  • IATF 16949: Mandatory for any chip intended for automotive applications. It ensures a robust quality management system specific to the automotive industry.
  • ISO 13485: Required for semiconductors used in medical devices, ensuring strict regulatory compliance for patient safety.
• Manufacturing & Safety Standards:
  • ISO 14644: Defines cleanroom classification and contamination control levels (e.g., Class 1000 or better) essential for high-yield fabrication.
  • SEMI Standards (S2, S8, S10): Cover equipment safety and ergonomics, ensuring the manufacturing environment is stable and safe.
  • SEMI E10 / E79 / E116: Focus on equipment performance, reliability, and productivity metrics.
• Device Reliability & Testing:
  • AEC-Q100 / AEC-Q200: The gold standard for automotive IC qualification. AEC-Q100 covers integrated circuits, while AEC-Q200 covers passive components.
  • JEDEC JESD47: The standard for reliability qualification of semiconductor devices, covering stress testing protocols.
  • MIL-STD-883 / MIL-PRF-38535: Required for military-grade microelectronics, involving rigorous screening and testing.
  • RTCA/DO-254: Critical for avionics chip design assurance.

Actionable Recommendation: For any non-consumer application (automotive, medical, industrial), explicitly require the supplier to provide the AEC-Q100 or IATF 16949 certificate. Verify that the specific lot of chips has undergone JEDEC JESD47 stress testing before final acceptance.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in chip procurement extends beyond the unit price (UPH) to include Total Cost of Ownership (TCO), which factors in yield, integration complexity, and supply chain stability.

• Pricing Ranges (Typical B2B):
  • Commodity Logic/Analog: $0.05 – $0.50 per unit (High volume, >1M units).
  • Complex SoC/Microcontrollers: $1.00 – $15.00 per unit.
  • Automotive/Military Grade: $2.00 – $50.00+ per unit (Premium for reliability).
• Minimum Order Quantity (MOQ):
  • Reel/Tray: Typically 1,000 – 5,000 units for standard packages.
  • Sample/Development: 10 – 100 units (often at a premium of 3x–5x unit price).
  • Custom/Bespoke: 10,000+ units (NRE costs apply).
• Lead Time:
  • In-Stock/Off-the-Shelf: 1 – 4 weeks.
  • Standard Production: 8 – 16 weeks.
  • Tight Supply/Custom: 20 – 52 weeks (Subject to global wafer availability).
• Integration Capabilities:
  • Pin Compatibility: Ensure the new chip is pin-to-pin compatible with legacy designs to reduce PCB redesign costs.
  • Software Support: Availability of SDKs, drivers, and reference designs reduces integration time by 30–50%.

Actionable Recommendation: Calculate the TCO rather than just the unit price. If a chip requires a PCB redesign or significant firmware overhaul, a slightly more expensive "drop-in" replacement is often more cost-effective. Negotiate MOQs based on a rolling 12-month forecast to secure better pricing and priority allocation.

4. Typical Use Cases

The "chip" category is broad; procurement must align the component with specific application scenarios:

• Consumer Electronics (Smartphones, Wearables):
  • Requirements: Low power consumption, small form factor (QFN/DFN), high integration.
  • Key Specs: Voltage < 3.3V, Temp -40°C to +85°C.
• Automotive Systems (Infotainment, ADAS, Powertrain):
  • Requirements: High reliability, extended temperature range, functional safety.
  • Key Specs: Voltage up to 5.5V or higher, Temp -40°C to +150°C, AEC-Q100 certified.
• Industrial Automation & IoT:
  • Requirements: Robustness against EMI/ESD, wide voltage input, long lifecycle.
  • Key Specs: Temp -40°C to +125°C, ISO 14644 cleanroom manufacturing.
• Medical Devices:
  • Requirements: Biocompatibility (packaging), extreme reliability, regulatory compliance.
  • Key Specs: ISO 13485 compliant supply chain, low leakage current.
• Avionics & Defense:
  • Requirements: Radiation hardness, military-grade screening.
  • Key Specs: MIL-STD-883, RTCA/DO-254 compliance.

Actionable Recommendation: Map your product's end-use environment to the specific temperature and reliability grades listed above. Do not substitute a commercial-grade chip for an automotive application, even if the electrical specs match, as the failure rate will be unacceptable.

5. Long-Term Planning Considerations

The semiconductor market is cyclical and subject to geopolitical and supply chain volatility. Procurement strategies must account for long-term trends.

• Market Trends & Demand Signals:
  • AI & Edge Computing: Surging demand for high-performance SoCs and memory chips.
  • Electrification: Increased need for power management ICs (PMICs) and SiC/GaN devices.
  • Supply Chain Diversification: Shift from single-source dependencies to multi-sourcing strategies to mitigate regional disruptions.
• Lifecycle Management:
  • EOL (End of Life): Chips often have a 5–10 year lifecycle. Procurement must secure "Last Time Buy" (LTB) quantities 12–18 months before EOL announcements.
  • Obsolescence: Monitor JEDEC and manufacturer announcements for component updates.
• Sustainability:
  • Increasing demand for SEMI compliant sustainable manufacturing practices and reduced carbon footprint in the supply chain.

Actionable Recommendation: Implement a "Risk Register" for all critical chips. Identify potential EOL dates and maintain a strategic buffer stock (6–12 months) for high-risk components. Diversify suppliers across different geographic regions to hedge against regional manufacturing shutdowns.

6. Special Product Recommendations

The following table compares common chip categories to assist in selecting the right product for specific buyer profiles.

Actionable Recommendation: Use this matrix to filter suppliers. If a buyer is in the automotive sector, immediately discard any supplier that cannot provide an AEC-Q100 certificate, regardless of price. For medical buyers, prioritize ISO 13485 compliance over lead time.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between AEC-Q100 and AEC-Q200? A: AEC-Q100 is the qualification standard for integrated circuits (ICs), while AEC-Q200 is the standard for passive components (resistors, capacitors, inductors). Both are required for automotive applications but apply to different component types.

Q2: Can I use a commercial-grade chip (-40°C to +85°C) in an industrial application? A: It is generally not recommended. Industrial environments often experience temperatures exceeding +85°C. Using a commercial chip risks premature failure. You should source Industrial Grade (-40°C to +125°C) or Automotive Grade chips for such applications.

Q3: What does "JEDEC JESD47" certification actually guarantee? A: It guarantees that the semiconductor device has passed specific reliability stress tests (such as temperature cycling, high-temperature operating life, and bias temperature instability) defined by JEDEC standards, ensuring the chip will perform reliably over its intended lifespan.

Q4: How do I verify a supplier's ISO 9001 or IATF 16949 status? A: Request the current certificate directly from the supplier. You can also verify these certificates through the official databases of the certification bodies (e.g., IAF or local accreditation bodies) to ensure they are not expired or forged.

Q5: What is the typical lead time for a custom BGA package chip? A: For custom or high-volume BGA packages, lead times typically range from 20 to 52 weeks due to the complexity of the packaging process and wafer fab scheduling.

Q6: Why is ANSI/ESD S20.20 important for my procurement? A: This standard ensures that the manufacturer's facility has proper electrostatic discharge (ESD) controls in place. Without this, chips may suffer latent damage during manufacturing, leading to field failures that are difficult to diagnose.

Q7: How much buffer stock should I keep for critical chips? A: For critical components with long lead times or high risk of obsolescence, a strategic buffer of 6 to 12 months of usage is recommended to mitigate supply chain disruptions.

Q8: What is the impact of "SEMI S2" on my product quality? A: SEMI S2 relates to equipment safety and ergonomic standards. While it doesn't directly measure chip performance, it indicates a safe and stable manufacturing environment, which correlates with consistent process control and higher yield rates.
