Procurement Report: Colorimeter Solutions

1. Technical Specifications and Performance Metrics

When procuring a colorimeter, the selection must be driven by the specific measurement geometry and spectral capabilities required for your application. The market generally divides into handheld, benchtop, and inline/process units.

• Spectral Range: For high-precision applications involving complex matrices (e.g., oils, waxes), a spectral range of 420 – 710 nm is the industry standard for visible colorimetry. This range ensures accurate capture of the full visible spectrum necessary for ΔE (Delta E) calculations.
• Measurement Geometry: To minimize metamerism errors and ensure traceability, procurement must specify the geometry. The two dominant standards are d/8 (diffuse/8 degrees) for total reflectance and 45/0 for directional reflectance. Mismatching geometry between devices will result in significant ΔE discrepancies.
• Aperture and Path Length:
  • Aperture: Typically ranges from 2 mm to 10 mm for spot checks; larger apertures (up to 50 mm equivalent path length in cuvette mode) are required for turbid or low-concentration samples.
  • Path Length: For liquid analysis, path lengths up to 50 mm are available depending on the cell type selected.
• Thermal Control: For non-standard samples like hot waxes or fats, an integrated heater is critical. Operational temperature ranges typically extend up to 100°C to maintain sample liquidity during measurement.
• Performance Metrics:
  • Repeatability: Typical B2B high-end units achieve a standard deviation (SD) of < 0.05 ΔE.
  • Accuracy: Target units with a manufacturer-certified accuracy of < 0.1 ΔE against NIST-traceable standards.

Procurement Recommendation: Do not select a unit based solely on price. Verify the spectral range (420–710 nm) and ensure the device supports the specific geometry (d/8 or 45/0) required by your internal QC protocols. If handling viscous or high-melting-point samples, mandate the inclusion of an integrated heater option.

2. Industry Compliance and Quality Assurance

Colorimeters used in regulated industries must adhere to strict international standards to ensure data integrity and legal compliance.

• Standards Compliance: Procurement specifications must explicitly require compliance with ASTM (American Society for Testing and Materials), ISO (International Organization for Standardization), and AOCS (American Oil & Chemists' Society) standards. These bodies define the methodologies for color measurement in food, chemical, and pharmaceutical sectors.
• Calibration Protocols:
  • Remote Calibration & Maintenance Service (RCMSi): Prioritize vendors offering remote calibration capabilities to reduce downtime and ensure traceability without shipping the instrument.
  • Routine: Establish a calibration frequency of every 6 to 12 months or after 1,000 measurement cycles, whichever comes first.
• Housing and Durability: For industrial environments, the housing must be constructed from chemically resistant steel to withstand exposure to solvents, oils, and cleaning agents.
• Data Integrity: Ensure the device supports data logging with audit trails, compliant with 21 CFR Part 11 (if applicable to pharmaceutical/food sectors), to track who performed the measurement and when.

Procurement Recommendation: Require proof of compliance with ASTM, ISO, and AOCS standards in the vendor's datasheet. Verify that the calibration service includes remote capabilities (RCMSi) to minimize operational disruption. Ensure the physical housing is rated for chemical resistance in your specific facility environment.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price to include calibration, maintenance, and integration with existing Quality Management Systems (QMS).

• Initial Investment:

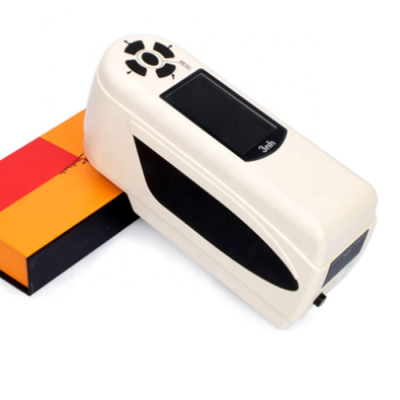

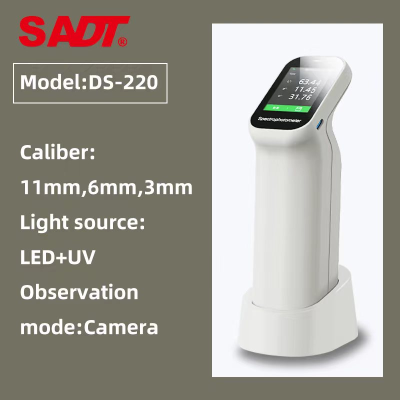

  • Handheld Units: Typically range from $2,000 – $5,000 for basic models; high-end spectral models can reach $8,000 – $12,000.
  • Benchtop Spectrophotometers: Typically range from $10,000 – $25,000 depending on aperture and heater options.
  • Inline/Process Units: Often start at $15,000 and can exceed $50,000 for fully automated integration.
• Integration Capabilities:
  • Connectivity: Look for USB, Ethernet, and Wi-Fi interfaces to facilitate direct data transfer to LIMS (Laboratory Information Management Systems).
  • Software: The device should support API integration for automated reporting.
• Operational Efficiency: Inline units reduce labor costs by eliminating manual sampling but require higher upfront capital. Benchtop units offer the best balance for batch QC.
• Maintenance Costs: Budget approximately 5% – 10% of the initial unit cost annually for calibration services and consumables (e.g., reference tiles, cuvettes).

Procurement Recommendation: Calculate TCO over a 5-year horizon. If your workflow involves high-volume continuous production, invest in an inline solution to reduce labor costs. For batch processing, a benchtop unit with remote calibration capabilities offers the best balance of accuracy and cost efficiency.

4. Typical Use Cases

The application of colorimeters varies significantly based on the industry and sample state.

• Food and Beverage: Measuring the color of oils, syrups, and finished products to ensure brand consistency. Critical for detecting oxidation or adulteration.
• Chemical and Petrochemical: Analyzing the color of lubricants, waxes, and fats. The ability to measure hot samples is a key differentiator here.
• Water Quality: Monitoring turbidity and color in water treatment processes (though distinct from the high-performance units used for oils).
• Pharmaceuticals: Ensuring tablet and liquid medication color consistency for regulatory compliance and patient identification.
• Textiles and Plastics: Quality control for dye lots and polymer color matching.

Procurement Recommendation: Match the device to the sample state. If your workflow involves hot waxes or fats, standard water quality colorimeters are insufficient; you must procure a unit with an integrated heater. For general liquid QC, a benchtop unit with a 50 mm path length is recommended.

5. Long-Term Planning Considerations

The colorimetry market is evolving towards greater automation, connectivity, and remote management.

• Market Trends:
  • Remote Management: There is a growing demand for devices capable of Remote Calibration & Maintenance Service (RCMSi), reducing the need for on-site technician visits.
  • Spectral Over Colorimetric: While traditional colorimeters measure at specific wavelengths, the market is shifting toward spectrophotometric units (covering 420–710 nm) for better metamerism detection and future-proofing.
  • IoT Integration: Expect increased integration with Industry 4.0 platforms for real-time process control.
• Demand Signals: Industries with strict regulatory oversight (food, pharma) are driving demand for units with higher traceability and audit trail capabilities.
• Scalability: Ensure the chosen system can scale from a single lab unit to a multi-station network.
• Obsolescence: Avoid proprietary software ecosystems that lock you into a single vendor for updates.

Procurement Recommendation: Prioritize spectral units over simple colorimeters to future-proof your investment against stricter metamerism regulations. Select vendors with strong remote support capabilities to reduce long-term maintenance overhead.

6. Special Product Recommendations

Based on the specific requirements for handling difficult samples and high accuracy, the following comparison highlights the optimal procurement choices.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | High-Performance Spectrophotometric Colorimeter | Food, Oil & Fat Processing, Pharma | Spectral Range: 420–710 nm; Path Length: Up to 50 mm; Integrated Heater (Optional) | Ensure heater is included if measuring >60°C samples; Verify RCMSi availability. | Recommended: Select units like the Lovibond PFXi-195 class for difficult samples. Verify ASTM/ISO/AOCS compliance. | | Handheld Portable Colorimeter | Field QC, Retail, Quick Turnover | Aperture: 4–10 mm; Battery Life: >8 hours; Geometry: d/8 or 45/0 | Check for metamerism errors in low-light conditions; Verify calibration stability. | Use for spot checks only. Do not use for critical batch release if high accuracy is required. | | Inline/Process Colorimeter | Continuous Manufacturing Lines | Real-time feedback loop; Chemical resistant housing; NEMA-rated enclosure | High initial CAPEX; Requires process integration expertise. | Only procure if production volume justifies the cost and automation needs are critical. |

Procurement Recommendation: For most industrial applications involving viscous or hot samples, the High-Performance Spectrophotometric Colorimeter is the superior choice. Ensure the "Integrated Heater" option is selected during the quote phase, as it is often a critical differentiator for sample integrity.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a colorimeter and a spectrophotometer? A: A colorimeter typically measures color at a few specific wavelengths (e.g., Red, Green, Blue), while a spectrophotometer measures reflectance or transmittance across a continuous spectrum (e.g., 420–710 nm). Spectrophotometers are preferred for high accuracy and detecting metamerism.

Q2: Can I measure hot samples like wax or fat with a standard colorimeter? A: No, standard units are designed for ambient temperature samples. You must procure a unit with an integrated heater (capable of maintaining temperatures up to 100°C) to keep samples liquid and ensure accurate readings.

Q3: What is the typical path length for liquid samples? A: Path lengths vary by cell type but typically range from 10 mm to 50 mm. A 50 mm path length is recommended for low-concentration or turbid samples to increase sensitivity.

Q4: How often should the device be calibrated? A: Industry best practice suggests calibration every 6 to 12 months or after 1,000 measurement cycles. Remote Calibration & Maintenance Service (RCMSi) is recommended to minimize downtime.

Q5: Which international standards must the device comply with? A: For industrial and food applications, the device must comply with ASTM, ISO, and AOCS standards to ensure data is legally and commercially valid.

Q6: What is the typical lead time for a custom-configured benchtop unit? A: Typical B2B lead times for specialized units with heaters and custom cells range from 4 to 8 weeks. Standard handheld units are often available for immediate shipment.

Q7: How do I prevent metamerism errors? A: Metamerism errors occur when two colors match under one light source but not another. To prevent this, use a spectrophotometer with a broad spectral range (420–710 nm) and ensure the measurement geometry (d/8 or 45/0) matches your production lighting conditions.

Q8: Is the housing durable enough for harsh chemical environments? A: Yes, high-performance industrial units feature chemically resistant steel cases. Ensure the specific model you select is rated for the solvents or chemicals present in your facility.
