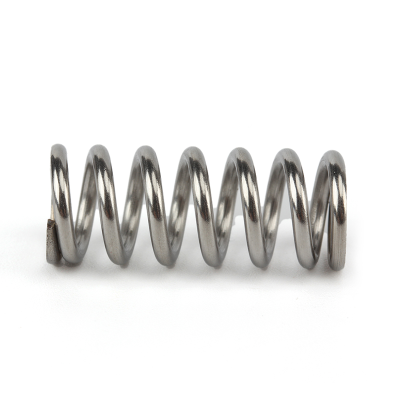

Procurement Report: Compression Springs

Product Category: Industrial Fasteners & Mechanical Springs (Compression Coils)

1. Technical Specifications and Performance Metrics

To ensure optimal performance in axial load applications, procurement specifications must be defined with precision regarding geometry, material, and mechanical behavior. Based on industry standards for general machinery, the following parameters define a standard compression spring profile:

• Wire Diameter: Typically ranges from 0.15 mm to 40 mm. Selecting the correct diameter is critical for load capacity; smaller diameters suit precision instruments, while larger diameters handle heavy industrial loads.
• Free Length: Standard catalog sizes generally fall between 2 mm and 200 mm. Custom lengths are required for specific housing constraints.
• Spring Rate (Stiffness): The force required to compress the spring varies from 0.1 N/mm to 5,000 N/mm. This linear relationship holds true within the elastic range as defined by EN 13906‑1.
• Spring Index: For manufacturability and stress distribution, the ratio of mean coil diameter to wire diameter should be maintained between 4 and 12.
• Load at Working Height: Procurement must specify the exact load (N) required at the compressed height to prevent over-stressing the material.
• End Types:
  • Closed and Ground: Recommended for applications requiring precise height control and perpendicular load application.
  • Closed and Squared: Suitable for general applications where end grinding is not critical.
• Fatigue Life: Target life cycles should be specified based on application frequency (e.g., $10^6$ cycles for high-frequency machinery).

Actionable Recommendation: When drafting purchase orders, explicitly state the wire diameter, free length, spring rate, and end type. Do not rely on generic descriptions; use the calculated spring index (4–12) to validate that the design is manufacturable and will not suffer from buckling or excessive stress.

2. Industry Compliance and Quality Assurance

In the European market, compliance with specific standards is mandatory for machinery safety and interoperability. Procurement must prioritize suppliers who can provide documentation aligned with these norms.

• Design & Performance Standards: Adherence to EN 13906‑1 is essential. This standard governs the calculation of spring rate, stress limits, buckling behavior, and relaxation properties.
• Material Standards:
  • EN 10270‑1: Standard for cold-rolled spring steel wire (high carbon).
  • EN 10270‑2: Standard for cold-rolled spring steel wire (alloy).
  • EN 10270‑3: Standard for stainless steel spring wire.
• Quality Assurance: For bulk procurement, demand EU material certificates (Mill Test Certificates) to verify chemical composition and mechanical properties.
• Sourcing Modes:
  • Catalog Parts: Suitable for standard off-the-shelf needs with immediate availability.
  • Drawing-Controlled Items: Required for custom designs; these necessitate a formal procurement process with strict adherence to technical drawings.

Actionable Recommendation: Verify that all suppliers can issue certificates compliant with EN 10270 series materials. For critical safety applications, insist on batch testing data referenced against EN 13906‑1. Avoid sourcing from suppliers who cannot trace material origins to these specific European standards.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in compression spring procurement is driven by volume, standardization, and supply chain responsiveness.

• Pricing Models: Wholesale industrial springs offer the most competitive unit pricing for standard geometries. Custom drawing-controlled items carry a premium due to tooling and setup costs.
• Lead Times:
  • Stock/Express Delivery: Available for standard catalog items, often supporting same-day or next-day delivery for maintenance needs.
  • Custom Production: Lead times vary based on wire availability and machining complexity, typically ranging from 2 to 6 weeks.
• Integration: Compression springs are designed for axial energy storage. They integrate seamlessly into bolted joints, bearings, and clutches where return strokes are necessary.
• MOQ (Minimum Order Quantity): While catalog parts often have low MOQs (e.g., 100–500 pcs), bulk procurement for drawing-controlled items usually requires higher volumes to justify tooling costs.

Actionable Recommendation: Optimize costs by standardizing spring specifications across different product lines to leverage wholesale pricing. For maintenance-critical applications, utilize stock programs that offer express delivery to minimize downtime. For new product development, plan for longer lead times associated with custom tooling.

4. Typical Use Cases

Compression springs are the primary choice for applications requiring axial force generation and energy return.

• General Machinery: Used in mechanisms requiring axial energy storage and return strokes (e.g., valve actuators, clutch return mechanisms).
• Compact Preload Systems: While disc springs (DIN 6796) are preferred for bolted joints and safety devices, compression springs are ideal for general load applications where space allows for coil geometry.
• Automotive & Transport: Suspension systems, valve trains, and braking mechanisms.
• Industrial Automation: Actuators, sensors, and robotic grippers requiring consistent force profiles.
• Safety Devices: Overload protection systems where a linear force increase is required until a specific threshold is reached.

Actionable Recommendation: Match the spring type to the application's primary function. If the application requires high load in a compact space (e.g., bolted joints), consider disc springs (DIN 6796). If the application requires a linear return stroke over a longer travel distance, select compression springs per EN 13906‑1.

5. Long-Term Planning Considerations

Strategic procurement involves anticipating market trends and ensuring supply chain resilience.

• Market Trends: There is a growing demand for high-performance stainless steel and alloy springs in industries requiring corrosion resistance and high fatigue life (e.g., food processing, marine, and medical devices).
• Demand Signals: The shift toward "Industry 4.0" and automated machinery increases the need for springs with predictable fatigue life and low relaxation rates.
• Supply Chain Resilience: Diversify suppliers between wholesale catalog providers and custom manufacturers to mitigate risks of material shortages (e.g., spring steel wire).
• Sustainability: Increasing focus on recyclable materials and energy-efficient manufacturing processes in spring production.

Actionable Recommendation: Develop a dual-sourcing strategy: maintain relationships with stock providers for immediate needs and custom manufacturers for long-term projects. Monitor material costs for spring steel and stainless wire, as fluctuations directly impact B2B pricing. Plan for a 20–30% buffer in lead times for custom orders to account for potential supply chain disruptions.

6. Special Product Recommendations

The following table compares compression springs against alternative spring types to guide specific procurement decisions.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Compression Spring | General Machinery, Automotive, Automation | Wire: 0.15–40mm; Rate: 0.1–5,000 N/mm; Index: 4–12 | Buckling if slenderness ratio is too high | Use EN 13906‑1 for design validation; specify ground ends for precision. | | Disc Spring (DIN 6796) | Bolted Joints, Clutches, Safety Devices | Conical washers; High load in compact space | Over-compression leading to permanent set | Ideal for preload; verify bolt-size compatibility; check for fatigue in cyclic loading. | | Torsion Spring | Rotational Mechanisms, Hinges | Torque output; Angular deflection | Stress concentration at hooks | Not suitable for axial loads; ensure proper mounting to prevent lateral stress. | | Custom Drawing-Controlled | OEMs with Unique Constraints | Tailored to specific CAD drawings | High tooling cost; longer lead time | Plan bulk procurement early; require full material certificates (EN 10270). |

Actionable Recommendation: For standard axial loads, stick to compression springs. If space is extremely limited and high preload is needed, switch to disc springs. Always verify the "Risk Check" column items during the design phase to avoid procurement of unsuitable components.

7. Frequently Asked Questions (FAQ)

Q1: What is the recommended spring index for a compression spring to ensure durability? A: The spring index (mean coil diameter divided by wire diameter) should be maintained between 4 and 12. Indices outside this range can lead to manufacturing difficulties or excessive stress concentrations.

Q2: Which European standard governs the design and calculation of compression springs? A: EN 13906‑1 is the primary standard for calculating spring rate, stress, buckling, and relaxation. Material specifications are covered under the EN 10270‑1/‑2/‑3 series.

Q3: Can I order compression springs with express delivery for maintenance needs? A: Yes. Many EU catalogs and suppliers offer stock programs specifically designed to support express delivery for standard catalog parts, ensuring minimal downtime for maintenance.

Q4: What is the typical wire diameter range for industrial compression springs? A: Industrial compression springs typically utilize wire diameters ranging from 0.15 mm to 40 mm, depending on the required load capacity and application space.

Q5: How do I distinguish between a catalog part and a custom procurement item? A: Catalog parts are standard sizes available for immediate wholesale purchase. Custom items require specific technical drawings and are subject to bulk procurement planning, often requiring EU material certificates.

Q6: Are disc springs a better alternative to compression springs for all applications? A: No. Disc springs (DIN 6796) are superior for compact preload in bolted joints and safety devices. Compression springs are better suited for applications requiring axial energy storage and return strokes over longer travel distances.

Q7: What is the typical range for spring rate in general machinery? A: The spring rate typically ranges from 0.1 N/mm to 5,000 N/mm. The force increases approximately linearly within the elastic range defined by EN 13906‑1.

Q8: Do I need material certificates for all spring purchases? A: For drawing-controlled items and bulk procurement, EU material certificates are mandatory to verify compliance with EN 10270 standards. For small catalog purchases, certificates may be available upon request or included with the batch.
