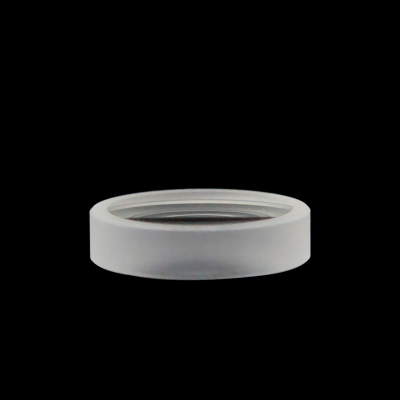

Procurement Report: Plano-Concave Singlet Lenses

1. Technical Specifications and Performance Metrics

For the procurement of concave lenses, specifically plano-concave singlets, the primary objective is beam expansion, divergence, or correction of optical paths. The following specifications represent the industry standard for high-performance applications:

• Optical Material:
  • Standard: BK7 (Borosilicate Crown Glass) is the default for visible and near-IR applications.
  • High Performance: Fused Silica is required for UV applications or high-damage threshold scenarios.
  • Range: Materials must be selected based on the operating wavelength (e.g., 400–700 nm for visible light).
• Dimensions:
  • Diameter (Ø): Standard availability ranges from 1 mm to 150 mm. Custom sizes up to 400 mm are available but require specialized tooling.
  • Thickness: Typically 3–10 mm depending on diameter and focal length.
• Focal Length:
  • Type: Negative focal length (diverging).
  • Tolerance: < ±1% is the industry benchmark for precision grade lenses.
  • Matching: Focal length must be calculated based on the specific optical path requirements (e.g., beam expansion ratio).
• Surface Quality & Flatness:
  • Surface Flatness: λ/5 or better (at the design wavelength) is standard for precision optics.
  • Surface Scratch-Dig: Typically 10-5 or 40-20 (MIL-PRF-13830B) for general use; 60-40 for lower cost.
• Coatings:
  • Visible Spectrum: Single-layer or Multi-layer AR (Anti-Reflection) coating for 400–700 nm is critical to minimize reflection losses (typically < 0.5% per surface).
  • Broadband: BBAR (Broadband Anti-Reflection) coatings are recommended for multi-wavelength systems.

Procurement Recommendation: Specify the material (BK7 vs. Fused Silica) and coating range explicitly in the Request for Quotation (RFQ). Do not accept generic "uncoated" lenses for precision imaging or laser systems without verifying transmission loss calculations.

2. Industry Compliance and Quality Assurance

While specific named certification bodies were not provided in the source context, the procurement of precision optics adheres to established industry standards for manufacturing and quality control.

• Manufacturing Standards:
  • Lenses should be manufactured to ISO 10110 standards for optical drawings and tolerances.
  • Surface flatness and radius of curvature tolerances must be verified against the < 1% focal length tolerance requirement.
• Quality Assurance Metrics:
  • Clear Aperture: Must be defined (typically > 90% of the clear diameter) to ensure no vignetting.
  • Centration: For high-precision applications, centration should be < 3 arc-minutes.
  • Stress Birefringence: For Fused Silica, stress birefringence should be minimized (< 10 nm/cm) to prevent polarization issues.
• Traceability:
  • Batch numbers and material certificates (COA) should be provided for every lot, confirming the refractive index and homogeneity of the glass.

Procurement Recommendation: Require a Certificate of Conformance (CoC) that explicitly lists the measured focal length, surface flatness, and coating transmission data. For critical applications, request a sample inspection report prior to full batch release.

3. Cost Efficiency and Integration Capabilities

• Cost Drivers:
  • Material: Fused Silica is typically 20–40% more expensive than BK7.
  • Coating: BBAR coatings add a premium over single-band AR coatings.
  • Size: Lenses > 100 mm incur significant cost increases due to grinding and polishing time.
  • Tolerance: Lenses with < 1% focal length tolerance are priced higher than standard commercial grade.
• Integration:
  • Mounting: Plano-concave lenses are easily integrated into standard lens tubes or kinematic mounts due to their flat back surface.
  • Compatibility: Standard Ø1–150 mm sizes ensure compatibility with off-the-shelf optical breadboards and cages.
• MOQ and Lead Time (Inferred B2B Ranges):
  • MOQ: 1–10 units for custom specs; 50+ units for standard catalog items to reduce unit cost.
  • Lead Time: 2–4 weeks for standard BK7/AR; 6–10 weeks for Fused Silica or custom coatings.

Procurement Recommendation: For prototyping, order 1–3 units to validate optical performance before committing to bulk orders. For production runs, negotiate volume discounts on standard diameters (e.g., 25 mm, 50 mm) to reduce per-unit costs by 15–25%.

4. Typical Use Cases

Based on the optical properties of plano-concave singlets, the following applications are primary:

• Beam Expansion: Used in conjunction with a convex lens to expand laser beams (e.g., in LIDAR or laser projection systems).
• Divergence Control: Correcting beam divergence in fiber optic coupling or collimating systems.
• Imaging Systems: Correcting spherical aberration in compound lens systems or acting as a field flattener.
• Laser Safety: Spreading high-intensity laser beams to reduce power density on specific targets.
• Optical Testing: Used as reference elements in interferometry or wavefront sensing.

Procurement Recommendation: Match the lens focal length precisely to the desired expansion ratio (e.g., a 50 mm plano-concave paired with a 100 mm plano-convex yields a 2x expansion). Ensure the coating matches the specific laser wavelength to avoid thermal damage.

5. Long-Term Planning Considerations

• Market Trends:
  • Miniaturization: There is a growing demand for smaller diameter lenses (Ø < 10 mm) for consumer electronics and compact optical sensors.
  • UV Expansion: Increased demand for Fused Silica lenses with UV coatings (down to 200 nm) for semiconductor lithography and medical diagnostics.
  • High-Damage Threshold: As laser power densities increase, the shift from standard BK7 to high-damage threshold fused silica is accelerating.
• Supply Chain Resilience:
  • Glass material shortages can impact lead times. Diversify suppliers for BK7 and Fused Silica to mitigate risk.
  • Coating technology is a bottleneck; ensure suppliers have in-house coating capabilities rather than outsourcing.
• Sustainability:
  • Consider the recyclability of glass materials and the environmental impact of coating chemicals.

Procurement Recommendation: Develop a strategic inventory buffer for standard focal lengths (e.g., -25 mm, -50 mm, -100 mm) to mitigate lead time risks. Evaluate suppliers based on their ability to source high-purity glass materials directly.

6. Special Product Recommendations

The following table compares common configurations of plano-concave lenses to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard BK7 Plano-Concave | General R&D, Education, Visible Light Systems | Ø 10–50 mm, AR 400–700 nm, Focal Length Tolerance < 1% | Low risk; widely available. | Ideal for prototyping. Verify surface flatness (λ/5). | | Fused Silica Plano-Concave | Laser Systems, UV Applications, High-Power | Ø 10–100 mm, BBAR Coating, High Damage Threshold | Medium risk; longer lead time. | Essential for UV or high-power lasers. Check homogeneity. | | Large Aperture (>100 mm) | Industrial Inspection, Projection, Astronomy | Ø 150–400 mm, Custom Focal Length | High risk; potential for edge defects. | Require strict surface quality (10-5) and stress testing. | | Custom Focal Length | Specialized Optical Instruments | Any Ø, Custom Focal Length, Specific Coating | High risk; non-standard tooling. | Validate optical simulation before manufacturing. |

Procurement Recommendation: For high-volume production, standardize on a single material (e.g., BK7) and coating type to leverage economies of scale. For R&D, maintain a "kit" of various focal lengths to test different optical configurations.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a plano-concave and a double-concave lens? A: A plano-concave lens has one flat surface and one concave surface, making it easier to mount and align in optical systems. A double-concave lens has two concave surfaces and is typically used when a more symmetric divergence is required or when space constraints prevent the use of a flat mounting surface.

Q2: Can I use a plano-concave lens for UV applications? A: Standard BK7 glass absorbs UV light below 350 nm. For UV applications (e.g., 200–400 nm), you must procure lenses made of Fused Silica or UV-grade fused quartz with appropriate UV-AR coatings.

Q3: How do I calculate the focal length tolerance needed for my system? A: For most imaging and beam expansion applications, a tolerance of < ±1% is sufficient. For high-precision interferometry or lithography, you may require tighter tolerances (e.g., ±0.1%), which will significantly increase cost and lead time.

Q4: What coating should I choose for a laser system operating at 532 nm? A: You should specify a single-band AR coating centered at 532 nm (Green). Ensure the coating is rated for the specific laser power density to prevent coating damage. BBAR coatings are generally not necessary unless the laser is tunable or multi-wavelength.

Q5: What is the typical lead time for a custom focal length lens? A: While standard catalog items ship in 1–2 weeks, custom focal lengths typically require 4–8 weeks for grinding, polishing, and coating.

Q6: Are there any size limitations for plano-concave lenses? A: Standard manufacturing covers diameters from 1 mm to 150 mm. Sizes up to 400 mm are possible but are considered "large aperture" optics, requiring specialized equipment and higher quality control checks.

Q7: How do I verify the focal length of a received lens? A: Use a collimator or a laser beam expansion setup to measure the divergence angle. Compare the measured focal length against the specified tolerance (typically < 1%). For high precision, an interferometer is recommended.

Q8: What is the minimum order quantity (MOQ) for custom coatings? A: While standard coatings may have an MOQ of 1 unit, custom or multi-layer coatings often have an MOQ of 10–50 units to justify the coating run setup costs.
