Procurement Report: Industrial and Commercial Condensers

Product Category Identified: Heat Transfer Equipment (Condensers) Primary Application: HVAC&R Systems (Heating, Ventilation, Air Conditioning, and Refrigeration)

1. Technical Specifications and Performance Metrics

When procuring condensers, the selection must align with the system's thermal duty, refrigerant type, and spatial constraints. The market currently distinguishes between three primary configurations, each with specific performance envelopes.

• Condenser Types & Duty Ranges:

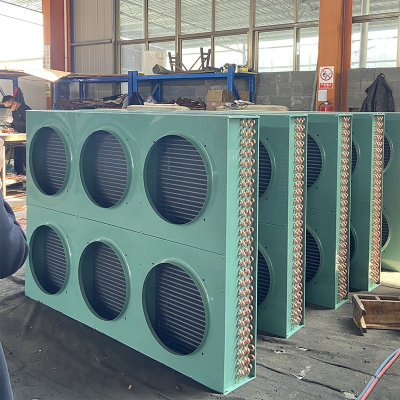

  • Air-Cooled Fin-and-Tube: Best for capacities ranging from 2 to 5 tons (approx. 7–17.5 kW) in standard commercial applications. Typical approach temperatures are 10°C to 15°C.
  • Shell-and-Tube: Required for larger industrial loads, typically 10 to 100+ tons (35–350+ kW). These offer superior heat transfer efficiency in high-ambient conditions.
  • Brazed-Plate: Ideal for compact spaces and capacities up to 10 tons (35 kW), offering a high surface-area-to-volume ratio.

• Refrigerant Compatibility:

  • R-410A: Still widely specified for legacy and new residential/commercial units (2–5 ton range). Note: This refrigerant has a high Global Warming Potential (GWP) and is subject to phase-down regulations in many jurisdictions.
  • Low-GWP Alternatives: Procurement must account for systems transitioning to R-32, R-454B, or R-452B to ensure future compliance.

• Pressure Ratings (MAWP):

  • Standard Maximum Allowable Working Pressure (MAWP) for R-410A systems typically ranges from 600 psi to 800 psi (41–55 bar).
  • High-pressure systems may require ratings up to 1,000 psi (69 bar) depending on the specific refrigerant blend and safety factors.

• Connection Types:

  • Standard connections include Soldered (Sweat), Flared, or Threaded (NPT/SAE).
  • For industrial shell-and-tube units, Flanged connections are standard for ease of maintenance and gasket sealing.

Actionable Recommendation: Verify the exact refrigerant charge and system tonnage before ordering. Do not oversize the unit; an oversized condenser leads to short cycling, reducing efficiency by 15–20% and increasing wear on compressors. Match the MAWP strictly to the compressor's discharge pressure limits.

2. Industry Compliance and Quality Assurance

Procurement of condensers requires adherence to strict environmental and safety standards, particularly regarding refrigerant handling and pressure vessel integrity.

• Refrigerant Regulations:

  • R-410A Handling: In many regions, purchasing and handling R-410A requires EPA Section 608 Certification (or equivalent local licensing). Procurement teams must ensure vendors provide proof of certified handling practices.
  • GWP Compliance: With R-410A having a GWP of ~2,088, new procurements in regulated markets (EU, parts of the US) may face restrictions. Buyers should prioritize low-GWP alternatives for new installations to avoid future obsolescence.

• Pressure Vessel Standards:

  • Units must comply with ASME Section VIII (Division 1) for pressure vessels in North America.
  • European markets require PED (Pressure Equipment Directive) compliance (Category II or III depending on pressure/volume).
  • Brazed-Plate units often require CE Marking and adherence to EN 13480.

• Quality Assurance Metrics:

  • Leak Testing: All units must undergo 100% helium leak testing with a leak rate < 10⁻⁶ mbar·L/s.
  • Durability: Fin-and-tube coils should utilize hydrophilic coated fins to resist corrosion, extending service life to 15–20 years in standard environments.

Actionable Recommendation: Require a Certificate of Conformance (CoC) and proof of ASME/PED certification for all pressure vessels. For R-410A units, verify the vendor's ability to provide EPA-compliant refrigerant handling documentation if the unit is pre-charged.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) is driven by initial capital expenditure (CapEx), installation complexity, and operational energy efficiency (OpEx).

• Cost Ranges (Estimated B2B):

  • Air-Cooled (2–5 Ton): $1,200 – $2,500 per unit.
  • Shell-and-Tube (10–50 Ton): $4,500 – $12,000 per unit.
  • Brazed-Plate: $800 – $2,000 per unit (highly dependent on plate count and material).
  • Note: Prices fluctuate based on copper/aluminum commodity rates and refrigerant availability.

• Integration Capabilities:

  • Modularity: Brazed-plate condensers offer the highest integration flexibility for retrofitting into tight mechanical rooms.
  • Retrofitting: Replacing a condenser alone is cost-effective if the indoor evaporator and compressor are in good condition (approx. 40–60% savings vs. full system replacement). However, if the system is older than 10 years, full replacement is often more efficient.

• Lead Time & MOQ:

  • Standard Lead Time: 4–8 weeks for air-cooled units; 8–12 weeks for custom shell-and-tube designs.
  • Minimum Order Quantity (MOQ): Typically 1 unit for standard models; 5+ units for custom brazed-plate configurations to secure pricing.

Actionable Recommendation: Conduct a lifecycle cost analysis. If the existing system is >10 years old, the energy savings of a new high-efficiency condenser (SEER2 improvements) often justify a full system replacement over a standalone condenser swap. For new builds, prioritize low-GWP refrigerant compatibility to avoid retrofitting costs in 3–5 years.

4. Typical Use Cases

• Residential & Light Commercial (2–5 Tons):

  • Scenario: Split-system air conditioners and heat pumps in homes, small offices, and retail stores.
  • Constraint: Space is often limited; noise levels are a primary concern.
  • Solution: Air-cooled fin-and-tube condensers with sound-attenuating louvers.

• Industrial & Large Commercial (10–100+ Tons):

  • Scenario: Data centers, large office complexes, and manufacturing plants.
  • Constraint: High ambient temperatures and continuous duty cycles.
  • Solution: Shell-and-tube condensers with water-cooling options or large air-cooled banks with variable speed fans.

• Compact/Modular Applications:

  • Scenario: VRF (Variable Refrigerant Flow) systems, medical equipment, and marine applications.
  • Constraint: Strict weight and volume limits.
  • Solution: Brazed-plate condensers offering high heat transfer density.

Actionable Recommendation: Match the condenser type to the ambient environment. In extreme heat (>40°C), specify units with enhanced coil surface area or water-cooled shell-and-tube designs to maintain capacity.

5. Long-Term Planning Considerations

• Market Trends & Demand Signals:

  • Phase-Down of R-410A: Global regulations are driving a shift away from R-410A. Procurement strategies must pivot toward R-32 and R-454B compatible units.
  • Efficiency Standards: New efficiency mandates (e.g., SEER2 in the US) are increasing the baseline for compressor and condenser efficiency.
  • Supply Chain Volatility: Copper and aluminum price fluctuations impact pricing; consider locking in prices with long-term contracts for large projects.

• Durability & Maintenance:

  • Standard air-cooled units require annual cleaning of fins to maintain 100% efficiency.
  • Water-cooled shell-and-tube units require water treatment programs to prevent scaling and corrosion, which can reduce heat transfer by 20% if neglected.

• Obsolescence Risk:

  • Buying R-410A-specific condensers for new installations carries a risk of future regulatory non-compliance.
  • Strategy: Prioritize "future-proof" designs that can be adapted for low-GWP refrigerants or are already certified for them.

Actionable Recommendation: Develop a phased procurement plan that transitions 100% of new orders to low-GWP compatible condensers within the next 24 months. Avoid stockpiling R-410A units unless replacing existing legacy systems where no alternative exists.

6. Special Product Recommendations

The following table compares the three primary condenser types to assist in selecting the right product based on buyer profile and risk factors.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Air-Cooled Fin-and-Tube | Residential/Small Commercial | 2–5 Tons; R-410A/R-32; 600–800 psi MAWP | High ambient heat reduces capacity; Noise issues | Verify fan motor efficiency (ECM preferred) and fin coating for corrosion resistance. | | Shell-and-Tube | Industrial/Large Commercial | 10–100+ Tons; Water or Air cooled; ASME Certified | Water treatment costs; Higher initial CapEx | Ensure water quality analysis is done before installation to prevent scaling. | | Brazed-Plate | VRF/Medical/Compact | Up to 10 Tons; High GWP/Pressure; Compact | Non-serviceable (cannot be opened); Sensitive to debris | Use only with clean refrigerant lines; Verify brazing material (Copper vs. Stainless). |

Actionable Recommendation: For new installations, the Brazed-Plate or Air-Cooled Fin-and-Tube units compatible with R-32/R-454B are the most strategic choices for future-proofing. For existing R-410A systems, Air-Cooled Fin-and-Tube replacements are the most cost-effective immediate solution.

7. Frequently Asked Questions (FAQ)

Q1: Can I replace an R-410A condenser with an R-32 condenser on my existing system? A: Generally, no. R-410A and R-32 operate at different pressures and require different lubricants (POE vs. specific blends). Mixing them without a full system retrofit (compressor and evaporator change) can lead to catastrophic failure.

Q2: Do I need a license to buy an R-410A condenser? A: In the US, you do not need a license to purchase the hardware, but you must be EPA Section 608 certified to handle or charge the refrigerant if it is pre-charged. Uncharged units can be handled by anyone, but charging requires certification.

Q3: What is the typical lead time for a custom shell-and-tube condenser? A: Custom shell-and-tube units typically require 8 to 12 weeks for manufacturing and testing, whereas standard air-cooled units are often available in 4 to 6 weeks.

Q4: How does an oversized condenser affect system performance? A: An oversized condenser causes "short cycling," where the compressor turns on and off frequently. This reduces efficiency by 15–20%, increases energy costs, and significantly shortens the lifespan of the compressor.

Q5: What is the difference between a fin-and-tube and a brazed-plate condenser? A: Fin-and-tube uses copper/aluminum tubes with external fins for air cooling and is serviceable. Brazed-plate uses stacked metal plates welded together, offering a much smaller footprint and higher efficiency but is non-serviceable (if it leaks, the unit is replaced).

Q6: Why is R-410A being phased out? A: R-410A has a high Global Warming Potential (GWP) of ~2,088. International agreements (like the Kigali Amendment) and national regulations are phasing it down in favor of lower-GWP alternatives like R-32 and R-454B to mitigate climate change.

Q7: What is the typical service life of a condenser? A: With proper maintenance, air-cooled condensers last 15–20 years, while shell-and-tube units can last 20–25+ years. Brazed-plate units typically last 15–20 years but are prone to failure if system cleanliness is not maintained.

Q8: How do I calculate the correct tonnage for a replacement? A: Do not guess. Match the tonnage of the existing evaporator coil and compressor. If the system is being replaced, perform a Manual J load calculation based on the building's square footage, insulation, and climate zone to determine the precise capacity required.
