Procurement Report: Constant Force Springs & Power Springs

1. Technical Specifications and Performance Metrics

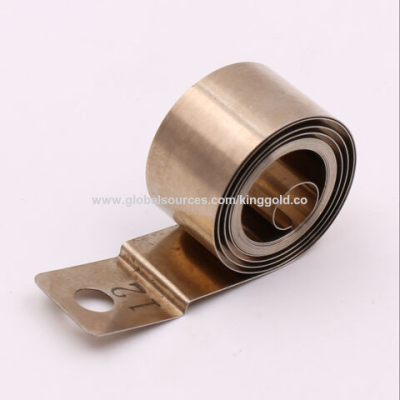

Constant Force Springs (CFS) and Power Springs are engineered to deliver a near-constant output force over a significant deflection range, eliminating the need for complex counterbalance systems or motors.

• Force Consistency: The primary metric is force variation, typically maintained within ±5% to ±10% of the nominal force across the full extension range.
• Deflection Range: These springs are capable of extending 300% to 1000% of their initial wound length, depending on the material grade and drum diameter.
• Material Composition: Standard construction utilizes high-strength stainless steel (e.g., 301, 304, or 17-7 PH) or carbon steel with specialized surface treatments. For medical applications, materials must be biocompatible and corrosion-resistant.
• Cycle Life: Designed for high-cycle durability, typical performance exceeds 100,000 to 1,000,000 cycles without significant fatigue or loss of force.
• Temperature Range: Operational limits generally span from -40°C to +120°C, with specialized alloys extending this range for extreme environments.
• Drum Sizing: The minimum drum diameter is critical to prevent "back-bending" (plastic deformation). Procurement must ensure the drum diameter is at least 10x to 15x the material thickness to maintain the constant force characteristic.

Actionable Recommendation: When specifying technical requirements, do not rely solely on "force" ratings. Request a Force-Deflection Curve from the supplier to verify the flatness of the curve over the intended travel distance. Ensure the drum diameter in your design aligns with the manufacturer's minimum bend radius to prevent premature failure.

2. Industry Compliance and Quality Assurance

For regulated industries, the supply chain integrity of constant force springs is paramount. Procurement must verify that suppliers adhere to rigorous global standards.

• Quality Management Systems: Reputable manufacturers hold ISO 9001 (General Quality), ISO 13485 (Medical Devices), and IATF 16949 (Automotive) certifications.
• Clean Room Standards: For medical and sensitive electronic applications, manufacturing should occur in ISO 7 (Class 10,000) clean rooms.
• Documentation & Traceability:
  • Material Traceability: Full traceability from raw coil to finished spring is required for aerospace and medical sectors.
  • Dimensional Reports: Comprehensive reports verifying critical dimensions (width, thickness, inner/outer diameter) are standard.
  • Validation: Suppliers should provide First Article Inspection (FAI) and Production Part Approval Process (PPAP) documentation upon request.
• Co-Development Support: Leading suppliers offer engineering collaboration to review assembly designs, flag back-bending risks, and optimize drum sizing before production begins.

Actionable Recommendation: Require a Certificate of Conformance (CoC) and material traceability logs for every batch. If your application is in the medical or automotive sector, explicitly request PPAP Level 3 documentation and verify the supplier's ISO 13485 or IATF 16949 status via their official audit reports.

3. Cost Efficiency and Integration Capabilities

Integrating constant force springs often results in a lower total cost of ownership (TCO) compared to motorized or hydraulic counterbalance systems.

• Cost Structure: While unit costs vary by material and volume, the elimination of motors, gears, and sensors reduces the BOM cost by 30% to 60% in many retraction and counterbalance applications.
• MOQ (Minimum Order Quantity): Typical B2B ranges for standard stock items are 1,000 to 5,000 units. Custom configurations may require higher MOQs, often starting at 10,000 units, though some suppliers offer lower volumes for prototyping.
• Lead Time: Standard lead times are typically 4 to 6 weeks for custom designs. Stock items can often be delivered within 2 to 3 weeks.
• Integration: These springs are compact and lightweight, reducing the overall footprint of the assembly. They require no external power source, simplifying wiring and reducing assembly labor.

Actionable Recommendation: Conduct a Total Cost of Ownership (TCO) analysis that includes assembly labor, maintenance, and energy consumption. For high-volume production, negotiate tiered pricing based on annual volume commitments to lock in rates. Always request a prototype run (even at a higher unit cost) to validate integration before committing to full-scale tooling.

4. Typical Use Cases

Constant force springs and power springs are versatile components used across diverse sectors where space is limited and reliable force is required.

• Industrial Applications:
  • Cable and Hose Retractors: Used in welding torches, pneumatic tools, and industrial hoses to manage slack and prevent tripping hazards.
  • Counterbalance Systems: Supporting tool heads, lids, and heavy panels in machinery.
  • Valve Actuators: Providing stored energy for rapid release or return mechanisms.
• Consumer & Electronics:
  • Retractable Devices: Tape measures, badge reels, and retractable cables.
  • Appliance Mechanisms: Printer paper feeds, appliance door hinges, and point-of-purchase pushers.
  • Power Tools: Timer mechanisms and stored-energy release systems.

Actionable Recommendation: Map your application's force profile against the spring's constant force curve. If your application involves repeated cycling (e.g., daily opening/closing of a door or frequent retraction), prioritize springs with a cycle life rating exceeding 500,000 cycles to minimize maintenance downtime.

5. Long-Term Planning Considerations

Strategic procurement requires anticipating market shifts and supply chain resilience.

• Market Trends: There is a growing demand for miniaturized constant force springs in wearable electronics and compact medical devices. Additionally, the shift toward sustainable manufacturing is driving interest in recyclable steel grades and eco-friendly coatings.
• Supply Chain Resilience: Suppliers with a global manufacturing network (e.g., facilities in Europe, North America, and Asia) offer better protection against regional disruptions.
• Demand Signals: The automotive industry's push for lightweighting and the medical sector's expansion into portable diagnostic devices are driving sustained demand for high-performance, space-saving spring solutions.
• Technology Evolution: Expect increased demand for custom end-attachment geometries to simplify assembly lines. Suppliers who offer co-development services will be critical for adapting to new product lifecycles.

Actionable Recommendation: Diversify your supplier base to include at least one partner with multi-regional manufacturing capabilities. Initiate long-term agreements (LTAs) with suppliers who offer co-development services to ensure your design evolves with market trends, specifically regarding miniaturization and material sustainability.

6. Special Product Recommendations

The following table compares the two primary product types to assist in selecting the right component for your specific application.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Constant Force Spring | Industrial Automation, Medical Devices, Cable Management | Force variation <±10%, 300-1000% deflection, ISO 7 clean room options | High risk of back-bending if drum diameter is too small | Verify drum sizing with supplier engineering; request FAI for medical use. | | Power Spring | Consumer Electronics, Timer Mechanisms, Tool Actuators | High torque density, compact format, quiet operation, 1M+ cycles | Risk of fatigue if over-stressed beyond rated cycles | Confirm cycle life rating matches usage frequency; check for noise dampening features. |

Actionable Recommendation: If your application requires silent operation and high torque in a compact space (e.g., a printer or timer), select a Power Spring. If the application involves linear retraction or counterbalancing a heavy load over a long distance (e.g., a hose retractor), select a Constant Force Spring. Always validate the end-attachment geometry during the design phase to ensure compatibility with your assembly.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a Constant Force Spring and a Power Spring? A: A Constant Force Spring is designed to maintain a nearly constant linear force over a long extension (300-1000%). A Power Spring is typically a spiral spring designed to store and release rotational energy (torque) for mechanisms like timers or latches.

Q2: Do you need a motor to operate these springs? A: No. Both Constant Force Springs and Power Springs are passive mechanical components that eliminate the need for motors, counterweights, or hydraulic systems in many designs.

Q3: What certifications are required for medical device applications? A: For medical devices, suppliers should hold ISO 13485 certification, and manufacturing should occur in ISO 7 (Class 10,000) clean rooms. Full material traceability and FAI/PPAP documentation are also mandatory.

Q4: How do I prevent "back-bending" in my design? A: Back-bending occurs if the spring is wound around a drum that is too small. You must ensure the drum diameter is at least 10x to 15x the material thickness. Consult the supplier's engineering team for specific drum sizing recommendations.

Q5: What is the typical lead time for custom constant force springs? A: Typical lead times for custom configurations are 4 to 6 weeks. Stock items may be available within 2 to 3 weeks.

Q6: Can these springs be used in extreme temperatures? A: Standard stainless steel springs operate between -40°C and +120°C. Specialized alloys can extend this range, but specific environmental testing data should be requested from the supplier.

Q7: What is the Minimum Order Quantity (MOQ)? A: Typical B2B MOQs for standard items range from 1,000 to 5,000 units. Custom projects may require higher volumes, often starting at 10,000 units, though prototyping options may exist.

Q8: Do suppliers offer engineering support for integration? A: Yes, leading suppliers provide co-development services, including reviewing your assembly, flagging back-bending risks, and defining end attachment geometry to ensure the spring works in your specific system.
