Procurement Report: Construction Parts and Components

Product Category Identified: Construction Machinery Parts & Structural Components Search Query Context: "construction par" interpreted as "Construction Parts" (focusing on critical mechanical components like pins, shafts, hydraulic cylinders, and structural fasteners).

---

1. Technical Specifications and Performance Metrics

Procurement of construction parts requires strict adherence to material science and mechanical tolerances to ensure operational safety and longevity. Based on industry standards for heavy machinery, specifications must be validated against OEM drawings or machine serial numbers before ordering.

• Material Grades:

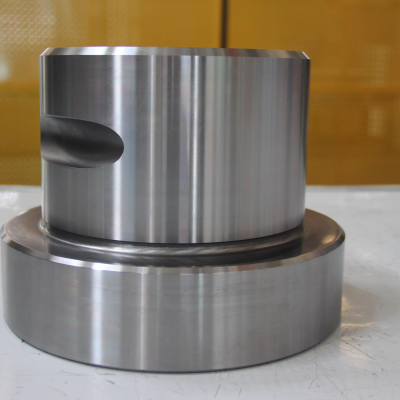

  • Forged Pins & Shafts: Typically require alloy steels such as 42CrMo4 or AISI 4140.
  • Tensile Strength (UTS): Target range is 900–1100 MPa.
  • Hardness: Surface hardness should fall between HRC 28–48 depending on the wear profile.
• Dimensional Tolerances:
  • Machining Tolerance: Critical fit areas require a tolerance of ±0.03–0.1 mm.
  • Surface Finish: Ra values typically between 0.4–1.6 µm for sealing surfaces.
• Hydraulic Systems:
  • Operating Pressure: Standard range is 16–35 MPa.
  • Seal Materials: Must match fluid compatibility; PU (Polyurethane) for general use, NBR (Nitrile) for petroleum-based fluids, and FKM (Viton) for high-temperature or chemical resistance.
• Durability Metrics:
  • Fatigue Life: Typically rated for 10,000–20,000 hours of cyclic loading in standard earthmoving applications.

Actionable Recommendation: Do not rely on generic part numbers. Request the specific OEM drawing or serial number from the equipment operator. Verify the material certificate (MTC) for tensile strength and hardness values before accepting the shipment.

---

2. Industry Compliance and Quality Assurance

Quality assurance in construction procurement is governed by rigorous documentation standards to ensure traceability and safety. The Construction Specifications Institute (CSI) guidelines emphasize the creation of high-quality construction documentation to mitigate liability.

• Documentation Standards:
  • Adherence to Construction Specifications Practice Guide (CSPG) protocols is essential for defining product requirements.
  • Use of Construction Product Representation Practice Guide (CPRPG) standards ensures accurate conveyance of product information in procurement contracts.
• Certification Requirements:
  • Suppliers should ideally hold ISO 9001 certification for quality management systems.
  • For specialized components, look for Certified Construction Specifier (CCS) or Certified Construction Product Representative (CCPR) credentials among the supplier's technical team.
• Traceability:
  • Every batch of forged parts must include a heat number traceable to the raw material mill certificate.
  • Hydraulic seals must be certified for specific pressure ratings (e.g., 35 MPa burst pressure).

Actionable Recommendation: Require suppliers to provide a "Product Data Sheet" that explicitly references CSI practice guides. Verify that the supplier's technical representative holds relevant CCS or CCPR credentials to ensure they understand the specification nuances.

---

3. Cost Efficiency and Integration Capabilities

Balancing initial cost with total cost of ownership (TCO) is critical. High-quality parts often have a higher upfront cost but significantly reduce downtime and maintenance expenses.

• Cost Ranges (Typical B2B):
  • Forged Pins/Shafts: $45–$120 per unit (depending on diameter and weight).
  • Hydraulic Cylinder Assemblies: $800–$2,500 per unit.
  • Seal Kits: $50–$150 per kit.
• Order Parameters:
  • Minimum Order Quantity (MOQ): Typically 10–50 units for custom-machined parts; 100+ units for standard seals.
  • Lead Time: 2–4 weeks for standard inventory; 6–10 weeks for custom heat-treated components.
• Integration:
  • Parts must be "drop-in" compatible with existing machinery without requiring re-machining of the host unit.
  • Tolerance compatibility (±0.03 mm) ensures immediate fit, reducing assembly time.

Actionable Recommendation: Calculate TCO rather than unit price. A 20% premium on a pin with superior hardness (HRC 45 vs. HRC 30) can extend service life by 300%, reducing downtime costs. Negotiate lead times based on volume commitments to secure the 2–4 week window.

---

4. Typical Use Cases

Construction parts are categorized by their application within the machinery lifecycle.

• Earthmoving Equipment: Excavators and bulldozers require high-strength pins and bushings (42CrMo4) to withstand shock loads during digging.
• Hydraulic Systems: Crane booms and loader arms utilize cylinders operating at 16–35 MPa, requiring robust FKM seals to prevent leakage under high pressure.

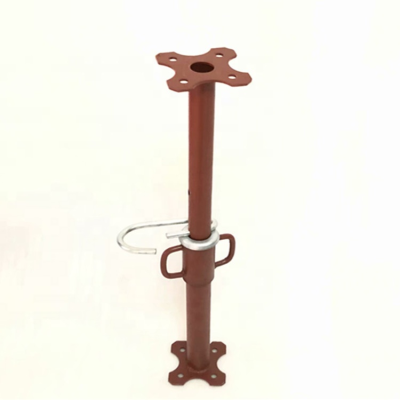

• Structural Fastening: High-tensile bolts and connectors used in scaffolding and formwork systems.
• Rehabilitation & Retrofit: Replacing worn components in older machinery to extend asset life, often requiring custom machining to match legacy serial numbers.

Actionable Recommendation: Map the specific machine model and its primary duty cycle (e.g., heavy demolition vs. light grading) to the required material grade. For heavy-duty applications, prioritize the higher end of the tensile strength range (1100 MPa).

---

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and the evolving standards of the construction industry.

• Market Trends:
  • Electrification: Increasing demand for parts compatible with electric construction machinery, which may have different thermal and pressure profiles.
  • Sustainability: Growing preference for suppliers with documented carbon footprints and recyclable materials.
  • Digitalization: Rise in "Digital Twins" requiring parts with embedded QR codes or RFID for lifecycle tracking.
• Demand Signals:
  • Global infrastructure spending is driving demand for high-durability components.
  • Shortages in specialized alloy steels (42CrMo4) may impact lead times; consider strategic stockpiling of critical pins and shafts.
• Regulatory Shifts:
  • Anticipate stricter emissions and safety regulations that may require updated seal materials (e.g., higher temperature resistance) to meet new engine standards.

Actionable Recommendation: Develop a 3-year procurement strategy that includes a 15% buffer in inventory for critical wear parts. Engage with suppliers who are actively researching materials for electric machinery to future-proof the fleet.

---

6. Special Product Recommendations

The following table compares common construction part categories to assist in selecting the right component for specific procurement needs.

Actionable Recommendation: For critical safety components (pins, cylinders), always opt for the "Best-Fit Buyer" category with the highest risk check verification. Do not substitute seal materials without chemical compatibility testing.

---

7. Frequently Asked Questions (FAQ)

Q1: How do I ensure a replacement part fits my specific machine? A: Always inspect the exact part using the OEM drawing or the machine's serial number. Generic parts may have slight dimensional variances that can cause premature failure. Verify the fit tolerance (±0.03–0.1 mm) against the original component.

Q2: What material grade should I look for for excavator pins? A: Forged pins should typically be made of 42CrMo4 or AISI 4140 with a tensile strength of 900–1100 MPa and a hardness of HRC 28–48. Lower grades will wear out significantly faster.

Q3: What is the standard operating pressure for construction hydraulic cylinders? A: Most standard construction hydraulic cylinders operate within the 16–35 MPa range. Ensure the seals (PU, NBR, or FKM) are rated for this specific pressure band.

Q4: What are the typical lead times for custom-machined construction parts? A: Standard inventory items are usually available within 2–4 weeks. Custom-machined parts requiring specific heat treatment and tolerance verification typically take 6–10 weeks.

Q5: How can I verify the quality of a construction part supplier? A: Look for suppliers whose technical team holds CCS (Certified Construction Specifier) or CCPR (Certified Construction Product Representative) credentials. They should also provide Material Test Certificates (MTC) for all batches.

Q6: What are the common seal materials used in construction hydraulics? A: PU (Polyurethane) is common for general wear, NBR (Nitrile) for standard petroleum-based hydraulic fluids, and FKM (Viton) for high-temperature or chemical-resistant applications.

Q7: Is it better to buy cheaper parts to save costs? A: No. In construction, downtime costs far exceed part costs. A part with HRC 48 hardness may cost 20% more but last 3x longer than a HRC 28 alternative, offering better Total Cost of Ownership (TCO).

Q8: Do construction parts need to comply with specific documentation standards? A: Yes. High-quality procurement requires documentation aligned with the Construction Specifications Practice Guide (CSPG) and Construction Product Representation Practice Guide (CPRPG) to ensure clear product specification and liability protection.
