Procurement Report: Industrial Control Valves

1. Technical Specifications and Performance Metrics

When procuring control valves, the primary technical decision matrix revolves around matching the valve geometry to the fluid dynamics and process conditions. The selection process must strictly align with the service fluid, required flow coefficient (Cv or Kv), and environmental constraints.

• Pressure Class: Standard industrial valves typically range from ANSI 150 to ANSI 2500 (equivalent to PN16 to PN420). Procurement teams must verify the pressure rating against the maximum operating pressure (MOP) plus a safety margin (typically 1.5x).
• Temperature Range: Standard designs operate between -29°C and 400°C. For cryogenic applications (e.g., LNG), specifications must extend to -196°C, while high-temperature steam or petrochemical processes may require ratings up to 600°C+.
• Flow Coefficient (Cv/Kv): The valve size must be calculated to ensure the required Cv/Kv is met without causing cavitation or excessive noise. A mismatch here leads to poor throttling control or premature wear.
• Actuation & Interface: Modern procurement favors smart actuators with 4–20 mA or HART protocol support. Options include pneumatic (standard for fast response), electric (for precise positioning without air supply), or electro-hydraulic (for high-torque large-size service).

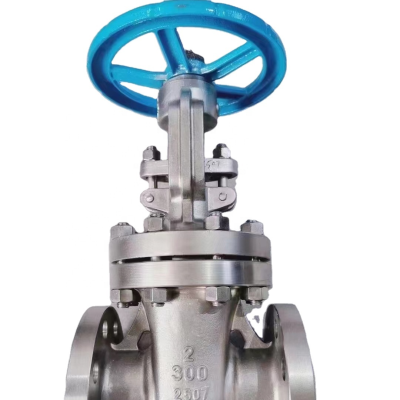

• Valve Type Selection:
  • Globe Valves: Recommended for precise throttling and high-pressure drop applications.
  • Rotary Valves (Ball/Butterfly): Preferred for compact on/off service, large-size pipelines, and low-pressure drop scenarios.

Actionable Recommendation: Do not select a valve based solely on nominal size. Conduct a hydraulic calculation to determine the exact Cv/Kv required for the specific fluid viscosity and pressure drop. Verify that the actuator torque rating exceeds the valve's maximum shutoff torque by at least 20% to ensure reliability under emergency conditions.

2. Industry Compliance and Quality Assurance

Compliance is not merely a regulatory checkbox but a critical risk mitigation strategy for industrial operations. A trusted supplier must demonstrate adherence to global standards that validate the valve's ability to withstand harsh environments and strict safety protocols.

• Quality Management: ISO 9001 certification is the baseline requirement, certifying that the manufacturer maintains a robust quality management system throughout the production lifecycle.
• Industry Standards:
  • API (American Petroleum Institute): Essential for oil and gas applications, ensuring valves meet specific performance and material standards for high-risk sectors.
  • ASME (American Society of Mechanical Engineers): Validates the mechanical integrity and pressure vessel compliance of the valve body.
• Regional & Safety Certifications:
  • CE Marking: Mandatory for European markets, indicating compliance with health, safety, and environmental protection directives.
  • ATEX Certification: Non-negotiable for valves deployed in explosive atmospheres (Zone 1, 2, 21, 22).
• Verification: Suppliers should openly provide third-party audit reports and R&D testing data for each specific valve model.

Actionable Recommendation: Require a "Certificate of Conformity" and specific certification documents (API, ATEX, CE) for every batch ordered. Prioritize suppliers who invest in continuous third-party audits and compliance training, as this indicates a proactive approach to risk management rather than reactive compliance.

3. Cost Efficiency and Integration Capabilities

Procurement strategies must balance initial capital expenditure (CAPEX) with total cost of ownership (TCO), including maintenance, energy consumption, and integration ease.

• Cost Efficiency: While standard globe and rotary valves are cost-effective, specialized high-temperature or cryogenic units carry a premium. Inferred B2B ranges for standard industrial control valves typically fall between $500 and $5,000 USD per unit, depending on size and material (e.g., Carbon Steel vs. Stainless Steel/Inconel).
• Integration Capabilities: Modern valves must integrate seamlessly with Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC). Look for valves with 4–20 mA analog signals and HART digital communication for real-time diagnostics.
• Lead Time & MOQ: Standard off-the-shelf valves typically have a lead time of 4–8 weeks. Custom configurations (special alloys, specific actuator types) may extend to 12–16 weeks. Minimum Order Quantities (MOQ) are often flexible for standard sizes but may apply to custom actuator setups.
• Durability: High-quality valves are designed for 10–15 years of service life under normal operating conditions, with seal and trim replacements scheduled every 3–5 years.

Actionable Recommendation: Evaluate the "Total Cost of Ownership" rather than just the unit price. A valve with a higher upfront cost but superior HART diagnostics and longer seal life will yield lower maintenance costs over a 10-year period. Ensure the selected valve's communication protocol matches your existing DCS infrastructure to avoid expensive retrofitting.

4. Typical Use Cases

Control valves are ubiquitous in process industries where fluid flow must be regulated precisely. The application scenario dictates the valve type and material selection.

• Oil & Gas Upstream/Downstream: High-pressure crude oil and natural gas pipelines require API-compliant globe or rotary valves capable of handling corrosive sour gas and high pressures (up to ANSI 2500).
• Chemical Processing: Applications involving aggressive acids, alkalis, or solvents require valves with specialized lining (e.g., PTFE) or exotic alloys (Hastelloy, Titanium) to prevent corrosion.
• Power Generation: Steam turbines and boiler feedwater systems demand valves rated for high temperatures (up to 600°C) and high-pressure steam, often utilizing globe valves for precise throttling.
• Cryogenic & LNG: Liquefied Natural Gas facilities require valves rated for -196°C with extended bonnets to prevent freezing of the actuator.
• Water & Wastewater: Large-diameter pipelines often utilize rotary butterfly valves for cost-effective on/off control and throttling in low-to-medium pressure environments.

Actionable Recommendation: Map your specific process fluid properties (corrosivity, abrasiveness, temperature) to the valve material specifications before ordering. For explosive environments, explicitly verify ATEX certification for the actuator and valve assembly, not just the valve body.

5. Long-Term Planning Considerations

Strategic procurement involves anticipating market shifts and technological advancements to ensure future-proofing of assets.

• Market Trends: There is a growing demand for "Smart Valves" with embedded sensors for predictive maintenance. The shift towards Industry 4.0 is driving the adoption of valves with HART and Foundation Fieldbus capabilities.
• Sustainability: Regulatory pressure is increasing for valves with lower fugitive emissions (e.g., ISO 15848 compliance) to meet environmental protection standards.
• Supply Chain Resilience: Diversifying suppliers and maintaining a buffer stock of critical spare parts (seals, trims) is essential to mitigate lead time risks associated with global supply chain disruptions.
• Lifecycle Management: Plan for a 15-year asset lifecycle. Procurement contracts should include options for future spare parts availability and software updates for smart actuators.

Actionable Recommendation: Prioritize suppliers who demonstrate R&D investment in smart valve technologies and low-emission designs. Incorporate "future-proofing" clauses in procurement contracts that guarantee the availability of spare parts and firmware updates for at least 10 years post-purchase.

6. Special Product Recommendations

The following table compares common control valve types to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Globe Valve | Precise throttling needs (Chemical, Power) | ANSI 150-2500, Temp -29°C to 400°C, High Cv accuracy | High pressure drop may cause cavitation | Verify trim material for erosion; check for noise attenuation features. | | Rotary (Ball/Butterfly) | Large size, On/Off, Compact spaces | Large DN (up to 1000mm), Low pressure drop, Fast cycle | Lower throttling precision compared to globe | Ensure soft seals are compatible with fluid temperature; check for bubble-tight shutoff ratings. | | Cryogenic Valve | LNG, Liquid Nitrogen/Oxygen | Temp -196°C, Extended bonnet, Special insulation | Thermal shock and seal failure at low temps | Require ATEX certification if used in gas handling; verify material toughness at cryogenic temps. | | Smart Actuator Valve | DCS/PLC Integration, Predictive Maintenance | 4-20 mA/HART, Positioner feedback, Digital comms | Cybersecurity and protocol compatibility | Confirm HART/Fieldbus compatibility with existing DCS; check for battery backup in electric actuators. |

Actionable Recommendation: For critical safety loops, select Globe valves with redundant positioners. For large-diameter water lines, Rotary valves offer the best cost-to-performance ratio. Always request a "Risk Assessment" document from the supplier for the specific application environment.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct valve size for my application? A: Do not rely on pipe size alone. You must calculate the required flow coefficient (Cv or Kv) based on the fluid flow rate, specific gravity, and the pressure drop across the valve. The valve size is selected to achieve this Cv without causing cavitation or excessive velocity.

Q2: What is the difference between ANSI and PN pressure ratings? A: ANSI (American) ratings (e.g., ANSI 150, 300) and PN (Pressure Nominal) ratings (e.g., PN16, PN40) are different standard systems. ANSI 150 is roughly equivalent to PN20, while ANSI 300 is roughly PN50. Always cross-reference the specific pressure-temperature rating chart provided by the manufacturer to ensure compatibility.

Q3: Are ATEX certifications mandatory for all industrial valves? A: No. ATEX certification is mandatory only if the valve is installed in an area classified as an explosive atmosphere (Zone 1, 2, 21, or 22). For standard indoor or non-hazardous outdoor environments, ATEX is not required, but CE marking is necessary for EU sales.

Q4: What is the typical lead time for a custom control valve? A: Standard off-the-shelf valves typically have a lead time of 4–8 weeks. Custom valves requiring special materials (e.g., Inconel), special trim geometries, or specific actuator configurations usually require 12–16 weeks.

Q5: Can I use a standard valve for cryogenic applications? A: No. Standard valves are not designed for temperatures as low as -196°C. Cryogenic valves require special materials that retain toughness at low temperatures and extended bonnets to keep the actuator warm and prevent freezing.

Q6: What is the significance of the 4–20 mA signal in control valves? A: The 4–20 mA signal is the industry standard for analog transmission of control signals. It allows for long-distance transmission with minimal signal loss and provides a "live zero" (4 mA) to distinguish between a zero signal and a broken wire (0 mA).

Q7: How often should control valve maintenance be performed? A: While this depends on the severity of the service, a typical maintenance schedule involves a full inspection and seal replacement every 3–5 years. Smart valves with diagnostic capabilities can extend this interval by predicting failures before they occur.

Q8: What certifications should I look for in a supplier? A: A trusted supplier should possess ISO 9001 for quality management, API standards for oil and gas compliance, and CE or ATEX certifications depending on your region and hazard classification. They should also provide third-party audit reports.
