Procurement Report: Industrial Conveyor Systems

Product Category: Material Handling & Conveying Systems Report Date: October 26, 2023 Scope: General Industrial Conveyors (Belt, Modular, and Sortation)

---

1. Technical Specifications and Performance Metrics

To ensure optimal procurement, specifications must be aligned with the specific operational load and environmental constraints. Based on industry standards, the following parameters define the baseline for selection:

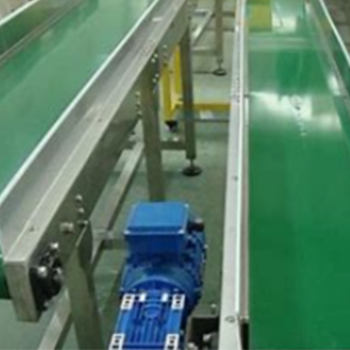

• Payload Capacity: Typical B2B ranges span from 10 kg/m to 4,000 kg/m. Procurement teams must calculate the peak load per linear meter, including the weight of the product and the belt itself, to avoid motor overload.
• Belt Width: Standard widths typically fall between 100 mm and 500 mm. Narrower belts (100–200 mm) are suitable for small components or electronics, while wider belts (300–500 mm) are required for bulk materials or large pallets.
• Operating Speed: Variable speed drives are recommended. Typical operating speeds range from 0.05 m/s to 3.0 m/s. High-speed applications (approaching 3.0 m/s) require precise control systems to prevent product spillage or damage.
• Modular Length & Line Configuration: Modular sections generally range from 0.5 m to 12 m per unit. This allows for flexible line length customization. Total line length should be calculated based on facility footprint and transfer points.
• Frame Material: Selection depends on the environment. Standard carbon steel is typical for dry environments, while stainless steel (304 or 316 grade) is mandatory for food, pharmaceutical, or corrosive chemical environments.
• Drive Power: Motor sizing correlates directly to payload and incline. Typical ranges are 0.5 kW to 15 kW depending on the total line length and friction coefficient.

Actionable Recommendation: Before issuing a Request for Quotation (RFQ), define the exact payload per meter and belt width. Do not rely on "average" estimates; perform a load test simulation if the application involves irregular shapes or high-velocity sorting.

2. Industry Compliance and Quality Assurance

Conveyor systems must adhere to rigorous safety and quality standards to ensure operational continuity and regulatory compliance.

• Safety Standards: Systems should comply with ISO 13857 (Safety of machinery – Safety distances to prevent danger zones) and ANSI/RIA R15.1 (Industrial Mobile Robots and Automated Guided Vehicles) where applicable. Electrical components must meet UL or CE certification standards.
• Material Certifications: For food and beverage applications, belts must be FDA-compliant (21 CFR 177.2600) or meet EU Regulation 10/2011. Stainless steel frames should come with mill test certificates verifying corrosion resistance.
• Durability Metrics: Belt life expectancy typically ranges from 3,000 to 10,000 operating hours depending on the material (e.g., PVC vs. UHMW). Bearings should be rated for L10 life of 20,000+ hours under standard load conditions.
• Quality Assurance Protocols: Vendors should provide a Factory Acceptance Test (FAT) report verifying speed consistency, noise levels (typically <75 dB at 1 meter), and load stability.

Actionable Recommendation: Require the supplier to provide a compliance matrix mapping their product specifications to your specific industry regulations (e.g., OSHA, FDA, GMP). Verify that the belt material has a valid certificate of analysis for the intended chemical or food contact environment.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the initial purchase price, encompassing energy consumption, maintenance, and integration labor.

• Cost Efficiency: Modular conveyor systems typically offer a 15–25% cost saving over custom-welded steel frames due to reduced fabrication time and easier scalability. Energy consumption for standard belt conveyors is approximately 0.1–0.5 kWh per ton-meter transported.
• Integration Capabilities: Modern systems support PLC integration (Siemens, Allen-Bradley) and Industry 4.0 protocols (Profinet, EtherNet/IP). Look for systems with pre-installed sensor mounting points and standardized communication interfaces.
• Scalability: Modular designs allow for line extensions of 0.5 m increments without replacing the entire system. This reduces long-term capital expenditure (CapEx) when expanding operations.
• Maintenance Costs: Systems with self-lubricating bearings and tool-free belt tensioning mechanisms can reduce maintenance labor by 30–40% annually.

Actionable Recommendation: Prioritize vendors offering open-architecture control systems to avoid vendor lock-in. Calculate the ROI based on energy savings from variable frequency drives (VFDs) which can reduce power usage by up to 40% during low-load periods compared to fixed-speed motors.

4. Typical Use Cases

Conveyors are versatile but require specific configurations for different industries:

• E-Commerce & Logistics: High-speed sortation systems with widths of 300–500 mm and speeds up to 2.5 m/s are standard for parcel handling.
• Food & Beverage: Stainless steel belt conveyors with FDA-compliant surfaces, widths of 200–400 mm, and wash-down capabilities (IP65/IP69K ratings) are essential.
• Manufacturing & Assembly: Low-speed (0.05–0.5 m/s), heavy-duty (up to 4,000 kg/m) conveyors are used for moving automotive parts or heavy machinery components.
• Warehousing: Modular belt conveyors with 100–300 mm widths are ideal for internal waste management and pallet transfers.
• Incline/Decline Applications: Specialized cleated belts or drag chain conveyors are required for angles exceeding 15 degrees to prevent product rollback.

Actionable Recommendation: Match the belt texture and width to the product geometry. For small items, use a textured or cleated belt to prevent sliding. For heavy items, ensure the frame material and drive power exceed the calculated peak load by a safety factor of 1.5x.

5. Long-Term Planning Considerations

Strategic procurement must account for future market shifts and technological evolution.

• Market Trends: There is a rising demand for automated sortation and robotic integration. Conveyors are increasingly being designed as "smart" assets with embedded IoT sensors for predictive maintenance.
• Demand Signals: The shift towards just-in-time (JIT) manufacturing and e-commerce fulfillment is driving demand for high-speed, flexible modular systems over fixed-line conveyors.
• Sustainability: Procurement should favor energy-efficient motors (IE3 or IE4 class) and belts made from recyclable materials (e.g., thermoplastic polyurethane) to meet corporate ESG goals.
• Lifecycle Management: Plan for a 10–15 year lifecycle for the frame and a 3–5 year replacement cycle for belts and motors. Ensure the vendor offers spare parts availability for at least 10 years.

Actionable Recommendation: Design the conveyor layout with "future-proof" expansion ports. Select control systems that support over-the-air (OTA) firmware updates to adapt to new sorting algorithms without hardware replacement.

6. Special Product Recommendations

The following table compares common conveyor types to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Modular Belt Conveyor | E-commerce, Packaging | Width: 100–500mm; Speed: 0.5–3.0 m/s; Modular Length: 0.5–12m | High risk of belt tracking issues if not aligned perfectly. | Verify tensioning mechanism type; request a trackability test. | | Stainless Steel Belt | Food & Pharma | Width: 200–400mm; Material: 304/316 SS; Wash-down: IP69K | Corrosion risk if lower grade steel is used. | Demand mill test certs; specify 316L for high-salt environments. | | Heavy-Duty Roller | Automotive, Manufacturing | Payload: 1,000–4,000 kg/m; Frame: Carbon Steel | Motor burnout risk if overload protection is missing. | Ensure VFD is included; check bearing load ratings. | | Incline Cleated Belt | Bulk Materials, Mining | Angle: 15°–45°; Belt: Cleated/Sidewall | Product spillage risk on steep inclines. | Calculate angle vs. material angle of repose; test with sample load. | | Sortation System | Logistics Centers | Speed: 2.0–3.0 m/s; Integration: PLC/Robotics | High complexity in control logic integration. | Require FAT with simulated high-volume traffic. |

Actionable Recommendation: For new facilities, opt for modular systems to allow for future reconfiguration. For existing facilities, conduct a "gap analysis" to determine if retrofitting existing frames with new belts or drives is more cost-effective than full replacement.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for a custom conveyor system? A: Standard modular units typically have a lead time of 2–4 weeks. Custom-engineered systems with specific frame materials or complex drives usually require 8–12 weeks for design, fabrication, and testing.

Q2: How do I determine the correct belt width for my product? A: The belt width should be at least 1.5 times the width of the largest product to ensure stability. For small items, use a narrower belt with sidewalls or cleats to prevent spillage.

Q3: Can conveyor systems be integrated with existing PLCs? A: Yes, most modern conveyors support standard industrial protocols (Profinet, Modbus TCP, EtherNet/IP). Ensure the vendor provides the necessary communication driver or API documentation.

Q4: What is the minimum order quantity (MOQ) for modular conveyors? A: Many suppliers offer low MOQs for modular sections, often starting at 1 meter (approx. 1–2 modules). However, custom frames may have higher MOQs depending on the fabrication setup.

Q5: How often should conveyor belts be replaced? A: Under normal operating conditions, belts typically last 3,000 to 10,000 hours. However, in high-abrasion or high-temperature environments, replacement may be needed every 1,500–2,000 hours.

Q6: Are there specific safety certifications required for food-grade conveyors? A: Yes, belts must be FDA-compliant (or equivalent local regulation), and the system should ideally meet NSF/ANSI 51 standards for food equipment materials.

Q7: What is the difference between a belt conveyor and a roller conveyor? A: Belt conveyors are better for small, irregular, or loose items and inclines. Roller conveyors are superior for heavy, flat-bottomed items (like pallets or boxes) and are easier to clean in dry environments.

Q8: How does variable speed drive (VFD) impact energy costs? A: Installing a VFD can reduce energy consumption by 30–50% compared to fixed-speed motors, as the motor speed adjusts to the actual load requirements rather than running at full capacity constantly.
