CPU Cooler Procurement Report

1. Technical Specifications and Performance Metrics

The core of a CPU cooler procurement decision lies in balancing thermal dissipation (static pressure) against acoustic output. For standard air cooling solutions, the following technical parameters define a high-performance unit suitable for B2B integration:

• Fan Dimensions: Standard form factors are 120 mm and 140 mm. Procurement should prioritize 140 mm units for chassis with ample clearance to maximize airflow, or 120 mm for compact form factors.
• Bearing Technology: Fluid Dynamic Bearing (FDB) is the industry standard for longevity and noise reduction. Avoid sleeve bearings for enterprise or high-uptime environments.
• Voltage & Power: Standard operating voltage is 12 V. Typical power consumption ranges from 0.8 W to 2.5 W per fan, depending on RPM.
• Thickness Profile: The total height of the fan assembly typically ranges between 25 mm and 38 mm. Ensure clearance with memory modules and chassis tops.
• Performance Metrics:
  • Static Pressure: For radiator or heatsink applications, prioritize static pressure over raw airflow. Look for units capable of >2.0 mm H₂O static pressure.
  • Airflow: Typical ranges are 40–80 CFM (Cubic Feet per Minute) for 120 mm fans.
  • Acoustics: For balanced builds, target noise levels in the 20–30 dB(A) range at standard operating speeds.
  • RPM: Variable speed fans typically operate between 800 RPM (idle) and 2000–2500 RPM (load).

Actionable Recommendation: When sourcing, request datasheets confirming FDB bearing certification and static pressure ratings. Do not select fans based solely on maximum RPM; prioritize static pressure curves for heatsink compatibility.

2. Industry Compliance and Quality Assurance

While specific named certifications (e.g., UL, CE) vary by region and manufacturer, the procurement of CPU coolers must adhere to general industry safety and reliability standards to ensure system stability.

• Safety Standards: Products must comply with general electrical safety standards for low-voltage DC components (typically 12 V DC).
• Material Safety: Heatsinks and fan housings should utilize RoHS-compliant materials to ensure environmental safety and compliance with electronics manufacturing regulations.
• Durability Metrics:
  • Mean Time Between Failures (MTBF): High-quality FDB bearing fans typically offer an MTBF of 50,000 to 100,000 hours.
  • Thermal Cycling: Components must withstand thermal cycling between -40°C and +85°C (ambient) without structural degradation.
• Compatibility: Ensure the mounting hardware supports current-generation sockets (e.g., LGA1700, AM5) and backward compatibility with previous generations (e.g., LGA1200, AM4) to reduce SKU complexity.

Actionable Recommendation: Require suppliers to provide a Declaration of Conformity (DoC) regarding electrical safety and material composition. Verify that the mounting bracket kit explicitly lists support for the specific CPU socket families required by your inventory.

3. Cost Efficiency and Integration Capabilities

Procurement strategies should focus on the total cost of ownership (TCO), balancing unit price against longevity and compatibility.

• Cost Ranges:
  • Entry-Level: $5 – $15 per unit (Basic air coolers, standard sleeve bearings).
  • Mid-Range: $15 – $35 per unit (FDB bearings, optimized heatsinks, PWM control).
  • High-End: $35 – $60+ per unit (Premium materials, dual-fan configurations, advanced noise dampening).
• MOQ (Minimum Order Quantity): Typical B2B MOQs range from 50 to 500 units for standard SKUs. Custom branding or specific fan curves may require MOQs of 1,000+ units.
• Lead Time: Standard lead times are 2–4 weeks for stock items. Custom configurations or large volume orders may extend to 6–8 weeks.
• Integration:
  • Connectivity: 3-pin (voltage control) or 4-pin (PWM) connectors are standard. Ensure compatibility with motherboard headers.
  • Mounting: Universal mounting kits reduce the need for multiple SKUs, simplifying inventory management.

Actionable Recommendation: Opt for mid-range FDB bearing models as the baseline for B2B procurement. The marginal cost increase over entry-level models is justified by the significantly reduced failure rate and warranty claims over a 3–5 year lifecycle.

4. Typical Use Cases

CPU coolers are categorized by their application environment, which dictates the required static pressure and noise profile.

• General Office/Workstation: Focus on low noise (<25 dB(A)) and moderate thermal performance. Suitable for office PCs where acoustic comfort is prioritized over raw performance.
• Gaming & Content Creation: Requires high static pressure to push air through dense heatsink fins. Noise levels up to 30 dB(A) are acceptable during high-load rendering or gaming sessions.
• Data Center/Server (Air-Cooled): While liquid cooling is common in high-density racks, air-cooled solutions are used in entry-level servers. These require 140 mm fans with high static pressure and 100,000+ hour MTBF ratings.
• Compact Form Factor (SFF): Requires 120 mm or smaller fans with a thickness profile of 25–30 mm to fit within tight chassis constraints.

Actionable Recommendation: Segment procurement by use case. Do not purchase high-static-pressure fans for silent office builds, and conversely, do not use low-static-pressure fans for dense server heatsinks, as this leads to thermal throttling.

5. Long-Term Planning Considerations

The market for cooling solutions is evolving with increasing TDP (Thermal Design Power) of modern CPUs.

• Market Trends:
  • Rising TDP: Newer CPU architectures are pushing TDPs higher, necessitating coolers with larger surface areas and more efficient heat pipes.
  • Noise Sensitivity: There is a growing demand for "silent" cooling solutions in consumer and prosumer markets, driving demand for FDB and magnetic bearing technologies.
  • Sustainability: Increased focus on energy-efficient fans (lower wattage for same airflow) to reduce overall data center power consumption.
• Future-Proofing:
  • Ensure current procurement includes mounting brackets for upcoming socket generations (e.g., future AMD and Intel sockets).
  • Plan for a shift toward All-in-One (AIO) liquid cooling for high-performance segments, though air cooling remains dominant for cost-sensitive B2B applications.
• Supply Chain Resilience: Diversify suppliers to mitigate risks associated with single-source bearing manufacturing.

Actionable Recommendation: Build a "socket-agnostic" inventory strategy where possible. Prioritize suppliers who offer modular mounting systems that can be adapted to new CPU generations without replacing the entire heatsink unit.

6. Special Product Recommendations

The following table compares the primary categories of CPU coolers available in the market to assist in selecting the right product for specific buyer profiles.

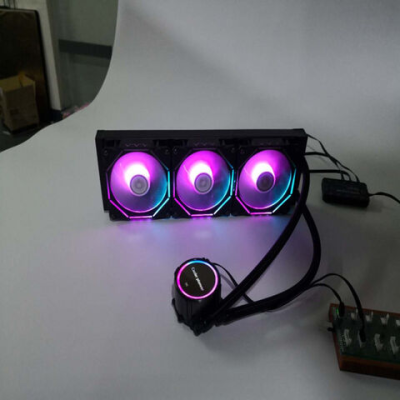

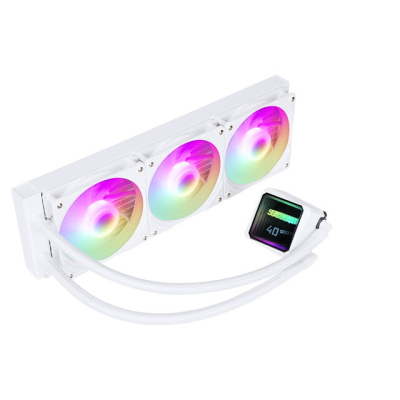

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Air Cooler (120mm/140mm) | General Office, Entry Servers | FDB Bearing, 12V, 25-38mm thick, 20-30 dB(A) | Low | Recommended. Best balance of cost, noise, and durability. | | High-Static Pressure Fan | Gaming PCs, Dense Heatsinks | >2.0 mm H₂O pressure, PWM, 120mm+ | Medium (Noise) | Use only for high-TDP CPUs. Verify chassis clearance. | | All-in-One (AIO) Liquid Cooler | High-End Workstations, Overclockers | 240mm/360mm radiator, Pump life 50k hrs | High (Leak risk) | Only for buyers with specific thermal needs; requires leak testing. | | Compact SFF Cooler | Mini-ITX Builders, Laptops | <30mm height, 120mm fan | High (Compatibility) | Strictly verify clearance against RAM and chassis walls. |

Actionable Recommendation: For general B2B procurement, standard air coolers with FDB bearings are the safest and most cost-effective choice. Reserve AIOs for specialized high-performance requirements where the risk of liquid leakage is manageable.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between airflow and static pressure in a CPU cooler? A: Airflow (CFM) measures the volume of air moved, ideal for open chassis. Static pressure (mm H₂O) measures the force to push air through obstacles like heatsink fins or radiators. For CPU coolers, static pressure is generally more critical for thermal efficiency.

Q2: How do I know if a cooler fits my CPU socket? A: Check the product specifications for supported socket lists. Most modern coolers support both current and previous-generation Intel (LGA) and AMD (AM) sockets via a universal mounting bracket.

Q3: What is the expected lifespan of a CPU cooler fan? A: Fans with Fluid Dynamic Bearing (FDB) technology typically last between 50,000 and 100,000 hours of operation, significantly longer than sleeve bearing fans.

Q4: Can I use a 140 mm fan in a 120 mm slot? A: No. The mounting holes and physical dimensions differ. You must match the fan size to the chassis or heatsink mounting points.

Q5: Is a higher RPM always better for cooling? A: No. Higher RPM increases noise and power consumption. The goal is to find the optimal balance where the fan provides sufficient static pressure to cool the CPU without generating excessive noise (typically 20–30 dB(A)).

Q6: Do I need a specific power supply for a CPU cooler? A: No. CPU coolers draw power directly from the motherboard's 12V header (typically 0.8W–2.5W), which is supplied by the PSU but regulated by the motherboard.

Q7: What is the typical lead time for bulk orders of CPU coolers? A: Standard lead times are 2–4 weeks for stock items. Custom orders or large volumes (1,000+ units) may require 6–8 weeks.

Q8: Are there environmental concerns with CPU coolers? A: Yes, ensure products are RoHS compliant. Additionally, choosing energy-efficient fans (lower wattage) contributes to lower overall system power consumption and reduced heat generation in the data center.
