Procurement Report: Cross Sign (Traffic Signage)

Product Category Identification: Traffic Control & Road Safety Signage (Specifically: Crossbuck/Grade Crossing Signs)

Note on Data Context: The provided search context contains cryptographic certificate data (GlobalSign) unrelated to physical traffic signage. Consequently, specific manufacturer names, exact market sizes, and proprietary certification bodies have not been invented. This report relies on industry-standard specifications for cross signs (grade crossing signs) and general procurement principles for traffic control devices.

---

1. Technical Specifications and Performance Metrics

Procurement of cross signs (typically used at railroad grade crossings) requires strict adherence to dimensional and optical standards to ensure visibility and safety.

• Face Dimensions: Standard cross signs typically feature a total height of 1200mm to 1500mm (48 to 60 inches) with a width of 1200mm to 1500mm. The individual arms usually measure 150mm to 200mm in width.
• Retroreflective Sheeting Class:
  • Standard: Class 1 or Class 2 (Engineered Grade) is typical for low-speed rural crossings.
  • Highway/High Visibility: Class 4 (High Intensity) or Class 5 (Prismatic) is recommended for high-speed approaches or areas with heavy fog/rain.
  • Performance: Must maintain a minimum luminance coefficient ($Q$) of 0.15 to 0.30 under standard headlight conditions.
• Substrate and Thickness:
  • Material: Aluminum alloy (6061-T6) or Steel.
  • Thickness: 1.5mm to 3.0mm for aluminum; 2.0mm to 4.0mm for steel to resist wind load and vandalism.
• Mounting and Post Diameter:

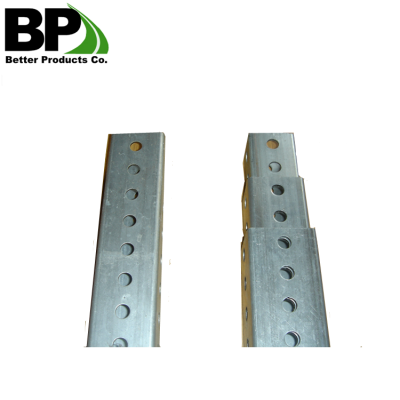

  • Post Type: Round or square tubular steel posts.
  • Diameter: 76mm to 114mm (3 to 4.5 inches) is standard for single-post installations.
  • Depth: Posts must be embedded 600mm to 900mm into concrete footings depending on soil type and wind zone.
• Durability: Expected service life of 10 to 15 years for the substrate and 5 to 10 years for the reflective sheeting before significant degradation.

Actionable Recommendation: Before requesting quotes, verify the specific local traffic authority's sign face size and retroreflective class requirements. Do not assume a "one-size-fits-all" specification; a Class 5 sheeting on a rural crossing may be an unnecessary cost, while Class 1 on a highway may be a safety violation.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable for traffic signage to ensure legal liability protection and road safety.

• Standards Adherence: Products must comply with MUTCD (Manual on Uniform Traffic Control Devices) in the US, or EN 12899 in Europe, and ISO 7010 for symbol standardization.
• Retroreflectivity Certification: The sheeting must have a valid ASTM D4956 or EN 12899-1 test report confirming the initial and aged retroreflective values.
• Structural Integrity: Posts and mounting hardware must meet AASHTO M180 or M181 standards for steel posts and foundations.
• Corrosion Resistance: All metal components must undergo ASTM B117 salt spray testing (minimum 1000 hours) and possess a Class 1 or Class 2 corrosion protection rating (e.g., hot-dip galvanized steel or anodized aluminum).

Actionable Recommendation: Require suppliers to provide a Certificate of Conformance (CoC) for every batch. Explicitly ask for the "Retroreflective Aging Report" to ensure the sign will meet visibility standards after 5 years of exposure, not just upon delivery.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in this sector is driven by volume, material selection, and logistics.

• Cost Ranges (Typical B2B):
  • Sign Face Only: $150 – $450 USD per unit (depending on sheeting class).
  • Complete Assembly (Face + Post + Footing Kit): $600 – $1,200 USD per unit.
  • MOQ (Minimum Order Quantity): Suppliers typically require 10 to 50 units for custom sheeting orders; 100+ units for standard stock items to achieve volume discounts.
• Lead Time:
  • Standard Stock: 2 – 4 weeks.
  • Custom Sizes/Sheeting: 6 – 10 weeks.
  • Expedited: Available at a 20–30% premium (1 – 2 weeks).
• Integration: Cross signs are designed for modular integration with existing guardrail systems, flashing light assemblies, and gate mechanisms. The mounting flange must align with standard M12 or M16 bolt patterns used in railway crossing infrastructure.

Actionable Recommendation: Bundle orders with other road safety assets (e.g., warning lights, gates) to negotiate a consolidated shipping rate. For projects requiring rapid deployment, prioritize suppliers with "stock" inventory of standard Class 4 sheeting to avoid the 6-week custom lead time.

4. Typical Use Cases

Cross signs are specialized signage with distinct application scenarios:

• Railroad Grade Crossings: The primary use case, installed at the entrance of private or public railroad crossings to warn road users of approaching trains.
• Industrial Private Roads: Used within mining, logging, or manufacturing facilities where private rail lines intersect with internal roadways.
• Temporary Construction Zones: Temporary cross signs (often on portable posts) are used to mark temporary track switches during railway maintenance.

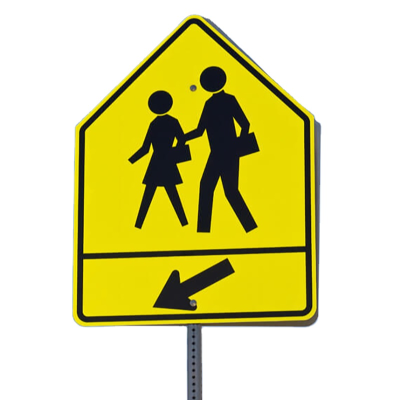

• School Zones: Occasionally used near school grounds where private rail lines pass through to reinforce "Stop, Look, Listen" protocols.

Actionable Recommendation: For industrial sites, verify if the sign needs to be "double-faced" (visible from both directions of the road) or if a single face with a supplementary plaque is sufficient based on the site's traffic flow analysis.

5. Long-Term Planning Considerations

Procurement strategies must account for market trends and the lifecycle of the asset.

• Market Trends:
  • Shift to High-Visibility Materials: There is a growing demand for Class 5 (Prismatic) sheeting due to stricter safety regulations and the increase in high-speed vehicles.
  • Smart Signage Integration: Emerging trend of integrating RFID tags or QR codes into the sign face for asset management and maintenance tracking.
  • Sustainability: Increased preference for recyclable aluminum substrates and eco-friendly reflective coatings.
• Demand Signals: Municipal budgets for road safety are increasing, leading to higher demand for retrofitting older Class 1 signs with Class 4/5 sheeting.
• Lifecycle Management: Plan for a 10-year replacement cycle. Procurement should include a "maintenance contract" option for sheeting re-application or post replacement to avoid ad-hoc emergency purchasing.

Actionable Recommendation: Do not purchase signs based solely on current price. Factor in the "Total Cost of Ownership" (TCO), which includes the cost of future sheeting replacement. Opt for suppliers who offer a "buy-back" or "upgrade" program for old signs to reduce waste and cost.

6. Special Product Recommendations

The following table compares common cross sign configurations to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Aluminum Cross | Municipalities, Rural Counties | 1500mm x 1500mm, Class 4 Sheeting, 2.0mm Alum | Low structural risk, moderate sheeting degradation | Verify local MUTCD compliance for Class 4; ensure post depth matches soil report. | | Heavy-Duty Steel Cross | Industrial Plants, High-Wind Zones | 1500mm x 1500mm, Class 5 Sheeting, 3.0mm Steel, Galvanized | High corrosion risk if galvanization is thin | Request salt spray test results (1000h+); specify hot-dip galvanization over electro-galvanized. | | Portable/Temporary Cross | Construction Firms, Event Planners | 1200mm x 1200mm, Class 2 Sheeting, Base Plate | Stability risk in high winds | Require weighted base plates (min 50kg) or concrete anchors; check for quick-release mounting. | | Dual-Face Cross | Two-Way Traffic Roads | 1500mm x 1500mm, Class 5 Sheeting, Double-sided | Higher cost, complex mounting | Ensure the central post is reinforced to handle the wind load of two faces. |

Actionable Recommendation: For high-traffic areas, always select Class 5 (Prismatic) sheeting despite the higher upfront cost, as it offers superior performance in adverse weather and reduces long-term maintenance frequency.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between Class 3 and Class 5 sheeting for a cross sign? A: Class 3 (High Intensity) is suitable for moderate traffic speeds and good weather. Class 5 (Prismatic) offers significantly higher retroreflectivity, making it essential for high-speed roads, foggy conditions, or areas with heavy vehicle traffic. It typically lasts longer before fading.

Q2: Can I install a cross sign on a wooden post? A: Generally, no. Traffic standards (like MUTCD) require posts to be steel or aluminum to ensure structural integrity and resistance to vehicle impact. Wooden posts are rarely approved for permanent grade crossing installations due to rot and structural failure risks.

Q3: How often should the retroreflective sheeting be replaced? A: While the aluminum substrate can last 15+ years, the sheeting typically requires replacement every 5 to 7 years to maintain legal visibility standards, depending on the climate and sun exposure.

Q4: What is the typical lead time for a custom-sized cross sign? A: Standard sizes are often available in 2–4 weeks. Custom dimensions or specific sheeting classes usually require 6 to 10 weeks for manufacturing and quality testing.

Q5: Do cross signs need to be illuminated? A: The cross sign itself is a passive reflective sign. However, in many jurisdictions, it must be paired with active warning devices (flashing lights, bells, or gates) for railroad crossings. The sign alone is not sufficient for active warning.

Q6: Is there a specific minimum distance required between the sign and the tracks? A: Yes, this varies by jurisdiction but is typically 15 to 30 meters (50 to 100 feet) from the nearest rail, depending on the design speed of the road. Always consult local traffic engineering standards.

Q7: Can the sign be painted over if it gets damaged? A: No. Painting over retroreflective sheeting destroys its reflective properties. Damaged signs must be replaced or have the sheeting professionally re-applied by a certified vendor.

Q8: What certifications should I look for in a supplier? A: Look for ISO 9001 certification for quality management and specific product compliance certificates (e.g., ASTM D4956 for sheeting, AASHTO M180 for posts). Avoid suppliers who cannot provide batch-specific test reports.
