Procurement Report: Die Pins (Guide Pins and Bushings)

1. Technical Specifications and Performance Metrics

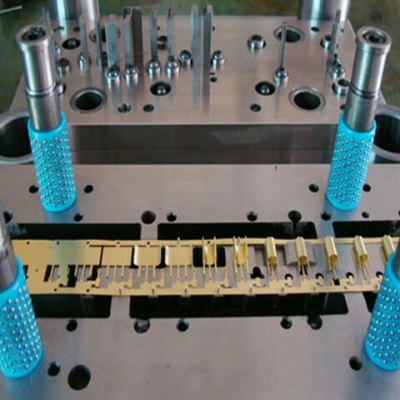

Die pins (guide pins) and their corresponding bushings are critical precision components in stamping dies, responsible for maintaining alignment between the upper and lower die halves during high-speed operation. Procurement must focus on dimensional accuracy, material hardness, and surface finish to prevent premature wear and part rejection.

• Dimensional Tolerances: Standard guide pins typically adhere to ISO or DIN precision classes. Typical tolerance ranges are ±0.005 mm to ±0.01 mm for diameter and ±0.002 mm for straightness over a 100mm length.
• Material Hardness:
  • Guide Pins: Typically hardened to 58–62 HRC (Rockwell C Scale) to resist abrasion and deformation.
  • Bushings: Often made from bronze or sintered steel, with hardness ranging from 200–300 HB (Brinell) for plain bearings or specialized coatings for higher loads.
• Diameter Ranges: Standard commercial sizes range from 6 mm to 50 mm in diameter, with lengths varying from 50 mm to 300 mm depending on die height.
• Durability Metrics: High-quality pins in standard stamping applications typically sustain 100,000 to 500,000 cycles before requiring replacement, depending on the material being stamped and lubrication quality.
• Surface Finish: Critical for friction reduction; typical Ra (Roughness Average) values should be 0.2 µm to 0.4 µm.

Procurement Recommendation: When sourcing, explicitly request "Class P" or "Class M" precision tolerances in your RFQ. Do not accept generic "standard" pins for high-volume production lines; the cost of downtime due to misalignment far exceeds the premium for precision-ground components. Verify material certifications (e.g., AISI D2 or SKD11 steel) to ensure the hardness specifications are met.

2. Industry Compliance and Quality Assurance

Reliability in die manufacturing is non-negotiable. Procurement must ensure suppliers adhere to rigorous quality management systems and industry standards to guarantee component interchangeability and safety.

• Quality Management Systems: Leading suppliers, such as Ready Technology, Inc., typically hold ISO 9001:2015 certification. This ensures a documented process for quality control, traceability, and continuous improvement.
• Standardization: Components should conform to DIN 625 (German Institute for Standardization) or ISO 13792 standards for guide pins and bushings to ensure compatibility with standard die sets.
• Self-Lubricating Standards: For specialized bushings (e.g., SinterLube), verify compliance with internal industry standards for porosity and oil retention capacity, typically requiring 15–25% porosity for optimal lubrication.
• Traceability: Batch numbers and heat treatment logs should be available for every lot to trace material properties back to the mill certificate.

Procurement Recommendation: Mandate ISO 9001 certification as a prerequisite for vendor qualification. Require a Certificate of Conformance (CoC) with every shipment that includes specific hardness test results and dimensional inspection reports. For critical applications, request a First Article Inspection (FAI) report to validate that the first batch meets all geometric and material specifications before full production runs.

3. Cost Efficiency and Integration Capabilities

While guide pins are relatively low-cost individual items, they represent a high-risk failure point in the die assembly. Cost efficiency is best achieved by minimizing total cost of ownership (TCO) through durability and ease of integration rather than just the lowest unit price.

• Unit Cost Ranges: Typical B2B pricing for standard hardened steel guide pins ranges from $15 to $60 per unit, depending on diameter and length. Specialized self-lubricating bushings may range from $25 to $100 per unit.
• MOQ (Minimum Order Quantity): Standard sizes often have low MOQs (e.g., 10–50 units), while custom diameters or lengths may require MOQs of 100+ units or a setup fee.
• Lead Times: Standard off-the-shelf items typically ship within 3–5 business days. Custom-machined or specialized coated pins may require 2–4 weeks.
• Integration: Modern die sets utilize standardized mounting holes. Ensure the selected pins match the die set's shoulder diameter and length to avoid custom machining of the die plate, which adds significant cost and lead time.

Procurement Recommendation: Adopt a "Buy High, Save Long" strategy. Investing in premium pins with extended life (e.g., +20% cost) can reduce die maintenance frequency by 40–50%, significantly lowering TCO. Prioritize suppliers who offer "Ready Benders" or integrated die sets to ensure perfect fitment. Negotiate volume discounts for recurring orders of standard sizes to lock in lower unit costs.

4. Typical Use Cases

Guide pins and bushings are ubiquitous in metal forming and stamping operations. Their specific application dictates the required material and coating.

• High-Speed Stamping: Used in progressive dies where alignment must be maintained at speeds exceeding 600 strokes per minute (SPM). Requires high-hardness pins and low-friction bushings.
• Heavy-Gauge Forming: Involves thick steel plates (up to 25 mm+). Requires larger diameter pins (20mm–50mm) with high load-bearing capacity to prevent bending.
• Precision Sheet Metal: For automotive or aerospace components requiring tight tolerances (±0.01 mm). Requires precision-ground pins with minimal runout.
• Automated Assembly Lines: Integrated into robotic die change systems where rapid, precise alignment is critical for quick die changes (QDC).
• Die Sets and Custom Machining: Used as the foundational alignment system for custom die sets, ensuring the punch and die cavity remain concentric.

Procurement Recommendation: Map your specific application to the pin type. For high-speed operations, specify "Ball Bearing" or "Plain Bearing" pins with self-lubricating bushings to reduce friction heat. For heavy-gauge applications, prioritize larger diameters and verify the supplier's load-bearing data. If your facility uses automated die changers, ensure the pins have a chamfered entry to facilitate smooth insertion.

5. Long-Term Planning Considerations

The manufacturing landscape is shifting towards Industry 4.0 and sustainable manufacturing. Procurement strategies must account for these trends to future-proof operations.

• Market Trends: There is a growing demand for self-lubricating (SinterLube) and coated pins (e.g., TiN, DLC) to reduce maintenance intervals and eliminate oil mist in the workplace.
• Demand Signals: The shift toward electric vehicle (EV) battery components requires higher precision stamping, driving demand for ultra-precision guide pins with tighter tolerances.
• Sustainability: Suppliers are increasingly offering recycled steel options and eco-friendly coatings. Look for vendors with green manufacturing certifications.
• Supply Chain Resilience: Diversify suppliers to avoid single points of failure. Maintain a strategic inventory of critical standard sizes (e.g., 12mm, 16mm, 20mm) to mitigate lead time risks.
• Lifecycle Management: Implement a predictive maintenance schedule based on cycle counts rather than visual inspection. Replace pins proactively at 80% of their estimated lifecycle to prevent catastrophic die failure.

Procurement Recommendation: Develop a "Future-Proof" procurement plan that includes a transition to self-lubricating bushings to reduce environmental compliance costs. Establish a safety stock level for the top 5 most used pin diameters (typically 10–15% of annual usage) to buffer against supply chain disruptions. Engage with suppliers early regarding their R&D roadmaps for advanced coatings.

6. Special Product Recommendations

Based on industry capabilities (e.g., Ready Technology), specific product lines offer distinct advantages for different buyer profiles.

Procurement Recommendation: For new die builds, prioritize the SinterLube or Ball Bearing options despite the higher upfront cost. The reduction in downtime and maintenance labor usually results in a positive ROI within the first 6 months. Avoid mixing pin types (e.g., plain bearing pins with ball bearing bushings) as this causes uneven wear and alignment issues.

7. Frequently Asked Questions (FAQ)

Q1: What is the standard tolerance for die guide pins? A: Standard precision guide pins typically have a diameter tolerance of ±0.005 mm to ±0.01 mm. For high-precision applications, tolerances as tight as ±0.002 mm are available but require custom machining.

Q2: How often should guide pins and bushings be replaced? A: Replacement frequency depends on the cycle count and material. Typically, they are replaced every 100,000 to 500,000 cycles. However, proactive replacement at 80% of the estimated life is recommended to prevent die damage.

Q3: Can I use standard pins with self-lubricating bushings? A: Yes, standard hardened pins are designed to work with self-lubricating (SinterLube) bushings. This combination is highly recommended for reducing friction and eliminating the need for external lubrication.

Q4: What is the difference between a "Guide Pin" and a "Pilot Pin"? A: A Guide Pin aligns the entire die set (upper and lower halves) during the closing cycle. A Pilot Pin is a smaller pin used to align the strip of material within the die for precise cutting in progressive dies.

Q5: Do you offer custom diameters for guide pins? A: Yes, most suppliers offer custom machining for non-standard diameters and lengths, though this typically increases the lead time to 2–4 weeks and may have a higher MOQ.

Q6: What material is best for stamping stainless steel? A: For stainless steel, which is abrasive, hardened tool steel (e.g., AISI D2 or SKD11) with a hardness of 58–62 HRC is standard. For extreme wear, consider pins with specialized coatings like TiN.

Q7: How do I verify the quality of a guide pin supplier? A: Look for ISO 9001 certification, request a Certificate of Conformance with hardness and dimensional data, and ask for references from similar manufacturing applications.

Q8: What is the typical lead time for standard die pins? A: Standard off-the-shelf guide pins are typically available for immediate shipment or within 3–5 business days. Custom orders require 2–4 weeks.
