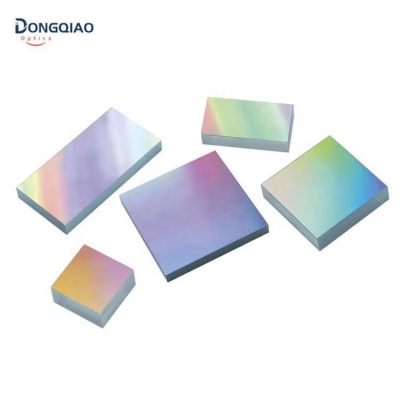

Procurement Report: Diffraction Gratings

Product Category: Optical Components / Diffractive Optics Market Context: The diffraction grating market is driven by the demand for high-resolution spectral analysis in scientific research, telecommunications, and industrial sensing. Procurement decisions hinge on the trade-off between spectral resolution, diffraction efficiency, and substrate durability.

---

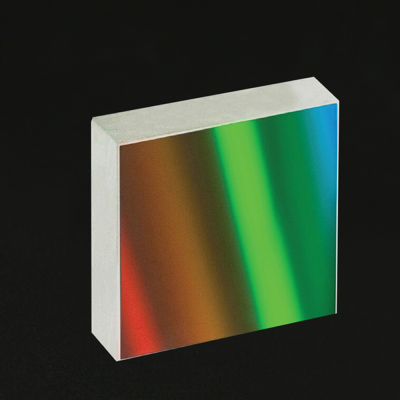

1. Technical Specifications and Performance Metrics

When procuring diffraction gratings, the primary technical differentiator is the periodic structure (groove density) and the blaze angle, which dictate how light is diffracted.

• Groove Density (Line Density): Typically ranges from 300 to 2400 lines/mm for standard transmission/reflection gratings. Echelle gratings often operate at lower densities (e.g., 79 to 316 lines/mm) but utilize high diffraction orders ($m$) to achieve resolution.
• Diffraction Efficiency: High-efficiency blazed gratings typically achieve >80% efficiency at the blaze wavelength in the Littrow configuration. Efficiency drops significantly outside the blaze angle range.
• Spectral Resolution: Defined by the formula $\Delta \lambda / \lambda \approx 1 / (m \cdot N)$. For a grating with 10,000 illuminated grooves operating in the first order ($m=1$), the relative resolution is approximately $10^{-4}$. High-resolution spectrometers often require gratings with >20,000 illuminated lines.
• Substrate Materials: Common substrates include fused silica, BK7 glass, and silicon. Thermal expansion coefficients must be matched to the application environment (e.g., $5 \times 10^{-7} /K$ for fused silica).
• Surface Quality: Standard specifications require surface quality of 40-20 scratch-dig or better for high-end scientific applications.

Procurement Recommendation: Define the required spectral resolution ($\Delta \lambda$) and operating wavelength ($\lambda$) first. Calculate the necessary number of illuminated grooves ($N$) and diffraction order ($m$). Select a blazed grating if maximum efficiency at a specific wavelength is critical; otherwise, a ruled or holographic grating may suffice for broader bandwidths with lower stray light requirements.

---

2. Industry Compliance and Quality Assurance

While diffraction gratings are not typically subject to medical or aerospace safety certifications like ISO 13485 or AS9100, they must adhere to strict optical quality standards to ensure data integrity.

• Optical Standards: Gratings should be manufactured in accordance with ISO 10110 (Optics and optical instruments) regarding surface quality, figure, and coating specifications.
• Coating Durability: Protective overcoatings (e.g., MgF2, Al2O3) are essential for UV applications. Standard durability tests include 500+ hours of continuous UV exposure without significant efficiency degradation.
• Contamination Control: B2B suppliers typically provide gratings in cleanroom environments (ISO Class 7 or 8) to prevent particulate contamination on the groove structure.
• Calibration Traceability: For metrology applications, suppliers should provide a calibration certificate traceable to national standards (e.g., NIST) for groove spacing accuracy (typically <0.1% tolerance).

Procurement Recommendation: Require a Certificate of Conformance (CoC) that explicitly states groove spacing tolerance and coating reflectivity/transmission curves. For harsh environments, insist on gratings with hard dielectric overcoatings rather than bare aluminum to prevent oxidation and scratching. Verify the supplier's ability to perform interferometric testing for surface flatness if the grating is used in high-precision laser cavities.

---

3. Cost Efficiency and Integration Capabilities

Cost in this sector is driven by the fabrication method (ruled vs. holographic), substrate size, and coating complexity.

• Pricing Ranges:
  • Standard off-the-shelf ruled gratings (25mm x 25mm): $150 – $400 USD.
  • Custom-blazed or large-format gratings (100mm+): $1,500 – $5,000+ USD.
  • Echelle gratings: $2,000 – $8,000+ USD depending on blaze angle precision.
• Minimum Order Quantity (MOQ): Typically 1 unit for standard catalog items. Custom orders often have an MOQ of 1–5 units due to high setup costs.
• Lead Time:
  • Standard items: 2 – 4 weeks.
  • Custom specifications (blaze angle, coating): 6 – 12 weeks.
• Integration: Gratings are generally mounted in kinematic holders. The Littrow configuration is the most common integration mode, requiring precise angular alignment (tolerance <0.1°).

Procurement Recommendation: Optimize cost by selecting standard groove densities (e.g., 600, 1200, 1800 lines/mm) rather than custom values. If the application allows, consider holographic gratings for lower stray light at a slightly lower cost than high-precision ruled gratings. Ensure the procurement budget includes the cost of mounting hardware and alignment tools, as the grating itself is only one component of the optical train.

---

4. Typical Use Cases

Diffraction gratings are ubiquitous in systems requiring spectral dispersion or wavelength selection.

• High-Resolution Spectroscopy: Used in astronomical spectrographs and Raman spectrometers to resolve fine spectral lines. Echelle gratings are preferred here for their high dispersion in high orders.
• Laser Tuning and Selection: In tunable dye lasers and external cavity diode lasers (ECDL), gratings act as wavelength-selective feedback elements, often in the Littrow configuration.
• Telecommunications: Wavelength Division Multiplexing (WDM) systems utilize gratings (e.g., Arrayed Waveguide Gratings or planar gratings) to separate or combine channels in the C-band (1530–1565 nm) and L-band.
• Pulse Compression/Stretching: In ultrafast laser systems, gratings are used to manage group velocity dispersion (GVD) for femtosecond pulse shaping.
• Industrial Sensing: Portable gas analyzers and environmental monitoring devices use compact transmission gratings for real-time spectral analysis.

Procurement Recommendation: For laser applications, prioritize high damage threshold coatings and low scatter. For spectroscopy, prioritize high line count and low stray light (holographic). For telecom, ensure the grating is optimized for the specific fiber coupling geometry and wavelength band.

---

5. Long-Term Planning Considerations

The market for diffraction gratings is evolving with the rise of integrated photonics and compact sensing.

• Market Trends: There is a growing demand for planar lightwave circuit (PLC) gratings and metasurface gratings that offer smaller form factors and higher integration density compared to traditional bulk optics.
• Supply Chain Stability: High-precision ruling engines are specialized assets; lead times can extend during global semiconductor or optical equipment shortages.
• Durability & Lifecycle: Standard ruled gratings have a lifespan of 10+ years in controlled environments. However, UV degradation of coatings is a known failure mode in high-power laser applications.
• Technology Shift: As laser sources shift toward higher power densities, the industry is moving toward dielectric-coated gratings over metallic ones to handle higher fluence without damage.

Procurement Recommendation: Adopt a "design for longevity" approach by specifying dielectric overcoatings even if the initial cost is 20% higher. When planning for next-gen systems, evaluate the feasibility of transitioning from bulk gratings to integrated photonic gratings to reduce system footprint. Maintain a 10% safety stock of critical standard gratings to mitigate lead time risks.

---

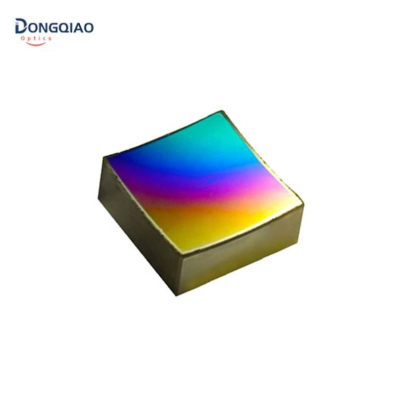

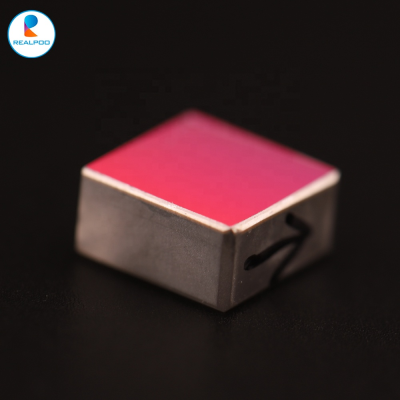

6. Special Product Recommendations

The following table compares the primary types of diffraction gratings available in the B2B market to assist in selection.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Ruled Blazed Grating | High-resolution spectroscopy, Laser tuning | 1200–2400 lines/mm, Blaze angle 63.5° | High stray light if ruled poorly | Verify "Littrow" efficiency curve; check for ghost lines. | | Holographic Grating | Low-stray-light applications, UV spectroscopy | 600–1800 lines/mm, Low groove noise | Lower peak efficiency than blazed | Ideal for Raman; ensure UV-grade substrate. | | Echelle Grating | High-dispersion astronomy, Multi-order systems | Low density (79–316 lines/mm), High blaze angle | Complex mounting (cross-disperser needed) | Only procure if you have a cross-disperser in the system. | | Transmission Grating | Compact sensors, Fiber optics, Education | 300–1000 lines/mm, Substrate thickness <1mm | Fragile substrate; alignment sensitivity | Use for portable devices; specify AR coatings on both sides. | | Metasurface Grating | Integrated photonics, Compact LIDAR | Sub-wavelength features, Custom phase profile | Emerging tech; limited supplier base | Pilot test with small batch before full deployment. |

---

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a ruled and a holographic grating? A: Ruled gratings are mechanically engraved and typically offer higher peak efficiency at the blaze wavelength but may exhibit higher stray light (ghosts). Holographic gratings are recorded using laser interference, resulting in lower stray light and smoother groove profiles, making them superior for applications requiring high signal-to-noise ratios, though peak efficiency is often slightly lower.

Q2: How do I determine the correct groove density for my application? A: The groove density ($N$) determines the angular dispersion. For high spectral resolution, a higher line density (e.g., 1200–2400 lines/mm) is required. For broader bandwidth coverage or lower dispersion, a lower density (e.g., 300–600 lines/mm) is preferred. Calculate based on the formula $\Delta \lambda \propto 1/N$.

Q3: What is the Littrow configuration and why is it important? A: The Littrow configuration is a setup where the diffracted light of a specific order returns along the path of the incident light. It is the standard for laser tuning and high-efficiency spectrometers because it maximizes diffraction efficiency at the blaze wavelength.

Q4: How durable are diffraction gratings in UV environments? A: Standard aluminum-coated gratings degrade under high-intensity UV. For UV applications, procure gratings with MgF2 or dielectric overcoatings designed to withstand UV flux. Lifespan can range from 5 to 10+ years depending on intensity and cleaning protocols.

Q5: Can I use a standard grating for a pulsed laser system? A: Standard gratings may suffer from damage at high peak powers. For pulsed lasers (especially femtosecond), you must specify high damage threshold (HDT) gratings, often with dielectric coatings, and ensure the groove density is suitable for the pulse bandwidth.

Q6: What is the typical lead time for a custom-blazed grating? A: While off-the-shelf gratings are available in 2–4 weeks, custom specifications (unique blaze angle, specific coating, or large aperture) typically require 6 to 12 weeks for fabrication and quality testing.

Q7: How does the number of illuminated lines affect resolution? A: Spectral resolution is directly proportional to the number of illuminated lines ($N$). Doubling the illuminated area (and thus $N$) doubles the resolving power ($R = m \cdot N$). Ensure your optical system illuminates the full aperture of the grating to achieve maximum resolution.

Q8: Are there specific cleaning protocols for diffraction gratings? A: Yes. Gratings are extremely sensitive to contamination. Do not touch the surface. Clean only with high-purity nitrogen or specialized lens tissue and solvents (e.g., ethanol) if absolutely necessary. Aggressive cleaning can destroy the groove structure.
