Diode Procurement Report

1. Technical Specifications and Performance Metrics

When procuring diodes, the selection process is driven by specific electrical limits that determine suitability for rectification, switching, protection, or signal regulation. Procurement teams must prioritize the following parameters to ensure component reliability:

• Reverse Voltage (Vr): This is the maximum voltage the diode can withstand in the reverse-biased state before breakdown.
  • Typical B2B Range: 50V to 1000V for general rectifiers; 20V to 60V for signal diodes; up to 600V+ for high-voltage applications.
  • Actionable Recommendation: Select a Vr rating at least 20-30% higher than the maximum expected system voltage to account for transient spikes.
• Forward Current (IF): The maximum continuous current the diode can conduct in the forward direction.
  • Typical B2B Range: 1A to 3A for standard rectifiers (e.g., 1N400x series); 10A to 30A for power rectifiers; <100mA for signal diodes.
  • Actionable Recommendation: Ensure the IF rating exceeds the peak load current of the application, considering derating factors for high ambient temperatures.
• Forward Voltage (Vf): The voltage drop across the diode when conducting. Lower Vf reduces power loss and heat generation.
  • Typical B2B Range: 0.7V–1.1V for Silicon PN diodes; 0.3V–0.5V for Schottky diodes.
  • Actionable Recommendation: For high-efficiency power supplies, prioritize Schottky diodes to minimize thermal management requirements.
• Switching/Recovery Time (trr): Critical for high-frequency applications.
  • Typical B2B Range: 2µs–30µs for standard rectifiers; <50ns for fast recovery; <10ns for ultra-fast recovery.
  • Actionable Recommendation: For switching power supplies operating above 50kHz, strictly specify "Fast Recovery" or "Ultra-Fast" diodes to prevent efficiency loss and EMI issues.
• Thermal Limits:
  • Typical B2B Range: Operating temperature (-40°C to +125°C) for automotive; (-55°C to +150°C) for industrial.
  • Actionable Recommendation: Verify the junction temperature (Tj) limits against the expected thermal environment of the final assembly.

2. Industry Compliance and Quality Assurance

In the global market, particularly for automotive and industrial sectors, compliance is not optional but a prerequisite for market access.

• Automotive Certification (AEC-Q101): This is the mandatory standard for safety-critical automotive applications. It validates that the diode can withstand temperature cycling, mechanical stress, and long-term reliability requirements.
  • Requirement: Suppliers must provide valid AEC-Q101 certification documents.
  • Actionable Recommendation: For any vehicle-related project, reject non-certified parts immediately. Demand the Certificate of Conformance (CoC) referencing AEC-Q101.
• Quality Management Systems:
  • Standards: IATF 16949 (Automotive) and ISO 9001 (General Quality).
  • Actionable Recommendation: Verify that the supplier holds current IATF 16949 certification if sourcing for the automotive supply chain. This ensures traceability and consistent manufacturing processes.
• Documentation Standards:
  • Requirement: Complete datasheets, test reports, and traceability records (lot numbers).
  • Actionable Recommendation: Require suppliers to upload scanned copies of all relevant certificates and datasheets to the procurement portal prior to order confirmation.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in diode procurement extends beyond the unit price to include total cost of ownership (TCO), which involves thermal management, board space, and failure rates.

• Pricing and MOQ:
  • Typical B2B Range: Unit costs range from $0.01 to $0.50 for standard through-hole diodes; $0.05 to $0.80 for SMD and specialized types.
  • MOQ (Minimum Order Quantity): Typically 1,000 to 10,000 units for standard grades; 100–500 units for specialized or low-volume automotive grades.
  • Actionable Recommendation: Negotiate tiered pricing based on volume commitments. For standard parts (e.g., 1N4007), leverage high-volume orders to reduce unit costs below $0.02.
• Lead Time:
  • Typical B2B Range: 4–8 weeks for standard stock items; 12–20 weeks for custom or automotive-grade parts.
  • Actionable Recommendation: Build a 20% buffer into the lead time for automotive components due to stricter quality checks.
• Integration Capabilities:

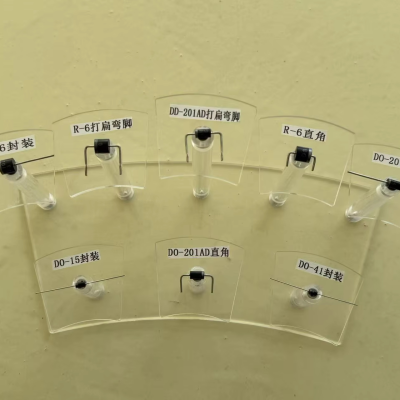

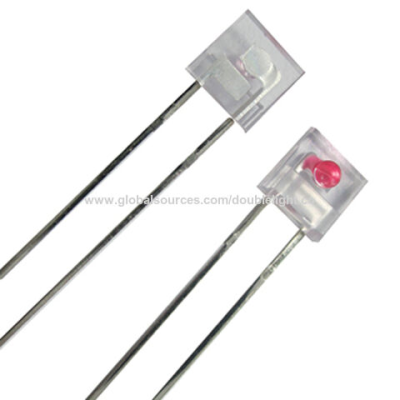

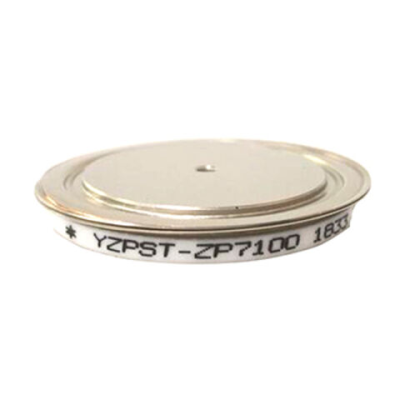

  • Form Factors: Through-Hole (DIP, DO-41) vs. Surface Mount (SOD-123, SOD-323, SOD-523).
  • Actionable Recommendation: Prioritize SMD packages for automated assembly lines to reduce labor costs and increase board density. Ensure the selected package matches the PCB footprint and reflow soldering profile.

4. Typical Use Cases

Diodes are ubiquitous, but their application dictates the specific type required:

• Automotive Power Systems: Used in alternators, battery management systems, and lighting. Requires AEC-Q101 certified rectifiers and TVS diodes for surge protection.
• Consumer Electronics: Power adapters, USB chargers, and mobile devices. Utilizes Schottky diodes for high-efficiency rectification and fast recovery diodes in switching regulators.
• Industrial Control: Motor drives, PLCs, and inverters. Requires high-current, high-voltage rectifiers and robust TVS diodes for ESD protection.
• Signal Processing: Radio frequency (RF) circuits and logic gates. Utilizes PIN diodes for switching and small-signal diodes for clipping/clamping.
• Renewable Energy: Solar inverters and wind turbine controllers. Requires high-voltage, high-temperature rectifiers capable of handling fluctuating input.

5. Long-Term Planning Considerations

Procurement strategies must account for market trends and supply chain resilience.

• Market Trends:
  • Shift to Wide Bandgap: There is a growing demand for Silicon Carbide (SiC) and Gallium Nitride (GaN) diodes in high-efficiency applications, though standard Silicon remains dominant for general use.
  • Miniaturization: The trend toward smaller SMD packages (e.g., 0201, 0402) requires tighter quality control during soldering.
• Demand Signals:
  • The automotive sector's electrification (EVs) is driving sustained demand for high-reliability, high-voltage diodes.
  • Supply chain volatility suggests maintaining a 3–6 month safety stock for critical automotive-grade components.
• Actionable Recommendation: Develop a dual-sourcing strategy. Maintain relationships with at least two suppliers for critical diode types to mitigate the risk of single-point failure in the supply chain.

6. Special Product Recommendations

The following table compares common diode types to assist in rapid selection based on buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Rectifier | Consumer Electronics, General Power | Vr: 50-1000V, IF: 1-3A, trr: 2-30µs | High risk of overheating in high-freq apps | Verify thermal derating curves; standard pricing is competitive. | | Schottky Diode | High-Efficiency Power Supplies, Battery Systems | Vf: 0.3-0.5V, IF: 1-30A, Low trr | Higher leakage current at high temps | Ideal for low voltage drops; check leakage specs for battery applications. | | Fast Recovery Diode | Switching Power Supplies, Inverters | trr: <50ns, Vr: 200-600V | EMI issues if not shielded | Essential for >50kHz switching; ensure snubber circuits are compatible. | | TVS Diode | Automotive, Industrial Protection | Peak Pulse Power: 400W-6000W, Clamping Voltage | Catastrophic failure if under-rated | Always select based on worst-case surge voltage, not nominal voltage. | | Zener Diode | Voltage Regulation, Reference Circuits | Vz: 2.4V-200V, Power: 0.5W-5W | Temperature coefficient drift | Use for low-power regulation; avoid for high-power voltage clamping. |

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between a standard diode and a fast recovery diode? A: Standard diodes have a slow reverse recovery time (2µs–30µs), making them suitable for low-frequency rectification (e.g., 50/60Hz mains). Fast recovery diodes have a recovery time under 50ns, making them necessary for high-frequency switching applications (e.g., SMPS) to prevent efficiency loss and heat generation.

Q2: Is AEC-Q101 certification required for all automotive diodes? A: Yes, for safety-critical automotive applications (engine control, braking, airbags), AEC-Q101 certification is mandatory. For non-safety-critical accessories (e.g., interior lighting), it may be optional, but using certified parts is recommended for supply chain consistency.

Q3: How do I determine the correct Forward Voltage (Vf) for my design? A: Calculate the power loss using $P = Vf \times If$. If power loss is critical (e.g., in battery-operated devices), choose a Schottky diode (lower Vf) over a standard silicon diode. If cost is the primary driver and heat is manageable, a standard silicon diode is acceptable.

Q4: What is the typical lead time for automotive-grade diodes? A: Typical lead times range from 12 to 20 weeks due to the rigorous quality assurance and testing processes required for AEC-Q101 compliance. Standard commercial diodes typically have lead times of 4–8 weeks.

Q5: Can I substitute a 1N4007 with a 1N5408? A: Physically, yes, but electrically, the 1N5408 is rated for 3A forward current compared to the 1N4007's 1A. Ensure the PCB footprint and thermal dissipation capabilities of the 1N5408 are compatible with your board design, as it is often physically larger.

Q6: What certifications should I request from a diode supplier? A: At minimum, request ISO 9001 for general quality. For automotive, demand AEC-Q101. For the supply chain, verify IATF 16949. Always ask for the Certificate of Conformance (CoC) with the specific lot number.

Q7: How does temperature affect diode performance? A: Higher temperatures increase leakage current and reduce the reverse voltage rating. Always check the derating curves in the datasheet. For automotive applications, ensure the diode is rated for -40°C to +125°C (or higher) operation.

Q8: What is the Minimum Order Quantity (MOQ) for specialized diodes? A: While standard diodes often have MOQs of 1,000–5,000 units, specialized or automotive-grade diodes may require MOQs of 10,000 units or more. Some suppliers offer "sample kits" for 100–500 units for prototyping.
