Procurement Report: Dowel Bars and Precision Dowel Pins

Product Category: Structural Fasteners & Civil Engineering Components (Dowel Bars) / Precision Machined Parts (Dowel Pins)

1. Technical Specifications and Performance Metrics

Procurement of dowel systems requires strict adherence to dimensional tolerances and material integrity to ensure load transfer efficiency. The market is bifurcated into heavy-duty structural dowel bars for concrete pavement and precision dowel pins for mechanical assembly.

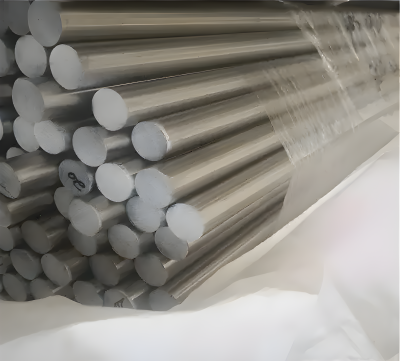

• Dowel Bars (Concrete Pavement):

  • Diameter: Typically 25–38 mm. Procurement must verify the specific gauge required by the project engineer, as undersized bars reduce load transfer capacity.
  • Length: Standard lengths range from 350–500 mm. Custom lengths may be required for thicker pavement slabs.
  • Material: Must be ASTM A615 Grade 60 plain round steel. This ensures the necessary yield strength for heavy traffic loads.
  • Coating: Fusion-bonded epoxy coating is the industry standard for corrosion resistance. The coating thickness and adhesion must be verified to prevent rust-induced spalling.
  • Performance: Designed to transfer vertical loads across joints while allowing horizontal movement (slab expansion/contraction).

• Precision Dowel Pins:

  • Tolerances: Must meet tight tolerance levels (e.g., H7/g6 or similar) to ensure zero clearance fit in machinery.
  • Units: Available in Imperial (inch) and Metric systems. Procurement must confirm the unit system of the machinery design to avoid fitment errors.
  • Hardness: Typically hardened to 58–62 HRC for wear resistance in high-cycle applications.

Actionable Recommendation: When issuing a Request for Quotation (RFQ), explicitly state the required diameter and length tolerances. For concrete projects, demand mill test certificates (MTC) confirming ASTM A615 Grade 60 compliance and epoxy coating thickness. For mechanical applications, require a Certificate of Conformance (CoC) detailing the specific tolerance class (e.g., ISO 286).

2. Industry Compliance and Quality Assurance

Quality assurance is critical to prevent structural failure in civil works or misalignment in manufacturing. Compliance with recognized standards is non-negotiable.

• Civil Engineering Standards:

  • AASHTO M 254: This is the primary specification for corrosion-resistant coated dowel bars. It outlines requirements for material, manufacturing, dimensions, and testing procedures.
  • ASTM A615: Mandatory for the steel grade used in the bars.
  • Testing Procedures: Vendors must provide data on physical and mechanical properties, including tensile strength, bend tests, and coating adhesion tests.

• Precision Manufacturing Standards:

  • ISO/ANSI Standards: Precision pins must adhere to international tolerance standards.
  • Certification Levels: High-precision applications (e.g., aerospace, automotive) may require specific quality certifications beyond standard CoCs.

Actionable Recommendation: Do not accept generic "steel bars" without specific certification. For concrete projects, require the vendor to explicitly state compliance with AASHTO M 254. For precision pins, request a sample batch for dimensional verification before placing a bulk order. Ensure the supplier has a documented Quality Management System (QMS) capable of tracing material batches.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in dowel procurement extends beyond the unit price; it involves installation labor, longevity, and compatibility with existing infrastructure.

• Cost Drivers:

  • Material Cost: Driven by steel market fluctuations and the cost of epoxy coating.
  • Logistics: Long lengths (up to 500mm) increase shipping volume and freight costs.
  • MOQ (Minimum Order Quantity): Typical B2B ranges for structural bars are 1,000–5,000 units per order to justify production runs. Precision pins often have lower MOQs, typically 500–1,000 units, depending on diameter.
  • Lead Time: Standard lead times are 2–4 weeks for stock items. Custom epoxy-coated bars or specific precision tolerances may require 4–8 weeks.

• Integration Capabilities:

  • Concrete: Dowel bars must integrate seamlessly with joint assemblies and slip sleeves. The epoxy coating must not interfere with the placement of the bar in the concrete formwork.
  • Machinery: Precision pins must integrate with existing bore holes without requiring re-machining.

Actionable Recommendation: Calculate the "Total Cost of Ownership" (TCO). A slightly higher unit cost for bars with superior epoxy coating (AASHTO M 254 compliant) can reduce long-term maintenance costs significantly. For precision pins, verify that the supplier offers "kitting" services to ensure the correct mix of diameters and lengths are delivered together, reducing on-site sorting time.

4. Typical Use Cases

Understanding the application scenario is vital for selecting the correct product variant.

• Concrete Pavement & Roadways:

  • Scenario: Highway construction, airport runways, and industrial warehouse floors.
  • Function: Transfer loads across transverse joints to prevent faulting (vertical displacement) and cracking.
  • Requirement: High durability, corrosion resistance (epoxy), and precise diameter (25–38mm).

• Industrial Machinery & Tooling:

  • Scenario: Jig and fixture alignment, engine block assembly, and conveyor system alignment.
  • Function: Provide precise location and alignment between mating parts while allowing for assembly/disassembly.
  • Requirement: Tight tolerances, high hardness, and specific surface finishes.

• Structural Connections:

  • Scenario: Connecting precast concrete elements or reinforcing steel structures.
  • Function: Shear transfer and alignment.

Actionable Recommendation: For road construction projects, prioritize suppliers with a track record in AASHTO-compliant products. For machinery procurement, prioritize suppliers who can provide "precision-ground" pins with verified hardness profiles. Do not use structural dowel bars for precision mechanical applications due to loose tolerances.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and future infrastructure needs.

• Market Trends:

  • Corrosion Resistance: There is a growing demand for enhanced corrosion-resistant coatings due to the increased use of de-icing salts in northern climates.
  • Sustainability: Specifiers are increasingly looking for suppliers with sustainable manufacturing practices and recycled steel content options.
  • Demand Signals: Infrastructure bills and urbanization projects in emerging markets are driving a sustained demand for high-quality concrete reinforcement.

• Durability & Lifecycle:

  • Expected Lifespan: Properly installed and coated dowel bars should last 50+ years in standard environments.
  • Risk Factors: Failure to meet coating specifications can lead to premature rusting, joint failure, and costly road repairs within 10–15 years.

Actionable Recommendation: Build a multi-year supply agreement with vendors who can guarantee consistent coating quality. Monitor raw steel prices to time bulk purchases during market dips. For precision pins, plan for obsolescence by selecting standard metric/imperial sizes that are universally compatible with future machinery upgrades.

6. Special Product Recommendations

The following table compares the two primary categories of dowel products to assist in rapid selection.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Epoxy-Coated Dowel Bars | Civil Contractors, DOTs | 25–38mm Dia, 350–500mm Len, ASTM A615 Gr 60, AASHTO M 254 | Verify coating adhesion; check for rust spots before pouring. | Demand AASHTO M 254 certification and mill test reports. | | Precision Dowel Pins | Machine Shops, OEMs | Tight Tolerance (H7/g6), 58–62 HRC, Metric/Imperial | Verify hardness; check for burrs or surface defects. | Request a sample batch for dimensional verification. | | Plain Steel Dowel Bars | Budget-Conscious Projects | ASTM A615 Gr 60, Uncoated | High risk of corrosion in wet/salty environments. | Only use in dry, interior environments; avoid for exterior roads. | | Galvanized Dowel Bars | Coastal/High-Moisture Zones | Zinc-coated, ASTM A615 | Zinc coating may be thinner than epoxy; check for uniformity. | Use only if epoxy is unavailable; verify zinc thickness specs. |

Actionable Recommendation: Prioritize Epoxy-Coated Dowel Bars for any exterior concrete project. For precision applications, never compromise on tolerance; the cost of re-machining parts due to bad pins far exceeds the cost of high-quality pins.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum diameter for a standard dowel bar in concrete pavement? A: The typical minimum diameter is 25 mm, though 38 mm is common for heavy traffic areas. Always verify the specific design requirements of the project.

Q2: Are precision dowel pins available in both metric and imperial sizes? A: Yes, precision dowel pins are manufactured in both Metric and Imperial (inch) systems. Procurement must specify the required system to avoid fitment errors.

Q3: What is the standard steel grade for dowel bars? A: The industry standard is ASTM A615 Grade 60 plain round steel, which provides the necessary yield strength for structural applications.

Q4: How long is the typical lead time for custom epoxy-coated dowel bars? A: Typical lead times range from 4 to 8 weeks for custom-coated bars, depending on the volume and the supplier's current production schedule.

Q5: What certification is required for corrosion-resistant dowel bars? A: Procurement should require compliance with AASHTO M 254, which outlines the specific requirements for corrosion-resistant coated dowel bars.

Q6: What is the typical lifespan of a properly installed dowel bar? A: With proper installation and epoxy coating, dowel bars are designed to last 50 years or more in standard service conditions.

Q7: Can I use plain steel bars for outdoor concrete projects? A: It is generally not recommended. Plain steel is susceptible to rust, which can cause concrete spalling. Fusion-bonded epoxy coating is the preferred standard for outdoor durability.

Q8: What is the typical Minimum Order Quantity (MOQ) for precision dowel pins? A: Typical B2B MOQs for precision pins range from 500 to 1,000 units, though this varies by supplier and specific diameter.
