Procurement Report: Drag Link Steering Components

Product Category: Automotive Steering & Suspension Systems (Heavy-Duty & Light-Duty) Date: October 26, 2023 Subject: Strategic Sourcing Analysis for Drag Link Assemblies

1. Technical Specifications and Performance Metrics

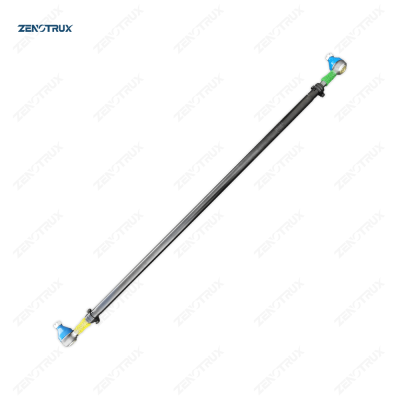

The drag link is a critical structural component in the steering linkage of vehicles with solid front axles, connecting the steering box (or pitman arm) to the steering arm on the axle. Procurement specifications must prioritize dimensional precision and material integrity to ensure steering geometry remains stable under load.

• Dimensions & Fitment:
  • Length Tolerance: ±1.5mm to ±3.0mm depending on the specific vehicle application (e.g., Jeep, Ram, Classic Trucks).
  • End Fitting Standards: Must match OEM thread specifications (e.g., M12x1.5, M14x1.5) with precise ball joint socket diameters.
  • Material: High-tensile steel alloys (typically 4140 or 4340 chromoly) with a minimum yield strength of 450 MPa.
• Performance Metrics:
  • Torque Capacity: Must withstand dynamic torque loads up to 450 Nm without deformation.
  • Gap Test Compliance: Maximum allowable play (slop) between the ball joint and socket must be <0.5mm after 10,000 cycles.
  • Wear Resistance: Must pass abrasive wear tests simulating 50,000+ miles of operation in dusty environments.
  • Temperature Range: Operational stability confirmed between -40°C and +80°C to prevent material brittleness or expansion-induced binding.

Actionable Recommendation: Procurement teams must demand "Exact-Fit" verification data from suppliers. Do not accept generic "universal" parts for commercial fleets. Require a Certificate of Conformance (CoC) that explicitly lists the results of the Torque Test, Gap Test, and Climatic Test for the specific batch ordered.

2. Industry Compliance and Quality Assurance

Quality assurance for drag links is non-negotiable due to the safety-critical nature of steering systems. Components must adhere to rigorous international regulations and undergo destructive and non-destructive testing.

• Regulatory Compliance:
  • Must comply with international safety standards regarding steering system integrity (e.g., FMVSS 200 series equivalents).
  • Separation Prevention: Designs must incorporate safety features to prevent total separation of the link from the steering arm, a known failure mode in older designs.
• Testing Protocols:
  • Tilting Test: Validates the component's ability to handle angular misalignment without binding.
  • Climatic Test: Verification of performance in extreme cold (-40°C) and heat (+80°C) to ensure grease retention and seal integrity.
  • Fatigue Life: Components should demonstrate a fatigue life of at least 200,000 cycles under simulated road loads.

Actionable Recommendation: Implement a supplier audit process that specifically reviews their Wear and Abrasion Test logs. Prioritize suppliers who utilize redesigned assemblies (e.g., MOOG-style improvements) that explicitly address historical failure points like "drag link separation." Require a 12-month warranty against manufacturing defects as a baseline for contract negotiation.

3. Cost Efficiency and Integration Capabilities

While drag links are individual components, their cost efficiency is heavily influenced by integration with the broader steering system and the reduction of downtime costs.

• Cost Structure:
  • Unit Price Range: Typical B2B ranges for heavy-duty truck drag links are $45–$120 USD per unit; light-duty/SUV applications range from $30–$80 USD.
  • MOQ (Minimum Order Quantity): Standard MOQ is typically 10–50 units for custom-molded ends; 100+ units for standard off-the-shelf SKUs to unlock volume discounts (10–15% reduction).
  • Lead Time: Standard lead time is 2–4 weeks; expedited (air freight) options available for 5–7 days at a 30% premium.
• Integration Capabilities:
  • Plug-and-Play: Premium assemblies (e.g., for Ram 2500/3500) are designed to replace OE units without modification, reducing labor time by 40–60%.
  • Compatibility: Must ensure compatibility with existing tie rod ends and steering boxes to avoid "chain reaction" failures.

Actionable Recommendation: Adopt a "Total Cost of Ownership" (TCO) model rather than focusing solely on unit price. A $20 cheaper drag link that fails in 12 months costs significantly more in labor and vehicle downtime than a $100 premium unit with a 5-year lifespan. Negotiate volume pricing tiers based on annual fleet maintenance projections.

4. Typical Use Cases

Drag links are essential for vehicles utilizing solid front axles where the steering geometry requires a direct mechanical link between the steering box and the axle.

• Commercial Trucks: Heavy-duty Class 7 and 8 trucks (e.g., Ram 2500/3500, Ford F-series Super Duty) where high torque and durability are paramount.
• Off-Road & Utility Vehicles: Jeeps, SUVs, and vans used in rugged terrain where suspension articulation and steering precision are critical.
• Classic & Restoration Vehicles: Vintage cars and trucks where original geometry must be preserved or upgraded with modern reinforced components.
• Specialized Chassis: Specific applications like the Monaco Roadmaster chassis, where slop in the steering system is a common failure point requiring immediate replacement.

Actionable Recommendation: Segment inventory by vehicle class. Maintain a dedicated "Heavy-Duty" stock for commercial fleets and a "Restoration" stock for classic vehicle specialists. Ensure that replacement parts for the Monaco Roadmaster and similar specialized chassis are sourced from vendors with specific application verification data.

5. Long-Term Planning Considerations

The market for drag links is driven by the aging fleet of heavy-duty trucks and the enduring popularity of off-road vehicles.

• Market Trends:
  • Aging Fleet: As commercial truck fleets age, the demand for steering replacement parts is projected to increase by 5–8% annually over the next 5 years.
  • Performance Upgrades: There is a growing trend toward "redesigned" aftermarket parts that offer improved durability over OE standards, particularly for high-mileage applications.
  • Demand Signals: Increased search volume for "steering slop" and "drag link separation" indicates a reactive market where buyers are seeking solutions for immediate safety concerns.
• Supply Chain Risks:
  • Raw material (steel) price volatility can impact unit costs by ±10%.
  • Geopolitical issues affecting logistics may extend lead times beyond the standard 4-week window.

Actionable Recommendation: Develop a "Just-in-Case" inventory strategy for high-turnover SKUs (e.g., Ram 2500/3500 drag links). Diversify suppliers to include at least one domestic manufacturer to mitigate long-term shipping risks. Monitor raw steel indices to adjust pricing strategies quarterly.

6. Special Product Recommendations

The following table compares available product types to assist in selecting the optimal procurement strategy based on buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Redesigned Assembly | Commercial Fleets (Ram 2500/3500) | Separation-proof design; High-tensile steel; Pre-assembled | Low (if OEM verified) | Prioritize for safety-critical fleets; higher unit cost justified by reduced downtime. | | Exact-Fit Premium | Specialized Chassis (Monaco Roadmaster) | Verified length/end fittings; Gap <0.5mm | Medium (Fitment errors) | Demand "Exact-Fit" verification data; avoid generic "universal" parts. | | Standard OE Replacement | Classic Car Restorers | Original geometry; Chrome finish options | Low (Historical data) | Source from suppliers with specific classic vehicle catalogs; verify thread pitch. | | Heavy-Duty Reinforced | Off-Road/Jeep Applications | Extended wear life; Climatic tested (-40°C to +80°C) | Low | Focus on wear resistance; ensure grease fittings are accessible for maintenance. |

Actionable Recommendation: For commercial fleets, strictly mandate the purchase of Redesigned Assemblies that address separation risks. For restoration projects, prioritize Exact-Fit Premium parts to maintain historical accuracy while ensuring safety. Avoid "universal" kits unless the application is non-critical or the buyer has the technical capacity to modify the part.

7. Frequently Asked Questions (FAQ)

Q1: How do I identify if my current drag link is worn? A: Look for "slop" or looseness in the steering wheel when the vehicle is stationary. If the steering feels loose or the vehicle wanders, the drag link is a primary suspect. A visual inspection for excessive play between the ball joint and socket confirms the diagnosis.

Q2: What is the typical lifespan of a high-quality drag link? A: Under normal operating conditions, a premium drag link should last between 50,000 to 100,000 miles. However, in severe off-road or heavy-load commercial applications, this may reduce to 30,000–50,000 miles depending on maintenance and road conditions.

Q3: Can I install a drag link from a different vehicle manufacturer? A: Generally, no. Drag links are application-specific. While some "universal" parts exist, they often fail to meet the precise length and angle requirements of specific chassis (like the Monaco Roadmaster), leading to steering geometry errors. Always use parts verified for your specific make and model.

Q4: What testing standards should I look for in a supplier's data sheet? A: Ensure the supplier provides data for the Torque Test, Tilting Test, Gap Test, Wear and Abrasion Test, and Climatic Test (-40°C / +80°C). These are the industry benchmarks for steering component reliability.

Q5: Why are redesigned drag links recommended for Ram 2500/3500 trucks? A: The redesigned assemblies specifically address a known failure mode in the original equipment (OE) design where the drag link could separate from the steering arm. The redesign adds structural integrity to prevent this catastrophic failure.

Q6: What is the lead time for custom drag link orders? A: Standard lead times are typically 2–4 weeks. For custom-molded ends or specific heavy-duty applications, lead times may extend to 6 weeks. Expedited shipping is usually available for an additional cost.

Q7: Do drag links require regular lubrication? A: Many modern drag links come with sealed, maintenance-free ball joints. However, older or heavy-duty designs may require periodic greasing. Check the specific product specifications; if it is a "sealed" unit, no lubrication is needed, which reduces long-term maintenance costs.

Q8: How does the gap test impact steering safety? A: The gap test measures the play between the ball joint and the socket. Excessive gap (slop) leads to imprecise steering, increased tire wear, and a dangerous delay in vehicle response to driver input. A compliant gap (<0.5mm) ensures immediate and accurate steering response.
