Procurement Report: Drainage Systems and Components

1. Technical Specifications and Performance Metrics

When procuring drainage solutions, the primary technical differentiators are outlet sizing, flow capacity, and load-bearing class. Selection must be driven by the specific hydraulic and structural demands of the installation site.

• Outlet Sizing: Standard commercial and residential drains typically utilize outlet diameters ranging from DN40 to DN100 (equivalent to 1" to 4"). Procurement teams must verify that the selected drain body matches the existing or planned piping infrastructure to avoid costly retrofits.
• Flow Capacity:
  • Point Drains: Designed for localized water removal, typically handling flow rates between 0.5 and 2.0 L/s.

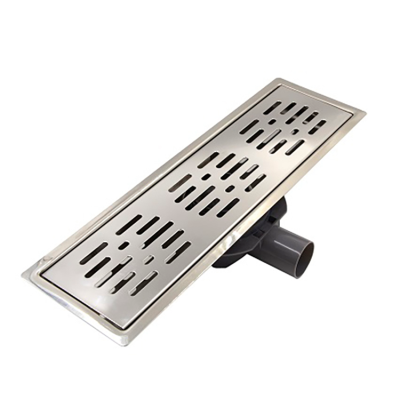

  • Linear Drains: Required for larger surface areas or high-volume runoff, offering significantly higher flow capacities than point drains.
• Load Class (Structural Integrity): The load class is critical for safety and longevity.
  • Domestic/Light Duty: ≤ 3 kN (suitable for residential bathrooms and light commercial areas).
  • Light Commercial: 3–10 kN (suitable for retail spaces, offices, and light traffic areas).
  • Heavy/Vehicular: > 10 kN (mandatory for loading docks, industrial floors, and vehicular traffic zones).
• Seal Depth: The trap seal depth must be matched to the installation environment to prevent odor migration and siphonage, particularly in high-traffic or dry climates.

Actionable Recommendation: Conduct a hydraulic calculation for the specific site to determine the peak flow rate. Do not rely on "standard" sizes; specify the exact DN size and load class (kN) in the Request for Quotation (RFQ) to ensure the product can withstand the anticipated traffic and water volume.

2. Industry Compliance and Quality Assurance

Compliance with recognized industry standards is non-negotiable for public safety and regulatory approval. Procurement must prioritize products that have undergone independent third-party testing.

• Key Standards:
  • Floor Drains: Must comply with ASME A112.6.3.
  • Roof Drains: Must comply with ASME A112.6.4.
  • Grease Interceptors & Septic Tanks: Must meet ASME A112.14.3, ASME A112.14.4, or CSA B481.

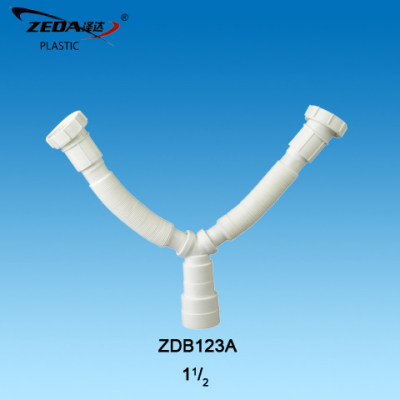

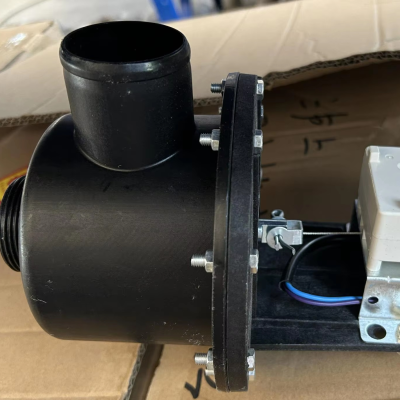

  • Plumbing Waste Fittings/Valves: Must adhere to ASSE 1049, 1050, 1051, or ASME A112.14.1.
  • Cast Iron Soil Pipes: Must conform to CISPI 301, CISPI 310, or ASTM A888.
• Certification Value: Products certified by agencies like NSF provide a recognizable mark of quality. This certification shortens the turnaround time between manufacturing and market entry, as the testing is already validated by regulators and building professionals.
• Material Integrity: Verify that the body material (e.g., cast iron, stainless steel, polymer) is compatible with the specific chemical and environmental conditions of the site.

Actionable Recommendation: Require suppliers to provide valid certification documentation (e.g., NSF mark, ASME compliance reports) for every batch. Do not accept "equivalent" claims without third-party verification. Prioritize suppliers who leverage certification to accelerate their own delivery timelines, as this often correlates with streamlined quality control processes.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in drainage procurement extends beyond the unit price to include installation speed, maintenance costs, and system integration.

• Integration: Select drains that offer modular designs compatible with standard piping systems (e.g., no-hub couplings for cast iron). This reduces labor hours and minimizes the need for custom adapters.
• Lead Time & Turnaround: Manufacturers with established third-party certification (such as NSF) typically experience shorter lead times due to reduced re-testing requirements.
  • Typical B2B Lead Time: 4–8 weeks for standard certified units; 12+ weeks for custom heavy-duty or specialized configurations.
• MOQ (Minimum Order Quantity):
  • Standard Items: Often available with low MOQs (e.g., 10–50 units).
  • Custom/Heavy-Duty: May require higher MOQs (e.g., 100+ units) to justify production runs.
• Durability & Lifecycle: High-load class drains (>10 kN) generally have a longer service life in industrial settings, reducing replacement frequency.

Actionable Recommendation: Evaluate the "Total Cost of Ownership" (TCO). A slightly higher upfront cost for a certified, heavy-load drain can yield significant savings by eliminating future structural failures and reducing installation labor. Request a detailed breakdown of lead times and MOQs for both standard and custom configurations before finalizing the contract.

4. Typical Use Cases

Drainage systems are application-specific. Procurement must align the product with the intended environment to ensure safety and performance.

• Residential & Domestic:
  • Application: Bathrooms, laundry rooms, basements.
  • Requirements: Low load class (≤3 kN), DN40–DN80 outlets, aesthetic integration.
• Light Commercial:
  • Application: Retail stores, offices, restaurants (kitchen areas).
  • Requirements: Medium load class (3–10 kN), grease interceptor compatibility (ASME A112.14.3), higher flow capacity.
• Heavy Industrial & Vehicular:
  • Application: Warehouses, loading docks, airports, parking garages.
  • Requirements: High load class (>10 kN), robust body materials (cast iron or reinforced polymer), high flow capacity for rapid water evacuation.
• Roof Drainage:
  • Application: Flat roofs, terraces.
  • Requirements: Compliance with ASME A112.6.4, weather-resistant materials, specific flow rates for storm water.

Actionable Recommendation: Create a matrix mapping specific project zones to the required load class and outlet size. For commercial kitchens, explicitly specify grease interceptor compliance. For roof applications, ensure the drain is rated for the local maximum rainfall intensity.

5. Long-Term Planning Considerations

Strategic procurement requires anticipating market trends and regulatory shifts.

• Market Trends: There is a growing demand for sustainable and low-maintenance drainage solutions. Manufacturers with third-party certifications (like NSF) are gaining market share as regulators and building owners prioritize verified quality.
• Regulatory Evolution: Standards such as ASME A112 and ASSE are periodically updated. Procurement teams should plan for future compliance by selecting products that exceed current minimums where possible.
• Supply Chain Resilience: Diversify suppliers to include those with certified manufacturing processes, as these entities often have more stable supply chains and faster turnaround times.
• Demand Signals: The construction sector is increasingly demanding "green" building certifications, which often require verified plumbing and drainage components.

Actionable Recommendation: Build a supplier relationship with manufacturers who actively pursue new certifications. This positions your organization to meet future regulatory changes without needing to re-engineer the drainage system. Plan for a 10–15% buffer in budget for potential price fluctuations in raw materials (e.g., cast iron, stainless steel) due to global market volatility.

6. Special Product Recommendations

The following table compares common drainage product types to assist in selecting the right fit for specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Point Drain (Domestic) | Residential Developers | DN40–DN80, ≤3 kN Load | Low risk of siphonage if seal depth is insufficient | Verify trap seal depth; ensure aesthetic finish matches flooring. | | Linear Drain | Commercial Retailers | High Flow (>2.0 L/s), Custom Lengths | Installation complexity; requires precise leveling | Specify exact channel length and grate material; check for NSF certification. | | Grease Interceptor | Restaurant Chains | ASME A112.14.3/14.4, CSA B481 | Clogging if maintenance is neglected | Ensure capacity matches kitchen volume; require easy-access cleaning ports. | | Roof Drain | Building Owners (Flat Roofs) | ASME A112.6.4, Weather-resistant | Debris blockage; ice damming | Specify debris screens; check for freeze-resistant materials in cold climates. | | Heavy-Duty Floor Drain | Industrial/Logistics | >10 kN Load, DN80–DN100 | Structural failure under heavy loads | Mandate cast iron or reinforced polymer; verify load class certification. |

Actionable Recommendation: For high-risk applications (e.g., heavy vehicular traffic or food service), do not compromise on certification. Use the "Risk Check" column to audit suppliers: if a supplier cannot provide proof of load class testing or specific ASME compliance, disqualify them immediately.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct outlet size for my project? A: Match the outlet size (typically DN40–DN100 / 1"–4") to the diameter of your existing or planned piping system. For point drains, ensure the size supports the required flow capacity (0.5–2.0 L/s).

Q2: What is the difference between a point drain and a linear drain? A: Point drains are designed for localized water removal with lower flow capacities (0.5–2.0 L/s), while linear drains are designed for larger surface areas and offer significantly higher flow capacities.

Q3: Which load class should I choose for a warehouse loading dock? A: For vehicular traffic and heavy industrial use, you must select a drain with a load class greater than 10 kN. Domestic or light commercial classes (≤10 kN) will fail under this load.

Q4: Why is NSF certification important for drainage products? A: NSF certification validates that the product meets rigorous industry standards (like ASME A112.6.3). It shortens the time between manufacturing and market entry, as regulators and professionals trust the mark, reducing the need for redundant testing.

Q5: What standards apply to grease interceptors? A: Grease interceptors and septic tanks must comply with ASME A112.14.3, ASME A112.14.4, or CSA B481. Ensure the supplier provides documentation for one of these specific standards.

Q6: What is the typical lead time for certified drainage products? A: While it varies by manufacturer, certified products often have a lead time of 4–8 weeks for standard items. Custom heavy-duty or specialized configurations may require 12+ weeks.

Q7: Are there specific standards for cast iron soil pipes? A: Yes, cast iron soil pipes and no-hub couplings must conform to CISPI 301, CISPI 310, or ASTM A888. Verify these standards in your material specifications.

Q8: How does seal depth affect performance? A: The seal depth must be matched to the installation environment to prevent odor migration and siphonage. In dry climates or high-traffic areas, a deeper seal is often required to maintain the water barrier.
