Procurement Report: Exhaust Gas Recirculation (EGR) Valves

1. Technical Specifications and Performance Metrics

The Exhaust Gas Recirculation (EGR) valve is a critical emission control component designed to reduce nitrogen oxide (NOx) emissions by recirculating a portion of an engine's exhaust gas back to the engine cylinders. Procurement decisions must prioritize precise flow control and thermal durability.

• Operating Temperature Range: Typical B2B range of -40°C to 250°C (continuous) with peak tolerance up to 300°C. Valves must withstand extreme thermal cycling without warping or seizing.
• Flow Rate Capacity: Varies by engine displacement, typically ranging from 5 to 25 liters per minute (L/min) for passenger diesel engines (e.g., 2.0L diesel platforms). Heavy-duty applications may require higher flow rates up to 100 L/min.
• Response Time: Modern electronic EGR valves should exhibit a response time of < 100 milliseconds to ensure real-time engine management integration.
• Material Composition:
  • Body: High-grade cast iron or aluminum alloy with heat-resistant coatings.
  • Valve Stem/Seat: Stainless steel (304/316) or ceramic-coated components to resist carbon buildup and corrosion.
  • Seals: Viton (FKM) or silicone gaskets capable of withstanding oil and exhaust gas exposure.

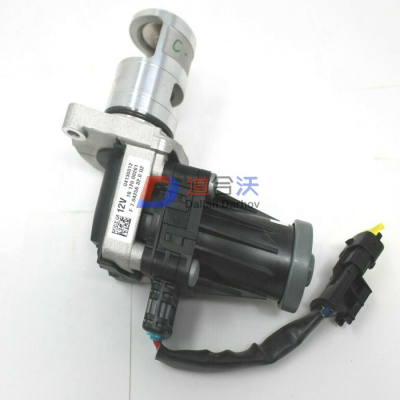

• Electrical Interface: Standard connector types include 4-pin or 6-pin configurations with operating voltages of 12V DC. Current draw typically ranges from 0.5A to 2.0A depending on the actuator type (electric vs. vacuum).
• Durability: Expected service life is 100,000 to 150,000 miles (160,000–240,000 km) under normal operating conditions, though heavy-stop-and-go traffic can reduce this to 60,000 miles.

Procurement Recommendation: Prioritize suppliers who provide data sheets confirming thermal cycling test results (at least 500 cycles) and specify the exact material grade of the valve seat. Avoid generic "universal" valves for modern diesel engines (Euro 5/6 standards) as they often lack the precise electronic calibration required.

2. Industry Compliance and Quality Assurance

EGR valves are subject to strict regulatory frameworks regarding emissions and vehicle safety. Procurement must ensure components meet the specific emission standards of the target market.

• Emission Standards:
  • Euro 5/6 (Europe): Requires precise NOx reduction; valves must integrate seamlessly with AdBlue/SCR systems.
  • EPA Tier 2/3 (USA): Compliance with NOx limits of 0.02 g/bhp-hr (heavy duty) or 0.07 g/bhp-hr (light duty).
  • China VI: Strict limits on particulate matter and NOx, requiring high-precision valve actuation.
• Quality Certifications:
  • ISO/TS 16949 (now IATF 16949): Mandatory for automotive suppliers.
  • ISO 9001: General quality management system certification.
  • VDA 6.3: Process audit standard widely used in the German automotive sector (relevant for BMW, Mercedes, VW supply chains).
• Testing Protocols:
  • Leak Testing: 100% helium or pressure decay testing required to ensure zero leakage at operating pressure.
  • Functional Testing: Dynamic flow testing at various throttle positions and engine loads.
  • Vibration Testing: Compliance with ISO 16750-3 for road load simulation.

Procurement Recommendation: Require a Certificate of Conformity (CoC) and a batch-specific test report for every order. For fleets operating in Europe or North America, explicitly verify that the part number matches the specific emission standard (e.g., Euro 6d) of the vehicle model, as non-compliant parts can lead to failed inspections and legal penalties.

3. Cost Efficiency and Integration Capabilities

Cost analysis for EGR valves must extend beyond the unit price to include total cost of ownership (TCO), which factors in installation labor, downtime, and potential engine damage from failure.

• Unit Cost Ranges (B2B Typical):
  • Standard Electric EGR: $45 – $120 USD per unit.
  • High-Performance/Heavy Duty: $150 – $350 USD per unit.
  • Gasket/Seal Kits: $5 – $15 USD per kit (often sold separately).
• Minimum Order Quantity (MOQ): Typically 10–50 units for aftermarket distributors; 100+ units for direct OEM-equivalent suppliers.
• Lead Time:
  • Standard Stock: 3–7 business days.
  • Custom/OEM Specific: 14–21 business days.
• Integration Capabilities:
  • Plug-and-Play: Modern valves should utilize OEM-style connectors and mounting points to minimize modification.
  • ECU Compatibility: Must support CAN bus communication protocols for real-time feedback to the Engine Control Unit (ECU).
  • Cleaning vs. Replacement: Procurement should evaluate if the specific model is prone to clogging. If the valve is non-serviceable, replacement is the only option; if serviceable, bulk cleaning kits ($20–$40) may offer a 30–50% cost saving for fleet maintenance.

Procurement Recommendation: For high-mileage fleets, calculate the TCO of "cleanable" vs. "replaceable" valves. If the valve design allows for cleaning, invest in a bulk supply of high-quality throttle/EGR cleaners. However, for valves with integrated electronic sensors that are prone to failure, prioritize reliability over cleaning potential to avoid repeat labor costs.

4. Typical Use Cases

EGR valves are primarily utilized in diesel engines but are increasingly common in gasoline direct injection (GDI) engines to manage combustion temperatures.

• Passenger Diesel Vehicles: Specifically 2.0L and 3.0L diesel engines (e.g., BMW X1, Mercedes-Benz C-Class, VW TDI). These vehicles rely heavily on EGR for NOx reduction.
• Commercial Light-Duty Trucks: Delivery vans and pickup trucks used in urban environments where stop-and-go driving causes rapid carbon accumulation.
• Heavy-Duty Logistics: Long-haul trucks where EGR systems are integrated with Exhaust Gas Recirculation Coolers (EGR-C) to manage intake air temperature.
• Aftermarket Repair Shops: High-volume diagnostic and repair centers requiring quick-turnaround replacement parts for common failure modes (stuck open/closed, carbon buildup).
• Fleet Maintenance: Large corporate or government fleets where predictive maintenance is critical to prevent engine derating or limp mode.

Procurement Recommendation: Match the procurement strategy to the vehicle mix. If the fleet is predominantly urban delivery (stop-and-go), prioritize valves with enhanced carbon-resistance coatings. For highway-heavy fleets, focus on valves with robust actuator durability. Always verify the specific engine code (e.g., B47, OM654) rather than just the model name.

5. Long-Term Planning Considerations

The automotive industry is shifting towards stricter emissions and alternative powertrains, which impacts the long-term viability and design of EGR systems.

• Market Trends:
  • Stricter Emissions: The transition to Euro 7 and EPA Tier 4 Final standards is driving the need for more precise, electronically controlled EGR valves with faster response times.
  • Hybridization: In hybrid diesel vehicles, EGR systems must operate efficiently during low-load electric-assist modes, requiring new valve control algorithms.
  • Carbon Buildup Awareness: There is a growing market demand for "self-cleaning" or "anti-coking" valve designs to extend service intervals.
• Demand Signals:
  • Rising demand for replacement parts in the 5–8 year age bracket of diesel passenger cars (the "golden age" of diesel).
  • Increasing failure rates in older vehicles due to degraded seals and carbon accumulation.
• Supply Chain Risks:
  • Semiconductor shortages may impact the electronic control modules within modern EGR valves.
  • Raw material volatility (stainless steel, rare earth magnets) affecting unit costs.

Procurement Recommendation: Develop a multi-year sourcing strategy that includes contracts with suppliers capable of producing Euro 7-compliant components. Diversify suppliers to mitigate semiconductor risks. Consider stocking a "cleaning kit" inventory alongside replacement valves to offer cost-effective maintenance solutions to customers, extending the life of the EGR system.

6. Special Product Recommendations

The following table compares different EGR valve types to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | OEM-Equivalent Electric | Fleet Managers, Professional Shops | 12V DC, CAN Bus, 100k+ mile rating | High risk of counterfeit parts | Verify IATF 16949 certification; request batch test reports. | | Universal/Remanufactured | DIY Enthusiasts, Low-Budget Shops | Adjustable flow, generic mounting | High risk of fitment issues | Only use for older vehicles (pre-2010); avoid for Euro 6+. | | Serviceable/Rebuildable | High-Volume Repair Centers | Replaceable seat/stem, no electronics | Moderate risk of reassembly errors | Stock cleaning solvents and rebuild kits; train staff on reassembly. | | Heavy-Duty Diesel | Logistics & Trucking Fleets | High temp tolerance (300°C), reinforced stem | High cost, long lead time | Order in bulk (100+ units); prioritize thermal durability over cost. |

Procurement Recommendation: For professional applications, always select OEM-Equivalent Electric valves. The risk of premature failure with universal or remanufactured units in modern diesel engines is too high, leading to costly repeat labor charges. For heavy-duty fleets, the Heavy-Duty Diesel category is essential to withstand the thermal stress of continuous operation.

7. Frequently Asked Questions (FAQ)

Q1: How do I verify if an EGR valve is compatible with my specific vehicle model? A: Do not rely solely on the vehicle model name (e.g., "BMW X1"). You must cross-reference the specific engine code (e.g., B47D20) and the manufacturing year. Check the part number against the OEM catalog or use a VIN-based lookup tool provided by the supplier.

Q2: Can I clean an EGR valve instead of replacing it? A: Yes, for older mechanical or simple electronic valves, cleaning with a specialized EGR/throttle body cleaner can restore function. However, if the valve has an integrated position sensor or is severely corroded, replacement is the only reliable option. Cleaning is generally not recommended for modern Euro 6+ valves with complex internal geometries.

Q3: What are the common symptoms of a failing EGR valve? A: Common signs include rough idling, engine stalling, black smoke from the exhaust, reduced fuel economy, and the illumination of the "Check Engine" light with codes P0400–P0409. In severe cases, the engine may enter "limp mode."

Q4: What is the typical lead time for ordering EGR valves for European diesel vehicles? A: For standard stock items, lead time is typically 3–7 business days. For specific OEM-equivalent parts that require sourcing from the manufacturer, expect 14–21 business days.

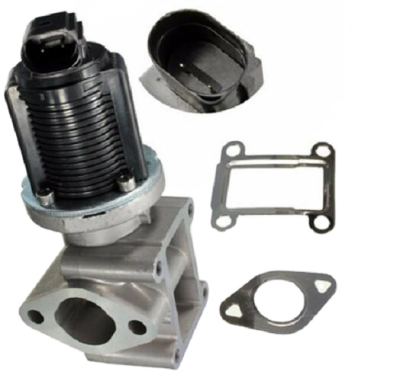

Q5: Do EGR valves come with gaskets, or must they be purchased separately? A: This varies by manufacturer. Many premium suppliers include a high-quality Viton gasket in the box. However, for some models, the gasket is sold separately. Always check the "Included Components" list before purchasing to avoid installation delays.

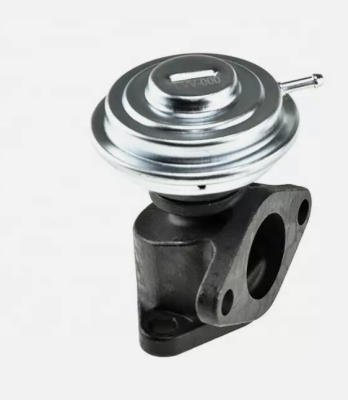

Q6: What is the difference between a vacuum-operated and an electric EGR valve? A: Vacuum-operated valves use engine manifold vacuum to open/close and are common in older diesel engines. Electric valves use an internal motor and are controlled directly by the ECU, offering faster response and precise control required for modern emission standards.

Q7: How long does a replacement EGR valve typically last? A: Under normal driving conditions, a quality replacement valve should last between 100,000 and 150,000 miles. However, in vehicles with frequent short trips or heavy stop-and-go traffic, this may drop to 60,000–80,000 miles due to accelerated carbon buildup.

Q8: Is it necessary to reset the ECU after installing a new EGR valve? A: Yes. After installation, the ECU often requires a reset or a specific "relearn" procedure to recognize the new valve's position and flow characteristics. Failure to do so may result in persistent error codes or improper engine performance.
