Procurement Report: Horizontal Emery Rice Polisher

1. Technical Specifications and Performance Metrics

Based on industry standards for horizontal rice polishing machinery, the procurement of a horizontal emery rice polisher requires strict adherence to specific mechanical and material parameters to ensure operational efficiency and product quality.

• Chamber Construction: The housing chamber must be fabricated from sheet metal with a minimum thickness of 1.0 mm (as per IS 9555 standards for horizontal units). This ensures structural integrity against the high centrifugal forces generated during operation.
• Abrasive Material & Coating:
  • Material: The abrasive must be either Emery (minimum specific gravity 3.60, Moh's hardness 8) or Silicon Carbide (minimum specific gravity 3.12, Moh's hardness 9.5).
  • Coating Thickness: For horizontal polishers, the emery or vitrified silicon carbide coating thickness above the dovetail must be a minimum of 25 mm.
  • Uniformity: The coating must be homogeneous, firmly adhered, and statically balanced to prevent vibration.
• Screen Specifications: The screen size must be selected based on the rice variety (raw or parboiled). A critical performance metric is the screen's ability to prevent broken grains from passing through freely. The specific mesh size should be declared by the manufacturer to match the target grain size.
• Power Transmission: The system must utilize a robust power transmission mechanism capable of handling continuous load variations without slippage.
• Rollers (if applicable): Any rollers included in the assembly must be hardened to a minimum of 40 HRC (Rockwell Hardness C Scale) to resist wear.
• Braking System: To regulate the degree of polish, the unit must be equipped with rubber or metallic brakes, allowing operators to adjust the friction and polish intensity dynamically.

Procurement Recommendation: When evaluating technical proposals, request a mill certificate for the sheet metal thickness and a hardness test report for the abrasive coating. Do not accept units where the coating thickness is not explicitly stated as ≥25 mm for horizontal models, as this is a primary differentiator in durability.

2. Industry Compliance and Quality Assurance

Compliance with national and international standards is non-negotiable for food processing machinery to ensure food safety and operational reliability.

• Primary Standard: The unit must conform to IS 9555 (1999): Rice Polisher. This standard dictates the construction of the chamber, the specifications for the abrasive, and the safety features required for rice milling.
• Abrasive Certification: The abrasive material used must align with IS 715 (Part 2) regarding hardness and specific gravity. Procurement teams should verify that the manufacturer declares the grit size and preparation method for the emery coating.
• Safety & Maintenance: The design must include provisions for the easy replacement of screens. This is a critical quality assurance metric for minimizing downtime during maintenance.
• Static Balance: The rotating assembly (cone or drum) must be statically balanced to prevent excessive vibration, which can lead to premature bearing failure and safety hazards.

Procurement Recommendation: Require the supplier to provide a Declaration of Conformity specifically citing IS 9555 (1999). Verify that the "easy replacement" mechanism for screens is physically demonstrated during the factory acceptance test (FAT). Avoid suppliers who cannot provide specific data on the Moh's hardness or specific gravity of the abrasive material used.

3. Cost Efficiency and Integration Capabilities

Horizontal emery polishers are generally more robust and suitable for high-volume operations compared to vertical cone polishers, though they may have a higher initial capital expenditure (CAPEX).

• Typical B2B Cost Ranges:
  • Unit Price: Estimated between $15,000 – $45,000 USD depending on capacity (tons per hour) and automation level.
  • Operating Cost: Lower per-ton processing cost due to the 25 mm coating thickness reducing the frequency of abrasive replacement compared to thinner-coated units.
  • Power Consumption: Typically ranges from 15 kW to 55 kW depending on the motor size and throughput requirements.
• Integration: These units are designed to integrate seamlessly into existing milling lines (dehuskers, graders, and destoners). The horizontal orientation often allows for easier gravity-fed flow from upstream equipment.
• Maintenance Efficiency: The provision for easy screen replacement and the durability of the 1.0 mm chamber sheet reduce long-term maintenance costs. The braking system allows for precise control, reducing grain breakage and improving yield recovery.

Procurement Recommendation: Calculate the Total Cost of Ownership (TCO) over a 5-year period. Prioritize units with thicker abrasive coatings (≥25 mm) even if the upfront cost is 10-15% higher, as the extended service life of the abrasive significantly lowers the cost per ton of polished rice. Ensure the power transmission system is compatible with your facility's voltage and frequency standards.

4. Typical Use Cases

Horizontal emery rice polishers are optimized for specific industrial scenarios where throughput and polish consistency are paramount.

• Large-Scale Commercial Mills: Facilities processing 5 to 20+ tons per hour of paddy. The horizontal design offers better stability for high-capacity operations.
• Parboiled Rice Processing: The robust chamber and specific screen requirements make these units ideal for parboiled rice, which requires a more aggressive yet controlled polishing action to remove bran without excessive breakage.
• Export-Oriented Production: Where strict adherence to grain integrity and uniform polish is required for international markets, the adjustable braking system allows for precise customization of the final product appearance.
• High-Broken Rice Reduction: Facilities aiming to minimize the percentage of broken grains in the final output benefit from the screen design that prevents brokens from passing through freely.

Procurement Recommendation: Match the machine capacity to your peak processing hours. If your facility processes a mix of raw and parboiled rice, ensure the supplier can provide interchangeable screens for both varieties to maximize equipment utilization.

5. Long-Term Planning Considerations

Strategic procurement involves anticipating market shifts and operational scalability.

• Market Trends: There is a growing demand for energy-efficient milling equipment. While horizontal polishers are robust, future models are expected to feature variable frequency drives (VFDs) to optimize power consumption based on load.
• Demand Signals: The global shift towards "clean label" and minimally processed foods may drive demand for polishers that can achieve a "light polish" (preserving more nutrients) rather than a heavy polish. The adjustable braking system is a key feature for this trend.
• Scalability: Horizontal units are generally modular. Procurement plans should account for potential capacity upgrades by selecting a frame that can accommodate larger motors or additional polishing stages in the future.
• Spare Parts Availability: Given the specific nature of the abrasive (Emery vs. Silicon Carbide) and the screen sizes, ensure the supplier has a guaranteed supply chain for these consumables for at least 10 years.

Procurement Recommendation: Negotiate a long-term service agreement that includes the supply of abrasive coatings and screens. Inquire about the availability of VFD upgrades for future energy efficiency compliance.

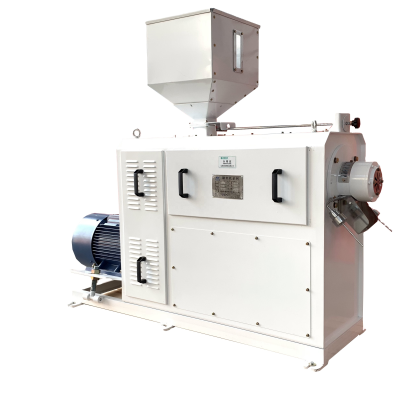

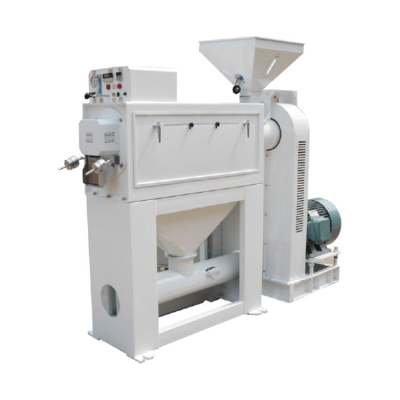

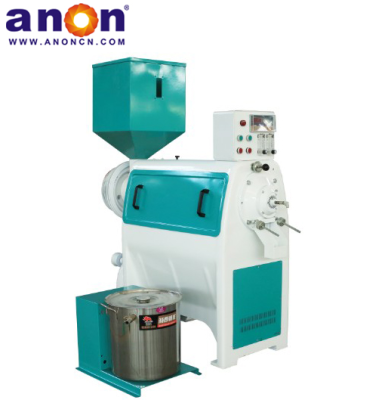

6. Special Product Recommendations

The following comparison table helps buyers select the most appropriate configuration based on their specific operational needs and risk tolerance.

Procurement Recommendation: For new buyers, the "Standard Horizontal Emery" is the safest entry point. For facilities processing parboiled rice, the "High-Capacity Silicon Carbide" option is recommended despite the higher cost, as the Moh's hardness of 9.5 ensures better efficiency on harder grains.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum thickness required for the chamber of a horizontal rice polisher? A: According to industry standards (IS 9555), the chamber for a horizontal polisher must be made of sheet metal with a minimum thickness of 1.0 mm. Vertical cone polishers typically require a minimum of 0.5 mm.

Q2: How thick must the abrasive coating be on a horizontal polisher? A: The emery or vitrified silicon carbide coating thickness above the dovetail must be a minimum of 25 mm for horizontal polishers. This is significantly thicker than the 12 mm required for cone polishers.

Q3: What are the hardness requirements for the abrasive material? A: The abrasive must be either Emery (Moh's hardness 8, specific gravity ≥3.60) or Silicon Carbide (Moh's hardness 9.5, specific gravity ≥3.12).

Q4: Can the degree of polish be adjusted on these machines? A: Yes. The machine must be equipped with rubber or metallic brakes specifically designed to regulate the degree of polish by controlling the friction between the grain and the abrasive.

Q5: How do I ensure broken grains are not included in the final product? A: The screen size must be selected by the manufacturer to match the rice variety (raw or parboiled). The design must ensure the screen does not permit brokens to pass through freely.

Q6: What is the minimum hardness for the rollers if the unit includes them? A: Any rollers provided in the assembly must be hardened to a minimum of 40 HRC (Rockwell Hardness C Scale).

Q7: Is it easy to replace the screen on a horizontal polisher? A: Yes, the design standard (IS 9555) explicitly requires provisions for the easy replacement of the screen to minimize downtime during maintenance.

Q8: What specific gravity is required for the emery abrasive? A: The emery must have a minimum specific gravity of 3.60 to ensure effective polishing performance.
