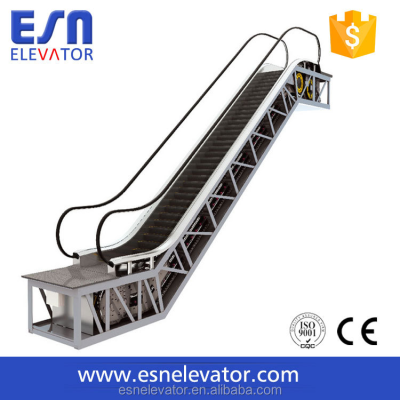

Escalator Procurement Report

Product Category: Vertical Transportation Systems (Escalators & Moving Walks)

1. Technical Specifications and Performance Metrics

Procurement decisions must be grounded in the specific throughput requirements and physical constraints of the installation site. The core technical parameters define the operational capacity and safety profile of the unit.

• Step Width & Capacity: Select based on passenger volume.
  • 600 mm: Best for low-traffic residential or boutique retail (Typical B2B range: 3,000–4,500 persons/hour).
  • 800 mm: Standard for mid-sized commercial centers and office buildings (Typical B2B range: 4,500–6,000 persons/hour).
  • 1000 mm: Required for high-traffic transit hubs, airports, and large malls (Typical B2B range: 6,000–9,000 persons/hour).
• Incline Angle:
  • 30°: Standard for most commercial applications, offering a balance of comfort and space efficiency.
  • 35°: Used where vertical headroom is restricted or footprint is limited, though slightly less comfortable for passengers carrying luggage.
• Operating Speed:
  • 0.5 m/s: Energy-efficient option for low-traffic areas.
  • 0.65 m/s: The industry standard for balanced performance.
  • 0.75 m/s: High-speed requirement for major transit stations to minimize queue times.
• Drive System:
  • AC VVVF (Variable Voltage Variable Frequency): Cost-effective, robust, suitable for standard applications.
  • Gearless PMSM (Permanent Magnet Synchronous Motor): Recommended for high-efficiency projects, offering smoother starts/stops and lower energy consumption (Typical B2B energy saving: 15–25% vs. AC VVVF).
• Environmental Ratings:
  • Indoor: IP54 protection is typical for dust and water splash resistance.
  • Outdoor: IP65 rating is mandatory to withstand rain and dust.
  • Ambient Temperature: Operational range typically -20°C to +50°C.

Actionable Recommendation: Conduct a peak-hour passenger flow analysis before finalizing step width and speed. For new installations in energy-conscious markets, prioritize Gearless PMSM drives despite the higher initial CAPEX, as OPEX savings usually offset costs within 3–5 years.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable for liability and insurance purposes. Procurement must verify adherence to international safety standards and local building codes.

• Primary Standards: All units must comply with ASME A17.1 (Safety Code for Elevators and Escalators) or equivalent regional standards (e.g., EN 115 in Europe).
• Inspection Frequency:
  • Routine Inspection: Mandatory every 6 months.
  • Annual Testing: Comprehensive safety and load testing required once per year.
• Safety Features:
  • Emergency stop buttons must be accessible at both top and bottom landings.
  • Skirt panels must include comb plate switches to detect foreign objects.
  • Handrail speed monitoring systems must be integrated to prevent slip hazards.
• Quality Assurance:
  • Verify that the manufacturer provides a full Type Test Certificate for the specific model.
  • Ensure the control system includes a "brake failure" detection mechanism.

Actionable Recommendation: Require the supplier to provide a documented maintenance schedule aligned with ASME A17.1 requirements as part of the contract. Do not accept units that lack a valid Type Test Certificate for the specific voltage and speed configuration ordered.

3. Cost Efficiency and Integration Capabilities

Total Cost of Ownership (TCO) extends beyond the purchase price to include installation, energy consumption, and maintenance.

• Cost Structure:
  • Unit Cost: Varies significantly by width and drive type. A 1000mm gearless unit typically costs 20–30% more than a 600mm AC VVVF unit.
  • Installation: Typically accounts for 15–25% of the total project cost, heavily influenced by civil works (shaft depth, landing dimensions).
  • Energy Consumption: Gearless PMSM systems reduce annual energy costs by approximately 15–25% compared to traditional gear-driven systems.
• Integration:
  • Building Management Systems (BMS): Modern units should support BMS integration for remote monitoring of status, fault codes, and usage statistics.
  • Seismic & Wind Loads: For high-rise or outdoor installations, structural integration must account for seismic specifications and wind loads (referencing 1200 mm and 1400 mm expansion joint guidelines).
• Lead Time & MOQ:
  • MOQ: Typically 1 unit per order, though bulk orders (3+ units) often trigger volume discounts.
  • Lead Time: Standard lead time is 12–16 weeks for manufacturing; custom configurations may extend to 20–24 weeks.

Actionable Recommendation: Request a TCO analysis from the vendor that includes a 10-year energy projection. When integrating with BMS, specify the communication protocol (e.g., BACnet, Modbus) in the technical addendum to avoid retrofitting costs later.

4. Typical Use Cases

Matching the escalator type to the environment ensures longevity and user satisfaction.

• High-Traffic Transit Hubs (Airports, Subways):
  • Requirement: 1000 mm width, 0.75 m/s speed, robust outdoor IP65 rating if exposed.
  • Focus: High durability, redundancy in drive systems, and rapid passenger throughput.
• Shopping Malls & Retail Centers:
  • Requirement: 800 mm width, 30° incline, AC VVVF or PMSM drive.
  • Focus: Aesthetics (custom cladding), smooth operation, and integration with lighting/entertainment systems.
• Office Buildings & Hospitals:
  • Requirement: 800 mm width, 30° incline, PMSM drive for quiet operation.
  • Focus: Energy efficiency, accessibility compliance, and low vibration.
• Outdoor Public Spaces:
  • Requirement: IP65 rating, heated comb plates (for cold climates), wind load resistance.
  • Focus: Weatherproofing, anti-corrosion coatings, and safety against ice/snow.

Actionable Recommendation: For outdoor installations, explicitly request heated comb plates and anti-corrosion treatments if the ambient temperature drops below freezing. For retail, prioritize aesthetic customization options for the handrails and side panels to match the brand identity.

5. Long-Term Planning Considerations

Strategic procurement must account for future expansion, regulatory changes, and market trends.

• Market Trends & Demand:
  • Smart Maintenance: There is a growing demand for IoT-enabled escalators that predict failures before they occur, reducing downtime.
  • Sustainability: Energy efficiency is becoming a primary procurement driver due to rising electricity costs and green building certifications (e.g., LEED).
  • Urbanization: High-density urban development is driving demand for wider steps (1000 mm) and higher speeds to manage congestion.
• Lifecycle Management:
  • Service Life: Typical design life is 20–25 years.
  • Spare Parts: Ensure the supplier guarantees spare parts availability for at least 15 years post-delivery.
  • Modernization: Plan for a mid-life modernization (at year 10–12) to update control systems and safety features without replacing the entire structure.
• Expansion Joints: For projects involving 1200 mm and 1400 mm expansion joints, ensure the civil design accommodates seismic specifications and wind loads early in the planning phase.

Actionable Recommendation: Include a "Modernization Clause" in the initial procurement contract that grants the buyer priority pricing for a mid-life upgrade package. Prioritize vendors with a proven track record of IoT integration to future-proof the asset.

6. Special Product Recommendations

The following table compares key escalator configurations to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Commercial (800mm) | Retail Malls, Office Buildings | 30°/35°, 0.65 m/s, AC VVVF | Low risk; widely available | Verify local voltage compatibility; request 5-year warranty. | | High-Capacity Transit (1000mm) | Airports, Metro Stations | 30°, 0.75 m/s, Gearless PMSM | High risk (complex installation) | Require site-specific seismic/wind load analysis; demand 24/7 support contract. | | Outdoor Weather-Resistant | Public Plazas, Train Stations | IP65, Heated Comb Plates, -20°C rating | Medium risk (corrosion/ice) | Confirm anti-corrosion coating thickness; verify heating element redundancy. | | Compact Residential (600mm) | Luxury Apartments, Boutiques | 30°, 0.5 m/s, AC VVVF | Low risk | Focus on noise reduction specs; ensure compatibility with existing shafts. |

Actionable Recommendation: For high-risk projects (outdoor or transit), do not rely on standard off-the-shelf units. Engage the manufacturer's engineering team for a site-specific risk assessment regarding wind loads and seismic activity before signing the purchase order.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for a custom-width escalator? A: Standard units typically have a lead time of 12–16 weeks. Custom configurations, such as non-standard step widths or specific drive systems, may extend this to 20–24 weeks depending on the manufacturer's capacity.

Q2: How often must an escalator be inspected to remain compliant? A: Per ASME A17.1 and similar international standards, escalators must be inspected every 6 months and undergo a comprehensive annual safety test.

Q3: Can an indoor-rated escalator be used outdoors? A: No. Indoor units (typically IP54) are not designed to withstand rain and dust. Outdoor installations require a minimum IP65 rating and often additional features like heated comb plates and corrosion-resistant coatings.

Q4: What is the difference between AC VVVF and Gearless PMSM drives? A: AC VVVF is a cost-effective, robust drive system suitable for general use. Gearless PMSM drives are more energy-efficient (saving 15–25% on electricity), offer smoother operation, and have fewer moving parts, making them ideal for high-traffic or green-building projects.

Q5: What is the expected service life of an escalator? A: The typical design life is 20–25 years. However, with proper preventative maintenance and mid-life modernization, the operational lifespan can be extended significantly.

Q6: Are there specific requirements for seismic or wind loads? A: Yes. For installations in seismic zones or high-wind areas, the escalator structure and installation must adhere to specific seismic specifications and wind load calculations. Expansion joints of 1200 mm and 1400 mm may be required depending on the building's movement.

Q7: What is the Minimum Order Quantity (MOQ) for escalators? A: The typical MOQ is 1 unit. However, purchasing multiple units (3 or more) in a single project often qualifies for volume discounts and prioritized manufacturing slots.

Q8: How do I ensure spare parts availability for older models? A: Procurement contracts should explicitly state that the manufacturer guarantees spare parts availability for a minimum of 15 years post-delivery. It is advisable to purchase a "spare parts kit" at the time of installation.
