Procurement Report: Industrial and Commercial Evaporators

1. Technical Specifications and Performance Metrics

When procuring evaporators, the primary technical differentiator is the evaporator type, which dictates the heat transfer efficiency and system compatibility. Procurement decisions must be anchored in the specific thermal duty and refrigerant/liquid medium requirements.

• Evaporator Type Selection:
  • DX Finned-Tube: Ideal for air-cooling applications. Typical face area ranges from 0.5 m² to 50 m² depending on airflow volume. Heat transfer coefficients typically range between 40–80 W/m²·K for air-side.
  • Brazed-Plate: Best for compact liquid-side cooling. These units typically handle heat duties from 5 kW to 500 kW with a compact footprint, offering UA values (Overall Heat Transfer Coefficient × Area) often exceeding 1000 W/K in high-density configurations.
  • Shell-and-Tube / Flooded: Designed for industrial duty. These handle high thermal loads ranging from 100 kW to 5,000 kW+. Design pressures typically range from 10 to 30 bar for standard refrigerants, with materials selected for corrosion resistance (e.g., stainless steel 316L for pharmaceuticals).
• Refrigerant and Pressure:
  • Refrigerant compatibility is critical. Modern units are increasingly designed for low-GWP refrigerants (e.g., R32, R290, R454B).
  • Design pressure must align with system conditions, typically ranging from 20 bar (low side) to 45 bar (high side) for standard HVAC/R applications.
• Material Compatibility:
  • Standard carbon steel for industrial HVAC.
  • Stainless steel (304/316) or Titanium for pharmaceutical and corrosive chemical applications.
  • Copper/Nickel alloys for seawater or aggressive liquid cooling.

Actionable Recommendation: Do not select a unit based on capacity alone. First, define the evaporator type (DX, Plate, or Shell-and-Tube) based on the cooling medium (air vs. liquid). Then, lock the design pressure and material compatibility to the exact system conditions to prevent premature failure or non-compliance.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable for B2B procurement, particularly in regulated industries like pharmaceuticals and mobile air conditioning.

• Certification Standards:
  • CE Marking: Essential for European markets. Procurement requires verification of technical specifications and adherence to the Pressure Equipment Directive (PED) and Low Voltage Directive (LVD) where applicable. OEMs must provide a Declaration of Conformity.
  • ISO 9001: Manufacturers should hold this certification to ensure consistent quality management systems.
  • J2842 (Mobile Air): For mobile applications, units must conform to design criteria ensuring acceptable health and safety standards for automotive environments.
  • EU GMP (Pharmaceutical): For pharmaceutical evaporators, compliance with Good Manufacturing Practice is mandatory. This includes rigorous supplier qualification criteria and traceability of materials.
• Safety and Documentation:
  • Verify the presence of certification labels (CE, UL, ISO) on the unit and accompanying documentation.
  • Ensure the supplier provides a comprehensive technical file detailing design calculations, material certificates, and pressure test reports.

Actionable Recommendation: Prioritize suppliers who can immediately provide a full technical file for CE certification. For pharmaceutical applications, explicitly request evidence of EU GMP compliance and supplier qualification records before issuing a Purchase Order (PO).

3. Cost Efficiency and Integration Capabilities

Cost efficiency in evaporator procurement extends beyond the initial unit price to include installation, energy consumption, and maintenance.

• Cost Parameters (Typical B2B Ranges):
  • Unit Cost: DX finned-tube units range from $500 to $15,000 depending on size. Brazed-plate units range from $1,000 to $25,000. Industrial shell-and-tube units can range from $10,000 to $150,000+.
  • MOQ (Minimum Order Quantity): Typically 1 unit for standard DX/Plate models, but 5–10 units for custom industrial shell-and-tube designs to justify tooling costs.
  • Lead Time: Standard off-the-shelf units: 2–4 weeks. Custom engineered units: 8–16 weeks.
• Integration Capabilities:
  • Modularity: Brazed-plate units offer high modularity, allowing for easy scaling by adding plates.
  • Interface Standards: Ensure flange standards (e.g., DIN, ANSI, JIS) match existing piping.
  • Control Compatibility: Verify that the evaporator's control logic (e.g., expansion valve signals) is compatible with the building management system (BMS) or PLC.

Actionable Recommendation: Calculate the Total Cost of Ownership (TCO) rather than just the CAPEX. Select brazed-plate units for retrofits where space is limited to reduce installation costs. For new builds, consider shell-and-tube units if maintenance access and long-term durability are higher priorities than initial footprint.

4. Typical Use Cases

The application scenario dictates the specific configuration and material selection.

• HVAC & Refrigeration: DX finned-tube evaporators are standard in commercial air conditioning, cold storage warehouses, and industrial chillers.
• Pharmaceutical & Biotech: Rotary evaporators and specialized shell-and-tube units are used for solvent recovery, concentration, and sterile processing. These require strict adherence to EU GMP and clean-in-place (CIP) capabilities.

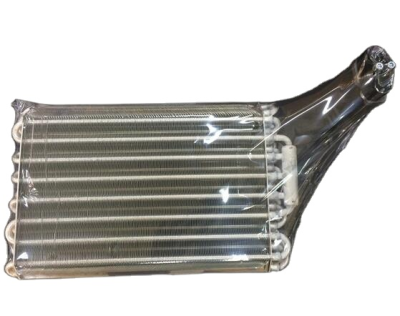

• Mobile Air Conditioning: Automotive and rail applications utilize compact, vibration-resistant evaporators conforming to J2842 standards.
• Chemical Processing: Shell-and-tube evaporators handle aggressive solvents and high-viscosity fluids in chemical plants.
• Laboratory & R&D: Rotary and nitrogen evaporators are used for routine sample processing and solvent removal in small-scale research.

Actionable Recommendation: Match the evaporator type strictly to the industry. Do not use standard HVAC DX units in pharmaceutical processes; instead, specify GMP-compliant rotary or shell-and-tube systems with validated cleaning protocols.

5. Long-Term Planning Considerations

Procurement strategies must account for future regulatory shifts and market demands.

• Market Trends & Demand Signals:
  • Refrigerant Transition: There is a strong global shift away from high-GWP refrigerants (e.g., R410A) toward low-GWP alternatives (e.g., R32, R454B, R290). Procurement should future-proof systems for these refrigerants.
  • Energy Efficiency: Demand for high-efficiency evaporators is rising due to stricter energy codes (e.g., EU Ecodesign). Look for units with optimized fin density and enhanced surface area.
  • Sustainability: Increased demand for recyclable materials and reduced manufacturing carbon footprints.
• Durability & Lifecycle:
  • Industrial shell-and-tube units typically have a lifecycle of 15–20 years with proper maintenance.
  • Brazed-plate units generally last 10–15 years but are sensitive to pressure spikes.
  • Plan for a 5-year maintenance cycle involving cleaning, leak testing, and refrigerant recharge.

Actionable Recommendation: Prioritize suppliers with a roadmap for low-GWP refrigerant compatibility. Factor in a 10–15% budget buffer for future retrofitting costs as refrigerant regulations tighten.

6. Special Product Recommendations

The following table compares the primary evaporator types to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | DX Finned-Tube | Commercial HVAC, Cold Storage | Face Area: 0.5–50 m²; Air-side UA: 40–80 W/m²·K | Airflow restriction, coil corrosion | Verify fin material (aluminum vs. coated) for humid environments. | | Brazed-Plate | Compact Industrial, Retrofit | Heat Duty: 5–500 kW; Compact footprint | Pressure spikes, plate separation | Ensure system has surge protection; check plate material (SS316L). | | Shell-and-Tube | Heavy Industry, Pharma | Heat Duty: 100–5000+ kW; Pressure: 10–30 bar | Fouling, tube leakage | Specify tube material (Titanium/SS) for corrosive fluids; request hydro-test certs. | | Rotary Evaporator | Pharma, Lab R&D | Vacuum range: <1 mbar; Temp: 20–100°C | Seal integrity, glass breakage | Confirm GMP compliance and CIP capability for pharma use. |

Actionable Recommendation: For new construction, prioritize Shell-and-Tube for scalability and DX Finned-Tube for air-cooling. For space-constrained retrofits, Brazed-Plate is the optimal choice. Always validate the "Risk Check" items during the supplier audit phase.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical lead time for a custom industrial evaporator? A: For standard off-the-shelf units, expect 2–4 weeks. Custom-engineered industrial units (Shell-and-Tube) typically require 8–16 weeks for design, fabrication, and testing.

Q2: Are CE certifications mandatory for all evaporators sold in Europe? A: Yes, for products placed on the EU market, CE marking is mandatory under the Pressure Equipment Directive (PED) and other relevant directives. You must verify the supplier's Declaration of Conformity.

Q3: How do I choose between a DX finned-tube and a brazed-plate evaporator? A: Choose DX finned-tube for air-cooling applications (e.g., air conditioning). Choose brazed-plate for compact liquid-side cooling where space is limited and heat duty is moderate (5–500 kW).

Q4: What materials are required for pharmaceutical evaporators? A: Pharmaceutical applications typically require Stainless Steel 316L or Titanium to ensure corrosion resistance and compliance with EU GMP standards. Welding must be automated and documented.

Q5: Can I retrofit an existing system with a low-GWP refrigerant evaporator? A: Yes, but you must ensure the new evaporator is designed for the specific pressure and oil compatibility of the new refrigerant (e.g., R32 or R454B). Do not simply swap refrigerants without changing the heat exchanger.

Q6: What is the typical durability of a brazed-plate evaporator? A: With proper system protection against pressure spikes, brazed-plate units typically last 10–15 years. They are less tolerant of mechanical shock compared to shell-and-tube units.

Q7: What is the Minimum Order Quantity (MOQ) for industrial evaporators? A: MOQ varies by manufacturer. Standard units often have an MOQ of 1, while custom industrial designs may require an MOQ of 5–10 units to justify tooling and engineering costs.

Q8: How do I verify the quality of a rotary evaporator for lab use? A: Check for certification labels (CE, UL, ISO) on the unit and documentation. Ensure the supplier provides a manual detailing safety protocols and maintenance schedules, and verify the vacuum pump compatibility.
