Procurement Report: Carbon Steel Flat Bars

1. Technical Specifications and Performance Metrics

Carbon steel flat bars are defined by their rectangular cross-section and are primarily categorized by their manufacturing process (hot-rolled vs. cold-finished) and chemical composition. Based on industry standards for structural applications, the following technical parameters define the baseline for procurement:

• Dimensions:
  • Thickness: 3 mm to 50 mm (Typical B2B range: 6–25 mm for standard structural use).
  • Width: 15 mm to 300 mm.
  • Length: 2 m to 12 m (Standard mill lengths).
• Material Grades:
  • A36 / S235JR: The standard low-carbon structural grade.
  • Carbon Content: Typically 0.26% max for A36, ensuring weldability and formability.
• Mechanical Properties (A36 Grade):
  • Ultimate Tensile Strength: 400 MPa (58,000 psi).
  • Yield Strength: 315 MPa (47,700 psi).
  • Shear Strength: 300 MPa (43,500 psi).
  • Density: 7.8 g/cc (0.282 lb/in³).
  • Hardness: Approximately 140 Brinell.
  • Melting Point: 1,420°C – 1,460°C.

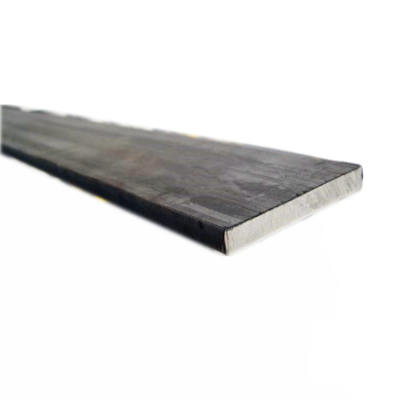

• Surface Finish: Hot-rolled bars exhibit a rough, blue-grey oxide scale with dull, rounded edges and inexact dimensions (tolerances vary by mill). Cold-finished bars offer tighter tolerances and smoother surfaces.

Procurement Recommendation: For general structural frameworks, welding, and machining where tight tolerances are not critical, specify A36 Hot-Rolled flat bars. If the application requires precision machining or high-strength requirements beyond standard structural loads, request Cold-Finished bars or higher-carbon grades, noting that these will incur higher costs and potentially longer lead times.

2. Industry Compliance and Quality Assurance

Ensuring material integrity is critical for structural safety and regulatory compliance. While specific named certifications were not provided in the source context, the industry standard for A36 steel involves adherence to ASTM (American Society for Testing and Materials) or EN (European Norm) specifications.

• Chemical Composition Compliance:
  • Carbon (C): Max 0.26% (Critical for weldability).
  • Manganese (Mn): Max 0.75% (Ensures strength).
  • Phosphorus (P): Max 0.04% (Prevents brittleness).
  • Sulfur (S): Max 0.05% (Prevents hot shortness).
  • Copper (Cu): Approx. 0.2% (Enhances corrosion resistance).
• Quality Assurance Protocols:
  • Material Test Reports (MTR): Essential for all B2B transactions. Buyers must explicitly request MTRs to verify chemical and mechanical properties against the A36 standard.
  • Dimensional Tolerance: Hot-rolled bars typically have wider tolerances (often ±1-2mm on width/thickness depending on the mill). Cold-finished bars offer tighter tolerances (±0.5mm or better).

Procurement Recommendation: Do not accept shipments without a Mill Test Report (MTR) or Certificate of Analysis (CoA). Verify that the chemical composition falls within the A36 limits, specifically checking Sulfur and Phosphorus levels, as high levels can compromise weld quality. For projects requiring strict dimensional accuracy, explicitly state the need for "Cold-Finished" or "Precision Ground" bars to avoid post-processing costs.

3. Cost Efficiency and Integration Capabilities

Flat bars are among the most cost-effective structural steel forms due to their versatility and ease of integration into existing manufacturing workflows.

• Cost Drivers:
  • Process: Hot-rolled is the most economical option. Cold-finished commands a premium (typically 15–30% higher) due to additional processing.
  • Grade: A36 is the baseline cost; higher-carbon grades increase price significantly.
  • Volume: Larger orders (full mill lengths) reduce per-unit logistics costs.
• Integration Capabilities:
  • Fabrication: A36 steel is highly weldable using standard techniques (SMAW, GMAW, FCAW) without pre-heating for thicknesses under 25mm.
  • Machining: Excellent machinability for cold-finished grades; hot-rolled grades may require deburring and scaling removal before machining.
  • Forming: Suitable for bending and rolling, though hot-rolled bars may require annealing for severe forming operations to prevent cracking.

Procurement Recommendation: Optimize costs by ordering full mill lengths (e.g., 12m) where possible to minimize cutting waste and freight costs per kilogram. If the project involves extensive welding, prioritize A36 hot-rolled bars. If the design requires precise drilling or turning, budget for the additional cost of cold-finished bars to reduce secondary machining time.

4. Typical Use Cases

The versatility of carbon steel flat bars makes them a staple across multiple industries.

• Structural Frameworks: Used as bracing, gusset plates, and support beams in building construction and industrial shelving.
• Machinery & Equipment: Fabrication of machine bases, frames, and mounting plates where high rigidity is required.
• Fabrication & Welding: Ideal for creating custom brackets, flanges, and connectors for pipelines and structural steel.
• Automotive & Transportation: Used in chassis reinforcement, bumper brackets, and trailer frames.
• DIY and Repair: Common in general maintenance, repair, and overhaul (MRO) for replacing worn structural components.

Procurement Recommendation: Match the bar finish to the end-use. For visible architectural elements, specify cold-finished or pickled and oiled bars to minimize post-fabrication finishing. For hidden structural supports or heavy machinery bases, standard hot-rolled A36 is sufficient and more cost-effective.

5. Long-Term Planning Considerations

Strategic procurement of flat bars requires anticipating market volatility and supply chain stability.

• Market Trends:
  • Demand Signals: Global infrastructure projects and manufacturing recovery drive steady demand for structural steel.
  • Supply Chain: Lead times can fluctuate based on raw material (scrap/iron ore) availability and energy costs affecting mill operations.
  • Sustainability: There is a growing trend toward sourcing steel from mills with lower carbon footprints; buyers should inquire about the mill's environmental certifications.
• Durability & Lifecycle:
  • Corrosion: A36 steel is not inherently corrosion-resistant. Long-term planning must include surface treatments (galvanizing, painting, or powder coating) if the application is outdoors or in humid environments.
  • Fatigue: For dynamic loading applications, consider the fatigue limit of the specific grade; A36 is suitable for static loads but requires engineering analysis for cyclic loading.

Procurement Recommendation: Establish multi-year supply agreements with suppliers to lock in pricing and secure lead times, especially for large-scale projects. Plan for surface treatment costs in the initial budget, as untreated A36 will rust rapidly in outdoor conditions. Monitor global steel price indices to time large purchases during market dips.

6. Special Product Recommendations

Selecting the right product variant depends on the specific buyer's tolerance for dimension variation and surface finish requirements.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Hot-Rolled A36 | General Construction, Heavy Machinery, Structural Bracing | 3–50mm thick, 15–300mm wide, 2–12m long; Rough surface, rounded edges. | High dimensional variance; Surface scale requires cleaning. | Order with MTR; specify "as-rolled" finish to save cost. | | Cold-Finished A36 | Precision Machining, Automotive Parts, Visible Architectural Elements | Tighter tolerances (±0.5mm), smoother surface, square edges. | Higher cost; potential for residual stress warping. | Request stress-relieved material if precision is critical. | | High-Carbon Flat Bar | High-Strength Springs, Cutting Tools, Wear Parts | Carbon >0.26%, Higher Yield Strength (>350 MPa). | Reduced weldability; requires heat treatment. | Verify heat treatment capabilities with the supplier. | | Galvanized Flat Bar | Outdoor Structures, Marine Applications, Chemical Plants | Zinc coating (typically 50–100 g/m²), A36 base. | Coating thickness variance; edge corrosion risk. | Specify coating weight and verify ASTM A123 compliance. |

Procurement Recommendation: For most B2B structural needs, Hot-Rolled A36 offers the best balance of cost and performance. Reserve Cold-Finished options for applications where the flat bar serves as a finished component or requires tight tolerance fits. Always validate the coating thickness if corrosion resistance is a long-term requirement.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between hot-rolled and cold-finished flat bars? A: Hot-rolled bars are formed at high temperatures, resulting in a rough, blue-grey surface, rounded edges, and wider dimensional tolerances. They are cheaper and ideal for structural use. Cold-finished bars are processed at room temperature, offering a smoother surface, square edges, and tighter tolerances, making them suitable for precision machining and visible applications.

Q2: Can A36 steel be welded easily? A: Yes, A36 is a low-carbon steel (max 0.26% C) specifically designed for excellent weldability. It can be welded using standard processes like Shielded Metal Arc Welding (SMAW) or Gas Metal Arc Welding (GMAW) without pre-heating for most thicknesses.

Q3: What are the standard length options for ordering flat bars? A: Standard mill lengths typically range from 2 meters to 12 meters. Custom cutting to specific lengths is available but may incur additional processing fees and minimum order quantity (MOQ) adjustments.

Q4: Is A36 steel suitable for outdoor use without treatment? A: No. A36 is a mild steel that will rust when exposed to moisture and oxygen. For outdoor applications, it requires protective coatings such as galvanizing, painting, or powder coating to ensure longevity.

Q5: How do I verify the quality of the steel I am ordering? A: Always request a Mill Test Report (MTR) or Certificate of Analysis (CoA) from the supplier. This document confirms the chemical composition and mechanical properties (tensile strength, yield strength) match the A36 specifications.

Q6: What are the typical thickness and width ranges available? A: Thickness typically ranges from 3 mm to 50 mm, and widths range from 15 mm to 300 mm. Specific availability depends on the mill's current production capacity.

Q7: How does the density of A36 steel affect shipping costs? A: With a density of 7.8 g/cc (0.282 lb/in³), flat bars are heavy. Shipping costs are often calculated by weight. Ordering full mill lengths (e.g., 12m) reduces the cost per kilogram compared to cutting smaller pieces, as it minimizes packaging and handling overhead.

Q8: Can I bend or form hot-rolled flat bars? A: Yes, A36 hot-rolled bars can be bent and formed. However, for severe forming operations, the material may require annealing to prevent cracking. Cold-finished bars are generally more consistent for precision bending.
