Procurement Report: Flexible Circuit Solutions (Flex)

1. Technical Specifications and Performance Metrics

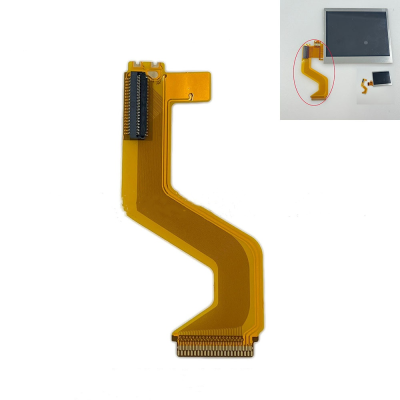

Flexible circuits (often referred to as "flex" PCBs) are engineered for applications requiring dynamic movement, space reduction, and 3D packaging. Based on industry standards for flexible substrates (typically polyimide), the following technical parameters define high-performance procurement targets:

• Substrate Thickness: Ranges from 0.05 mm to 0.25 mm (2 to 10 mils). Thinner profiles (0.05–0.10 mm) are critical for tight bend radius applications.
• Conductor Material: High-conductivity copper is standard, typically 1/2 oz (17.5 µm) to 1 oz (35 µm) per layer. For high-current applications, 2 oz (70 µm) may be specified.
• Bend Radius:
  • Static Applications: Can be bent to 0.5x to 1x the total thickness of the flex.
  • Dynamic (Moving) Applications: Requires a minimum bend radius of 10x to 20x the total thickness to prevent fatigue failure over 50,000 to 100,000 cycles.
• Operating Temperature: Standard polyimide substrates withstand -55°C to +135°C. High-temperature variants (e.g., with specific solder masks) can reach up to 180°C.
• Dielectric Constant (Dk): Typically 3.0 to 3.5 at 1 MHz, ensuring signal integrity for high-speed data transmission.
• Impedance Control: Capable of maintaining ±10% tolerance for controlled impedance lines (e.g., 50Ω, 90Ω, 100Ω differential).

Actionable Recommendation: When sourcing, explicitly define the application type (static vs. dynamic) to the supplier. If dynamic movement is required, demand a specific cycle life test report (e.g., 50k+ cycles) rather than relying on standard static bend specs. Ensure the copper weight is optimized for current carrying capacity to avoid overheating in tight spaces.

2. Industry Compliance and Quality Assurance

Procurement of flexible circuits requires rigorous adherence to quality clauses to ensure reliability in critical environments. Based on standard industry purchase order requirements (such as those seen in aerospace and medical sectors), the following compliance metrics are essential:

• Material Certifications: Suppliers must provide a Material Certificate of Conformance (C of C) for every shipment, verifying raw material compliance with the purchase order specifications.
• Traceability: Full traceability is mandatory from the raw material source through processing lots, inventory storage, and final shipment. Documentation must link back to the original source for all layers and adhesives.
• Inspection & Testing:
  • Receiving Inspection: The seller must certify that receiving inspection has been performed against all drawings and specifications.
  • Test Reports: A Certificate of Analysis (CoA) or specific test reports (e.g., Peel Strength, Dielectric Withstanding Voltage) must accompany each shipment.
  • Safety Data Sheets (SDS): Required for any shipment containing hazardous materials or chemicals requiring special handling.
• Documentation Standards: All technical sheets, process specifications, and revision levels must be legible and signed by an authorized Quality representative with the date and title.

Actionable Recommendation: Do not accept shipments without the complete documentation package (C of C, CoA, SDS if applicable). Explicitly include clauses in your Purchase Order (PO) requiring "Limited Shelf Life" identification for materials and mandating that test reports be available for immediate review upon request. Verify that the supplier's Quality Management System (QMS) supports end-to-end traceability.

3. Cost Efficiency and Integration Capabilities

Flexible circuits offer significant cost savings in assembly and system integration, though unit costs are higher than rigid PCBs.

• Cost Efficiency Drivers:
  • Assembly Reduction: Can reduce assembly costs by 15% to 30% by eliminating connectors, harnesses, and multiple rigid boards.
  • Weight Reduction: Typically 30% to 50% lighter than equivalent rigid wiring harnesses, crucial for aerospace and portable electronics.
  • Space Optimization: Enables 3D folding, reducing the overall system footprint by 40% to 60% in compact devices.
• MOQ (Minimum Order Quantity): Typical B2B ranges are 50 to 100 units for prototype runs and 500 to 1,000 units for production. High-volume custom runs often start at 5,000+ units.
• Lead Time:
  • Prototype: 5 to 10 business days.
  • Production: 3 to 6 weeks depending on layer count and complexity.
  • Expedited: Available for 3 to 5 days at a premium of 20% to 40%.
• Integration: Supports direct soldering to rigid boards (hybrid assemblies) and integration with connectors (e.g., FPC connectors, ZIF).

Actionable Recommendation: Conduct a Total Cost of Ownership (TCO) analysis. While the per-unit cost of flex is higher, calculate the savings from reduced labor, fewer connectors, and lighter shipping weights. For low-volume projects, utilize "panelized" flex designs to minimize waste and lower the effective cost per unit. Negotiate lead times based on volume commitments to secure the 3-6 week production window.

4. Typical Use Cases

Flexible circuits are ubiquitous in industries requiring reliability, miniaturization, and movement.

• Consumer Electronics: Smartphone cameras (folding mechanisms), wearable devices (smartwatches, fitness trackers), and foldable displays.
• Automotive: Seat sensors, airbag control modules, and EV battery management systems (BMS) where vibration resistance is critical.
• Medical Devices: Implantable devices, surgical instruments, and diagnostic equipment requiring sterilization and compact form factors.
• Aerospace & Defense: Avionics systems, satellite components, and drone wiring harnesses where weight reduction and high reliability are non-negotiable.
• Industrial Automation: Robotic arm cabling and conveyor systems requiring dynamic flexing.

Actionable Recommendation: Match the flex specification to the environment. For medical or aerospace applications, prioritize suppliers with ISO 13485 (Medical) or AS9100 (Aerospace) certifications. For automotive, ensure the supplier has experience with AEC-Q200 standards for component reliability.

5. Long-Term Planning Considerations

The market for flexible electronics is evolving rapidly, driven by the demand for wearable tech and 5G connectivity.

• Market Trends:
  • Demand Signals: Increasing adoption of foldable smartphones and electric vehicles is driving a 10-15% year-over-year growth in the flexible circuit market.
  • Material Innovation: Shift toward thinner, more durable substrates (e.g., liquid crystal polymer - LCP) for high-frequency applications.
  • Sustainability: Growing demand for recyclable substrates and lead-free soldering processes compliant with RoHS and REACH regulations.
• Supply Chain Resilience:
  • Raw Material Volatility: Copper and polyimide prices fluctuate; securing long-term supply agreements is recommended.
  • Shelf Life Management: Suppliers must strictly adhere to "Limited Shelf Life" identification for materials to prevent degradation during storage.
• Future-Proofing: Design for manufacturability (DFM) is critical. As designs become more complex (e.g., rigid-flex hybrids), early supplier engagement is necessary to avoid re-spins.

Actionable Recommendation: Establish a multi-sourcing strategy to mitigate supply chain risks. Engage with suppliers early in the design phase to ensure DFM compatibility. Monitor raw material trends and consider locking in pricing for critical substrates if volume forecasts are stable.

6. Special Product Recommendations

The following table compares common flex product types to assist in selecting the right solution based on buyer needs and risk factors.

Actionable Recommendation: For high-reliability applications (Aerospace/Medical), prioritize Rigid-Flex or HDI Flex but insist on a comprehensive failure analysis plan. For dynamic applications, explicitly request a "Dynamic Flex" specification with cycle life validation. Always verify the supplier's capability to handle the specific layer count and material thickness required.

7. Frequently Asked Questions (FAQ)

Q1: What is the minimum bend radius for a flexible circuit? A: For static applications, the radius can be as small as 0.5x the total thickness. For dynamic applications (moving parts), the minimum radius is typically 10x to 20x the total thickness to ensure a lifespan of 50,000+ cycles.

Q2: Do I need to provide Safety Data Sheets (SDS) for my order? A: No, the supplier must provide the SDS for any materials or chemicals in the shipment that are hazardous or require special handling. You should request this as part of your delivery documentation.

Q3: How do I ensure traceability of the materials used? A: Your Purchase Order should explicitly require full traceability documentation. The supplier must provide a Material Certificate of Conformance and trace all raw materials and processing lots back to the original source, including inventory storage points.

Q4: What is the typical lead time for flexible circuits? A: Prototypes typically take 5–10 business days. Production runs generally require 3–6 weeks. Expedited services are available but may cost 20–40% more.

Q5: How do I handle limited shelf-life materials in my supply chain? A: The supplier is required to identify each item or package with a limited calendar life (cure or expiration date). Ensure your receiving inspection process checks these dates and that the supplier provides a Material Certificate of Conformance for every shipment.

Q6: Can flexible circuits be soldered directly to rigid boards? A: Yes, this is a common configuration known as a "Rigid-Flex" assembly. It eliminates the need for connectors and reduces weight. Ensure the supplier has experience with hybrid assembly processes.

Q7: What certifications should I look for in a flex supplier? A: Look for ISO 9001 for general quality, AS9100 for aerospace, and ISO 13485 for medical devices. Additionally, ensure they provide Test Reports/Certificates of Analysis for every shipment.

Q8: How does the cost of flex compare to traditional wiring harnesses? A: While the unit cost of flex is higher, the total system cost is often 15–30% lower due to reduced assembly time, fewer connectors, and lighter weight, which lowers shipping costs.
