Flexographic Printing Equipment Procurement Report

1. Technical Specifications and Performance Metrics

When procuring flexographic presses, the primary technical decision matrix revolves around web width, print speed, repeat length, and station configuration. These parameters must align strictly with the intended substrate and end-use application to ensure operational efficiency.

• Web Width & Application Segmentation:
  • Narrow-Web: 200–420 mm. Ideal for pressure-sensitive labels and shrink sleeves.
  • Mid-Web: 420–800 mm. Best suited for flexible pouches, laminates, and medium-width labels.
  • Wide-Web: 800–2000+ mm. Required for corrugated preprint, wide films, and large-format packaging.
• Operational Speed:
  • Narrow-web systems typically operate at 50–350 m/min.
  • Mid-web systems generally range from 30–250 m/min.
  • Wide-web systems operate at 10–200 m/min, prioritizing stability over raw speed.
• Registration Accuracy:
  • Standard industry performance requires a register accuracy of ±0.05–0.15 mm. Systems falling outside this range may struggle with high-definition graphics or multi-color registration on unstable substrates.

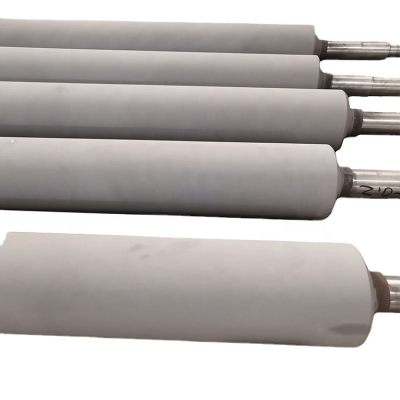

• Anilox Roll Selection:
  • The volumetric ink transfer capability is critical. Common line screen densities range from 200–800 LPI (Lines Per Inch). Lower LPI (200–300) is used for heavy coverage on rough substrates, while higher LPI (600–800) is necessary for fine detail and thin films.
• Utility Requirements:
  • Power: 3-phase 400 V supply is standard.
  • Capacity: Power consumption typically ranges from 20–200 kW, depending on the number of stations and drying capacity.

Procurement Recommendation: Before shortlisting OEMs, calculate the "Total Cost of Ownership" based on the specific repeat length of your most frequent job. Ensure the selected press has a repeat length capability that exceeds your maximum job length by at least 10% to allow for register adjustments. Verify that the anilox roll inventory matches the LPI requirements of your target substrate portfolio.

2. Industry Compliance and Quality Assurance

Quality assurance in flexography is no longer just about visual inspection; it is increasingly tied to standardized process controls. Procurement must prioritize machinery that supports or enables compliance with rigorous industry standards.

• ProcessStandard Flexo (PSF):
  • The ProcessStandard Flexo (PSF) is a scientifically sound certification framework developed by Fogra. It aligns with the current state of the art and reflects real-world printing conditions.
  • Significance: Obtaining PSF certification demonstrates that a printing company (or the machinery it uses) complies with standardization requirements for efficient production and high-quality results.
  • Implementation: The standard was developed with support from Fogra's network of printers, manufacturers, and agencies, ensuring practical applicability.
• Certification Implications:
  • Machinery that facilitates PSF compliance often includes advanced closed-loop registration systems, automated ink viscosity control, and standardized color management workflows.
  • Compliance reduces waste during makeready and ensures consistent color density across production runs.

Procurement Recommendation: Select equipment from OEMs that explicitly state their machines are "PSF-ready" or certified to support Fogra's ProcessStandard Flexo guidelines. During the vendor evaluation phase, request documentation showing how the machine's control systems (e.g., color bars, registration sensors) map to PSF requirements. This ensures your facility can achieve certification, which is a growing differentiator for high-end packaging clients.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in flexography is driven by makeready time reduction, substrate waste minimization, and energy consumption. Integration capabilities determine how well the new press fits into existing prepress and post-press workflows.

• Makeready & Waste Reduction:
  • Modern flexo presses with digital plate mounting and automatic registration can reduce makeready time by 30–50% compared to manual systems.
  • Expected substrate waste per job can be reduced from 15–20 meters (traditional) to 2–5 meters (automated).
• Energy Efficiency:
  • With utility capacities ranging from 20–200 kW, energy-efficient drying systems (e.g., UV-LED or optimized hot air) can reduce power consumption by 15–25% over legacy thermal drying units.
• Integration Capabilities:
  • Prepress: Must support digital plate imaging workflows (CTP) with file formats compatible with modern RIP software.
  • Post-Press: Integration with die-cutting, slitting, and laminating units should be seamless to minimize material handling.
  • Data Connectivity: Look for Industry 4.0 readiness (OPC UA, MQTT) to enable real-time monitoring of speed, temperature, and ink usage.

Procurement Recommendation: Conduct a "Total Cost of Ownership" (TCO) analysis over a 5-year horizon. Do not focus solely on the purchase price; factor in the cost of substrate waste during the first 6 months of operation. Prioritize OEMs that offer modular integration packages, allowing you to add post-press stations (e.g., varnishing, die-cutting) later without replacing the core press.

4. Typical Use Cases

Flexographic printing is highly versatile, with specific machine configurations optimized for distinct market segments.

• Label & Shrink Sleeve Production:
  • Machine Type: Narrow-web (200–420 mm).
  • Speed: 50–350 m/min.
  • Substrates: PET, PP, PE, Paper, Foil.
  • Application: Beverage labels, cosmetic packaging, promotional shrink sleeves.
• Flexible Packaging & Pouches:
  • Machine Type: Mid-web (420–800 mm).
  • Speed: 30–250 m/min.
  • Substrates: Laminates, metallized films, paper-based flexible packs.
  • Application: Food pouches, stand-up bags, medical packaging.
• Corrugated Preprint & Wide Film:
  • Machine Type: Wide-web (800–2000+ mm).
  • Speed: 10–200 m/min.
  • Substrates: Corrugated board, wide plastic films.
  • Application: Corrugated boxes (pre-printed), industrial wrapping, wide-format graphics.

Procurement Recommendation: Match the machine width strictly to your highest volume product. If you anticipate a mix of narrow and mid-web jobs, consider a mid-web press with a variable web width capability, though this may compromise speed. Avoid over-specifying (e.g., buying wide-web for label jobs) as it leads to unnecessary capital expenditure and higher energy costs per meter.

5. Long-Term Planning Considerations

The flexographic market is evolving towards sustainability, digitalization, and higher print quality. Procurement strategies must account for these trends to avoid premature obsolescence.

• Market Trends & Demand Signals:
  • Sustainability: There is a rising demand for water-based inks and mono-material substrates. Procure presses capable of handling low-viscosity inks and UV-LED curing to meet eco-compliance.
  • Short Runs: The "mass customization" trend is driving demand for faster makeready and digital plate technologies.
  • Quality Convergence: Flexo is increasingly competing with offset and digital for high-end graphics, requiring higher LPI anilox rolls (up to 800 LPI) and tighter registration tolerances.
• Scalability:
  • Plan for future expansion by selecting a chassis that can accommodate additional printing stations (e.g., adding a 7th or 8th station) without major structural changes.
• Obsolescence Risk:
  • Avoid proprietary control systems that lock you into a single OEM for software updates. Open architecture systems ensure longevity.

Procurement Recommendation: Adopt a "future-proofing" strategy by purchasing a press with a modular design that allows for the addition of digital inspection systems and UV-LED curing units later. Ensure the OEM has a roadmap for software updates that supports emerging sustainability standards (e.g., PSF compliance) for at least 7–10 years.

6. Special Product Recommendations

The following table compares flexographic press types to assist in selecting the right equipment based on buyer profile and specific needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Narrow-Web Press | Label & Sleeve Specialists | 200–420 mm width; 50–350 m/min; ±0.1 mm register | High wear on anilox rolls due to high speed | Prioritize automatic anilox washing systems to reduce downtime. | | Mid-Web Press | Flexible Packaging Manufacturers | 420–800 mm width; 30–250 m/min; 20–100 kW power | Complex lamination integration | Ensure the press has a dedicated tension control zone for multi-layer films. | | Wide-Web Press | Corrugated & Film Producers | 800–2000+ mm width; 10–200 m/min; 100–200 kW power | High energy consumption; large footprint | Verify utility capacity (3-phase 400V) at the facility site before ordering. | | PSF-Certified System | High-End Quality Seekers | Fogra PSF compliant; Advanced color management | Higher initial CAPEX | Negotiate a service contract that includes PSF audit support and calibration. |

Procurement Recommendation: For buyers targeting the premium packaging market, the PSF-Certified System is the recommended choice despite the higher initial cost, as it reduces long-term waste and ensures compliance with major brand owner requirements. For high-volume label producers, the Narrow-Web Press with automated anilox handling offers the best ROI.

7. Frequently Asked Questions (FAQ)

Q1: What is the typical registration accuracy I should expect from a new flexo press? A: Industry standard performance for modern flexographic presses is ±0.05–0.15 mm. If a machine cannot consistently hold within this range, it may struggle with high-definition graphics or multi-color registration on unstable substrates.

Q2: How do I determine the correct web width for my business? A: Match the web width to your substrate and end-use: 200–420 mm for labels/shrink sleeves, 420–800 mm for pouches/laminates, and 800–2000+ mm for corrugated preprint and wide films.

Q3: What is the ProcessStandard Flexo (PSF) and why does it matter? A: PSF is a certification by Fogra that ensures a printing company's process complies with standardization requirements. It is scientifically sound, reflects real-world conditions, and guarantees efficient production and high-quality results.

Q4: What are the typical utility requirements for a flexographic press? A: Most flexo presses require a 3-phase 400 V power supply. Power consumption typically ranges from 20–200 kW, depending on the number of stations and drying capacity.

Q5: What anilox roll line screen (LPI) should I select? A: Common line screen densities range from 200–800 LPI. Use lower LPI (200–300) for heavy coverage on rough substrates and higher LPI (600–800) for fine detail and thin films.

Q6: How does PSF certification impact my procurement decision? A: Selecting machinery that supports PSF compliance ensures you can achieve certification, which is a key differentiator for high-end clients and reduces waste during production runs.

Q7: What is the typical speed range for narrow-web flexo presses? A: Narrow-web presses (200–420 mm) typically operate at speeds between 50–350 m/min, making them ideal for high-volume label and sleeve production.

Q8: Can I upgrade a mid-web press to handle wider substrates later? A: Generally, no. Web width is a fixed mechanical constraint. You should select a mid-web press (420–800 mm) based on your maximum required width at the time of purchase, as upgrading the frame is not feasible.
