Flywheel Procurement Report

1. Technical Specifications and Performance Metrics

Procurement of flywheels requires a precise alignment between the application domain (automotive vs. training) and physical inertia requirements. Based on industry standards, the technical parameters vary significantly between these two primary categories.

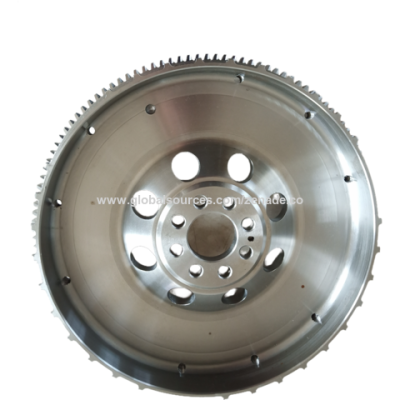

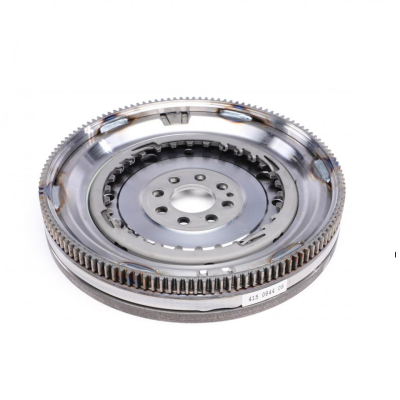

Automotive/Industrial Flywheels:

• Dimensions: Outer Diameter (OD) typically ranges from 80 mm to 400 mm. Thickness is generally between 6 mm and 40 mm.
• Precision: Critical for high-speed rotation; runout must be maintained within 0.03 mm to 0.08 mm.
• Bore Tolerance: Standard bore fit is H7 or better to ensure proper shaft engagement.
• Torque Capacity: Ranges from 150 Nm for light-duty applications to 3,000+ Nm for heavy-duty vehicle classes.
• Inertia/Mass: Must be calculated based on the specific transmission type and target engine torque. Procurement must specify the vehicle class to lock in the exact mass/inertia profile.

Flywheel Training Equipment:

• Resistance Mechanism: Utilizes motorized flywheel technology or traditional inertial loading.
• Load Vectors: Advanced systems offer versatile loading bases to unlock different resistance vectors (horizontal, vertical, diagonal).
• Sensors: Integrated sensors for quantifying work (power, velocity, force) are now standard, often bundled with the unit rather than sold separately.
• Performance Metrics: Systems typically quantify work in Joules or Watts, with data transmission capabilities to laptops or tablets.

Actionable Recommendation: Before issuing a Request for Quotation (RFQ), define the application scenario first. For automotive parts, explicitly state the transmission type and target engine torque to narrow the search to a specific inertia class. For training equipment, prioritize systems with integrated sensor packages to avoid the additional cost of $300–$1,000 USD for standalone sensor units.

2. Industry Compliance and Quality Assurance

Ensuring quality assurance in flywheel procurement involves verifying material integrity and dimensional precision, particularly for high-torque applications.

• Dimensional Accuracy: For automotive flywheels, adherence to runout limits (0.03–0.08 mm) is non-negotiable to prevent vibration and premature wear. Bore tolerance must strictly meet H7 standards.
• Material Standards: While specific certification names are not provided in the context, industrial flywheels typically require high-grade steel or cast iron with heat treatment to withstand cyclic loading.
• Training Equipment Safety: Systems must undergo stress testing for structural integrity under maximum load vectors.
• Integration Quality: For training units, the integration of sensors and software must be robust to ensure data accuracy.

Actionable Recommendation: Require suppliers to provide a Certificate of Conformance (CoC) detailing runout measurements and bore tolerance verification. For training equipment, verify that the sensor data is validated against known standards before purchase. Avoid suppliers who sell sensors as a mandatory separate add-on if a bundled package is available, as this often indicates a fragmented quality control process.

3. Cost Efficiency and Integration Capabilities

Cost analysis must account for the total cost of ownership (TCO), including shipping, accessories, and integration complexity.

• Base Unit Pricing:
  • Training Systems: Range from $2,000 to $5,000 USD.
  • Standalone Sensors: If not bundled, cost an additional $300 to $1,000 USD.
• Accessories: Waist belts, torso harnesses, and portable mounting racks are essential for force-vector driven patterns and should be factored into the budget.
• Logistics: Shipping costs are a variable factor, potentially adding $0 to $200+ USD to the final price depending on the supplier's location and the weight of the unit.
• Integration: Modern training systems offer "all-in-one" packages where sensors connect directly to tablets or laptops, reducing integration time. Automotive flywheels require precise machining integration with the engine block.

Actionable Recommendation: Negotiate a "turnkey" package for training equipment that includes the flywheel, sensors, mounting rack, and harnesses to minimize the risk of compatibility issues and hidden sensor costs. For automotive parts, request a detailed breakdown of machining tolerances to ensure the part fits the existing transmission without requiring costly re-machining. Always factor in a $200 buffer for shipping in the initial budget.

4. Typical Use Cases

Flywheels serve distinct roles in two primary sectors:

• Automotive & Industrial Powertrains:

  • Function: Stores rotational energy to smooth out engine power delivery, reduce vibration, and assist in starting the engine.
  • Scenarios: Passenger vehicles, heavy-duty trucks, and industrial machinery requiring consistent torque output.
  • Key Requirement: High torque capacity (150–3,000+ Nm) and precise mass distribution.

• Sports Science & Rehabilitation (Flywheel Training):

  • Function: Provides eccentric overload training to build muscle strength and power.
  • Scenarios: Athletic performance training, physical therapy, and rehabilitation centers.
  • Key Requirement: Versatile resistance vectors (horizontal/vertical) and quantifiable data for progress tracking.

Actionable Recommendation: Align the procurement strategy with the specific use case. Do not purchase a heavy-duty automotive flywheel for training purposes, nor a training flywheel for engine applications. For training centers, prioritize systems that allow for "force-vector driven patterns" to maximize athlete engagement.

5. Long-Term Planning Considerations

Market trends indicate a shift toward smart, data-driven equipment and modular designs.

• Market Demand Signals: There is a growing demand for flywheel training systems that integrate directly with digital platforms for remote coaching and data analysis. The trend is moving away from isolated sensors toward integrated ecosystems.
• Technology Evolution: Motorized flywheel technology is gaining traction in the training sector, offering more versatile loading bases compared to traditional inertial models.
• Durability & Maintenance: Automotive flywheels are high-wear items; procurement should consider the lifecycle cost of replacement. Training equipment should be selected for durability under high-frequency use.
• Supply Chain Stability: Given the variability in shipping costs, diversifying suppliers or negotiating fixed-rate shipping terms is advisable for long-term contracts.

Actionable Recommendation: Future-proof training equipment purchases by selecting systems with open API or software compatibility to ensure they remain relevant as coaching software evolves. For automotive parts, establish a relationship with suppliers who can guarantee consistent H7 bore tolerances over time to avoid fitment issues in future vehicle models.

6. Special Product Recommendations

The following table compares the two primary flywheel categories to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Automotive Flywheel | OEMs, Auto Repair Shops, Racing Teams | OD: 80–400mm; Torque: 150–3,000+ Nm; Runout: <0.08mm | High risk of fitment error if bore tolerance is not H7 | Specify transmission type and engine torque explicitly; verify runout certification. | | Motorized Training Flywheel | Gyms, Sports Clinics, Rehabilitation Centers | Integrated Sensors; Vector Loading; Price: $2k–$5k | Risk of software incompatibility with existing tablets | Prioritize "all-in-one" bundles; avoid separate sensor purchases to save $300–$1k. | | Traditional Inertial Training Flywheel | Budget-Conscious Clinics, Home Gyms | Manual Loading; Basic Rack; Price: <$2k | Lower data granularity; requires manual calculation | Ensure the rack is portable; verify the weight stack compatibility. |

Actionable Recommendation: For buyers seeking advanced training capabilities, the Motorized Training Flywheel is the superior choice despite the higher upfront cost, as it eliminates the need for separate sensor purchases and offers superior vector versatility. For automotive needs, strictly adhere to the H7 bore and 0.08 mm runout specifications to prevent mechanical failure.

7. Frequently Asked Questions (FAQ)

Q1: How do I determine the correct flywheel mass and inertia for my vehicle? A: You must first specify the application (vehicle class), transmission type, and target engine torque. The mass and inertia are then locked in based on these parameters, with torque capacities ranging from 150 Nm to 3,000+ Nm.

Q2: What is the typical price range for a complete flywheel training system? A: A complete system typically ranges from $2,000 to $5,000 USD. This often includes the flywheel, sensors, and mounting hardware. Standalone sensors can cost an additional $300 to $1,000 USD if not bundled.

Q3: What are the critical dimensional tolerances for an automotive flywheel? A: The outer diameter should be between 80 mm and 400 mm, with a thickness of 6 mm to 40 mm. Crucially, runout must be within 0.03–0.08 mm, and the bore tolerance should be H7 or better.

Q4: Are shipping costs usually included in the quoted price? A: Not necessarily. Shipping costs can vary from free to $200+ USD depending on the supplier and the weight of the flywheel. Always request a landed cost estimate.

Q5: Can I buy the sensors for flywheel training equipment separately? A: Yes, standalone sensors can range from several hundred to $1,000 USD. However, modern trends favor integrated packages to ensure compatibility and simplify setup.

Q6: What is the difference between motorized and traditional flywheel training systems? A: Motorized systems (e.g., Exerfly) offer versatile loading bases that unlock different resistance vectors and often include advanced motorized technology, whereas traditional systems rely on fixed inertial loads.

Q7: How does the flywheel thickness affect its performance? A: Thickness (typically 6–40 mm) directly influences the moment of inertia and energy storage capacity. Thicker flywheels generally store more energy but add weight to the rotating assembly.

Q8: What accessories are essential for a complete flywheel training setup? A: Essential accessories include waist belts or torso harnesses for safety and force transfer, as well as a rack or portable mount option to facilitate horizontal and force-vector driven patterns.
