Procurement Report: Frequency Meter

Product Category: Industrial Measurement & Control Instruments (Frequency Meters)

1. Technical Specifications and Performance Metrics

When sourcing frequency meters, procurement decisions must be grounded in precise technical parameters to ensure compatibility with existing power systems and measurement requirements. The core functionality revolves around the accurate measurement of AC power system frequencies.

• Frequency Range: The standard operational range for single-phase AC power systems is 45 Hz to 65 Hz. This covers the typical 50 Hz and 60 Hz grid standards globally.
• Input Voltage Compatibility: Most industrial units support input voltages ranging from 100V to 480V AC, with some high-voltage models extending up to 690V.
• Accuracy Class: B2B buyers should target instruments with an accuracy class of ±0.1% to ±0.5% of the reading. High-precision applications may require ±0.05%.
• Response Time: For dynamic grid monitoring, response times should be < 1 second. Standard panel meters typically operate within 1 to 3 seconds.

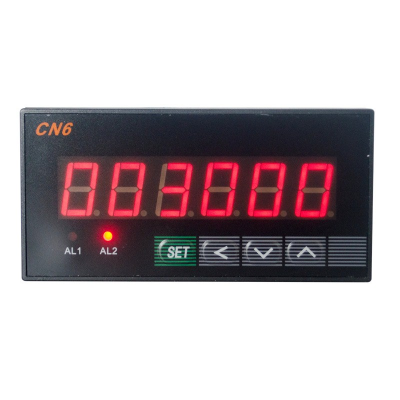

• Form Factor: The industry standard for panel mounting is the 96x96mm square format, though 72x72mm and 48x48mm are common for compact control panels.
• Display Resolution: Digital displays should offer at least 3.5 digits (e.g., 1999 counts) or 4.5 digits for high-precision needs.

Actionable Recommendation: Before finalizing a purchase, verify the physical dimensions of the meter against the cut-out size of the target control panel. Mismatches in form factor (e.g., 96x96mm vs. 72x72mm) can lead to costly retrofitting or installation delays.

2. Industry Compliance and Quality Assurance

Quality assurance in the frequency meter sector is heavily influenced by international safety and electromagnetic compatibility standards. Procurement teams must prioritize suppliers who can demonstrate adherence to these frameworks to mitigate liability and ensure grid safety.

• Certification Standards:
  • CE Marking: Essential for European markets, indicating compliance with Low Voltage Directive (LVD) and EMC directives.
  • ISO 9001: Indicates the manufacturer has a certified quality management system.
  • IEC Standards: Look for compliance with IEC 60044 (Instrument Transformers) and IEC 61010 (Safety requirements for electrical equipment).
• Calibration Standards: Suppliers should provide traceable calibration certificates against national standards (e.g., NIST, PTB).
• Durability Metrics: Industrial-grade units typically feature an operating temperature range of -20°C to +60°C and should withstand humidity levels up to 95% RH (non-condensing).
• Mean Time Between Failures (MTBF): High-quality digital frequency meters often boast an MTBF of >50,000 hours.

Actionable Recommendation: Request a copy of the CE certificate and the specific calibration report for the batch being ordered. Do not accept "self-declared" compliance without third-party verification documentation, especially for projects in regulated industries like energy or aerospace.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in B2B procurement extends beyond the unit price to include integration costs, scalability, and total cost of ownership (TCO).

• Pricing Structure:
  • MOQ (Minimum Order Quantity): Typical B2B ranges are 10 to 50 units for standard models, with lower MOQs (1-5 units) available for custom or prototype orders at a premium.
  • Unit Cost Range: Standard digital frequency meters typically range from $45 to $150 USD per unit, depending on accuracy and features.
  • Lead Time: Standard stock items usually have a lead time of 2 to 4 weeks. Customized units (e.g., vertical reed switches or specific voltage ratings) may require 6 to 8 weeks.
• Integration Capabilities:
  • Output Interfaces: Look for models offering 4-20mA analog outputs, RS-485 (Modbus RTU), or Ethernet for SCADA integration.
  • Power Supply: Units should support wide-range DC power inputs (e.g., 24V DC ±10%) to simplify wiring in control cabinets.
• Installation: Panel-mount designs with screw terminals reduce wiring time by 30-40% compared to soldered connections.

Actionable Recommendation: Negotiate tiered pricing based on volume. If the project requires SCADA integration, prioritize models with RS-485/Modbus support over simple analog displays to reduce long-term software integration costs.

4. Typical Use Cases

Frequency meters are critical components in infrastructure where grid stability and power quality are paramount.

• Power Generation & Distribution: Monitoring generator output frequency to ensure synchronization with the main grid (50/60 Hz).
• Industrial Automation: Ensuring motor drives and variable frequency drives (VFDs) operate within safe frequency limits to prevent equipment damage.
• Renewable Energy Systems: Tracking frequency stability in solar inverters and wind turbine control panels.
• Data Centers: Monitoring UPS (Uninterruptible Power Supply) output frequency to ensure critical loads are protected from grid fluctuations.
• Marine & Offshore: Utilizing ruggedized meters to monitor shipboard power generation systems.

Actionable Recommendation: For renewable energy applications, select meters with a wider frequency response range (e.g., 40-70 Hz) to accommodate transient spikes common in solar and wind inverters.

5. Long-Term Planning Considerations

Strategic procurement requires anticipating market shifts and technological evolution in power measurement.

• Market Trends: There is a growing demand for smart meters with IoT connectivity and cloud integration. Traditional analog or basic digital meters are being phased out in favor of devices that provide real-time data analytics.
• Grid Modernization: As grids become more decentralized with distributed energy resources (DERs), the need for high-precision, fast-response frequency meters is increasing to manage frequency deviations.
• Sustainability: Procurement should favor manufacturers with energy-efficient designs and recyclable packaging to meet corporate ESG (Environmental, Social, and Governance) goals.
• Supply Chain Resilience: Diversify suppliers across different geographic regions to mitigate risks associated with semiconductor shortages or regional logistics disruptions.

Actionable Recommendation: Prioritize vendors who offer firmware upgradability. This ensures that the hardware can adapt to new communication protocols (e.g., Modbus TCP to MQTT) without requiring a full hardware replacement.

6. Special Product Recommendations

The following table compares common frequency meter configurations to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Panel Meter | General Manufacturing, HVAC | 45-65 Hz, ±0.5% Acc, 96x96mm | Low (Commodity) | Verify panel cut-out dimensions before ordering. | | High-Precision Digital | Power Plants, Labs | ±0.1% Acc, 4.5 Digits, RS-485 | Medium (Calibration drift) | Request calibration certificate for every batch. | | Custom Vertical Reed | Specialized OEMs | Custom voltage, Reed switch output | High (Lead time) | Confirm lead time (6-8 weeks) and customization costs early. | | IoT-Enabled Smart Meter | Smart Grid, Data Centers | 4-20mA + Ethernet, Cloud API | Medium (Cybersecurity) | Ensure vendor supports secure data protocols. |

Actionable Recommendation: For large-scale rollouts, request a sample unit for a "field test" to validate performance under actual load conditions before committing to the full order volume.

7. Frequently Asked Questions (FAQ)

Q1: What is the standard frequency range I should look for? A: The industry standard for single-phase AC power systems is 45 Hz to 65 Hz, which covers both 50 Hz and 60 Hz grid frequencies.

Q2: How do I ensure the meter fits my control panel? A: You must verify the physical dimensions. The most common form factor is 96x96mm, but 72x72mm and 48x48mm are also available. Always measure the panel cut-out before purchasing.

Q3: Are CE certification and ISO 9001 mandatory? A: While not legally mandatory in all jurisdictions, CE certification is required for the European market, and ISO 9001 is a strong indicator of a manufacturer's quality management system. Most B2B buyers require these for compliance.

Q4: What is the typical lead time for a custom frequency meter? A: Standard stock items typically have a lead time of 2 to 4 weeks. Customized units, such as those with vertical reed switches or specific voltage ratings, may require 6 to 8 weeks.

Q5: Can these meters integrate with SCADA systems? A: Yes, many modern digital frequency meters offer RS-485 (Modbus RTU) or 4-20mA outputs specifically designed for integration with SCADA and PLC systems.

Q6: What is the typical accuracy range for industrial use? A: For general industrial applications, an accuracy of ±0.5% is standard. For critical power monitoring, ±0.1% or better is recommended.

Q7: What is the typical Minimum Order Quantity (MOQ)? A: Typical B2B MOQs range from 10 to 50 units for standard models. Lower quantities may be available for custom orders but often at a higher unit cost.

Q8: How durable are these meters in harsh environments? A: Industrial-grade meters typically operate in temperatures ranging from -20°C to +60°C and are designed to withstand humidity levels up to 95% RH (non-condensing).
