Procurement Report: Fresnel Lenses

Product Category: Optical Components / Precision Lenses Subject: Strategic Sourcing and Technical Analysis of Fresnel Lenses

1. Technical Specifications and Performance Metrics

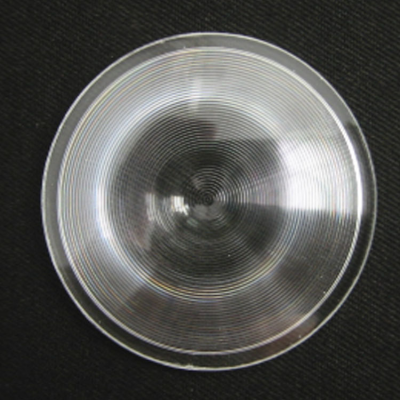

Fresnel lenses are characterized by a series of concentric grooves that replicate the optical power of a traditional plano-convex lens while significantly reducing thickness and weight. Procurement decisions must prioritize the trade-off between optical efficiency and physical form factor.

• Focal Length Range: Standard stock catalogues typically offer focal lengths ranging from 3 mm to 650 mm. Custom orders can extend beyond these limits, with dimensions available up to 1000 mm or larger.
• Efficiency and Transmission: A critical performance metric is the mitigation of "draft losses." Unlike standard lenses, Fresnel lenses suffer from light scattering or blocking at the vertical step faces (drafts). High-quality manufacturing minimizes the draft angle to maximize transmission efficiency. Buyers should specify lenses with optimized draft angles to ensure minimal light loss.
• Imaging Quality vs. Artifacts: For applications requiring high-fidelity imaging (e.g., VR headsets, cameras), the visibility of concentric rings and "ghost images" caused by scattering at the steps is a primary concern. The groove pitch must be balanced against diffraction limits to prevent visible artifacts.
• Optical Conjugates: Lenses are often optimized for specific conjugate ratios.
  • Infinite Conjugate: Optimized for collimated light to a focal point (e.g., spotlights, solar concentrators).
  • Finite Conjugate: Optimized for point-to-point imaging.
  • Risk: Using a lens designed for infinite conjugates in a 1:1 imaging setup will result in significant aberrations.

Actionable Recommendation: When requesting quotes, explicitly define the required conjugate ratio (e.g., "infinite to finite" or "1:1 imaging") and the acceptable tolerance for groove pitch to ensure the lens meets the specific application's resolution requirements.

2. Industry Compliance and Quality Assurance

While specific certification names (e.g., ISO 9001) are not explicitly detailed in the provided context, the industry standard for high-quality Fresnel lenses relies on manufacturing precision to minimize optical artifacts.

• Manufacturing Precision: The primary quality assurance metric is the control of the "draft angle." High-quality suppliers minimize this angle to reduce scattering. Procurement should require suppliers to provide data on surface roughness and groove accuracy.
• Material Consistency: Standard stock lenses are typically available in various optical plastics (e.g., PMMA, Polycarbonate). Buyers must verify material homogeneity to prevent internal scattering that exacerbates the "ring" artifacts mentioned in technical performance.
• Customization Capability: The ability to produce custom dimensions (up to 1000 mm+) indicates a supplier's capacity for quality control over large-format optics.

Actionable Recommendation: Include a clause in the Request for Quotation (RFQ) requiring a sample batch for "draft loss" testing. Request a certificate of conformance that explicitly states the maximum draft angle and groove pitch tolerance to ensure the supplier can meet the efficiency standards required for your specific application.

3. Cost Efficiency and Integration Capabilities

Fresnel lenses offer a distinct cost advantage over traditional glass lenses due to reduced material usage and weight, which lowers shipping costs and simplifies mounting structures.

• Material Savings: By replacing a thick glass lens with a thin plastic Fresnel equivalent, material costs can be reduced by 50–70% depending on the focal length and diameter.
• Weight Reduction: The profile reduction significantly lowers the weight, which is critical for mobile applications (drones, handheld devices) where structural load is a constraint.
• Integration Complexity: While the lens itself is lightweight, the integration requires careful alignment. The "draft losses" and potential for ghosting mean that optical alignment tolerances may be tighter than with standard lenses in high-precision imaging scenarios.
• MOQ and Lead Time: Standard stock lenses (3 mm – 650 mm focal lengths) generally have lower Minimum Order Quantities (MOQ) and shorter lead times. Custom lenses (dimensions >1000 mm) will incur higher MOQs and extended lead times due to the specialized tooling required.

Actionable Recommendation: Conduct a total cost of ownership (TCO) analysis that includes mounting hardware savings. For high-volume production, prioritize standard stock lenses with focal lengths within the 3 mm to 650 mm range to leverage existing tooling and reduce lead times. For custom large-format needs, budget for a longer procurement cycle.

4. Typical Use Cases

Based on industry applications, Fresnel lenses are deployed in scenarios requiring lightweight, large-aperture optics or specific light concentration.

• Solar Concentration: Reverse configuration Fresnel lenses are ideal for solar concentration applications, focusing sunlight onto photovoltaic cells or thermal receivers.
• Imaging and Display: Used in VR headsets, cameras, and projection systems where thin form factors are essential. However, buyers must carefully evaluate the "ring" artifacts in these high-resolution applications.
• Lighting and Signage: Standard applications include LED collimators, traffic signals, and large-area illumination where weight and cost are prioritized over diffraction-limited imaging.
• Custom Large-Scale Optics: Applications requiring dimensions over 1000 mm, such as large-scale light collectors or architectural lighting solutions.

Actionable Recommendation: Map the specific application to the lens configuration. For solar, specify "reverse configuration." For imaging, prioritize suppliers with proven track records in minimizing "ghost images" and explicitly request groove pitch data to ensure compatibility with the sensor resolution.

5. Long-Term Planning Considerations

The market for Fresnel lenses is driven by the demand for miniaturization in consumer electronics and the efficiency needs of renewable energy.

• Market Trends: There is a growing demand for high-efficiency solar concentrators and compact optical systems in AR/VR devices. This drives the need for lenses with minimized draft angles to improve transmission efficiency.
• Technology Evolution: As manufacturing techniques improve, the visibility of "draft losses" and "ring artifacts" is expected to decrease, allowing for broader adoption in high-end imaging. Procurement strategies should anticipate a shift toward higher groove density lenses.
• Supply Chain Resilience: Since custom lenses can be produced up to 1000 mm+, suppliers with large-scale molding capabilities are strategic partners. Diversifying suppliers between standard stock providers and custom manufacturers ensures continuity.
• Demand Signals: The expansion of renewable energy sectors and the proliferation of wearable tech suggest sustained demand for both standard and custom Fresnel lenses.

Actionable Recommendation: Establish relationships with suppliers capable of both standard and custom production to hedge against supply chain volatility. Monitor advancements in molding technology that reduce draft angles, as this will become a key differentiator in future procurement cycles.

6. Special Product Recommendations

The following table compares common Fresnel lens configurations to assist in selecting the right product for specific buyer needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Standard Stock | General Lighting, Signage | Focal Length: 3–650 mm; Diameter: Standard sizes | Moderate: Potential for visible rings in high-res imaging | Order from stock to minimize lead time; verify draft angle specs. | | Reverse Configuration | Solar Energy, Thermal Systems | High Concentration Ratio; Optimized for collimated input | Low: Specific to solar; less versatile for imaging | Ensure compatibility with solar cell geometry; prioritize transmission efficiency. | | Cylindrical Fresnel | Line Lighting, Barcode Scanners | Focuses light in one dimension; Linear profile | Moderate: Astigmatism if not aligned correctly | Verify orientation requirements; check for uniformity across the linear axis. | | Custom Large Format | Architectural, Large-Scale Collectors | Dimensions: >1000 mm; Custom Focal Lengths | High: Tooling costs and longer lead times | Request samples for large-scale uniformity; confirm MOQs and lead times early. | | High-Precision Imaging | VR, Cameras, Microscopy | Fine Groove Pitch; Minimized Draft Angle | High: Ghosting and diffraction artifacts | Require detailed optical simulation data; test for "ring" visibility before bulk order. |

7. Frequently Asked Questions (FAQ)

Q1: What is the primary difference between a standard lens and a Fresnel lens regarding efficiency? A: Standard lenses suffer less from scattering at step faces, whereas Fresnel lenses experience "draft losses" where light hits the vertical step faces and is scattered or blocked. High-quality Fresnel lenses minimize the draft angle to improve efficiency.

Q2: Can Fresnel lenses be used for high-resolution imaging like VR headsets? A: Yes, but with caveats. Buyers must balance the groove pitch with diffraction limits. The visibility of rings and "ghost images" caused by scattering at the steps is a critical factor that must be evaluated against the application's resolution requirements.

Q3: What is the typical range of focal lengths available for standard stock Fresnel lenses? A: Standard stock catalogues typically offer focal lengths ranging from 3 mm to 650 mm. Custom lenses can be produced with focal lengths outside this range.

Q4: Are Fresnel lenses optimized for all types of optical conjugates? A: No. Fresnel lenses are often optimized for specific conjugates (e.g., collimated light to focus). Using a lens designed for infinite conjugates in a 1:1 imaging setup will likely result in performance issues. Always specify the required conjugate ratio.

Q5: What is the maximum size available for custom Fresnel lenses? A: Custom Fresnel lenses are available with dimensions of 1000 mm or more, making them suitable for large-scale applications.

Q6: How do I mitigate the "ring" artifacts in Fresnel lenses? A: Mitigation involves selecting lenses with a finer groove pitch and minimizing the draft angle during manufacturing. Buyers should request samples to visually inspect for artifacts before committing to a large order.

Q7: What are the most common applications for reverse configuration Fresnel lenses? A: Reverse configuration Fresnel lenses are ideal for solar concentration applications, where they focus light onto a specific target area efficiently.

Q8: How does the weight of a Fresnel lens compare to a traditional glass lens? A: Fresnel lenses are significantly thinner and lighter due to the removal of material between the grooves, offering substantial weight savings which is beneficial for mobile and aerospace applications.
