Procurement Report: Fresnel Lenses

Product Category: Optical Components / Precision Lenses

1. Technical Specifications and Performance Metrics

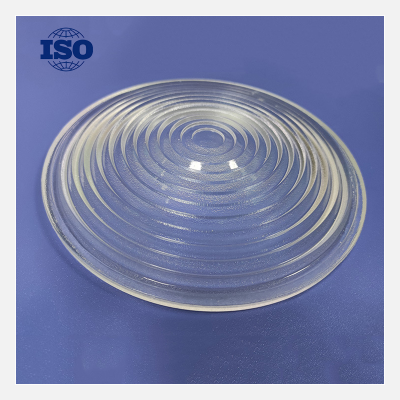

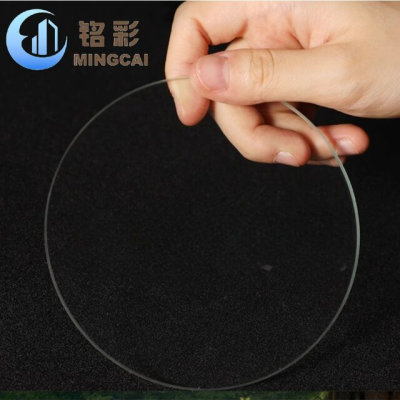

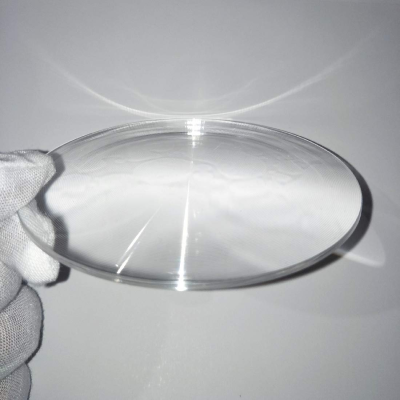

Fresnel lenses represent a specialized optical compromise, trading continuous surface curvature for a stepped, concentric ring design. This architecture significantly reduces weight and material volume while maintaining the ability to focus light. Procurement decisions must prioritize groove density and material refractive index to balance image quality against light transmission efficiency.

• Groove Density: Ranges from 5 to 50 grooves per millimeter (grooves/mm).
  • Low Density (5–15 grooves/mm): Optimized for high light transmission and wide-angle coverage (e.g., PIR sensors, solar concentrators).
  • High Density (20–50+ grooves/mm): Required for high-resolution imaging, VR headsets, and projection systems where diffraction artifacts must be minimized.
• Focal Length (FL): Typically available from 10 mm to 500 mm, with custom options extending beyond 1 meter.
• Diameter: Standard off-the-shelf sizes range from 20 mm to 300 mm, with custom manufacturing capabilities for diameters up to 1 meter+.
• Material Refractive Index: Standard optical plastics (PMMA, Polycarbonate) typically range from 1.49 to 1.59.
• Transmission Efficiency: Generally 85% to 95% depending on anti-reflective (AR) coating application.
• Surface Accuracy: Tolerance typically ±0.1 mm to ±0.5 mm for focal length and concentricity.

Actionable Recommendation: For applications requiring high image fidelity (e.g., VR/AR), strictly specify groove densities above 20 grooves/mm and request AR coatings to mitigate the inherent "stepped" diffraction effects. For motion detection or solar applications, prioritize low groove density (under 15 grooves/mm) to maximize light gathering and coverage area. Always verify the "sag" depth of the lens steps during the prototyping phase to ensure mechanical fitment.

2. Industry Compliance and Quality Assurance

While specific named certifications were not provided in the source context, the procurement of Fresnel lenses for commercial and industrial use generally requires adherence to standard optical and material safety protocols. The stepped design introduces unique quality control challenges regarding groove uniformity and surface defects.

• Material Safety: Most standard lenses are manufactured from PMMA (Acrylic) or Polycarbonate, which must comply with RoHS (Restriction of Hazardous Substances) and REACH regulations for electronic and consumer applications.
• Optical Quality Standards: Buyers should request compliance with ISO 10110 (Optics and optical instruments) for drawing and manufacturing tolerances, specifically focusing on surface quality (scratch-dig) and wavefront error.
• Thermal Stability: For outdoor or high-intensity applications, lenses must demonstrate resistance to UV degradation and thermal expansion, typically rated for operating temperatures between -40°C to +85°C.
• Customization Capabilities: Suppliers should demonstrate the ability to produce custom specifications, including non-standard focal lengths, specific groove profiles, and custom mounting features.

Actionable Recommendation: Require suppliers to provide a Certificate of Conformance (CoC) detailing material composition and UV stability ratings. For security systems (PIR), explicitly request data on "sensitivity uniformity" across the lens surface, as uneven groove molding can create blind spots in motion detection coverage. Avoid generic "optical grade" claims; demand specific transmission percentages and haze values.

3. Cost Efficiency and Integration Capabilities

The primary value proposition of Fresnel lenses is the reduction of material usage and weight compared to traditional spherical or aspheric lenses, leading to significant cost savings in mass production.

• Cost Efficiency: Fresnel lenses typically cost 30% to 60% less than equivalent focal length aspheric glass lenses due to reduced material volume and simpler molding processes.
• Weight Reduction: Can achieve weight savings of 70% to 90% compared to solid glass equivalents of the same aperture.
• Minimum Order Quantity (MOQ):
  • Standard Stock Items: 100 – 500 units.
  • Custom Molds: 1,000 – 5,000 units (to amortize mold costs).
• Lead Time:
  • Stock Items: 1 – 2 weeks.
  • Custom Orders: 4 – 8 weeks (dependent on mold fabrication).
• Integration: The flat profile allows for easy integration into thin form factors (e.g., <5mm thickness), making them ideal for compact consumer electronics and wearable devices.

Actionable Recommendation: Leverage the cost advantage for high-volume production runs where weight is a critical factor (e.g., automotive sensors, drones). However, for low-volume prototyping, utilize stock items to avoid high mold costs. When integrating, ensure the mounting mechanism accounts for the lens's thinness; rigid clamping may cause stress fractures, so soft gaskets or snap-fit designs are recommended.

4. Typical Use Cases

Fresnel lenses are versatile components utilized across diverse sectors, primarily where light manipulation is required in a compact form factor.

• Security & Motion Detection: Used in Passive Infrared (PIR) sensors to focus infrared radiation onto the detector element. The stepped design enhances range, sensitivity, and coverage area.
• Lighting & Solar: Employed in solar concentrators to focus sunlight onto small photovoltaic cells and in LED flashlights/projectors to collimate or spread light beams efficiently.
• Consumer Electronics: Essential in Virtual Reality (VR) and Augmented Reality (AR) headsets to reduce the distance between the display and the eye (short focal length) while maintaining a wide field of view.
• Automotive: Used in overhead projectors, instrument cluster illumination, and proximity sensors.
• Historical/Architectural: Originally designed for lighthouses to project light over long distances with reduced weight and material.

Actionable Recommendation: Match the lens type to the application's optical requirement. For PIR sensors, select Cylindrical or Aspheric Fresnel lenses designed specifically for IR wavelengths (8–14 µm). For lighting and solar, prioritize Linear Fresnel lenses for uniform light distribution. For VR/AR, demand High Groove Density lenses to prevent the "screen door effect" or pixelation.

5. Long-Term Planning Considerations

The market for Fresnel lenses is driven by the miniaturization of electronics and the rise of immersive technologies. Procurement strategies should anticipate shifts in material science and manufacturing precision.

• Market Trends:
  • VR/AR Growth: Demand for high-resolution, lightweight Fresnel lenses is surging as the metaverse and wearable tech sectors expand.
  • Solar Efficiency: Increasing interest in compact solar concentrators for portable power solutions.
  • Material Innovation: A shift toward high-transmission, scratch-resistant polymers to replace standard PMMA in harsh environments.
• Supply Chain Resilience: As demand for custom optical components grows, lead times for mold fabrication may fluctuate. Diversifying suppliers with in-house molding capabilities is advisable.
• Technological Obsolescence: While Fresnel lenses remain relevant, emerging technologies like Freeform optics and Meta-lenses (metalenses) may compete in high-end imaging sectors. Procurement should remain flexible to accommodate hybrid optical designs.

Actionable Recommendation: Develop a "dual-sourcing" strategy for critical components, securing at least one supplier with in-house mold-making capabilities for custom projects. Monitor the development of meta-lenses for future R&D projects, but maintain Fresnel lenses as the primary solution for cost-sensitive, high-volume applications. Plan for a 20-30% buffer in lead times for custom orders to account for potential supply chain bottlenecks.

6. Special Product Recommendations

The following table compares common Fresnel lens configurations to assist in selecting the right product for specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Cylindrical Fresnel | Security System Integrators | Focal Length: 50-150mm; Groove: 10-20/mm | Check for IR wavelength specificity | Verify coating for 8-14µm IR transmission; test coverage uniformity. | | Aspheric Fresnel | VR/AR Hardware Makers | High Groove Density (>30/mm); Diameter: 30-80mm | Diffraction artifacts if density is low | Demand high-precision molding; request sample testing for visual clarity. | | Linear Fresnel | Solar & Lighting Engineers | Length: Custom; Width: 50-300mm; Material: PMMA | Surface scratches reduce efficiency | Specify UV-stabilized grade; check for thermal expansion coefficients. | | Sheet Prisms | Display & Projection Systems | Angle: 30°-60°; Thickness: <5mm | Edge chipping during handling | Request protective packaging; verify angle tolerance (±0.5°). | | Custom Molded | High-Volume OEMs | Any Focal Length; Custom Aperture | High MOQ (1k+) and long lead time | Validate mold design with 3D simulation before tooling; start early. |

Actionable Recommendation: For security integrators, prioritize Cylindrical lenses with specific IR coatings. For VR manufacturers, the Aspheric type is non-negotiable for user comfort and image quality. Always request physical samples for "visual inspection" before committing to large orders, specifically checking for concentricity errors and surface defects.

7. Frequently Asked Questions (FAQ)

Q1: What is the primary difference between a Fresnel lens and a standard aspheric lens? A: A Fresnel lens uses a stepped, concentric ring design to achieve the same optical power as a thick aspheric lens but with significantly less material, weight, and thickness. However, Fresnel lenses may exhibit slightly lower image quality due to diffraction at the steps.

Q2: Can Fresnel lenses be used for both visible light and infrared (IR) applications? A: Yes, but the material and groove design must be optimized. Standard PMMA works for visible light, but for PIR motion sensors, lenses must be specifically designed to transmit the 8–14 µm infrared spectrum without absorption.

Q3: What is the typical Minimum Order Quantity (MOQ) for custom Fresnel lenses? A: For standard stock items, MOQs are typically 100–500 units. For custom molds, the MOQ usually ranges from 1,000 to 5,000 units to justify the tooling costs.

Q4: How do I determine the correct groove density for my project? A: Higher groove density (20–50 grooves/mm) provides better image quality and is essential for VR/AR. Lower density (5–15 grooves/mm) is better for light gathering and motion detection where image resolution is less critical than sensitivity.

Q5: Are Fresnel lenses durable enough for outdoor use? A: Standard plastic Fresnel lenses can degrade under UV exposure. For outdoor applications, you must specify UV-stabilized materials (e.g., UV-resistant PMMA or Polycarbonate) and consider protective coatings to prevent yellowing and cracking.

Q6: What is the typical lead time for a custom Fresnel lens order? A: Lead times generally range from 4 to 8 weeks, depending on the complexity of the mold and the supplier's current workload. Stock items can often be shipped within 1–2 weeks.

Q7: Do Fresnel lenses introduce significant distortion? A: They can introduce "ringing" or diffraction artifacts, especially with lower groove densities. High-quality, high-density lenses minimize this, but they will never be as optically perfect as a single-piece glass lens.

Q8: Can I request a lens with a non-standard focal length? A: Yes, most manufacturers offer custom molding services to produce lenses with specific focal lengths, diameters, and groove profiles tailored to your application requirements.
