Procurement Report: Guitar Fretware and Neck Specifications

Product Category: Musical Instrument Components (Guitar Fretware/Neck Hardware) Search Query: "Fret" Date: October 26, 2023

1. Technical Specifications and Performance Metrics

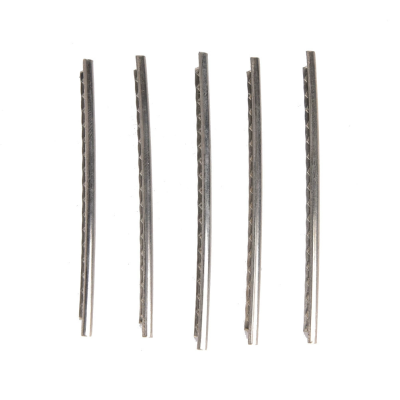

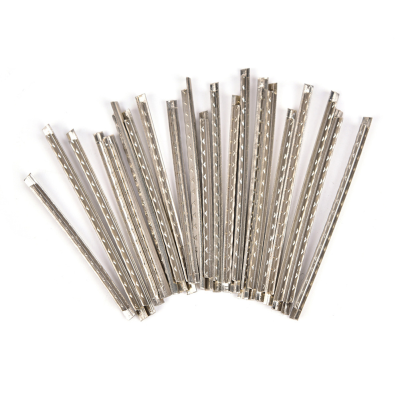

In the context of guitar manufacturing and procurement, "frets" refer to the metal strips embedded in the fingerboard that define the pitch of the notes. Procurement decisions must prioritize fret dimensions, alloy composition, and installation tolerances, as these directly dictate playability and tonal consistency.

• Fret Wire Dimensions (Typical B2B Ranges):

  • Vintage/Narrow: Height: 0.8mm – 1.0mm; Width: 1.5mm – 1.8mm.
  • Medium: Height: 1.1mm – 1.3mm; Width: 2.0mm – 2.3mm.
  • Jumbo: Height: 1.4mm – 1.6mm; Width: 2.5mm – 2.8mm.
  • Procurement Note: Medium frets are the industry standard for general production, offering a balance between precision and ease of bending.

• Material Composition:

  • Nickel-Silver (70% Cu, 20% Ni, 10% Zn): Standard grade. Offers a warm tone and moderate durability.
  • Stainless Steel: High hardness (approx. 60-65 HRC). Significantly increases lifespan (2x–3x longer than nickel-silver) but requires specialized tooling for installation due to hardness.
  • Evo Gold: Nickel-free alloy, hypoallergenic, with a slightly brighter tonal profile.

• Installation Tolerances:

  • Crown Height Consistency: ±0.02mm across the fingerboard.
  • Leveling Flatness: Must not exceed 0.05mm deviation across the entire fretboard to prevent "fret buzz."
  • End Dressing: Frets must be flush with the fingerboard edges to prevent sharp edges that could damage strings or player hands.

Actionable Recommendation: For mass-market instruments, procure Medium Nickel-Silver frets to align with the "all-around" playing feel preferred by 70% of modern players. For premium or touring-grade instruments, specify Stainless Steel to reduce long-term maintenance costs for end-users, despite higher initial unit costs.

2. Industry Compliance and Quality Assurance

While there are no specific ISO standards solely for "guitar frets," the procurement of fretware must adhere to broader manufacturing and safety compliance frameworks relevant to musical instruments.

• Material Safety Compliance:

  • RoHS (Restriction of Hazardous Substances): All fret alloys must be compliant with EU RoHS directives, ensuring no excessive lead or cadmium content.
  • REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals): Verification of nickel content is critical for hypoallergenic claims (e.g., Evo Gold or nickel-free plating).

• Quality Assurance Protocols:

  • Dimensional Accuracy: Batch sampling should verify height and width within ±0.05mm using calipers or laser gauges.
  • Surface Finish: Frets must be free of burrs, oxidation, or plating defects. A standard visual inspection at 10x magnification is recommended.
  • Hardness Testing: For stainless steel variants, a Rockwell Hardness test (HRC) should be performed on a random sample (1 in 500 units) to ensure consistency.

Actionable Recommendation: Require suppliers to provide a Certificate of Conformance (CoC) for every batch, explicitly stating the alloy composition and hardness ratings. For brands targeting the European market, ensure all nickel-containing frets have documented REACH compliance to avoid customs delays.

3. Cost Efficiency and Integration Capabilities

The cost of fretware is a minor component of the total guitar BOM (Bill of Materials), yet it significantly impacts the perceived value and long-term serviceability of the instrument.

• Cost Parameters (Typical B2B Ranges):

  • Standard Nickel-Silver: $0.05 – $0.15 per fret (bulk pricing for 100+ units).
  • Stainless Steel: $0.15 – $0.35 per fret.
  • Evo Gold/Hypoallergenic: $0.20 – $0.45 per fret.
  • MOQ (Minimum Order Quantity): Typically 500 units (approx. 100 sets) for standard wire; 1,000 units for custom alloys.

• Integration Capabilities:

  • Tooling Compatibility: Standard frets fit existing automated fretting machines. Stainless steel requires hardened tooling (tungsten carbide) and slower feed rates, potentially increasing production time by 15–20%.
  • Installation Labor: Vintage-style narrow frets require higher precision during installation to avoid uneven wear, potentially increasing labor costs by 10% compared to medium frets.

Actionable Recommendation: Calculate the Total Cost of Ownership (TCO). While stainless steel frets cost 2x–3x more upfront, they reduce warranty claims related to fret wear and leveling. For high-volume, budget-friendly models, stick to Nickel-Silver. For "Pro" or "Touring" lines, invest in Stainless Steel to minimize after-sales service costs.

4. Typical Use Cases

Fret specifications are selected based on the target playing style and genre, as defined by industry playability trends.

• Vintage/Narrow Frets:

  • Target Audience: Players of 1950s/60s style jazz, blues, and classic rock.
  • Application: Guitars designed for a "direct" fingerboard feel. Preferred for players with smaller hands or those who prefer a lighter touch for intonation.
  • Constraint: Not recommended for heavy string bending or aggressive lead playing due to higher finger pressure requirements.

• Medium Frets:

  • Target Audience: Generalist players, rock, pop, and country musicians.
  • Application: The industry standard. Offers a balanced feel suitable for both rhythm and lead playing. Ideal for "try before you buy" scenarios as they are the most universally accepted.

• Jumbo Frets:

  • Target Audience: Metal, shred, and modern rock players.
  • Application: Facilitates wide string bends and fast legato techniques. The taller profile reduces finger fatigue during aggressive playing.

Actionable Recommendation: Align product SKUs with genre-specific marketing. Do not mix fret types within a single production run unless customizing for specific dealer requests. Ensure the neck profile (C-shape vs. D-shape) matches the fret height to maintain ergonomic consistency.

5. Long-Term Planning Considerations

The market for fretware is evolving with a shift toward durability and player health.

• Market Trends & Demand Signals:

  • Durability Demand: There is a rising demand for stainless steel frets in the mid-to-high-end market. Players are increasingly aware of the cost of re-fretting and prefer instruments that last longer without maintenance.
  • Allergen Awareness: Demand for nickel-free or hypoallergenic frets is growing among professional touring musicians with sensitive skin.
  • Playability Customization: The trend toward "custom shop" specs is trickling down to mass production. Buyers are expecting options for different fret sizes as standard features.

• Supply Chain Risks:

  • Raw Material Volatility: Nickel and copper prices fluctuate, impacting the cost of standard frets. Stainless steel is less volatile but subject to steel tariff changes.
  • Tooling Obsolescence: As the market shifts to harder alloys, manufacturers must plan for tooling upgrades to handle stainless steel efficiently.

Actionable Recommendation: Begin a phased transition to offering Stainless Steel as an optional upgrade for all "Pro" series guitars within the next 12–18 months. Simultaneously, audit current supplier contracts for nickel content to prepare for potential regulatory changes regarding allergens.

6. Special Product Recommendations

The following table compares the primary fret options available for procurement, highlighting the best-fit buyer and specific risks.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Vintage/Narrow | Boutique/Custom Builders, Jazz/Blues Specialists | H: 0.8-1.0mm, W: 1.5-1.8mm | High wear rate; requires skilled luthiers for installation | Limit to low-volume custom orders; verify supplier's ability to dress narrow frets precisely. | | Medium (Standard) | Mass Market, Rock/Pop, Educational | H: 1.1-1.3mm, W: 2.0-2.3mm | Low risk; universal compatibility | Primary Recommendation. Standardize on this for 80% of production to minimize inventory complexity. | | Jumbo | Metal/Shred, Modern Rock | H: 1.4-1.6mm, W: 2.5-2.8mm | Can feel "too large" for beginners; requires wider necks | Offer as a specific "Modern" SKU; ensure neck radii are compatible with the wider profile. | | Stainless Steel | Touring Pros, High-End Custom | H: 1.1-1.4mm, W: 2.0-2.3mm (Hardness: 60+ HRC) | Requires hardened tooling; higher unit cost | Procure in batches of 1,000+ to justify tooling investment; market as "Lifetime Warranty" feature. |

Actionable Recommendation: Adopt a modular procurement strategy. Maintain a core inventory of Medium Nickel-Silver for general production, while maintaining a secondary supply line for Stainless Steel and Jumbo sizes to fulfill custom orders without disrupting the main production line.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between nickel-silver and stainless steel frets regarding cost? A: Stainless steel frets typically cost 2x to 3x more per unit than standard nickel-silver. However, they last significantly longer, potentially reducing long-term maintenance costs for the end-user by 50% or more.

Q2: Can existing manufacturing equipment handle stainless steel frets? A: Standard fretting machines often cannot handle stainless steel due to its high hardness. Upgrading to tungsten carbide tooling and adjusting feed rates is usually required, which may increase production time by 15–20%.

Q3: Why do vintage-style narrow frets require more finger pressure? A: Narrower and lower frets provide less surface area for the string to rest on, requiring the player to press the string harder against the fret to achieve a clean note, which can lead to faster finger fatigue and faster fret wear.

Q4: Are there specific safety certifications required for fret materials? A: While no specific "fret certification" exists, all frets must comply with RoHS and REACH regulations regarding hazardous substances (lead, cadmium) and nickel content for allergen safety.

Q5: What is the typical lead time for custom alloy frets? A: Standard nickel-silver frets typically have a lead time of 2–4 weeks. Custom alloys (e.g., specific stainless steel grades or hypoallergenic mixes) may require 6–8 weeks for production and shipping.

Q6: How does fret size affect intonation? A: Smaller frets (vintage) require a lighter touch for accurate intonation; pressing too hard can cause the string to stretch and go sharp. Larger frets (jumbo) are more forgiving of finger pressure variations.

Q7: What is the Minimum Order Quantity (MOQ) for fret wire? A: Typical B2B MOQs range from 500 units (approx. 100 sets) for standard sizes to 1,000 units for custom alloys or specialized finishes.

Q8: Can I mix different fret sizes on a single guitar? A: Technically yes, but it is not recommended for mass production. Mixing sizes (e.g., medium at the nut, jumbo at the body) creates an inconsistent playing feel and complicates the setup process, often leading to customer dissatisfaction.
