Procurement Report: Vacuum Gauges

1. Technical Specifications and Performance Metrics

When procuring vacuum gauges, the primary technical decision revolves around the sensing element and the operational pressure range. The medium being measured (corrosive, viscous, or clean gas) dictates the material and gauge type.

• Sensing Element & Range:
  • Diaphragm/Capsule Gauges: Best suited for low-pressure/vacuum ranges, typically 0 to 1000 mbar (0 to 100 kPa) or 0 to 760 Torr. These are critical for measuring rough vacuum and are preferred when handling corrosive or viscous media due to their isolated sensing chambers.
  • Bourdon Tube Gauges: Generally designed for higher pressure ranges (positive pressure) but can be adapted for specific vacuum applications up to 10 bar (1 MPa) depending on the configuration. They are less sensitive to very low vacuums compared to diaphragm types.
• Dial Size & Mounting:
  • Standard industrial dial sizes range from 50mm to 150mm in diameter.
  • Common mounting thread sizes include M20x1.5, NPT 1/4", and G1/4". Procurement must specify the exact mounting size to ensure compatibility with existing flanges.
• Material Compatibility:
  • For corrosive media, stainless steel (e.g., 316L) wetted parts are mandatory.
  • For general applications, brass or aluminum bodies may suffice, but stainless steel is the industry standard for longevity.
• Accuracy:
  • Typical B2B accuracy ranges from ±1.0% to ±2.5% Full Scale (FS) for standard industrial gauges. High-precision applications may require ±0.5% FS.

Actionable Recommendation: Before placing an order, explicitly define the medium type, the minimum vacuum level (e.g., 10 mbar vs. 0.1 mbar), and the mounting thread size. Do not assume a Bourdon tube is suitable for low-vacuum applications; verify the sensing element against the specific pressure range required.

2. Industry Compliance and Quality Assurance

Procurement of industrial vacuum gauges requires adherence to safety and quality standards, particularly when operating in hazardous environments or exporting to regulated markets.

• ATEX Certification: Essential for equipment used in explosive atmospheres (e.g., chemical processing, grain handling). Look for ATEX Directive 2014/34/EU compliance, specifically Category 2 (Zone 1/21) or Category 3 (Zone 2/22) ratings.
• CE Marking: Mandatory for sale within the European Economic Area. Ensures the product meets EU safety, health, and environmental protection requirements.
• Material Standards: Stainless steel components should comply with ASTM A240 or EN 10088 standards to ensure corrosion resistance.
• Calibration: Gauges should come with a factory calibration certificate traceable to national standards (e.g., NIST, PTB). Re-calibration intervals are typically recommended every 12 to 24 months depending on usage intensity.

Actionable Recommendation: Verify that the supplier provides a Certificate of Conformity (CoC) and ATEX/CE documentation specific to the batch. For hazardous environments, do not accept "compliant" claims without the official certificate number. Ensure the material grade matches the chemical compatibility requirements of your process medium.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in vacuum gauge procurement extends beyond the unit price to include installation, maintenance, and lifecycle costs.

• Unit Cost Ranges:
  • Standard Diaphragm/Capsule Gauges: $40 – $150 USD per unit.
  • High-Corrosion Resistant (316L SS) or ATEX-rated Gauges: $150 – $400 USD per unit.
  • Digital/Electronic Vacuum Transmitters: $200 – $600 USD per unit.
• MOQ & Lead Time:
  • Typical B2B Minimum Order Quantity (MOQ): 10 units for standard models; 1 unit for custom ATEX configurations.
  • Standard Lead Time: 2 – 4 weeks.
  • Custom/ATEX Lead Time: 6 – 10 weeks.
• Integration:
  • Analog gauges offer direct visual integration with no power requirements.

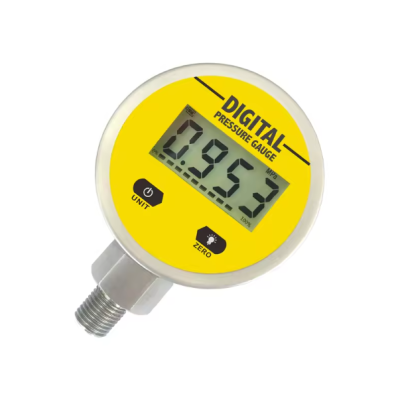

  • Digital gauges offer 4-20mA or HART protocol outputs for SCADA/PLC integration, reducing manual reading errors.

Actionable Recommendation: For high-volume standard applications, negotiate bulk pricing on analog diaphragm gauges to reduce unit costs below $50. For critical process monitoring, invest in digital transmitters with 4-20mA outputs to automate data logging, even if the upfront cost is higher. Always request a sample for integration testing before bulk ordering to verify thread compatibility and dial readability.

4. Typical Use Cases

Vacuum gauges are ubiquitous across industries where pressure control is vital for safety and process efficiency.

• Chemical & Pharmaceutical Processing: Monitoring vacuum levels in distillation columns, drying ovens, and filtration systems. Diaphragm gauges are preferred here due to the presence of corrosive vapors.
• Food & Beverage: Used in vacuum packaging lines and freeze-drying processes. Stainless steel construction is required to meet hygiene standards (e.g., EHEDG guidelines).

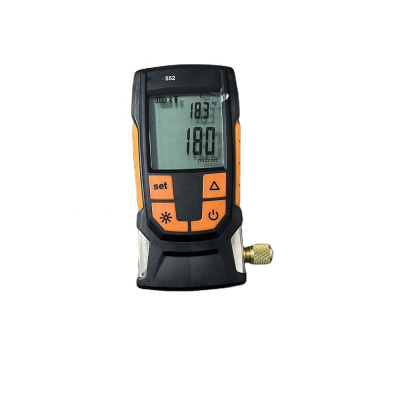

• HVAC & Refrigeration: Monitoring system integrity during leak testing and evacuation of refrigerant lines.
• Semiconductor Manufacturing: High-precision vacuum monitoring for deposition chambers and etching processes (often requiring digital sensors).
• Petrochemical & Oil & Gas: ATEX-certified gauges are mandatory for monitoring vacuum in storage tanks and pipelines to prevent implosion or explosion risks.

Actionable Recommendation: Match the gauge type to the environment. If the application involves viscous fluids or corrosive gases, strictly select diaphragm or capsule gauges with isolated diaphragms. For food-grade applications, ensure the gauge has a sanitary clamp or smooth stainless steel finish to prevent bacterial buildup.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends, supply chain stability, and technological shifts.

• Market Trends: There is a growing demand for smart vacuum gauges with digital interfaces and IoT connectivity. Traditional analog gauges are being phased out in favor of digital sensors that provide real-time data analytics.
• Supply Chain Resilience: Geopolitical tensions may affect the supply of specialized stainless steel or electronic components. Diversify suppliers to include both domestic and international vendors.
• Regulatory Evolution: Expect stricter regulations regarding ATEX and CE compliance, particularly in the EU and UK markets. Procurement strategies should prioritize suppliers with robust quality management systems (ISO 9001).
• Sustainability: Focus on gauges with longer calibration intervals and durable materials to reduce waste and replacement frequency.

Actionable Recommendation: Develop a 5-year roadmap that transitions critical monitoring points from analog to digital sensors. Prioritize suppliers who demonstrate ISO 9001 certification and have a track record of maintaining stock levels for ATEX-certified items. Plan for a 20% budget buffer for potential price fluctuations in raw materials like stainless steel.

6. Special Product Recommendations

The following table compares the most common vacuum gauge types to assist in selecting the right product for specific buyer profiles.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Diaphragm/Capsule Gauge | Chemical, Pharma, Food Processing | Range: 0-1000 mbar; Material: 316L SS; Accuracy: ±1.5% FS | High risk of clogging if medium is viscous; ensure isolated diaphragm. | Verify wetted parts material compatibility with specific chemicals. | | Bourdon Tube Gauge | General Industry, HVAC, Oil & Gas | Range: -1 to 10 bar; Material: Brass/SS; Accuracy: ±2.5% FS | Poor sensitivity for deep vacuum; prone to drift in high vibration. | Use only for rough vacuum or positive pressure; avoid for high-precision low-pressure tasks. | | Digital Vacuum Transmitter | Automation, Semiconductor, Smart Plants | Output: 4-20mA/HART; Range: 0-1000 mbar; Power: 24V DC | Higher initial cost; requires calibration software. | Essential for SCADA integration; request software compatibility details. | | ATEX-Certified Gauge | Explosive Atmospheres (Zone 1/2) | Certification: ATEX II 2G Ex d IIC T4; Range: Variable | Strict compliance required; non-compliance leads to legal liability. | Demand valid ATEX certificate; verify zone classification matches site safety plan. |

Actionable Recommendation: For new installations in hazardous zones, ATEX-certified diaphragm gauges are the safest default choice. For modernizing legacy systems, replace analog gauges with digital transmitters to enable predictive maintenance.

7. Frequently Asked Questions (FAQ)

Q1: How do I choose between a diaphragm gauge and a Bourdon tube gauge? A: Choose a diaphragm or capsule gauge for low-pressure/vacuum applications (below 1000 mbar) or when the medium is corrosive or viscous. Choose a Bourdon tube gauge for higher pressure ranges or clean, non-corrosive gases where the vacuum level is not extremely deep.

Q2: What certifications are required for vacuum gauges in the UK and EU? A: For hazardous environments, ATEX certification (2014/34/EU) is mandatory. For general market access in the EU, CE marking is required. Ensure the supplier provides the specific certificate number for the model you are purchasing.

Q3: What is the typical lead time for custom vacuum gauges? A: Standard off-the-shelf gauges typically have a lead time of 2–4 weeks. Custom configurations, such as specific ATEX ratings or unique mounting sizes, usually require 6–10 weeks.

Q4: How often should a vacuum gauge be recalibrated? A: Industry standard practice recommends recalibration every 12 to 24 months, depending on the frequency of use and the criticality of the process. High-precision applications may require annual calibration.

Q5: Can I use a standard vacuum gauge for corrosive media? A: No, standard brass or aluminum gauges will corrode. You must select a gauge with 316L Stainless Steel wetted parts and a diaphragm isolation design to prevent media contact with the internal mechanism.

Q6: What mounting sizes are most common for industrial vacuum gauges? A: The most common mounting threads are M20x1.5, NPT 1/4", and G1/4". Always verify the thread size of your process port before ordering to avoid the need for adapters.

Q7: What is the difference between absolute and gauge pressure vacuum readings? A: Gauge pressure measures relative to atmospheric pressure (0 bar = atmospheric). Absolute pressure measures relative to a perfect vacuum (0 bar = 0 pressure). Ensure your procurement specification matches the required reference point for your process.

Q8: Are digital vacuum gauges worth the extra cost? A: Yes, if you require data logging, remote monitoring, or integration with PLC/SCADA systems. They reduce human error and provide real-time alerts, which justifies the higher initial cost in automated or critical processes.
