Procurement Report: Industrial Gauges

1. Technical Specifications and Performance Metrics

When procuring gauges, the first critical step is defining the gauge type (plug, ring, snap, thread, or digital contact) followed by the required precision class. For high-precision applications, accuracy typically ranges between 0.5 µm and 10 µm. Geometric tolerances must be strictly controlled within 0.001 mm to 0.005 mm to ensure mating part compatibility and measurement reliability.

Material selection is paramount for durability and resistance to wear. Standard hardened steel gauges should possess a hardness of 58–64 HRC, while tungsten carbide variants offer superior wear resistance with a hardness of 1200–1800 HV. Environmental control is also a technical specification; gauges must be calibrated and used within a controlled temperature range of 18–25 °C to prevent thermal expansion errors that could compromise measurement integrity.

Actionable Recommendation: Procurement teams must specify the exact gauge geometry and material hardness in the initial Request for Quotation (RFQ). Do not accept generic "standard" gauges for critical tolerances; explicitly require calibration certificates valid at 18–25 °C and verify that the material hardness meets the 58–64 HRC (steel) or 1200+ HV (carbide) thresholds to prevent premature wear.

2. Industry Compliance and Quality Assurance

Compliance is non-negotiable for industrial gauges, particularly in safety-critical or regulated environments. For installations in hazardous locations where flammable gases or vapors are present, explosion-proof certifications such as ATEX, CSA, or FM approval are mandatory. In pressure vessel applications, gauges must comply with ASME B40.100 standards to ensure safety and performance.

Specific industries have their own mandates: 3-A Sanitary Standards are required for food and pharmaceutical processing to ensure hygiene, while maritime certifications are essential for marine environments. From a manufacturer quality perspective, look for ISO 9001 certification to ensure consistent product quality and traceability.

Actionable Recommendation: Verify the specific regulatory environment of the installation site before ordering. If the site is hazardous, demand ATEX/CSA/FM documentation. For food/pharma, insist on 3-A compliance. Ensure the supplier provides ISO 9001 certification and establish a procurement contract that mandates annual calibration for standard industrial gauges, with quarterly or semi-annual verification schedules for critical safety applications.

3. Cost Efficiency and Integration Capabilities

While specific unit costs vary by material and precision, cost efficiency in gauge procurement is driven by the balance between initial acquisition cost and the total cost of ownership (TCO). High-precision gauges (0.5–10 µm accuracy) command a higher upfront price but reduce scrap rates and rework costs in manufacturing. Integration capabilities depend on the gauge type; digital contact gauges offer direct data integration with Industry 4.0 systems, whereas mechanical plug or ring gauges require manual data entry or offline analysis.

Typical B2B ranges for lead times are 2–4 weeks for standard hardened steel gauges and 4–8 weeks for custom tungsten carbide or specialized certified units. Minimum Order Quantities (MOQs) typically range from 10 to 50 units for standard sizes, though custom geometries may require higher MOQs to justify tooling costs.

Actionable Recommendation: Prioritize digital contact gauges for high-volume production lines to enable real-time data integration and reduce human error. For low-volume or legacy applications, standard hardened steel gauges offer the best cost-efficiency. Negotiate lead times by forecasting demand 3 months in advance to avoid expedited shipping fees, and bundle orders to meet MOQ thresholds for custom carbide tools.

4. Typical Use Cases

Gauges are ubiquitous across manufacturing and quality control sectors.

• Precision Machining: Plug and ring gauges are used for verifying bore diameters and shaft diameters in aerospace and automotive component manufacturing, ensuring parts fall within 0.001–0.005 mm geometric tolerances.

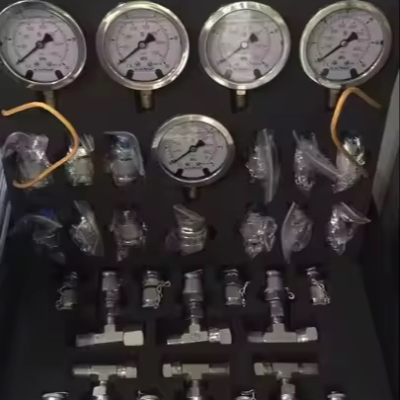

• Hazardous Environments: Explosion-proof pressure gauges are deployed in oil and gas refineries and chemical processing plants to monitor vessel pressure safely.
• Sanitary Processing: 3-A certified gauges are utilized in dairy, beverage, and pharmaceutical lines where hygiene and cleanability are paramount.
• Marine Engineering: Specialized maritime gauges monitor hydraulic and pneumatic systems on ships, resistant to corrosion and vibration.

Actionable Recommendation: Match the gauge type strictly to the application environment. Do not use standard mechanical gauges in hazardous zones; always select certified explosion-proof models. For sanitary applications, verify the surface finish and material compatibility with cleaning agents. In high-vibration marine settings, select gauges with liquid-filled cases to dampen needle oscillation.

5. Long-Term Planning Considerations

The market for precision gauges is trending toward digitalization and smart manufacturing integration. There is a growing demand for gauges with embedded sensors and wireless data transmission capabilities to support predictive maintenance and real-time quality control. However, the physical wear of mechanical gauges remains a constant factor.

Replacement intervals typically range from 5 to 10 years, depending on operating conditions, gauge quality, and maintenance practices. Harsh environments, frequent pressure cycling, or exposure to corrosive media may necessitate more frequent replacement. Critical safety applications may require quarterly or semi-annual verification, which impacts the long-term operational budget.

Actionable Recommendation: Develop a 5-year replacement schedule based on the specific operating environment of the facility. For harsh environments, plan for replacement every 3–5 years rather than the standard 10. Budget for annual calibration costs as a recurring operational expense. When planning for Industry 4.0 upgrades, consider purchasing hybrid gauges that offer both mechanical readout and digital output to future-proof the investment.

6. Special Product Recommendations

The following table compares common gauge types to assist in selecting the right product for specific buyer profiles and risk factors.

Actionable Recommendation: For high-volume production lines, invest in tungsten carbide gauges to minimize downtime caused by wear. For safety-critical monitoring, never compromise on explosion-proof certifications. When integrating digital gauges, ensure the software protocol (e.g., Modbus, HART) is compatible with your existing control systems before finalizing the purchase.

7. Frequently Asked Questions (FAQ)

Q1: How often should industrial pressure gauges be calibrated? A: Most industrial pressure gauges require annual calibration to maintain accuracy specifications. However, critical safety applications may demand quarterly or semi-annual verification.

Q2: What is the typical lifespan of a pressure gauge? A: Replacement intervals typically range from 5 to 10 years depending on operating conditions, gauge quality, and maintenance practices.

Q3: Can I use a standard gauge in a hazardous location? A: No. Explosion-proof certifications such as ATEX, CSA, or FM approval are mandatory for installations in hazardous locations where flammable gases or vapors may be present.

Q4: What material hardness is required for high-precision gauges? A: Hardened steel gauges typically need 58–64 HRC, while tungsten carbide gauges require 1200–1800 HV to withstand wear and maintain geometric tolerances.

Q5: Are there specific certifications for food and pharmaceutical gauges? A: Yes, industry-specific certifications include 3-A Sanitary Standards for food and pharmaceutical applications to ensure hygiene and cleanability.

Q6: How does temperature affect gauge accuracy? A: Gauges must be calibrated and used at a controlled temperature of 18–25 °C. Deviations outside this range can cause thermal expansion errors affecting the 0.5–10 µm accuracy.

Q7: What leads to the need for more frequent gauge replacement? A: Harsh environments, frequent pressure cycling, or exposure to corrosive media may necessitate more frequent replacement than the standard 5–10 year interval.

Q8: Do digital gauges require the same calibration as mechanical ones? A: Yes, digital contact gauges also require regular calibration to maintain their specified accuracy (0.5–10 µm) and should be treated with the same verification rigor as mechanical gauges.
