Procurement Report: Gigabit Ethernet Infrastructure

Product Category: Industrial and Commercial Network Cabling & Switching Solutions

1. Technical Specifications and Performance Metrics

Gigabit Ethernet (1000 Base-T) represents the baseline standard for modern high-speed networking, utilizing copper cabling to transmit data at 1000 Mbps (1 Gbps). When procuring components, the following technical parameters are critical for ensuring network stability and throughput.

• Cable Categories & Bandwidth:
  • Cat5e: Supports speeds up to 1000 Mbps with a frequency bandwidth of up to 100 MHz. This is the minimum viable standard for Gigabit networks but offers limited headroom for future upgrades.
  • Cat6: Supports 1000 Mbps up to 100 meters and can handle 10 Gigabit speeds up to 55 meters. Frequency bandwidth ranges from 250 MHz.
  • Cat6a: The recommended standard for 100-meter 10 Gigabit support, with a bandwidth of 500 MHz. It is the current "right choice" for most 1-to-10 Gigabit Ethernet network requirements.
  • Cat7/Cat8: Designed for frequencies up to 600 MHz (Cat7) and 2000 MHz (Cat8), supporting 10G to 40G speeds. These are typically overkill for standard Gigabit needs but necessary for high-density data centers.
• Transmission Distance: Standard copper Ethernet (RJ45) is reliable up to 100 meters (328 feet) for Cat5e through Cat6a. Beyond this distance, signal attenuation requires fiber optic conversion or repeaters.
• Connector Standards: The industry standard for machine-level connections is the RJ45 copper connector, which handles approximately 95% of all Gigabit Ethernet connections in industrial and commercial settings.
• Throughput & Latency: Procurement should target components with full-duplex capabilities to achieve the full 1000 Mbps theoretical maximum, ensuring negligible latency in data transmission.

Actionable Recommendation: For new installations requiring future scalability, prioritize Cat6a cabling. While Cat5e meets current Gigabit specs, it lacks the bandwidth margin for 10Gbps upgrades, potentially necessitating a costly rewiring project within 3–5 years.

2. Industry Compliance and Quality Assurance

Ensuring that network infrastructure adheres to IEEE standards is non-negotiable for warranty validity and network interoperability.

• IEEE Standards: All cables and switches must conform to the IEEE 802.3ab (1000BASE-T) standard. Higher-grade cables should also reference IEEE 802.3an (10GBASE-T) for Cat6a/Cat7 compliance.
• Certification Requirements: Procurement specifications should mandate that vendors provide third-party certification test reports (e.g., from UL, TIA/EIA) verifying:
  • Return Loss (RL) and Near-End Crosstalk (NEXT) performance.
  • Insertion Loss within acceptable dB limits per 100 meters.
• Durability Ratings: For industrial applications, cables and connectors must meet specific environmental standards, such as IP67 or IP68 for dust and water resistance, and UL94 V-0 for flame retardancy.
• Quality Assurance (QA): Vendors should offer a minimum 15-year warranty on structured cabling systems, with a guarantee of performance testing for every cable run.

Actionable Recommendation: Do not accept "generic" or unbranded cabling without explicit IEEE compliance documentation. Require a "Certificate of Conformance" for every batch, specifically verifying that the cable meets the bandwidth and crosstalk specifications for the intended category (e.g., Cat6a 500 MHz).

3. Cost Efficiency and Integration Capabilities

Gigabit Ethernet offers a balance between performance and cost, making it the most cost-effective solution for the vast majority of enterprise and industrial deployments.

• Cost Ranges (Estimated B2B):
  • Cat5e Patch Cables: $2.00 – $4.00 per unit (MOQ: 100+).
  • Cat6 Patch Cables: $3.00 – $6.00 per unit.
  • Cat6a Patch Cables: $5.00 – $10.00 per unit.
  • Industrial Gigabit Switches: $150 – $800 per unit depending on port density (8 to 24 ports) and ruggedization features.
• Lead Times: Standard copper cabling typically has a lead time of 2–4 weeks. Industrial-grade switches and ruggedized connectors may require 6–10 weeks due to specialized manufacturing processes.
• Integration: Copper RJ45 interfaces are universally compatible with existing PC, server, and PLC hardware. This eliminates the need for expensive media converters in 95% of machine-level connections.

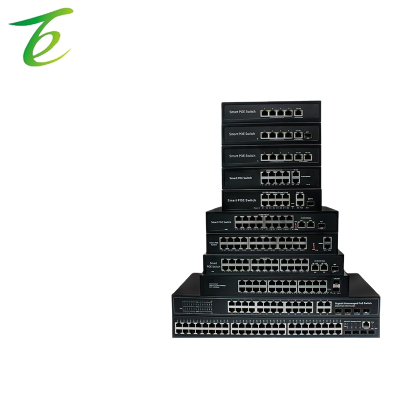

• Power over Ethernet (PoE): Many Gigabit switches support PoE (802.3af/at), allowing for the simultaneous transmission of data and power to devices like IP cameras and VoIP phones, reducing cabling complexity and installation costs by up to 30%.

Actionable Recommendation: Opt for Cat6a for backbone cabling and Cat6 for horizontal runs to balance cost and performance. When selecting switches, prioritize models with PoE+ capabilities to reduce future cabling costs for IoT devices, even if immediate PoE needs are low.

4. Typical Use Cases

Gigabit Ethernet is the backbone of modern networking, applicable across diverse sectors.

• Industrial Automation: Used for machine-level connections where reliability is paramount. Copper RJ45 handles the majority of sensor and PLC communication.
• Data Centers & Server Rooms: Essential for connecting servers, storage arrays, and core switches where 1 Gbps to 10 Gbps throughput is required.
• Commercial Office Networks: Standard for desktop connections, Wi-Fi access points, and VoIP telephony.
• Surveillance Systems: High-bandwidth requirement for IP cameras transmitting high-definition video streams.
• Smart Building Infrastructure: Connecting HVAC controls, lighting systems, and access control panels.

Actionable Recommendation: In industrial environments, select shielded (STP/FTP) cables to mitigate electromagnetic interference (EMI) from heavy machinery. In commercial settings, unshielded (UTP) cables are sufficient and more flexible for tight conduit runs.

5. Long-Term Planning Considerations

Procurement strategies must account for the rapid evolution of network speeds and the shift toward higher bandwidth requirements.

• Market Trends: The demand is shifting from 1 Gbps to 10 Gbps and beyond. While Cat5e is still widely used, it is considered legacy for new builds. The market trend strongly favors Cat6a as the standard for new installations to support 10Gbps over 100 meters.
• Scalability: Investing in higher-category cabling (Cat6a/Cat7) now prevents the need for "rip and replace" scenarios when upgrading to 10G or 40G networks.
• Demand Signals: There is a rising demand for Industrial Ethernet Switches that can survive harsh environments (temperature extremes, vibration, dust). The market is seeing increased adoption of switches with extended temperature ranges (-40°C to +75°C).
• Future-Proofing: As IoT and 4K/8K video streaming become standard, network congestion is a growing concern. Procurement should include a 20% buffer in port density to accommodate future device additions.

Actionable Recommendation: Adopt a "Cat6a First" policy for all new infrastructure projects. Avoid Cat5e for any permanent installation. Plan for a 20% increase in switch port capacity to accommodate future IoT expansion without requiring immediate hardware replacement.

6. Special Product Recommendations

The following table compares key product types to assist in selecting the right components for specific procurement scenarios.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Cat6a Shielded Cable | Data Centers / Industrial | 500 MHz, 10Gbps @ 100m, S/FTP | High EMI susceptibility if unshielded | Mandatory for industrial zones; verify foil shielding integrity. | | Industrial Gigabit Switch | Manufacturing / Automation | -40°C to +75°C, DIN Rail, PoE+ | Harsh environment failure | Look for IP30+ rating and redundant power inputs. | | Cat6 UTP Patch Cable | Office / Commercial | 250 MHz, 1Gbps, 100m | Signal degradation in long runs | Keep runs under 90m for optimal performance; use high-flex PVC jackets. | | Cat8 Shielded Cable | High-Performance Computing | 2000 MHz, 40Gbps, 30m | Overkill for standard Gigabit | Only procure for specific high-speed server-to-server links. | | PoE+ Gigabit Switch | Surveillance / VoIP | 802.3at, 30W per port | Power budget miscalculation | Calculate total wattage of connected devices + 20% headroom. |

Actionable Recommendation: For mixed environments, standardize on Cat6a for all permanent cabling to ensure a unified infrastructure. For switches, prioritize managed switches with VLAN support to segment traffic and improve security.

7. Frequently Asked Questions (FAQ)

Q1: Is Cat5e sufficient for Gigabit Ethernet? A: Yes, Cat5e is certified to support speeds up to 1000 Mbps (1 Gbps). However, it is the minimum standard and offers no headroom for 10 Gigabit upgrades, making it a poor choice for new long-term installations.

Q2: What is the maximum distance for a Gigabit Ethernet cable? A: The standard maximum distance for copper Ethernet (Cat5e through Cat6a) is 100 meters (328 feet). Beyond this, signal quality degrades significantly, requiring fiber optic solutions.

Q3: Can I use Cat6 cable for 10 Gigabit speeds? A: Cat6 can support 10 Gigabit speeds, but only up to 55 meters. For 10 Gigabit speeds over the full 100-meter distance, Cat6a is required.

Q4: Do I need shielded cables for Gigabit Ethernet in an office? A: In standard office environments with low electromagnetic interference, Unshielded Twisted Pair (UTP) is sufficient and more flexible. Shielded cables (STP/FTP) are recommended for industrial settings or areas with heavy machinery.

Q5: What is the difference between 10/100/1000 Base-T and Gigabit? A: "10/100/1000 Base-T" refers to a switch or port that is "Auto-Negotiating," meaning it can automatically detect and operate at 10 Mbps, 100 Mbps, or 1000 Mbps (Gigabit). "Gigabit" specifically refers to the 1000 Mbps capability.

Q6: How do I ensure my Gigabit network is secure? A: Security is primarily managed at the switch level. Procure Managed Gigabit Switches that support VLANs, Access Control Lists (ACLs), and 802.1X authentication to segment traffic and prevent unauthorized access.

Q7: What is the typical lead time for industrial Gigabit switches? A: While standard commercial switches are often in stock, Industrial Ethernet Switches designed for harsh environments typically have a lead time of 6 to 10 weeks due to specialized testing and manufacturing requirements.

Q8: Does Gigabit Ethernet support Power over Ethernet (PoE)? A: Yes, Gigabit Ethernet is fully compatible with PoE standards (802.3af and 802.3at). This allows a single cable to deliver both data and electrical power to devices like IP cameras and wireless access points.
