Procurement Report: Glass Drill Bits

1. Technical Specifications and Performance Metrics

Glass drilling requires specialized tooling distinct from metal or wood drilling due to the brittle, non-ductile nature of glass. Procurement decisions must prioritize carbide composition and geometric design to prevent chipping and cracking.

• Material Composition: High-grade Tungsten Carbide (WC) tips are standard. For premium applications, Polycrystalline Diamond (PCD) or Diamond-coated bits are required for high-volume or thick glass.
• Tip Geometry:

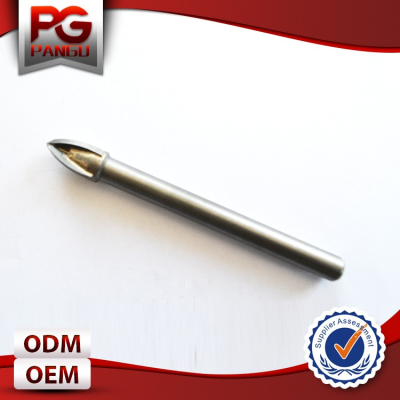

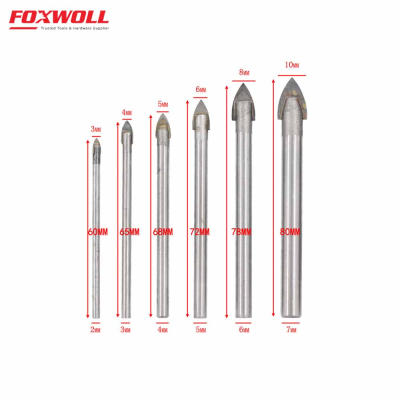

  • Spear Point (Triangular): Best for thin glass (3mm–10mm).
  • Tapered/Conical: Standard for general-purpose drilling up to 25mm.
  • Hole Saw (Diamond Grit): Required for large diameters (>25mm).
• Performance Parameters:
  • Drilling Speed (RPM): Typical range 300 – 1,500 RPM. High speeds generate excessive heat, leading to thermal shock and cracking.
  • Feed Rate: 0.5 – 2.0 mm/s. Slow, steady pressure is critical; "walking" the bit must be avoided.
  • Cooling Requirement: Mandatory water cooling or continuous lubrication. Dry drilling is strictly prohibited for standard carbide bits.
  • Tolerance: Hole diameter tolerance typically ±0.1 mm to ±0.2 mm depending on bit size.
  • Durability: A standard carbide spear-point bit can drill approximately 10 – 50 holes in 6mm tempered glass (if not tempered) or 50 – 100 holes in annealed glass before significant wear, depending on operator technique.

Actionable Recommendation: Procure bits with a 135-degree split point or specialized spear geometry to ensure self-centering. Verify that the supplier provides a specific RPM chart for the bit diameter to prevent operator error. Do not purchase generic "multi-material" bits for dedicated glass production lines; they often lack the necessary rigidity and cooling channels.

2. Industry Compliance and Quality Assurance

While glass drill bits do not always carry the same mandatory safety certifications as medical devices, international trade and quality consistency rely heavily on manufacturing standards.

• ISO 9001: Essential for the manufacturer. This certifies the quality management system. Procurement teams must request a current ISO 9001 certificate and verify the scope explicitly covers "drill bit manufacturing" or "cutting tool production."
• DIN Standards: Although DIN standards (e.g., DIN 338, DIN 340) are primarily for metal cutting tools, many high-quality glass drill manufacturers adhere to these dimensional tolerances for shank compatibility and tip geometry.
  • Key Check: Request compliance documentation referencing DIN 338 (for straight shank) or DIN 1412 (for tapered shanks) if the application requires strict interchangeability with existing machinery.
• CE Marking: Required for products sold into the EU/EEA. The supplier must provide a Declaration of Conformity (DoC) referencing the Machinery Directive (2006/42/EC) or Low Voltage Directive if the bits are part of an automated system.
• Third-Party Testing: For critical applications, seek MPA (Material Testing Institute) certification from Germany or equivalent independent testing reports that validate hardness and fracture resistance.

Actionable Recommendation: Before placing an order, audit the supplier's Declaration of Conformity and ISO 9001 certificate for expiry dates. For exports to Russia or CIS, verify GOST-R compliance if applicable. If the supplier cannot provide a DoC or specific material test reports, consider it a high-risk vendor for precision glass applications.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in glass drilling is not solely about the unit price of the bit but the cost-per-hole and the integration with existing cooling systems.

• Unit Cost Ranges (Typical B2B):
  • Carbide Spear/Conical Bits (3mm–12mm): $2.50 – $8.00 per unit.
  • Diamond Hole Saws (25mm–100mm): $45.00 – $150.00 per unit.
  • PCD Bits (Premium): $60.00 – $200.00 per unit.
• MOQ (Minimum Order Quantity): Standard MOQ is 50 – 100 units for standard sizes. Custom geometries may require 200+ units.
• Lead Time:
  • Standard SKUs: 7 – 14 days.
  • Custom/Imported: 30 – 45 days.
• Integration:
  • Shank Compatibility: Must match standard 1/4" (6.35mm), 3/8" (9.5mm), or 1/2" (12.7mm) collets.
  • Cooling Channels: For automated CNC integration, bits with internal coolant channels are preferred to reduce setup time.

Actionable Recommendation: Calculate the Total Cost of Ownership (TCO) rather than unit price. A $10 bit that lasts 100 holes is more cost-effective than a $3 bit that lasts 10 holes. Ensure the selected bit shank diameter matches your existing machine's chuck capacity to avoid the cost of adapter sleeves. Negotiate a volume discount tier at the 500-unit mark.

4. Typical Use Cases

Glass drill bits are specialized for brittle materials where heat generation and mechanical stress must be minimized.

• Architectural Glazing: Drilling holes for mounting hardware, handles, or structural connections in shower enclosures, glass railings, and office partitions (thickness: 6mm – 19mm).
• Automotive & Transportation: Manufacturing holes for sensors, cameras, and fasteners in vehicle windshields and side windows.
• Electronics & Display: Creating vias or mounting points in glass substrates for touchscreens, solar panels, and LCD backplanes.
• Home Improvement & DIY: Installing towel bars, shelves, and fixtures in residential glass.
• Laboratory Equipment: Drilling ports in glassware for scientific apparatus (requires high precision and chemical resistance).

Actionable Recommendation: Match the bit type to the glass thickness. For glass >12mm, recommend diamond core bits to ensure clean edges without chipping. For glass <6mm, spear-point carbide bits are sufficient. Always verify if the glass is tempered (cannot be drilled after tempering) or annealed (must be drilled before tempering).

5. Long-Term Planning Considerations

The market for glass drilling tools is evolving with automation and sustainability demands.

• Market Trends:
  • Automation: Increased demand for CNC-compatible drill bits with high concentricity and internal coolant channels.
  • Sustainability: Shift toward diamond-coated bits which offer longer life cycles and reduced waste compared to frequent carbide replacement.
  • Smart Manufacturing: Integration of sensors for wear monitoring in high-volume production lines.
• Demand Signals:
  • Growth in the renewable energy sector (solar panel manufacturing) is driving demand for high-precision glass drilling.
  • Smart Glass adoption in commercial buildings is increasing the need for specialized mounting hardware drilling.
• Risk Factors:
  • Raw Material Volatility: Tungsten and diamond prices fluctuate, affecting long-term pricing stability.
  • Regulatory Changes: Stricter environmental regulations on coolant usage may drive demand for dry-drilling compatible (rare) or water-recycling compatible tools.

Actionable Recommendation: Develop a supplier diversification strategy to mitigate raw material risks. Consider locking in long-term pricing agreements for high-volume diamond bits. Plan for automation upgrades by selecting bits with standardized shanks that are compatible with next-gen CNC glass processing machines.

6. Special Product Recommendations

The following table compares the primary categories of glass drill bits to assist in selecting the right tool for specific procurement needs.

| Product Type | Best-Fit Buyer | Key Specs | Risk Check | Procurement Advice | | :--- | :--- | :--- | :--- :--- | | Carbide Spear Point | Small workshops, DIY, thin glass (<10mm) | 3mm–12mm dia, 135° tip, Water-cooled | High risk of chipping if RPM > 1,500 | Verify tip sharpness; buy in bulk for low cost. | | Diamond Core Bit | Construction, thick glass (>12mm), large holes | 25mm–100mm dia, Grit size 40–120, Hollow core | High cost; requires rigid machine support | Ensure water supply is continuous; check grit retention. | | PCD (Polycrystalline Diamond) | High-volume manufacturing, precision electronics | 1mm–20mm dia, Ultra-high wear resistance | Very high unit cost; requires specialized handling | Use only for high-value applications; verify ISO 9001. | | Tapered Shank (Morse) | Industrial CNC, heavy-duty drilling | Taper 1–3, High rigidity, Internal cooling | Compatibility issues with standard chucks | Confirm taper size matches machine spindle exactly. |

Actionable Recommendation: For high-volume production, prioritize PCD or Diamond Core bits despite the higher upfront cost to reduce downtime. For sporadic use, Carbide Spear Points offer the best balance of cost and performance. Always request a sample kit before committing to a large order to test fit and finish on your specific glass type.

7. Frequently Asked Questions (FAQ)

Q1: Can I drill tempered glass with standard drill bits? A: No. Tempered glass cannot be drilled after the tempering process as it will shatter instantly. Drilling must be performed on annealed glass before the tempering process.

Q2: What is the difference between a spear point and a tapered bit? A: Spear point bits (triangular tip) are designed for thin glass and provide better centering. Tapered bits are generally used for thicker glass or larger diameters where a conical entry is needed to guide the bit.

Q3: Do I need to use water when drilling glass? A: Yes, absolutely. Water acts as a coolant and lubricant. Dry drilling generates heat that causes thermal shock, leading to cracks and bit failure.

Q4: What is the typical lifespan of a diamond glass drill bit? A: A diamond core bit can typically drill 50 to 100 holes in standard annealed glass depending on the thickness and grit quality. PCD bits may last significantly longer in high-volume settings.

Q5: How do I ensure the bit does not "walk" or slip on the glass surface? A: Use a spear-point geometry and apply a low RPM (300–600 RPM) with light pressure until the bit has penetrated the surface. Using a template or jig is also recommended.

Q6: Are there specific certifications required for exporting glass drill bits to the EU? A: Yes, a CE Marking with a valid Declaration of Conformity is required. Additionally, the manufacturer should ideally hold an ISO 9001 certificate.

Q7: What is the standard lead time for custom-sized glass drill bits? A: Standard sizes are typically available within 7–14 days. Custom diameters or special coatings may require 30–45 days for manufacturing and quality testing.

Q8: Can I use a standard metal drill bit on glass? A: No. Standard HSS (High-Speed Steel) bits will dull immediately and are likely to crack the glass. Only carbide or diamond-tipped bits are suitable.
