Glass Lens Procurement Report

1. Technical Specifications and Performance Metrics

The procurement of glass lenses requires a precise alignment between optical application and material properties. Based on industry standards, the selection process begins with defining the optical function: simple focusing/collimation, chromatic correction, or high-precision imaging.

• Material Variants:
  • BK7 (Borosilicate Crown): The standard for visible light applications. Typical transmission range: 350–2000 nm.
  • Fused Silica: Essential for UV and high-temperature environments. Transmission range: 180–2200 nm.
• Geometric Parameters:
  • Diameter (Ø): Standard commercial ranges span from 1 mm to 150 mm. Custom orders may extend beyond 150 mm with extended lead times.
  • Focal Length (f):
    • Singlets: Typically 2 mm to 200 mm.
    • F-Numbers (f/#): Ranges from f/1.4 (high light gathering) to f/16 (deep depth of field).
• Optical Performance:
  • Surface Quality: Standard B2B grade is typically 60-40 scratch-dig. High-precision applications require 10-5 or better.
  • Centering: Tolerance typically 3 arc-minutes for standard singlets; 1 arc-minute for precision doublets/triplets.
  • MTF (Modulation Transfer Function): Aspheric lenses are recommended for systems requiring higher MTF with fewer elements compared to spherical singlets.

Actionable Recommendation: Begin procurement by mapping the specific optical application (e.g., collimation vs. imaging) to the lens type. For visible-band systems requiring color correction, prioritize doublet or triplet configurations over singlets to minimize chromatic aberration.

2. Industry Compliance and Quality Assurance

For safety-critical applications, such as protective eyewear, compliance is non-negotiable. For industrial optics, quality assurance focuses on surface integrity and coating durability.

• Safety Standards (Protective Eyewear):
  • ANSI Z87.1+: Mandatory for high-velocity impact protection in North America.
  • EN 166: European standard, specifically looking for B/A markings for basic/impact resistance.
  • CSA Z94.3: Canadian standard for industrial eye protection.
  • Verification: Always confirm manufacturer authenticity and request a Certificate of Conformance (CoC) for every batch.
• Optical Quality Assurance:
  • Coating Durability: Hard coatings (e.g., MgF2) must withstand >10,000 cycles of abrasion testing (e.g., Taber test) for industrial environments.
  • Thermal Stability: Fused silica lenses must maintain shape and refractive index stability up to 800°C (typical for high-temp sensors).
  • Contamination Control: Lenses for cleanroom use (ISO Class 5-7) must be packaged in clean-room certified containers with particle counts <1000 particles >5µm.

Actionable Recommendation: Do not compromise on safety certifications for cost savings. For any lens intended for hazardous environments (chemical splash, high-velocity particles), strictly enforce ANSI Z87.1+ or EN166 B/A compliance. For imaging lenses, demand a CoC detailing surface quality and coating adhesion test results.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in glass lens procurement is driven by volume, material selection, and integration complexity.

• Pricing Structure:
  • Standard Singlets (BK7): $5 – $25 per unit (MOQ 100+).
  • Precision Doublets/Triplets: $40 – $150 per unit (MOQ 50+).
  • Aspheric Lenses: $80 – $300+ per unit (MOQ 25+), depending on diameter and tolerance.
  • Note: Custom coatings (AR, HR, Dichroic) add 15–30% to the base unit cost.
• Lead Times:
  • Off-the-Shelf: 1–3 weeks.
  • Custom Coatings/Aspheres: 4–8 weeks.
  • High-Volume Custom Orders: 8–12 weeks including tooling amortization.
• Integration Factors:
  • Mounting Compatibility: Ensure lens diameter matches standard lens barrels (e.g., Ø12.5mm, Ø25mm, Ø50mm).
  • Thermal Expansion: Match lens material CTE (Coefficient of Thermal Expansion) to the housing material to prevent stress birefringence or cracking.

Actionable Recommendation: Optimize costs by standardizing on BK7 singlets for non-critical focusing tasks. Reserve high-cost aspheres and fused silica only for applications requiring high MTF or UV/High-Temp performance. Consolidate orders to meet MOQs of 50–100 units to reduce per-unit pricing by approximately 20%.

4. Typical Use Cases

Glass lenses are ubiquitous across industries where precision, durability, and thermal stability are paramount.

• Industrial Safety: Protective eyewear for manufacturing, construction, and chemical handling.
  • Requirement: Impact resistance (ANSI Z87.1+), anti-fog coatings, and prescription lens compatibility (RX inserts).
• Machine Vision & Automation:
  • Requirement: High transmission, low distortion, and chromatic correction (Doublets/Triplets) for 2–200 mm focal lengths.
• Medical Devices:
  • Requirement: Biocompatible coatings, high precision (10-5 surface quality), and sterilization resistance.
• Consumer Electronics & Imaging:
  • Requirement: Miniaturized aspheres for smartphone cameras and compact projectors.
• Scientific Instrumentation:
  • Requirement: Fused silica for UV spectroscopy and high-temperature laser applications.

Actionable Recommendation: For safety applications, prioritize models with integrated prescription capabilities or compatible RX inserts to ensure worker compliance. For machine vision, specify doublets to reduce the need for complex multi-element correction in the optical path.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and the evolving demands of optical technology.

• Market Trends:
  • Miniaturization: Increasing demand for smaller diameter lenses (Ø < 10 mm) with aspheric profiles for mobile and IoT devices.
  • Sustainability: Growing preference for eco-friendly coating processes and recyclable glass materials.
  • High-Performance Computing: Rising need for lenses with ultra-low dispersion to support high-resolution AI-driven imaging systems.
• Supply Chain Resilience:
  • Diversify suppliers to mitigate risks associated with raw material (silica sand) shortages.
  • Maintain a buffer stock of standard BK7 singlets (1–3 months) to handle sudden demand spikes.
• Technological Obsolescence:
  • Avoid over-investing in legacy spherical lens designs if the target application is transitioning to computational photography, which favors aspheric elements.

Actionable Recommendation: Develop a flexible supplier agreement that allows for volume scaling without significant lead time penalties. Prioritize suppliers who offer R&D support for transitioning from spherical to aspheric designs as your product roadmap evolves.

6. Special Product Recommendations

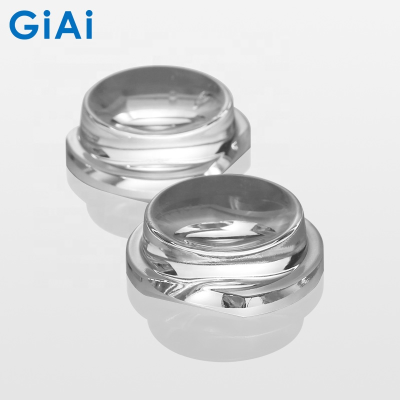

The following table compares key glass lens variants to assist in selecting the right product for specific buyer profiles.

Actionable Recommendation: For safety procurement, strictly adhere to the "Safety First" rule: verify ANSI Z87.1+ or EN166 B/A certification before purchase. For optical systems, match the lens type to the spectral requirement (BK7 for visible, Fused Silica for UV) to avoid performance degradation.

7. Frequently Asked Questions (FAQ)

Q1: Can I use standard prescription eyeglasses as safety glasses? A: No. Ordinary eyeglasses do not meet impact resistance standards (ANSI Z87.1+, EN166) and can shatter upon impact, causing severe eye injury. Always use certified safety glasses with integrated prescription lenses or compatible RX inserts.

Q2: What is the difference between BK7 and Fused Silica glass? A: BK7 is a borosilicate crown glass ideal for visible light applications (350–2000 nm) and is cost-effective. Fused Silica offers superior UV transmission (down to 180 nm) and higher thermal stability (up to 800°C), making it necessary for UV and high-temperature environments.

Q3: How do I choose between a singlet and a doublet lens? A: Choose a singlet for simple focusing or collimation where cost and size are priorities. Choose a doublet (or triplet) if you require chromatic correction in the visible band to prevent color fringing, especially in imaging or spectroscopy applications.

Q4: What certifications should I look for when buying safety glass lenses? A: Verify that the product carries ANSI Z87.1+ (North America), EN166 B/A (Europe), or CSA Z94.3 (Canada). Always request a Certificate of Conformance from the manufacturer to ensure authenticity.

Q5: What is the typical lead time for custom aspheric lenses? A: While off-the-shelf lenses ship in 1–3 weeks, custom aspheric lenses typically require 4–8 weeks for manufacturing and coating, depending on the complexity and diameter.

Q6: Are there specific coatings recommended for high-temperature environments? A: Yes. For high-temperature areas, ensure the lens is made of Fused Silica and uses a hard, durable coating (e.g., MgF2) that can withstand thermal cycling without delamination.

Q7: What is the minimum order quantity (MOQ) for custom glass lenses? A: Typical B2B MOQs range from 25 to 100 units for custom aspheres and doublets, while standard singlets may be available in smaller quantities (e.g., 10–20 units) at a higher per-unit cost.

Q8: How do I ensure the lens fits my existing optical housing? A: Verify the lens diameter (Ø) and edge thickness against your housing specifications. Standard barrel sizes include Ø12.5mm, Ø25mm, and Ø50mm. Custom diameters require a custom housing or adapter ring.
