Procurement Report: Optical Glass Lenses

1. Technical Specifications and Performance Metrics

When procuring glass lenses, the primary decision matrix must be driven by optical function rather than generic material descriptions. Procurement teams should specify parameters based on the intended application: simple focusing/collimation versus complex color correction.

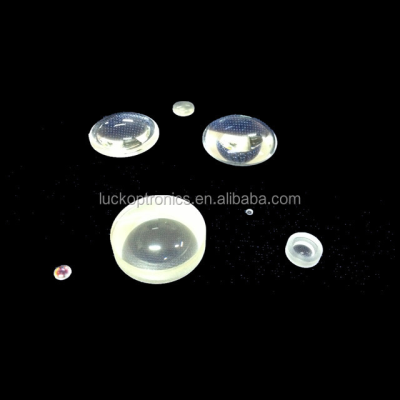

• Lens Types & Dimensions:
  • Singlets: Ideal for basic focusing. Typical diameter ranges from Ø1 mm to 150 mm. Focal ratios typically span f/1.4 to f/16.
  • Achromatic Doublets/Triplets: Required for visible-band applications to correct chromatic aberration. Effective focal lengths generally range from 2 mm to 200 mm.
• Material & Optical Properties:
  • Glass Types: Standard procurement should specify BK7 (crown glass) for general visible applications or Fused Silica for high-UV transmission and thermal stability.
  • Refractive Index ($n_d$): Must be defined per design; typical values for BK7 are ~1.517.
  • Abbe Number ($V_d$): Critical for dispersion control. A higher Abbe number (>60) indicates lower dispersion, essential for high-precision imaging.
  • Homogeneity: For high-end applications, specify homogeneity classes (e.g., $\Delta n < 2 \times 10^{-6}$) to ensure uniform light transmission.
• Coating Specifications:
  • Do not accept generic "coated" descriptions. Specify the coating band (e.g., 400–700 nm for visible, or 1064 nm for laser) and reflectivity targets (e.g., <0.25% per surface).

Actionable Recommendation: Issue RFPs that explicitly request the Abbe number, refractive index, and specific coating wavelength bands. Avoid "off-the-shelf" generic lenses for precision tasks; demand datasheets that confirm homogeneity and coating performance at the target wavelength.

2. Industry Compliance and Quality Assurance

While optical glass lenses are primarily governed by ISO standards (e.g., ISO 10110 for optical drawing), the procurement context often intersects with safety standards if the lenses are intended for protective eyewear or integrated into safety-critical systems.

• Safety Standards (Protective Eyewear Context):
  • If the glass lenses are for safety glasses, they must meet ANSI Z87.1+ (USA), EN166 (Europe), or CSA Z94.3 (Canada).
  • Impact Rating: Verify "Basic Impact" or "High Impact" ratings. High-impact lenses must withstand a 1-inch steel ball dropped from 50 inches without penetration.
  • Authentication: Procurement must verify manufacturer authenticity to avoid counterfeit safety-rated eyewear.
• Optical Quality Standards:
  • Surface Quality: Specify scratch-digit ratings (e.g., 60-40 or 40-20) to control surface defects.
  • Centering: For doublets/triplets, specify centering tolerances (e.g., <3 arcminutes) to prevent image shift.
  • Environmental Durability: Lenses intended for high-temperature areas must be verified for thermal shock resistance, particularly for fused silica.

Actionable Recommendation: For any lens intended for personnel protection, mandate a Certificate of Conformance (CoC) citing the specific safety standard (e.g., ANSI Z87.1+). For optical instruments, require a test report detailing surface quality and centering tolerances. Never compromise on safety certifications for cost savings.

3. Cost Efficiency and Integration Capabilities

Cost efficiency in glass lens procurement is a balance between material selection, coating complexity, and integration readiness.

• Cost Drivers:
  • Material: Fused silica typically costs 20–40% more than BK7 due to purity and thermal properties.
  • Complexity: Achromatic doublets/triplets command a premium over singlets, often 2x to 5x the cost of a comparable singlet, due to cementing and alignment processes.
  • Coatings: Broadband anti-reflection (AR) coatings are more expensive than single-band coatings.
• Integration Metrics:
  • MOQ (Minimum Order Quantity): Typical B2B ranges for custom optics are 10–50 units for prototyping and 100+ units for mass production.
  • Lead Time: Standard catalog items: 2–4 weeks. Custom ground/coated lenses: 6–12 weeks.
  • Mounting: Ensure lens diameters align with standard mechanical mounts (e.g., SM1, SM2 threads) to reduce custom housing costs.

Actionable Recommendation: Optimize costs by selecting singlets for non-critical focusing tasks and reserving doublets only where color correction is mandatory. For high-volume projects, negotiate volume discounts on coating runs. Verify that the lens diameter matches standard mechanical tolerances to avoid expensive custom machining of housings.

4. Typical Use Cases

Glass lenses are ubiquitous across industries where precision, durability, and thermal stability are paramount.

• Industrial Vision Systems: Machine vision cameras utilize singlets and doublets for collimation and focusing in manufacturing lines.
• Medical Devices: Endoscopes and diagnostic equipment require high-homogeneity fused silica or BK7 lenses for clear imaging in sterile environments.
• Laser Systems: Fused silica lenses are standard for UV and high-power laser applications due to their high damage threshold.
• Protective Eyewear: Safety glasses for construction, chemistry, and high-temperature environments require impact-resistant glass with specific tints and coatings.
• Consumer Optics: Camera modules, projectors, and binoculars rely on achromatic triplets for high-fidelity color reproduction.

Actionable Recommendation: Map the procurement request to the specific environment. For high-temperature or chemical exposure, prioritize fused silica and chemical-resistant coatings. For machine vision, prioritize high-homogeneity BK7 to ensure consistent focus across the field of view.

5. Long-Term Planning Considerations

Strategic procurement must account for market trends and the lifecycle of optical components.

• Market Trends:
  • Miniaturization: Demand is shifting toward smaller form factors (Ø < 10 mm) for mobile and wearable devices.
  • UV/IR Expansion: There is a growing demand for lenses optimized beyond the visible spectrum (400–700 nm) for UV curing and IR sensing.
  • Sustainability: Manufacturers are increasingly offering eco-friendly packaging and lead-free glass formulations.
• Supply Chain Resilience:
  • Glass supply chains can be volatile. Diversify suppliers for critical raw materials (e.g., high-purity silica).
  • Inventory Strategy: Maintain a buffer stock of standard singlets (BK7) but order doublets/triplets on a just-in-time basis due to longer lead times.
• Regulatory Shifts:
  • Anticipate stricter safety regulations for protective eyewear globally. Ensure current stock meets the latest ANSI/EN standards before they are updated.

Actionable Recommendation: Develop a supplier diversification strategy for custom optics to mitigate lead time risks. Plan for a transition to broader spectral coatings as industry applications expand into UV and IR. Regularly audit supplier certifications to ensure continued compliance with evolving safety standards.

6. Special Product Recommendations

The following table compares common glass lens types to assist in selecting the right product for specific buyer profiles.

Actionable Recommendation: Use this matrix to filter suppliers. If the application involves prescription wearers, explicitly demand "integrated prescription lenses" that meet safety standards, rather than aftermarket inserts which may void safety certifications.

7. Frequently Asked Questions (FAQ)

Q1: What is the difference between BK7 and Fused Silica for lens procurement? A: BK7 is a standard borosilicate crown glass suitable for visible light and general applications. Fused Silica is pure silicon dioxide, offering superior UV transmission, higher thermal stability, and better resistance to thermal shock. Choose Fused Silica for UV lasers or high-temperature environments; choose BK7 for cost-effective visible light applications.

Q2: Do safety glasses with prescription lenses need special certification? A: Yes. Standard prescription lenses do not meet safety standards. You must order safety glasses with integrated prescription lenses or certified RX inserts that specifically carry ANSI Z87.1+ or EN166 B certification. Never assume a standard pair of glasses with a clip-on is safe.

Q3: What is the typical lead time for custom achromatic doublets? A: While standard singlets can be shipped in 2–4 weeks, custom achromatic doublets or triplets typically require 6–12 weeks due to the complex grinding, cementing, and coating processes involved.

Q4: How do I verify the authenticity of safety glass lenses? A: Always confirm the manufacturer's authenticity and request a Certificate of Conformance citing the specific standard (e.g., ANSI Z87.1+). Look for permanent markings on the lens or frame indicating the standard and manufacturer.

Q5: What coating band should I specify for a general visible light camera? A: For general visible light applications, specify a coating band of 400–700 nm. Ensure the reflectivity is minimized (e.g., <0.5% per surface) across this entire range to maximize light transmission.

Q6: Can I use standard glass lenses in high-temperature industrial areas? A: Only if the glass type is specified for thermal resistance. Standard BK7 may crack under rapid thermal shock. For high-temperature areas, specify Fused Silica or heat-treated glass with verified thermal shock resistance ratings.

Q7: What is the typical Minimum Order Quantity (MOQ) for custom optical lenses? A: For prototyping, typical B2B MOQs range from 10 to 50 units. For mass production, suppliers often require 100+ units to justify the setup costs for grinding and coating.

Q8: Why is the Abbe number important when buying lenses? A: The Abbe number measures the material's dispersion (how much it spreads light into colors). A higher Abbe number means less chromatic aberration. For high-precision imaging, specify a high Abbe number (>60) to ensure sharp, color-accurate images.
